Balancers
Balancer

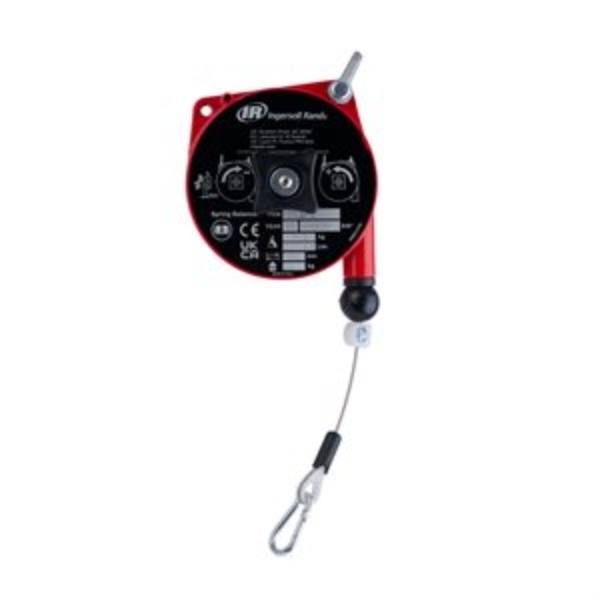

IR BLD2
IR BLD2
Light Duty Ergonomic Tool Balancer, 2.2-4.4 lb Capacity, 5.2' Lift
With more than 50 models to choose from, there's an Ingersoll-Rand balancer to satisfy virtually any balancing requirement. These balancers are ruggedly built of die cast aluminum for strength and reduced weight. They feature easy-to-use controls that allow for accurate spring adjustment.Features And Benefits
- Rugged construction, cast aluminum body
- Stainless-steel cable
- Adjustable capacity and stroke limiting device
- 4-sided 6-way adjustment knob for smoother response and better ergonomics
- Cable guide in anti-friction material
- Upper suspension shackle included on balancer for ease of installation
- Flat casing on the back of the balancer to make it easier to pack on rails
- New rope mouth bushing to help reduce wear and tear
Includes: Balancer, Cable and Upper Suspension Shackle
Product Application and Uses: Creates a gravity-free effect for tools to allow users to move tool with minimal effort along cable travel
Cable Material: Stainless steel
Capacity (lb): 2.2 - 4.4
Color: Red
Duty Rating: Light Duty
Housing Material: Aluminum
Lift (ft): 5.2
Lock Mechanism: Non-Locking
Product Length (in): 11.5
Product Width (in): 4.4
Product Height (in): 10.25
Product Weight (lb): 1.6
Reel Height (in): 11.1
Reel Mount Type: Suspension Shackle
Rotation Type: Fixed
Special Features: Adjustable Capacity
Special Features: Anti Friction Cable Guide
Tension Adjustment: Rotation
Warranty: 1-year
Similar IR
- BLD3
- BLD1

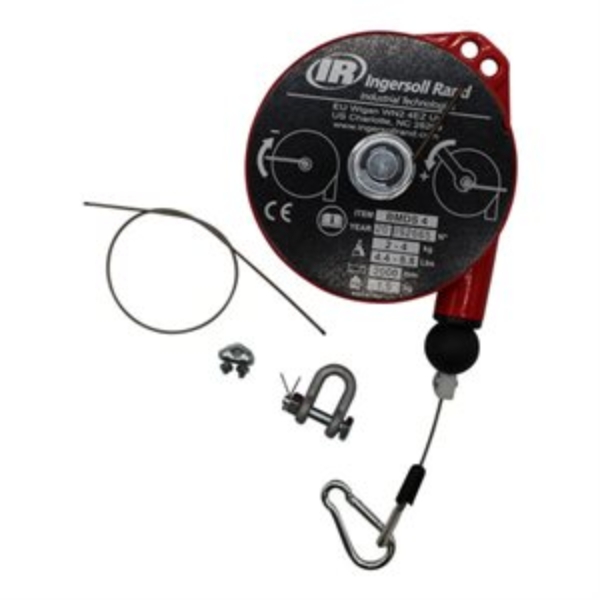

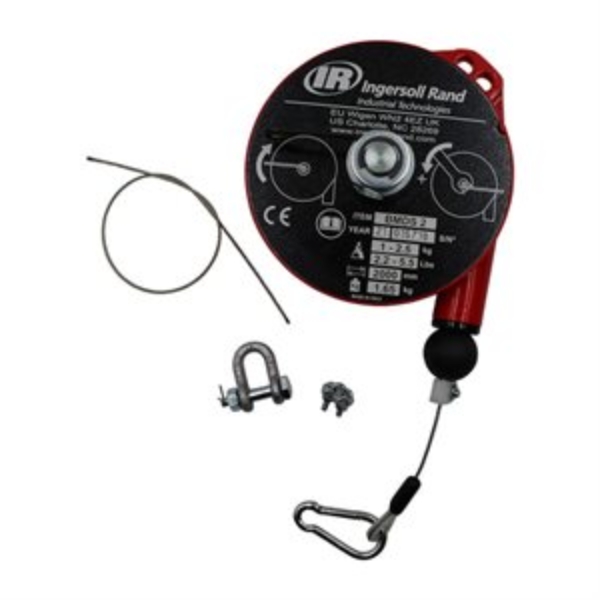

- BMDS-2
- BMDS-4
- BLD1/P
$110.00
BALANCER
IR BLD1
IR BLD1
Light Duty Ergonomic Tool Balancer, 0.9-2.2 lb Capacity, 5.2' Lift
With more than 50 models to choose from, there's an Ingersoll-Rand balancer to satisfy virtually any balancing requirement. These balancers are ruggedly built of die cast aluminum for strength and reduced weight. They feature easy-to-use controls that allow for accurate spring adjustment.Features And Benefits
- Rugged construction, cast aluminum body
- Stainless-steel cable
- Adjustable capacity and stroke limiting device
- 4-sided 6-way adjustment knob for smoother response and better ergonomics
- Cable guide in anti-friction material
- Upper suspension shackle included on balancer for ease of installation
- Flat casing on the back of the balancer to make it easier to pack on rails
- New rope mouth bushing to help reduce wear and tear
Includes: Balancer, Cable and Upper Suspension Shackle
Product Application and Uses: Creates a gravity-free effect for tools to allow users to move tool with minimal effort along cable travel
Cable Material: Stainless steel
Capacity (lb): 0.88 - 2.20
Color: Red
Duty Rating: Light Duty
Housing Material: Aluminum
Lift (ft): 5.2
Lock Mechanism: Non-Locking
Product Length (in): 11.5
Product Width (in): 4.4
Product Height (in): 10.25
Product Weight (lb): 1.6
Reel Height (in): 11.1
Reel Mount Type: Suspension Shackle
Rotation Type: Fixed
Special Features: Adjustable Capacity
Special Features: Anti Friction Cable Guide
Tension Adjustment: Rotation
Warranty: 1-year
For Use With
- 1RLNS1
- 1RPLS1
- 1RPMS1
- 1RPNS1
- 1RPQS1
- 7RAMC1
- 7RAMC1-EU
Similar IR
- BLD2
- BLD3
- BMDS-2
$110.00
BALANCER
IR BLD3
IR BLD3
Light Duty Ergonomic Tool Balancer, 4.4-6.5 lb Capacity, 5.2' Lift
With more than 50 models to choose from, there's an Ingersoll-Rand balancer to satisfy virtually any balancing requirement. These balancers are ruggedly built of die cast aluminum for strength and reduced weight. They feature easy-to-use controls that allow for accurate spring adjustment.Features And Benefits
- Rugged construction, cast aluminum body
- Stainless-steel cable
- Adjustable capacity and stroke limiting device
- 4-sided 6-way adjustment knob for smoother response and better ergonomics
- Cable guide in anti-friction material
- Upper suspension shackle included on balancer for ease of installation
- Flat casing on the back of the balancer to make it easier to pack on rails
- New rope mouth bushing to help reduce wear and tear
Includes: Balancer, Cable and Upper Suspension Shackle
Product Application and Uses: Creates a gravity-free effect for tools to allow users to move tool with minimal effort along cable travel
Cable Material: Stainless steel
Capacity (lb): 4.4 - 6.6
Color: Red
Duty Rating: Light Duty
Housing Material: Aluminum
Lift (ft): 5.2
Lock Mechanism: Non-Locking
Lower Hook: Spring Clip
Product Length (in): 11.5
Product Width (in): 4.4
Product Height (in): 10.25
Product Weight (lb): 1.6
Reel Height (in): 11.1
Reel Mount Type: Suspension Shackle
Rotation Type: Fixed
Special Features: Adjustable Capacity
Special Features: Anti Friction Cable Guide
Tension Adjustment: Rotation
Warranty: 1-year
Similar IR
- BLD2
- BLD1
- BMDS-2
- BMDS-4
- BLD1/P
$127.00
Balancer

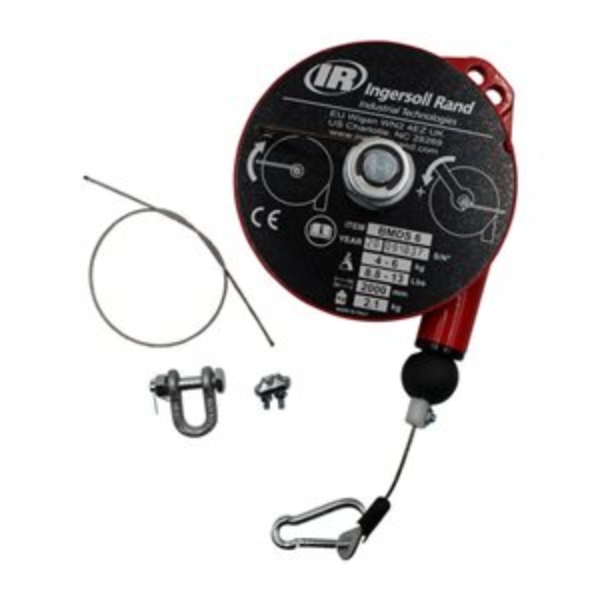

IR BMDS-6
IR BMDS-6
Medium Duty Short Cable Spring Balancer, 8.8-13.2 lb Capacity, 6.5' Lift
B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort.Features And Benefits
- Rugged construction, cast aluminum body
- Stainless steel cable and anti-friction cable guide
- Adjustable capacity
- Adjustable stroke limiting device
- Upper suspension shackle included on balancer for ease of installation
- Axial Mounting Circlip to ensure greater durability
- Screw-lock system that allows for re-beating and a higher level of reliability in a heavy-duty environments; on BMDS models only
- Anti-reverse spanner adjustable bushing to protect the balancer from potential damages caused by an incorrect spring unloading
- Safety Cap added to the front of the balancer for greater durability by absorbing impact while in motion
- Safety device against load dropping due to the spring breakage (>6.5 lb)
Cable Material: Stainless steel
Capacity (lb): 8.8 - 13.2
Color: Red
Duty Rating: Medium Duty
Housing Material: Aluminum
Lift (ft): 6.5
Lock Mechanism: Ratchet
Lower Hook: Spring Clip
Product Length (in): 11.75
Product Width (in): 5.75
Product Weight (lb): 5.1
Reel Height (in): 13.78
Reel Mount Type: Suspension Shackle
Rotation Type: Fixed
Tension Adjustment: Front Screw with Spanner Wrench
Warranty: 1-year
$325.00
BALANCER

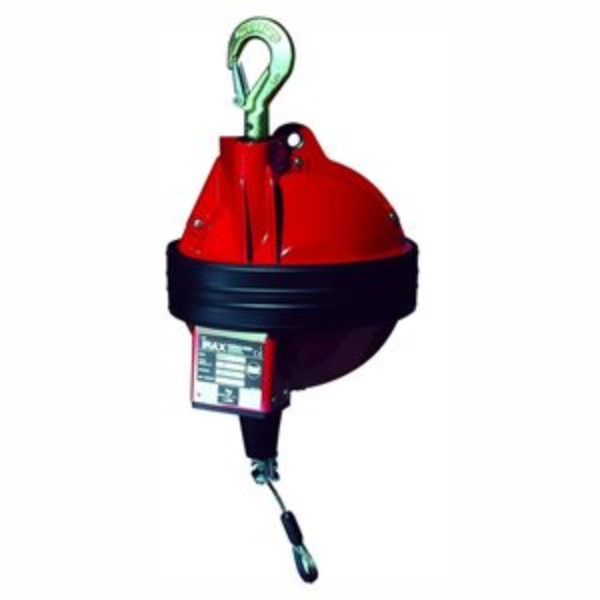

IR BHD-15
IR BHD-15
Heavy Duty Spring Balancer, 22-33 lb Capacity, 6.5' Lift
B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort. Experience the effect of tool float with our spring balancers. This “gravity-free” effect on all B Series models allows users to move tools with minimal effort along cable travel.Features And Benefits
- Stainless steel cable and anti-friction cable guide
- Gravity-free suspension capability
- Ribbed and sealed monobloc construction in aluminum alloy
- Safety device against load dropping due to the spring breakage (>6.5 lb)
- Locking device to block the load at any height
- Upper rotary suspension with safety hook
- Adjustable stroke limiting device
Cable Material: Stainless steel
Capacity (lb): 22 - 33
Color: Red
Duty Rating: Heavy Duty
Housing Material: Aluminum
Lift (ft): 6.5
Lock Mechanism: Non-Locking
Lower Hook: Spring Loaded Safety Hook
Product Length (in): 8.7
Product Width (in): 9.8
Product Height (in): 24
Product Weight (lb): 22.7
Reel Height (in): 25.47
Reel Mount Type: Spring Loaded Safety Hook
Rotation Type: Swiveling
Tension Adjustment: Worm Screw
Warranty: 1-year
$1,215.00
BALANCER CONTROL KIT INLINE HANDLE
IR BW-IH-KIT
IR BW-IH-KIT
BALANCER CONTROL KIT INLINE HANDLE
$2,460.00

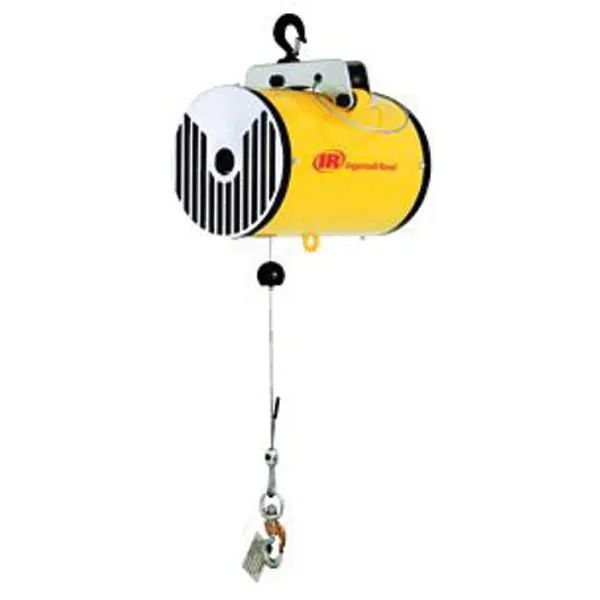

Balancer, 350 Lb., 80 In. Travel

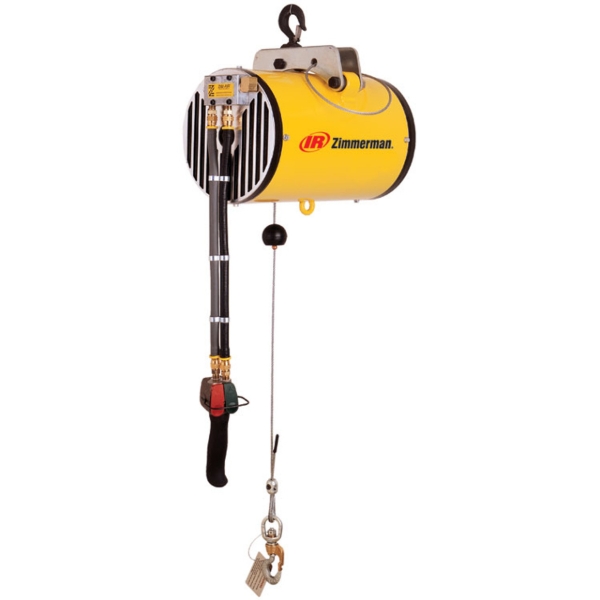

ZM ZAW035080
ZM ZAW035080
Balancer, 350 Lb., 80 In. Travel
$5,875.00
