IR W9491

1" IQV20X2 IMPACT WRENCH

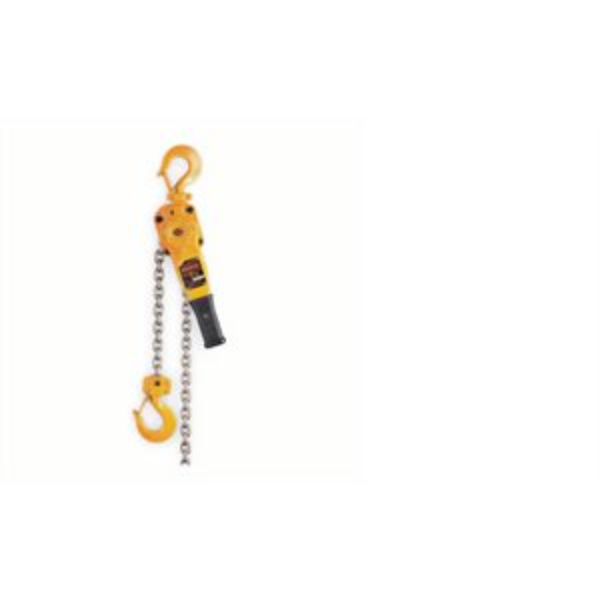

HA LB030-15

Harrington's LB Lever hoists combine easy operation with a compact, low headroom design that easily handles real-world demands. Rated the number 1 selling Lever Hoist in the U.S., these hoists can be used horizontally, vertically, inverted or at any other load angle and have the strength to get the job done.

Product Line - Manulal Hoist
Product Name - LB Lever Hoist
Capacity: 3 Ton

• Capacities - 3/4 Ton through 9 Ton
• Compact design makes it a perfect fit for use in tight quarters
• Steel body is more durable yet lighter weight than die cast aluminum models
• Revolutionary freewheeling offers one handed operation
• 360 degree handle rotation and pivot & swivel top hook for easy rigging
• Single load Chain through 3 Tons
• Net Weight: 100 lbs

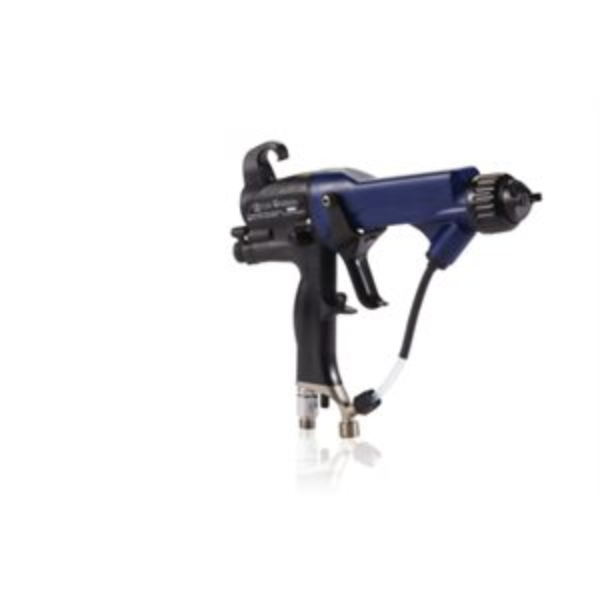

GG L85T10

PRO XP GUN, ES, 85KV

Graco L85T10 Pro Xp85 Air Spray Manual Electrostatic General Gun Model, 85 kV, 0.055 in (1.5 mm) nozzle, standard display, standard coatings

The 85 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market.

• Internal power supply reduces operator fatigue with no heavy cords to slow painters down.
• The electrostatic gun meets strict requirements for spray pattern, mechanical and electrical performance.
• Built-in durability means the paint spray gun is designed to last – and made in the USA.
• Rugged, dependable design supported by a three year warranty.
• Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements.

• Model: Pro Xp
• Series: 85

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Standard
• Applicator Type: Manual

• Coating Type: Standard, Specialty

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes

• Display Type: Standard

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 676
• Gun Weight (kg): 0.675
• Gun Weight (lb): 1.49
• Gun Weight (oz): 23.81

• Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Paint Resistivity (megohm/cm): Infinity

• Minimum Paint Resistivity (megohm/cm): 25

• Nozzle Size (cm): 0.15
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.5

• Overall Length (cm): 26.67
• Overall Length (in): 10.5
• Overall Length (mm): 266.7

BB 2465-14HV-32S0

Trophy Gun Pressure/Siphon, 1.4X32Hvlp

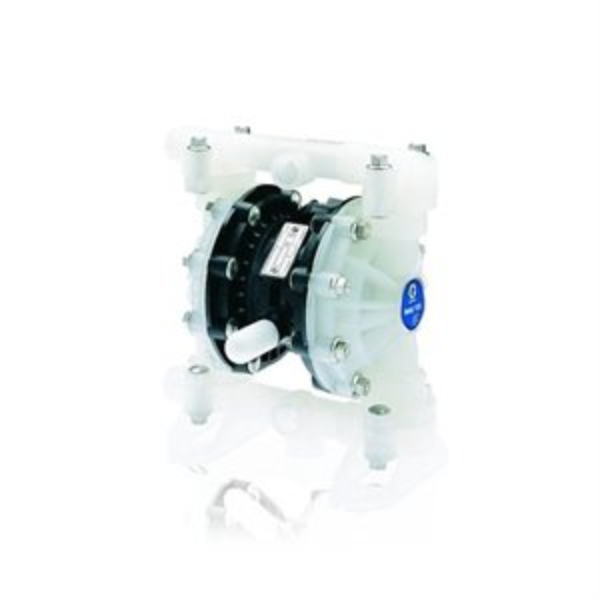

GG D52966

HUSKY PUMP, 515P-PP01AP3PPSPSPPT0

Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance.

GV 1017913

RP 3039

Paint Arrestor, Std, 40ft x 45in, 1/Bag

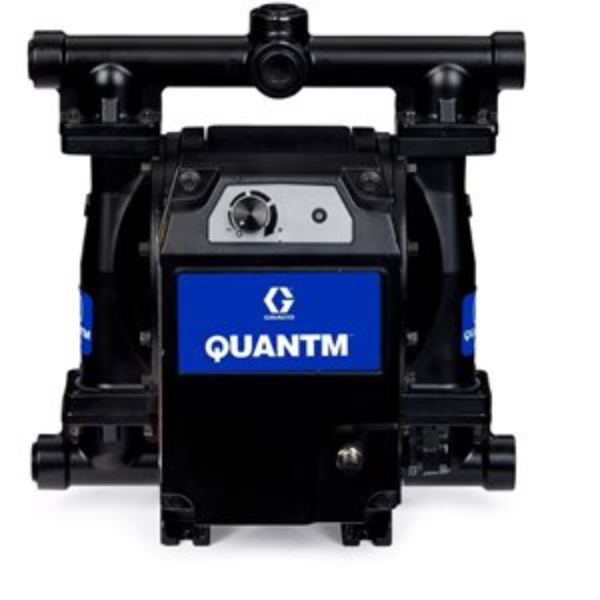

GG TE30-0014

QUANTM PUMP, QTC-ALFC5SPSPSPPTA100

QUANTM i30, 1"NPT, Aluminum Electric Diaphragm Pump, 120 VAC 1Ph, AL Center, SP Seat, SP Ball, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• Powder-coated aluminum electric drive
• 120 VAC 1Ph motor with 15 ft cord and NEMA 5-15 plug
• Non-hazardous

Materials of Construction

• Aluminum fluid section with NPT end port
• Internal components include Santoprene seat, Santoprene ball, Santoprene diaphragm and PTFE manifold o-ring
