Valves and Cylinders

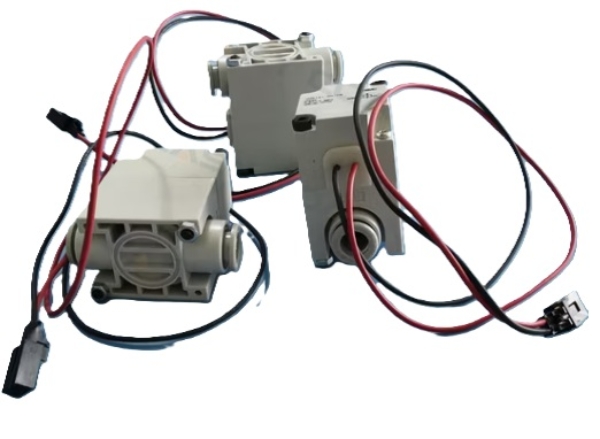

GV 1003914

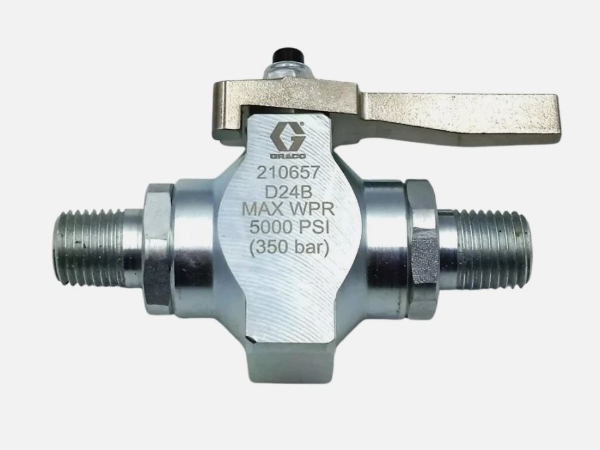

GG 210657

GG 121324

VALVE, SOLENOID, 3-WAY, .24W

Graco 121324 Solenoid 3-Way Dump Valve- .25 W

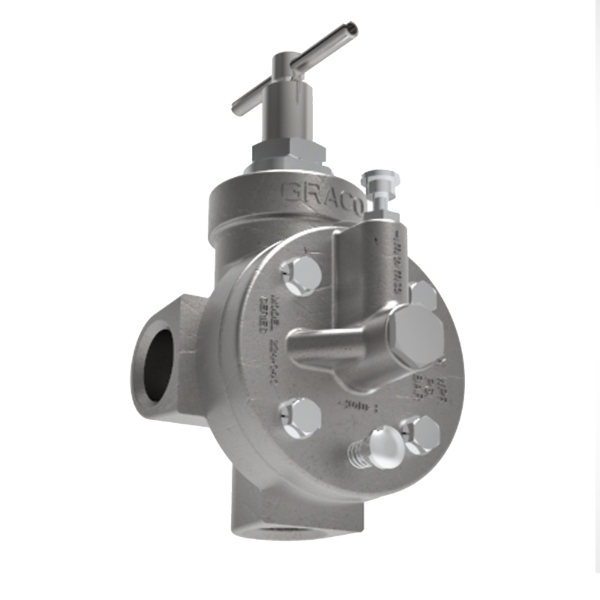

GG 224040

VALVE, RUNAWAY

Graco 224040 3/4 in NPT Pump Runaway Valve

Prevents pump damage by automatically closing the air line to stop the pump when a runaway pump condition occurs due to an empty barrel or hose leak

• Includes: 0.375 in (0.95 cm) Long #10-32 UNF-2a Machine Screw, (2) Compression Spring, (2) Push Button, (4) 1/4 in (6.35 mm) Spring Lockwasher, (4) 20 mm Long M6 x 1 Hex Head Cap Screw, (4) Buna-N O-Ring, 3/4 in NPT Male x 3/4 in NPSM Female Swivel Adapter, 3/4-32 UN-2b Hex Jam Nut, Adjustment Screw, Copper Gasket, Diaphragm, Dowel Pin, Lower Valve Housing, Nitrile O-Ring, O-Ring, PTFE Gasket, Piston, Push Pin, Retainer Spring Cap, Stem Guide, Straight Spring Pin, Upper Valve Housing, Valve Body, Valve Housing, Valve Needle, Valve Poppet, Warning Label
• Inlet Size (in): 3/4

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Air Pressure (bar): 8.4

• Maximum Air Pressure (kPa): 840
• Maximum Air Pressure (psi): 120

• Maximum Operating Temperature ( degree C): 65.5
• Maximum Operating Temperature ( degree F): 150

• Maximum Working Pressure (bar): 8.3
• Maximum Working Pressure (kPa): 830
• Maximum Working Pressure (MPa): 0.8
• Maximum Working Pressure (psi): 120

• Outlet Size (in): 3/4
• Outlet Thread Gender: Female
• Outlet Thread Type: NPT

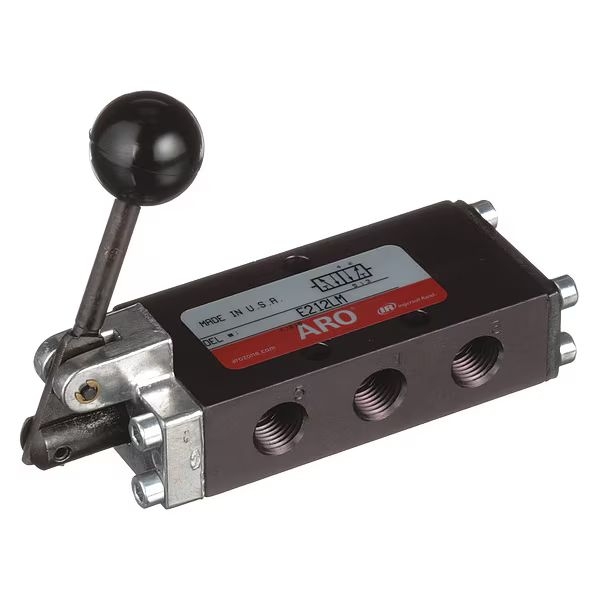

AA E212LM

GG 122056

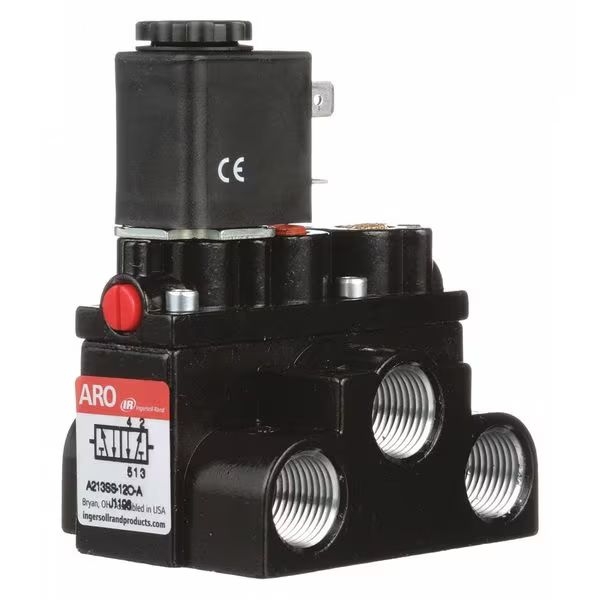

AA A213SS-120-A

AA A212PD

AA A212SS-024-D

GG 116172

SWITCH, LIMIT, PNEUMATIC

Graco 116172 Pneumatic Limit Switch

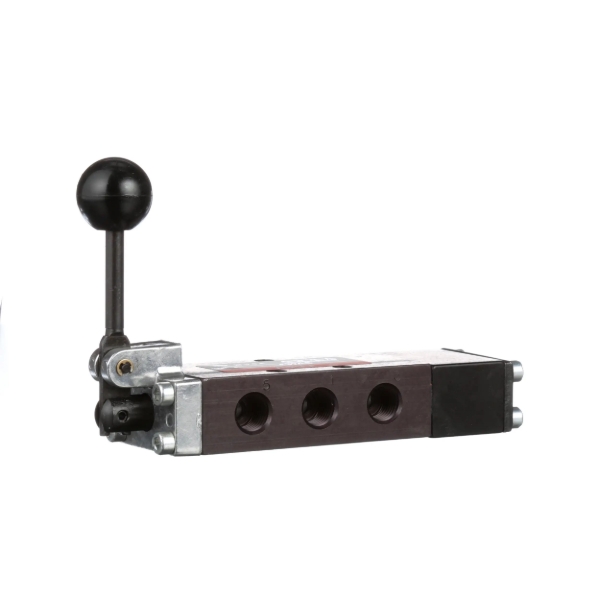

AA E312LS

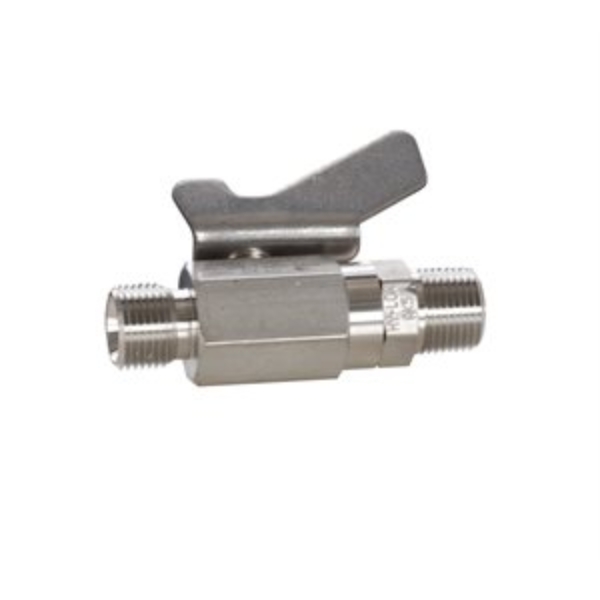

GG 237533

VALVE, BALL

Graco 237533 Low Pressure Ball Valve compatible with stainless steel, catalyst and waterborne materials, 3/8 in. npsm(m) x 3/8 in. npt(m)

Use for on/off fluid control. Allows safer system operation by permitting relief of fluid pressure or isolation of components from pressure during maintenance. Ball vales must be used in the fully open or closed position. Do not throttle the valve - it could cause premature seal failure.

• Stainless steel and PTFE materials are compatible with catalyst, waterborne, and other finishing materials
• Many different connection options to meet your specific needs

• Handle Type: Lever

• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Male
• Inlet Thread Type: NPSM

• Maximum Working Pressure (bar): 35
• Maximum Working Pressure (kPa): 3500
• Maximum Working Pressure (MPa): 3.5
• Maximum Working Pressure (psi): 500

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male
• Outlet Thread Type: NPT

AM SC3400

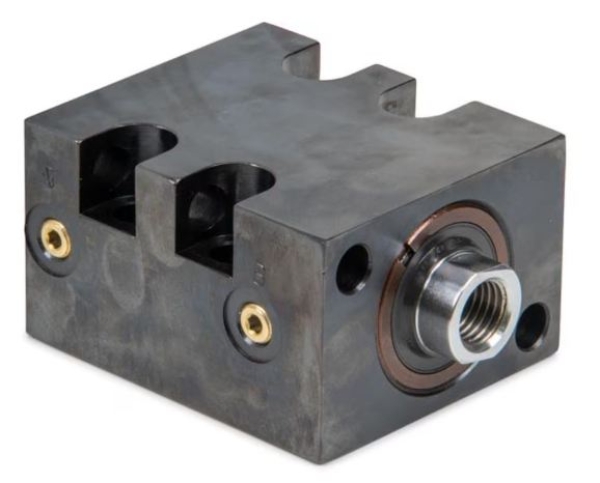

EP CDB-40502

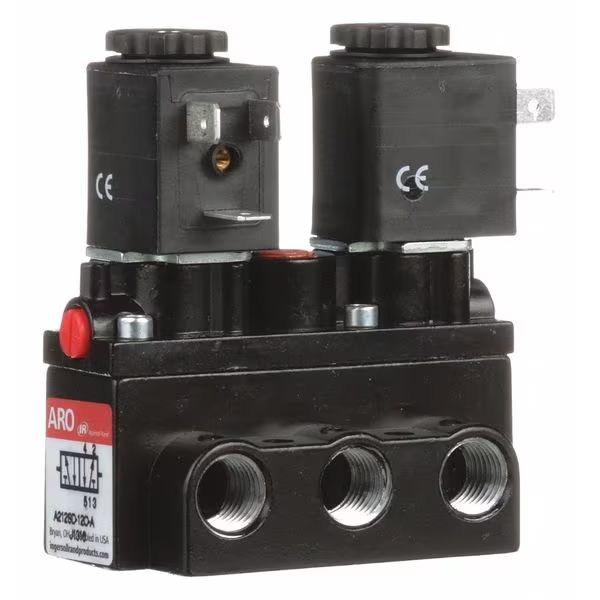

AA A212SD-120-A

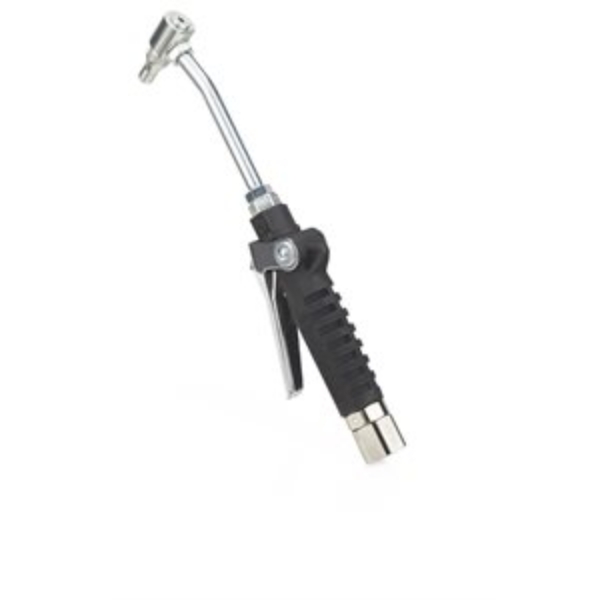

GG 247714

SDV15 VALVE, GEAR LUBE EXT

Graco 247714 SDV15 Series Gear Fluid Control Valve - Gear Extension - 1/2 in. (13 mm) Inlet - NPT

For standard and heavy-duty applications, both indoor and outdoor, the SDV15 control valves are designed to perform in larger dealerships with longer plumbing runs and greater fluid usage. The control valve is compatible with a wide range of nozzles and fluid extensions and is capable of pumping oil up to 15 gpm (56.8 lpm).

• Lock-on/Lock-off trigger allows hands free operation
• Sturdy cast body designed for use in tough environments
• Inlet 1/2 in. NPT with swivel

• Model: SDV15

• Compatible Material: Gear Lube

• Dispense Type: Manual

• Display Type: N/A

• Extension Type: Gear Lube

• Includes: Nozzle, Extension
• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Operating Temperature ( degree C): 82
• Maximum Operating Temperature ( degree F): 180

• Maximum Working Pressure (bar): 103.4
• Maximum Working Pressure (kPa): 10340
• Maximum Working Pressure (psi): 1500

• Minimum Operating Temperature ( degree C): -40
• Minimum Operating Temperature ( degree F): -40

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Gender: Female
• Outlet Thread Type: Straight Thread O-Ring Boss

• Recommended Environment: Indoor, Outdoor

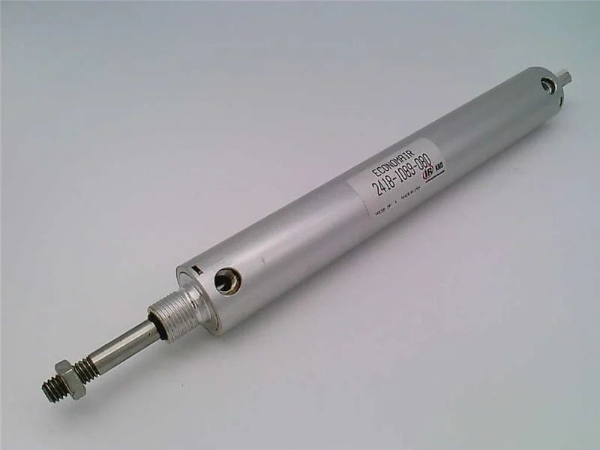

AA 2418-1089-080

GG 15B202

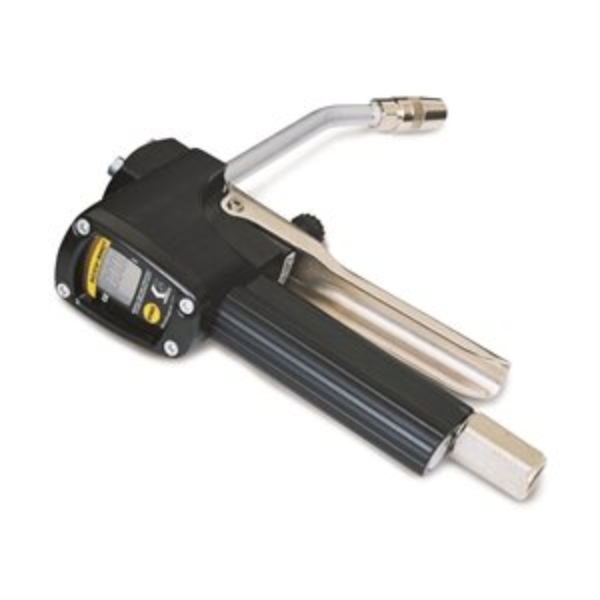

GG 233807

VALVE, METERED, GREASE

Graco 233807 Standard Nozzle Extension and 1/4 in. NPT Inlet, U.S. Measurement, Includes Extension and Hydraulic Coupler NLGI#2

Designed to perform in heavy-equipment shops, fleet maintenance

shops, municipal garages and higher-volume in-plant applications

with longer plumbing runs and larger fluid usage.

Application: Typical applications include heavy-duty dealerships, fleet service facilities, in-plant, lube trucks, and mining.

• Easy-to-Read LCD
• Easily reset electronic display.
• Accurate Grease Metering
• Handles Pressure up to 5,000 psi (345 bar)
• Flow up to 36 oz/min (1 kg/min).

• Approvals: CE

• Compatible Material: Grease

• Dispense Type: Manual

• Extension Type: Rigid

• Fluid Inlet Thread Gender: Female

• Fluid Outlet Thread Gender: Female

• Includes: Extension, Hydraulic Coupler
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPTF

• Maximum Operating Temperature ( degree C): 60
• Maximum Operating Temperature ( degree F): 140

• Maximum Storage Temperature ( degree C): 70
• Maximum Storage Temperature ( degree F): 158

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (MPa): 34.5
• Maximum Working Pressure (psi): 5000
• Meter Accuracy (%): plus/minus 00.3
• Meter Technology: Oval Gears

• Metering Gun Weight (kg): 1.0
• Metering Gun Weight (lb): 2.2

• Nozzle Type: Rigid

• Outlet Size (cm): 0.3175
• Outlet Size (in): 1/8
• Outlet Size (mm): 3.175
• Outlet Thread Type: NPTF

• Overall Height (cm): 22.35
• Overall Height (in): 8.8
• Overall Height (mm): 223.5
• Overall Length (cm): 8.13
• Overall Length (in): 3.2
• Overall Length (mm): 81.28
• Overall Width (cm): 4.572
• Overall Width (in): 1.8
• Overall Width (mm): 45.72

• Power Type: Electric

• Recommended Environment: Indoor

GG 248429

KIT, DISPENSE VALVE NDL/SEAT

Graco 248429 Dispense Valve Repair Kit

AA M212LM

GG 103347

SX 74008

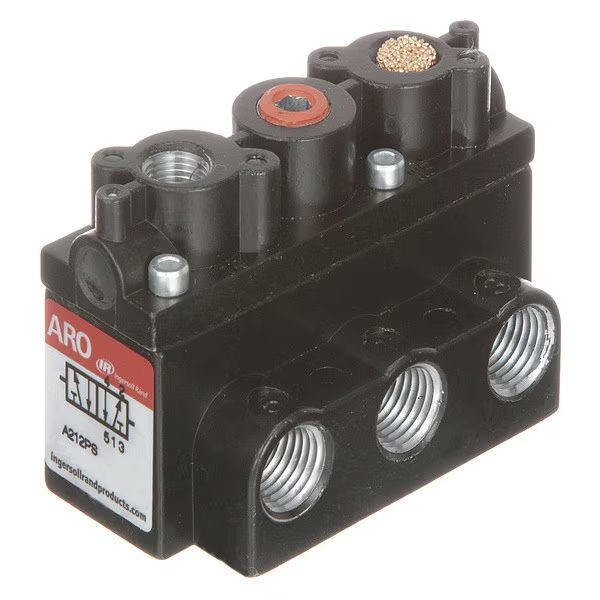

AA A212PS

GG 121107

VALVE,CONTROL,MANIFOLD MOUNTING
