Plural Component
FUSION AP GUN, ROUND 01
GG 246101
FUSION AP GUN, ROUND 01
Graco 246101 Round Fusion Air-Purge Gun with 01 Mix Chamber and 0.042 in (1.6 mm) Orifice Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Round
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Applicator Type: Manual
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16-18
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.107
- Fluid Orifice Size (in): 0.042
- Fluid Orifice Size (mm): 1.07
- For Use With: Non-Flammable Foam and Polyurea
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.042
- Impingement Port Size (mm): 1.00
- Includes: AR4242 Mix Chamber Tip
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 245
- Maximum Fluid Working Pressure (MPa): 24.5
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 01 (.042)
- Overall Hei

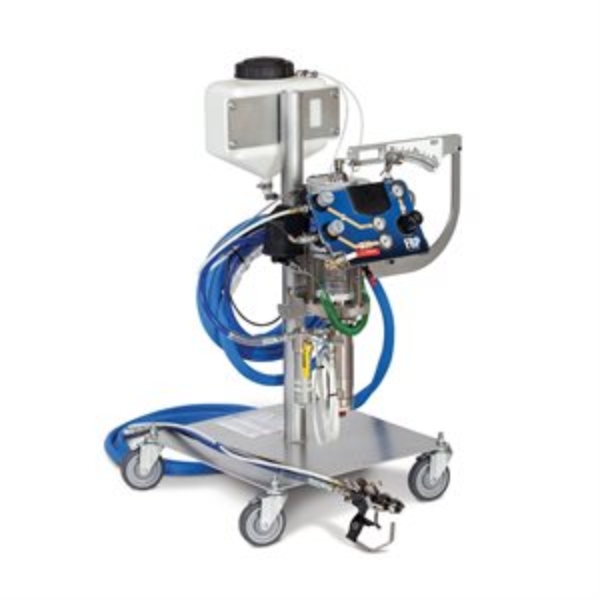

FRP RS GEL SYSTEM, XG, 13:1, CART, 25
GG 16R001
FRP RS GEL SYSTEM, XG, 13:1, CART, 25
13:1 Ratio External Mix Gel System with 25 ft (7.6 m) Hose and CartTo keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.Optimized ratio stability
- Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
- Precision engineered linkage offers you superior ratio control and consistent cure
Lower cost of ownership
- Easy maintenance - fewer repair parts
- Long lasting seals mean less downtime
- Pumps last longer between planned maintenances
- No surge bottle necessary, less parts, solvent and resin needed to prime the pump
Optional DataTrak™ Control
- Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
- Tracks cycles for preventive maintenance schedule
- Displays real time flow rate - eliminates material waste due to worn spray tips
Roving Management System
- Better guides—less tangling, more uptime
Gravity Fed Catalyst System
- Keeps the catalyst pump primed for consistent delivery
New Linkage and Catalyst Pump
- Truly engineered linkage for superior ratio control
- Allows for infinite adjustment of catalyst percentage — no tools required
- Ensures proper catalyst percentage and optimum results
- Variance of 1% or less
Balanced Graco NXT® Air Motor
- Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
- Shortened stroke on pump for better spray pattern
Control Panel
- Easy user interface with all gauges in one location
Stable, Lightweight Cart
- Easy to maneuver
- Strong, durable casters
FRP RS GEL SYSTEM, XG, 17:1, CART, 25
GG 16R005
FRP RS GEL SYSTEM, XG, 17:1, CART, 25
17:1 Ratio External Mix Gel System with 25 ft (7.6 m) Hose and CartTo keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.Optimized ratio stability
- Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
- Precision engineered linkage offers you superior ratio control and consistent cure
Lower cost of ownership
- Easy maintenance - fewer repair parts
- Long lasting seals mean less downtime
- Pumps last longer between planned maintenances
- No surge bottle necessary, less parts, solvent and resin needed to prime the pump
Optional DataTrak™ Control
- Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
- Tracks cycles for preventive maintenance schedule
- Displays real time flow rate - eliminates material waste due to worn spray tips
Roving Management System
- Better guides—less tangling, more uptime
Gravity Fed Catalyst System
- Keeps the catalyst pump primed for consistent delivery
New Linkage and Catalyst Pump
- Truly engineered linkage for superior ratio control
- Allows for infinite adjustment of catalyst percentage — no tools required
- Ensures proper catalyst percentage and optimum results
- Variance of 1% or less
Balanced Graco NXT® Air Motor
- Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
- Shortened stroke on pump for better spray pattern
Control Panel
- Easy user interface with all gauges in one location
Stable, Lightweight Cart
- Easy to maneuver
- Strong, durable casters
FRP RS GEL SYSTEM, XG, 13:1, CART, 50
GG 16R012
FRP RS GEL SYSTEM, XG, 13:1, CART, 50
Graco 16R012 13:1 Ratio External Mix Gel System with 50 ft (15.2 m) Hose and Cart
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.- Optimized ratio stability
- Lower cost of ownership
- Optional DataTrak™ Control
- Gravity Fed Catalyst System
- New Linkage and Catalyst Pump
- Balanced Graco NXT® Air Motor
- Control Panel
- Stable, Lightweight Cart
Easy to maneuver
Strong, durable casters
- Model: FRP
- Series: XG
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Component A Inlet Size (in): 3/8
- Component B Inlet Size (in): 1-5/16
- Component B Thread Gender: Male
- Component B Thread Type: UN-2A
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Hose Length (ft): 50
- Hose Length (m): 15.2
- Includes: Hose, C
Easy user interface with all gauges in one location
- Stable, Lightweight Cart
Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
Shortened stroke on pump for better spray pattern
- Control Panel
Truly engineered linkage for superior ratio control
Allows for infinite adjustment of catalyst percentage — no tools required
Ensures proper catalyst percentage and optimum results
Variance of 1% or less
- Balanced Graco NXT® Air Motor
Keeps the catalyst pump primed for consistent delivery
- New Linkage and Catalyst Pump
Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
Tracks cycles for preventive maintenance schedule
Displays real time flow rate - eliminates material waste due to worn spray tips
- Gravity Fed Catalyst System
Easy maintenance - fewer repair parts
Long lasting seals mean less downtime
Pumps last longer between planned maintenances
No surge bottle necessary, less parts, solvent and resin needed to prime the pump
- Optional DataTrak™ Control
Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
Precision engineered linkage offers you superior ratio control and consistent cure
- Lower cost of ownership

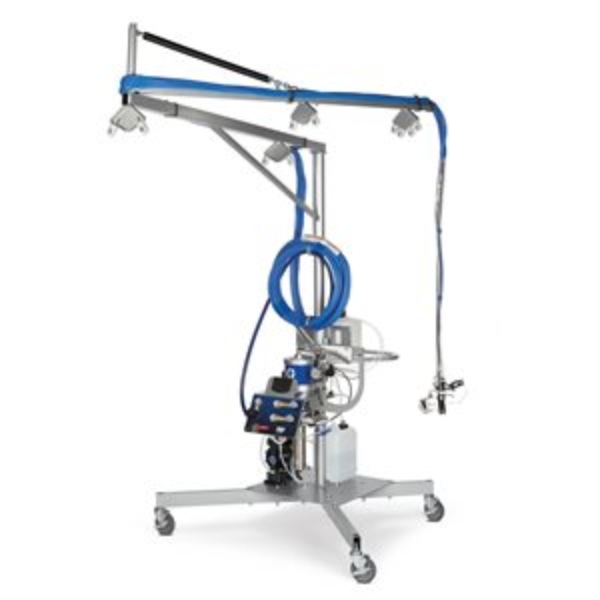

FRP RS GEL SYSTEM, XG, 13:1, CMB, 25
GG 16R018
FRP RS GEL SYSTEM, XG, 13:1, CMB, 25
Graco 16R018 13:1 Ratio External Mix Gel System with 25 ft (7.6 m) Hose, Cart, Mast, and Boom
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.- Optimized ratio stability
- Lower cost of ownership
- Optional DataTrak™ Control
- Gravity Fed Catalyst System
- New Linkage and Catalyst Pump
- Balanced Graco NXT® Air Motor
- Control Panel
- Stable, Lightweight Cart
Easy to maneuver
Strong, durable casters
- Model: FRP
- Series: XG
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Component A Inlet Size (in): 3/8
- Component A Inlet Size (mm): 9.525
- Component B Inlet Size (in): 1-5/16
- Component B Inlet Size (mm): 33.34
- Component B Thread Gender: Male
- Component B Thread Type: UN-2A
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
Easy user interface with all gauges in one location
- Stable, Lightweight Cart
Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
Shortened stroke on pump for better spray pattern
- Control Panel
Truly engineered linkage for superior ratio control
Allows for infinite adjustment of catalyst percentage — no tools required
Ensures proper catalyst percentage and optimum results
Variance of 1% or less
- Balanced Graco NXT® Air Motor
Keeps the catalyst pump primed for consistent delivery
- New Linkage and Catalyst Pump
Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
Tracks cycles for preventive maintenance schedule
Displays real time flow rate - eliminates material waste due to worn spray tips
- Gravity Fed Catalyst System
Easy maintenance - fewer repair parts
Long lasting seals mean less downtime
Pumps last longer between planned maintenances
No surge bottle necessary, less parts, solvent and resin needed to prime the pump
- Optional DataTrak™ Control
Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
Precision engineered linkage offers you superior ratio control and consistent cure
- Lower cost of ownership
FRP RS GEL SYSTEM, IG, 13:1, CART, NH
GG 16R050
FRP RS GEL SYSTEM, IG, 13:1, CART, NH
Graco 16R050 13:1 Ratio Cart Mounted Internal Mix Gel System
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.- Optimized Ratio Stability
- Lower Cost of Ownership
- Optional DataTrak™ Control
- Gravity Fed Catalyst System
- New Linkage and Catalyst Pump
- Balanced Graco NXT® Air Motor
- Control Panel
- Stable, Lightweight Cart
Easy to maneuver
Strong, durable casters
- Model: FRP
- Series: IG
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Component A Inlet Size (in): 3/8
- Component B Inlet Size (in): 1-5/16
- Component B Thread Gender: Male
- Component B Thread Type: UN-2A
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Includes: Cart
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa)
Easy user interface with all gauges in one location
- Stable, Lightweight Cart
Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
Shortened stroke on pump for better spray pattern
- Control Panel
Truly engineered linkage for superior ratio control
Allows for infinite adjustment of catalyst percentage — no tools required
Ensures proper catalyst percentage and optimum results
Variance of 1% or less
- Balanced Graco NXT® Air Motor
Keeps the catalyst pump primed for consistent delivery
- New Linkage and Catalyst Pump
Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
Tracks cycles for preventive maintenance schedule
Displays real time flow rate - eliminates material waste due to worn spray tips
- Gravity Fed Catalyst System
Easy maintenance - fewer repair parts
Long lasting seals mean less downtime
Pumps last longer between planned maintenances
No surge bottle necessary, less parts, solvent and resin needed to prime the pump
- Optional DataTrak™ Control
Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
Precision engineered linkage offers you superior ratio control and consistent cure
- Lower Cost of Ownership

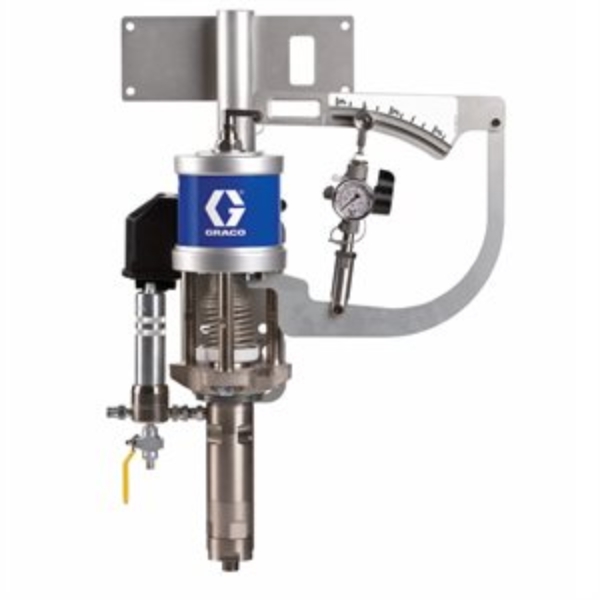

FRP RS CHOP SYSTEM, XC, 13:1, NO, NH
GG 16R109
FRP RS CHOP SYSTEM, XC, 13:1, NO, NH
Graco 16R109 13:1 Ratio External Mix Chop System
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.- Optimized ratio stability
- Lower cost of ownership
- Optional DataTrak™ Control
- Gravity Fed Catalyst System
- New Linkage and Catalyst Pump
- Balanced Graco NXT® Air Motor
- Control Panel
Easy user interface with all gauges in one location
- Model: FRP
- Series: XC
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Component A Inlet Size (in): 3/8
- Component A Inlet Size (mm): 9.525
- Component B Inlet Size (in): 1-5/16
- Component B Inlet Size (mm): 33.34
- Component B Thread Gender: Male
- Component B Thread Type: UN-2A
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 6.9
Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
Shortened stroke on pump for better spray pattern
- Control Panel
Truly engineered linkage for superior ratio control
Allows for infinite adjustment of catalyst percentage — no tools required
Ensures proper catalyst percentage and optimum results
Variance of 1% or less
- Balanced Graco NXT® Air Motor
Keeps the catalyst pump primed for consistent delivery
- New Linkage and Catalyst Pump
Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
Tracks cycles for preventive maintenance schedule
Displays real time flow rate - eliminates material waste due to worn spray tips
- Gravity Fed Catalyst System
Easy maintenance - fewer repair parts
Long lasting seals mean less downtime
Pumps last longer between planned maintenances
No surge bottle necessary, less parts, solvent and resin needed to prime the pump
- Optional DataTrak™ Control
Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
Precision engineered linkage offers you superior ratio control and consistent cure
- Lower cost of ownership
FRP RS CHOP SYSTEM, IC, 13:1, CMB, 35
GG 16R126
FRP RS CHOP SYSTEM, IC, 13:1, CMB, 35
Graco 16R126 13:1 Ratio Internal Mix Chop System with 35 ft (10.7 m) Hose, Cart, Mast, and Boom
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.- Optimized Ratio Stability
- Lower Cost of Ownership
- Optional DataTrak™ Control
- Gravity Fed Catalyst System
- New Linkage and Catalyst Pump
- Balanced Graco NXT® Air Motor
- Control Panel
- Stable, Lightweight Cart
Easy to maneuver
Strong, durable casters
- Model: FRP
- Series: IC
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Component A Inlet Size (in): 3/8
- Component B Inlet Size (in): 1-5/16
- Component B Thread Gender: Male
- Component B Thread Type: UN-2A
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
Easy user interface with all gauges in one location
- Stable, Lightweight Cart
Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
Shortened stroke on pump for better spray pattern
- Control Panel
Truly engineered linkage for superior ratio control
Allows for infinite adjustment of catalyst percentage — no tools required
Ensures proper catalyst percentage and optimum results
Variance of 1% or less
- Balanced Graco NXT® Air Motor
Keeps the catalyst pump primed for consistent delivery
- New Linkage and Catalyst Pump
Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
Tracks cycles for preventive maintenance schedule
Displays real time flow rate - eliminates material waste due to worn spray tips
- Gravity Fed Catalyst System
Easy maintenance - fewer repair parts
Long lasting seals mean less downtime
Pumps last longer between planned maintenances
No surge bottle necessary, less parts, solvent and resin needed to prime the pump
- Optional DataTrak™ Control
Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
Precision engineered linkage offers you superior ratio control and consistent cure
- Lower Cost of Ownership
FRP RS CHOP SYSTEM, IC, 13:1, NO, 25
GG 16R135
FRP RS CHOP SYSTEM, IC, 13:1, NO, 25
Graco 16R135 13:1 Ratio Internal Mix Chop System with 25 ft (7.6 m) Hose
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.- Optimized Ratio Stability
- Lower Cost of Ownership
- Optional DataTrak™ Control
- Gravity Fed Catalyst System
- New Linkage and Catalyst Pump
- Balanced Graco NXT® Air Motor
- Control Panel
- Stable, Lightweight Cart
Easy to maneuver
Strong, durable casters
- Model: FRP
- Series: IC
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Component A Inlet Size (in): 3/8
- Component A Inlet Size (mm): 9.525
- Component B Inlet Size (in): 1-5/16
- Component B Inlet Size (mm): 33.34
- Component B Thread Gender: Male
- Component B Thread Type: UN-2A
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (
Easy user interface with all gauges in one location
- Stable, Lightweight Cart
Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
Shortened stroke on pump for better spray pattern
- Control Panel
Truly engineered linkage for superior ratio control
Allows for infinite adjustment of catalyst percentage — no tools required
Ensures proper catalyst percentage and optimum results
Variance of 1% or less
- Balanced Graco NXT® Air Motor
Keeps the catalyst pump primed for consistent delivery
- New Linkage and Catalyst Pump
Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
Tracks cycles for preventive maintenance schedule
Displays real time flow rate - eliminates material waste due to worn spray tips
- Gravity Fed Catalyst System
Easy maintenance - fewer repair parts
Long lasting seals mean less downtime
Pumps last longer between planned maintenances
No surge bottle necessary, less parts, solvent and resin needed to prime the pump
- Optional DataTrak™ Control
Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
Precision engineered linkage offers you superior ratio control and consistent cure
- Lower Cost of Ownership
FRP RS CHOP SYSTEM, IC, 13:1, NO, 50
GG 16R141
FRP RS CHOP SYSTEM, IC, 13:1, NO, 50
13:1 Ratio Internal Mix Chop System with 50 ft (15.2 m) HoseTo keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.Optimized Ratio Stability
- Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
- Precision engineered linkage offers you superior ratio control and consistent cure
Lower Cost of Ownership
- Easy maintenance - fewer repair parts
- Long lasting seals mean less downtime
- Pumps last longer between planned maintenances
- No surge bottle necessary, less parts, solvent and resin needed to prime the pump
Optional DataTrak™ Control
- Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
- Tracks cycles for preventive maintenance schedule
- Displays real time flow rate - eliminates material waste due to worn spray tips
Roving Management System
- Better guides—less tangling, more uptime
Gravity Fed Catalyst System
- Keeps the catalyst pump primed for consistent delivery
New Linkage and Catalyst Pump
- Truly engineered linkage for superior ratio control
- Allows for infinite adjustment of catalyst percentage — no tools required
- Ensures proper catalyst percentage and optimum results
- Variance of 1% or less
Balanced Graco NXT® Air Motor
- Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
- Shortened stroke on pump for better spray pattern
Control Panel
- Easy user interface with all gauges in one location
Stable, Lightweight Cart
- Easy to maneuver
- Strong, durable casters
FRP RS GEL SYSTEM, XG, 17:1, CMB, 25
GG 16R158
FRP RS GEL SYSTEM, XG, 17:1, CMB, 25
Graco 16R158 17:1 Ratio External Mix Gel System with 25 ft (7.6 m) Hose, Cart, Mast, and Boom
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.- Optimized ratio stability
- Lower cost of ownership
- Optional DataTrak™ Control
- Gravity Fed Catalyst System
- New Linkage and Catalyst Pump
- Balanced Graco NXT® Air Motor
- Control Panel
- Stable, Lightweight Cart
Easy to maneuver
Strong, durable casters
- Model: FRP
- Series: XG
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Component A Inlet Size (in): 3/8
- Component A Inlet Size (mm): 9.525
- Component B Inlet Size (in): 1-5/16
- Component B Inlet Size (mm): 33.34
- Component B Thread Gender: Male
- Component B Thread Type: UN-2A
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
Easy user interface with all gauges in one location
- Stable, Lightweight Cart
Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
Shortened stroke on pump for better spray pattern
- Control Panel
Truly engineered linkage for superior ratio control
Allows for infinite adjustment of catalyst percentage — no tools required
Ensures proper catalyst percentage and optimum results
Variance of 1% or less
- Balanced Graco NXT® Air Motor
Keeps the catalyst pump primed for consistent delivery
- New Linkage and Catalyst Pump
Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
Tracks cycles for preventive maintenance schedule
Displays real time flow rate - eliminates material waste due to worn spray tips
- Gravity Fed Catalyst System
Easy maintenance - fewer repair parts
Long lasting seals mean less downtime
Pumps last longer between planned maintenances
No surge bottle necessary, less parts, solvent and resin needed to prime the pump
- Optional DataTrak™ Control
Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
Precision engineered linkage offers you superior ratio control and consistent cure
- Lower cost of ownership
FRP RS GEL SYSTEM, XG, 17:1, CMB, 50
GG 16R164
FRP RS GEL SYSTEM, XG, 17:1, CMB, 50
Graco 16R164 17:1 Ratio External Mix Gel System with 50 ft (15.2 m) Hose, Cart, Mast, and Boom
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.- Optimized ratio stability
- Lower cost of ownership
- Optional DataTrak™ Control
- Gravity Fed Catalyst System
- New Linkage and Catalyst Pump
- Balanced Graco NXT® Air Motor
- Control Panel
- Stable, Lightweight Cart
Easy to maneuver
Strong, durable casters
- Model: FRP
- Series: XG
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Component A Inlet Size (in): 3/8
- Component A Inlet Size (mm): 9.525
- Component B Inlet Size (in): 1-5/16
- Component B Inlet Size (mm): 33.34
- Component B Thread Gender: Male
- Component B Thread Type: UN-2A
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
- <
Easy user interface with all gauges in one location
- Stable, Lightweight Cart
Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
Shortened stroke on pump for better spray pattern
- Control Panel
Truly engineered linkage for superior ratio control
Allows for infinite adjustment of catalyst percentage — no tools required
Ensures proper catalyst percentage and optimum results
Variance of 1% or less
- Balanced Graco NXT® Air Motor
Keeps the catalyst pump primed for consistent delivery
- New Linkage and Catalyst Pump
Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
Tracks cycles for preventive maintenance schedule
Displays real time flow rate - eliminates material waste due to worn spray tips
- Gravity Fed Catalyst System
Easy maintenance - fewer repair parts
Long lasting seals mean less downtime
Pumps last longer between planned maintenances
No surge bottle necessary, less parts, solvent and resin needed to prime the pump
- Optional DataTrak™ Control
Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
Precision engineered linkage offers you superior ratio control and consistent cure
- Lower cost of ownership
FRP RS GEL SYSTEM, XG, 17:1, NO, NH
GG 16R179
FRP RS GEL SYSTEM, XG, 17:1, NO, NH
Graco 16R179 17:1 Ratio Cart Mounted External Mix Gel System
To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.- Optimized ratio stability
- Lower cost of ownership
- Optional DataTrak™ Control
- Gravity Fed Catalyst System
- New Linkage and Catalyst Pump
- Balanced Graco NXT® Air Motor
- Control Panel
Easy user interface with all gauges in one location
- Model: FRP
- Series: XG
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Component A Inlet Size (in): 3/8
- Component A Inlet Size (mm): 9.525
- Component B Inlet Size (in): 1-5/16
- Component B Inlet Size (mm): 33.34
- Component B Thread Gender: Male
- Component B Thread Type: UN-2A
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar):
Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
Shortened stroke on pump for better spray pattern
- Control Panel
Truly engineered linkage for superior ratio control
Allows for infinite adjustment of catalyst percentage — no tools required
Ensures proper catalyst percentage and optimum results
Variance of 1% or less
- Balanced Graco NXT® Air Motor
Keeps the catalyst pump primed for consistent delivery
- New Linkage and Catalyst Pump
Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
Tracks cycles for preventive maintenance schedule
Displays real time flow rate - eliminates material waste due to worn spray tips
- Gravity Fed Catalyst System
Easy maintenance - fewer repair parts
Long lasting seals mean less downtime
Pumps last longer between planned maintenances
No surge bottle necessary, less parts, solvent and resin needed to prime the pump
- Optional DataTrak™ Control
Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
Precision engineered linkage offers you superior ratio control and consistent cure
- Lower cost of ownership
FRP RS GEL SYSTEM, IG, 17:1, CART, 50
GG 16R187
FRP RS GEL SYSTEM, IG, 17:1, CART, 50
17:1 Ratio Internal Mix Gel System with 50 ft (15.2 m) Hose and CartTo keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.
Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.Optimized Ratio Stability
- Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
- Precision engineered linkage offers you superior ratio control and consistent cure
Lower Cost of Ownership
- Easy maintenance - fewer repair parts
- Long lasting seals mean less downtime
- Pumps last longer between planned maintenances
- No surge bottle necessary, less parts, solvent and resin needed to prime the pump
Optional DataTrak™ Control
- Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
- Tracks cycles for preventive maintenance schedule
- Displays real time flow rate - eliminates material waste due to worn spray tips
Roving Management System
- Better guides—less tangling, more uptime
Gravity Fed Catalyst System
- Keeps the catalyst pump primed for consistent delivery
New Linkage and Catalyst Pump
- Truly engineered linkage for superior ratio control
- Allows for infinite adjustment of catalyst percentage — no tools required
- Ensures proper catalyst percentage and optimum results
- Variance of 1% or less
Balanced Graco NXT® Air Motor
- Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
- Shortened stroke on pump for better spray pattern
Control Panel
- Easy user interface with all gauges in one location
Stable, Lightweight Cart
- Easy to maneuver
- Strong, durable casters
REACTOR 2 H-50 PROPORTIONER, 230V, 20KW
GG 17H053
REACTOR 2 H-50 PROPORTIONER, 230V, 20KW
Graco 17H053 Reactor 2 H-50 Proportioner, 20 kW, 230 V
Graco&prime, s hydraulic Reactor H-50 brings increased yield and high output spraying. Ideal for in-plant OEM&prime, s or applicators that spray at high volumes.
Application: For medium to high-output foam applications and roofing projects – applies up to 52 lb (23.6 kg) per minute.- What a hydraulic system can do for you:
Dependability - robust, durable, longest life spray system
Reduce downtime - allows for longer time in between required maintenance
Increase daily productivity - capable of extremely high duty cycle
- Reactor Connect : Communication and Control at your Fingertips
Control your Reactor using your phone
Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
Monitor your rigs/crews using the multi-system dashboard
Troubleshoot an issue quickly using real-time data
Provide documentation to a customer
Use reports to better manage your business
Saves all your spray data to the cloud
Utilize account management to better manage your equipment and crews
Reactor Connect comes standard with all Reactor 2 models
- Advanced control technology
Tracks, monitors and saves project data
Data can be saved and downloaded onto a USB drive
Stores up to 24 chemical recipes
Drum level indicators
- Sacrificial surge protector
Protects your electronics against excessive power spikes
- Three-year warranty
Covers user display and control modules
One of the best in the industry
- Model: Reactor 2
- Series: H-50
- Product Series: Non-Elite
- Amperage (A): 95
- Application: Spray Foam
- Applicator Type: Manual
- Compatible Material: Plural Components
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Type: No Gun
- Hose Package: No Hose
- Material Application: Polyurethane Foam
- Maximum Flow Rate (kg/min): 23.59
- Maximum Flow Rate (lb/min): 52
- Maximum Fluid Temperature (°C): 88
- Maximum Fluid Temperature (°F): 190
- Maximum Fluid Temperature (°C): 88
- Maximum Fluid Temperature (°F): 190
- Maximum Hose Length (ft): 410
- Maximum Hose Length (m): 125
- Maximum Mix Ratio: 1:1
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa): 13800
- Maximum Working Pressure (MPa): 13.8
- Maximum Working Pressure (psi): 2000
- Overall Depth (cm): 53
- Overall Depth (in): 20.88
- Overall Depth (mm): 530
- Overall Height (cm): 160.8
- Overall Height (in): 63.3
- Overall Height (mm): 1608
- Overall Width (cm): 83.7
- Overall Width (in): 32.96
- Overall Width (mm): 837
REACTOR 2 H-XP2 PROPORTIONER, SEL, 15KW
GG 17H062
REACTOR 2 H-XP2 PROPORTIONER, SEL, 15KW
Graco 17H062 Reactor 2 H-XP2 Proportioner, 15 kW
Graco&prime, s hydraulic Reactor H-XP2 brings increased yield and high output spraying. Ideal for in-plant OEM&prime, s or applicators that spray at high volumes.
Application: For coatings that require high-pressures - applies up to 1.5 gal (5.7 liters) per minute. Graco&prime, s line of hydraulic Reactors brings increased yield and high output spraying. Ideal for in-plant OEM&prime, s or applicators that spray at high volumes.- What a hydraulic system can do for you:
Dependability - robust, durable, longest life spray system
Reduce downtime - allows for longer time in between required maintenance
Increase daily productivity - capable of extremely high duty cycle
- Reactor Connect : Communication and Control at your Fingertips
Control your Reactor using your phone
Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
Monitor your rigs/crews using the multi-system dashboard
Troubleshoot an issue quickly using real-time data
Provide documentation to a customer
Use reports to better manage your business
Saves all your spray data to the cloud
Utilize account management to better manage your equipment and crews
Reactor Connect comes standard with all Reactor 2 models
- Advanced control technology
Tracks, monitors and saves project data
Data can be saved and downloaded onto a USB drive
Stores up to 24 chemical recipes
Drum level indicators
- Sacrificial surge protector
Protects your electronics against excessive power spikes
- Three-year warranty
Covers user display and control modules
One of the best in the industry
- Model: Reactor 2
- Series: H-XP2
- Product Series: Non-Elite
- Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 59 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
- Application: Protective Coatings
- Applicator Type: Manual
- Compatible Material: Plural Components
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Type: No Gun
- Hose Package: No Hose
- Material Application: Polyurea
- Maximum Flow Rate (cc/min): 5680
- Maximum Flow Rate (GPM): 1.5
- Maximum Flow Rate (L/min): 5.68
- Maximum Fluid Temperature (°C): 88
- Maximum Fluid Temperature (°F): 190
- Maximum Fluid Temperature (°C): 88
- Maximum Fluid Temperature (°F): 190
- Maximum Hose Length (ft): 310
- Maximum Hose Length (m): 94.5
- Maximum Mix Ratio: 1:1
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Overall Depth (cm): 53

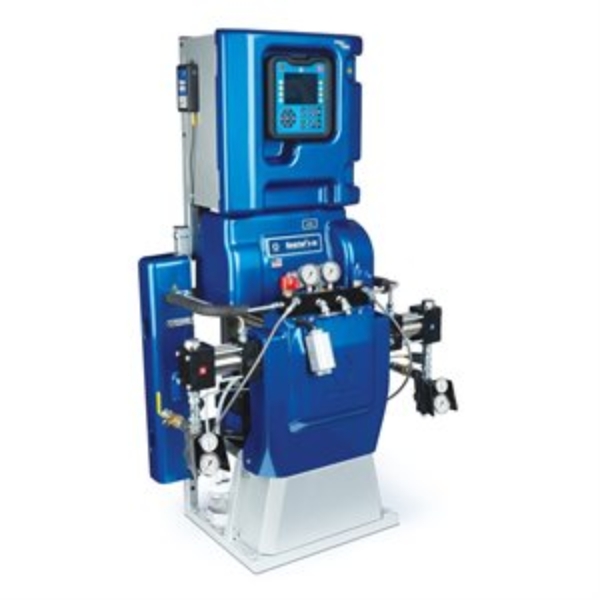

REACTOR 2 H-XP3 PROPORTIONER, 230V, 20KW
GG 17H074
REACTOR 2 H-XP3 PROPORTIONER, 230V, 20KW
Graco 17H074 Reactor 2 H-XP3 Proportioner, 20 kW, 230 V
Graco&prime, s hydraulic Reactor H-XP3 brings increased yield and high output spraying. Ideal for in-plant OEM&prime, s or applicators that spray at high volumes.
Application: For coatings that require high-pressures - applies up to 2.8 gal (10.6 liters) per minute.- What a hydraulic system can do for you:
Dependability - robust, durable, longest life spray system
Reduce downtime - allows for longer time in between required maintenance
Increase daily productivity - capable of extremely high duty cycle
- Reactor Connect : Communication and Control at your Fingertips
Control your Reactor using your phone
Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
Monitor your rigs/crews using the multi-system dashboard
Troubleshoot an issue quickly using real-time data
Provide documentation to a customer
Use reports to better manage your business
Saves all your spray data to the cloud
Utilize account management to better manage your equipment and crews
Reactor Connect comes standard with all Reactor 2 models
- Advanced control technology
Tracks, monitors and saves project data
Data can be saved and downloaded onto a USB drive
Stores up to 24 chemical recipes
- Sacrificial surge protector
Protects your electronics against excessive power spikes
- Three-year warranty
Covers user display and control modules
One of the best in the industry
- Elite Models
Graco InSite included
Inlet pressure and temperature sensors (interfaces with Graco InSite)
Xtreme-Wrap Scuff Guard on heated hoses when ordered as a package
Drum level indicators
- Model: Reactor 2
- Series: H-XP3
- Product Series: Non-Elite
- Amperage (A): 95 @ 200 to 240 V ac (3-Phase Delta)
- Application: Protective Coatings
- Applicator Type: Manual
- Compatible Material: Plural Components
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Type: No Gun
- Hose Package: No Hose
- Material Application: Polyurea
- Maximum Flow Rate (cc/min): 10600
- Maximum Flow Rate (GPM): 2.8
- Maximum Flow Rate (L/min): 10.6
- Maximum Fluid Temperature (°C): 88
- Maximum Fluid Temperature (°F): 190
- Maximum Fluid Temperature (°C): 88
- Maximum Fluid Temperature (°F): 190
- Maximum Hose Length (ft): 410
- Maximum Hose Length (m): 125
- Maximum Mix Ratio: 1:1
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- M
- Sacrificial surge protector
FUSION AP GUN, ROUND 03
GG 246103
FUSION AP GUN, ROUND 03
Graco 246103 Round Fusion Air-Purge Gun with 03 Mix Chamber and 0.060 in (1.5 mm) Orifice Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Round
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Applicator Type: Manual
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16-18
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.152
- Fluid Orifice Size (in): 0.060
- Fluid Orifice Size (mm): 1.52
- For Use With: Non-Flammable Foam and Polyurea
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.060
- Impingement Port Size (mm): 1.50
- Includes: AR6060 Mix Chamber Tip
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 245
- Maximum Fluid Working Pressure (MPa): 24.5
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 03 (.060)
- Overall Hei
FUSION AP GUN, ROUND 04
GG 246104
FUSION AP GUN, ROUND 04
Graco 246104 Round Fusion Air-Purge Gun with 04 Mix Chamber and 0.070 in (1.8 mm) Orifice Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Round
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Applicator Type: Manual
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16-18
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.178
- Fluid Orifice Size (in): 0.070
- Fluid Orifice Size (mm): 1.78
- For Use With: Non-Flammable Foam and Polyurea
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.070
- Impingement Port Size (mm): 1.75
- Includes: AR7070 Mix Chamber Tip
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 245
- Maximum Fluid Working Pressure (MPa): 24.5
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 04 (.070)
- Overall Hei
FUSION AP GUN, AF2929, FT0624
GG 247113
FUSION AP GUN, AF2929, FT0624
Graco 247113 Flat Pattern Fusion Air-Purge Gun with 0.024 in (0.61 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port and 12-14 in (305-356 mm) Pattern Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Flat
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.061
- Fluid Orifice Size (in): 0.024
- Fluid Orifice Size (mm): 0.61
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.029
- Impingement Port Size (mm): 0.70
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 00 (.029)
- Overall Height (cm): 20.6
- Overall Height (in): 8.1
- Overall Height (mm): 206
- Overall Length (cm): 19.1
- Overall Length (in): 7.5
- Overall Length (mm): 191
- Overall Width (cm): 8.4
- Overall Width (in): 3.3
- Overall Width (mm): 84
- Pattern Size (in): 12-14 in @ 24 in from target
FUSION AP GUN, AF5252, FT0838
GG 247137
FUSION AP GUN, AF5252, FT0838
Graco 247137 Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.052 in (1.3 mm) Impingement Port and 16-18 in (406-457 mm) Pattern Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Flat
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.097
- Fluid Orifice Size (in): 0.038
- Fluid Orifice Size (mm): 0.97
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.052
- Impingement Port Size (mm): 1.30
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 02 (.052)
- Overall Height (cm): 20.6
- Overall Height (in): 8.1
- Overall Height (mm): 206
- Overall Length (cm): 19.1
- Overall Length (in): 7.5
- Overall Length (mm): 191
- Overall Width (cm): 8.4
- Overall Width (in): 3.3
- Overall Width (mm): 84
- Pattern Size (in): 16-18 in @ 24 in from target
FUSION MP GUN, MR3535, RTM040
GG 247212
FUSION MP GUN, MR3535, RTM040
Graco 247212 Round Pattern Fusion Mechanical Purge Gun with 0.040 in (1.0 mm) Orifice Size and Mix Chamber with 0.035 in (0.89 mm) Impingement Port
Whether you&prime, re spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.
Application: For high output spray polyurethane foam and polyurea applications.- Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
- Long-lasting PolyCarballoy mix module
- Advanced mix module and tip provides superior mixing capabilities
- Model: Fusion MP
- Series: Round
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16-18
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.102
- Fluid Orifice Size (in): 0.040
- Fluid Orifice Size (mm): 1.02
- For Use With: Non-Flammable Foam and Polyurea
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Mechanical-Purge
- Gun Weight (g): 1315
- Gun Weight (kg): 1.32
- Gun Weight (lb): 2.9
- Gun Weight (oz): 46.4
- Impingement Port Size (in): 0.035
- Impingement Port Size (mm): 0.89
- Impingement Type: Standard
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 245
- Maximum Fluid Working Pressure (MPa): 24.5
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Module: .035
FUSION MP GUN, MF1818, FTM424
GG 247258
FUSION MP GUN, MF1818, FTM424
Graco 247258 Flat Pattern Fusion Mechanical Purge Gun with 0.024 in (0.61 mm) Orifice Size and Mix Chamber with 0.018 in (0.46 mm) Impingement Port
Whether you&prime, re spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.
Application: For high output spray polyurethane foam and polyurea applications.- Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
- Long-lasting PolyCarballoy mix module
- Advanced mix module and tip provides superior mixing capabilities
- Model: Fusion MP
- Series: Flat
- Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam
- Fluid Orifice Size (cm): 0.061
- Fluid Orifice Size (in): 0.024
- Fluid Orifice Size (mm): 0.61
- Gun Type: Mechanical-Purge
- Gun Weight (g): 1315
- Gun Weight (kg): 1.32
- Gun Weight (lb): 2.9
- Gun Weight (oz): 46.4
- Impingement Type: Standard
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Module: .018
- Overall Height (cm): 20.6
- Overall Height (in): 8.1
- Overall Height (mm): 206
- Overall Length (cm): 19.3
- Overall Length (in): 7.6
- Overall Length (mm): 193
- Overall Width (cm): 7.9
- Overall Width (in): 3.1
- Overall Width (mm): 79
- Pattern Size (in): 10 in @ 24 in from target
FUSION AP GUN, AR2929, AUTO
GG 248376
FUSION AP GUN, AR2929, AUTO
Graco 248376 Round Fusion Air-Purge Gun with 00 Mix Chamber
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Auto
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.074
- Fluid Orifice Size (in): 0.029
- Fluid Orifice Size (mm): 0.74
- Gun Type: Air Purge Gun
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 00 (.029)
- Overall Height (cm): 9.5
- Overall Height (in): 3.75
- Overall Height (mm): 95
- Overall Length (cm): 19.3
- Overall Length (in): 7.6
- Overall Length (mm): 193
- Overall Width (cm): 7.9
- Overall Width (in): 3.1
- Overall Width (mm): 79
