Heated Accessories

GG 24K241

REACTOR HEATED HOSE, 3500, 3/8, W/RTD AND SG

50 ft x 3/8 in Heated Hose, 3500 psi, RTD, Mesh Scuff, Reactor 2

Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

For Reactor proportioners.

New multi-strand copper heating element has greatly increased hose quality:

• Provides 10-times* the flex life compared to previous flat copper heating element
• Long-term, even heating without hot spots
• Backwards compatible with existing Reactor heated hoses

Copper-heated hoses are designed specifically for use with Graco proportioners Covered with proprietary butyl cover for protection against moisture sensitive isocyanate Hoses are covered with foam insulation for heat retention Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings Helix-design whip hose uses braided copper wires for added flexibility and longer life

Resistance Temperature Detector (RTD)

• Graco’s latest advanced controls on Reactor 2 and Integrated Reactor utilize RTD technology. RTDs offer the highest accuracy and the best day-to-day repeatability of material temperatures in your hose. RTD technology allows the machine to automatically shut down if the sensor is damaged, which saves wasted time and materials.

GG 246679

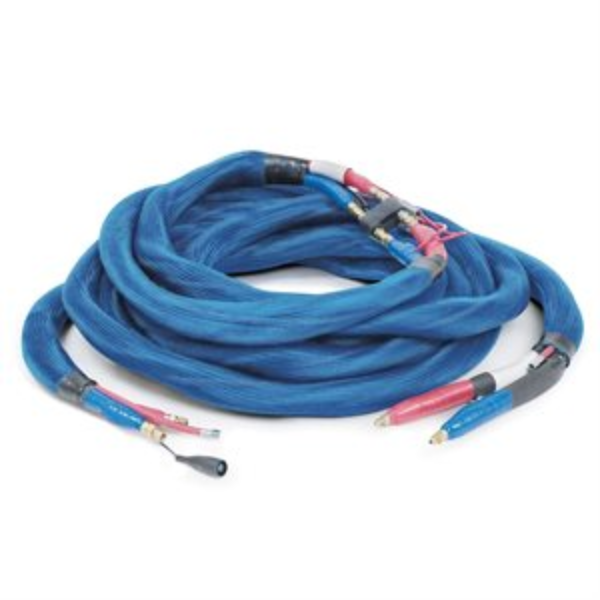

REACTOR HEATED HOSE, 3500PSI, 3/8 W/SCFGRD

50 ft x 3/8 in Heated Hose, 3500 psi, Thermocouple, Mesh Scuff, Reactor 1

Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

For Reactor proportioners.

New multi-strand copper heating element has greatly increased hose quality:

• Provides 10-times* the flex life compared to previous flat copper heating element
• Long-term, even heating without hot spots
• Backwards compatible with existing Reactor heated hoses

Copper-heated hoses are designed specifically for use with Graco proportioners Covered with proprietary butyl cover for protection against moisture sensitive isocyanate Hoses are covered with foam insulation for heat retention Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings Helix-design whip hose uses braided copper wires for added flexibility and longer life

GG 245863

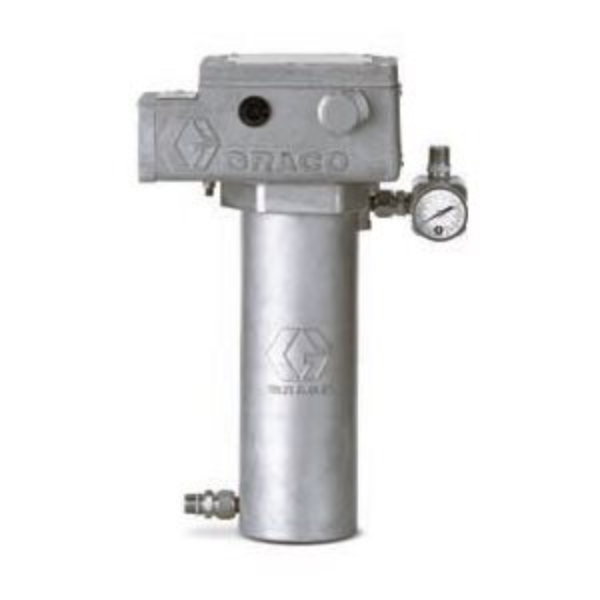

Heater, Hp, 240V, 4000W, Haz

GG 245864

Heater, Hp, 480V, 4000W, Haz

GG 24Y241

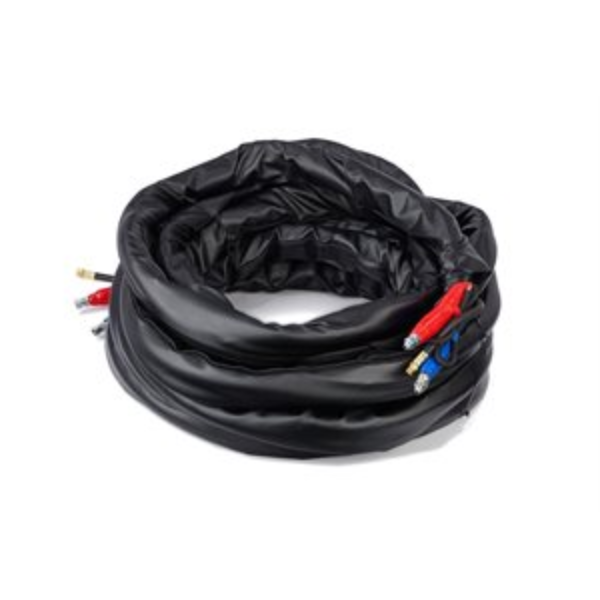

REACTOR HEATED HOSE, X-WRAP, 3/8, 50', RT

50 ft x 3/8 in Heated Hose, 3500 psi, RTD, Xtreme-Wrap, Reactor 2

Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

For Reactor proportioners.

New multi-strand copper heating element has greatly increased hose quality:

• Provides 10-times* the flex life compared to previous flat copper heating element
• Long-term, even heating without hot spots
• Backwards compatible with existing Reactor heated hoses

New Xtreme-Wrap Scuff Guard

• Form fitting to the hose, no more baggy excess material
• Made from urethane coated ballistic nylon for puncture and tear resistance, abrasion protection, and oil and water resistance
• Sheds surface moisture and won't absorb water to weigh down the hose bundle; will not freeze solid in cold temperatures
• Hook and Loop enclosure used on the entire length of the hose for easy access to the hoses, fittings, and fluid temperature sensors

Joint Protectors

• Joint Protectors provide additional protection at the most vulnerable section of the hose: the electrical connections, hose fittings, and fluid temperature sensors. All 50 ft (15 m) hoses with the new Xtreme-Wrap will come with one Joint Protector.

Copper-heated hoses are designed specifically for use with Graco proportioners Covered with proprietary butyl cover for protection against moisture sensitive isocyanate Hoses are covered with foam insulation for heat retention Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings Helix-design whip hose uses braided copper wires for added flexibility and longer life

Resistance Temperature Detector (RTD)

• Graco’s latest advanced controls on Reactor 2 and Integrated Reactor utilize RTD technology. RTDs offer the highest accuracy and the best day-to-day repeatability of material temperatures in your hose. RTD technology allows the machine to automatically shut down if the sensor is damaged, which saves wasted time and materials.

GG 2000190

Therm-O-Flow Kit, Wiper, Seal, Green, Black, 200

GG 24K240

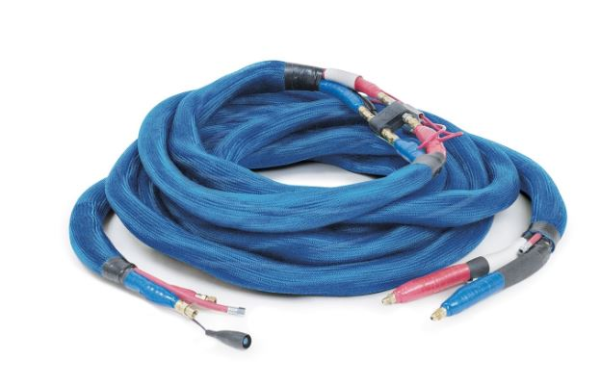

REACTOR HEATED HOSE, 2000, 3/8, W/RTD AND SG

Graco 24K240 50 ft x 3/8 in Heated Hose, 2000 psi, RTD, Mesh Scuff, Reactor 2

Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

Application: For Reactor proportioners.

• New multi-strand copper heating element has greatly increased hose quality:

  Provides 10-times* the flex life compared to previous flat copper heating element

  Long-term, even heating without hot spots

  Backwards compatible with existing Reactor heated hoses

  • Copper-heated hoses are designed specifically for use with Graco proportioners
  • Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
  • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
  • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
  • Helix-design whip hose uses braided copper wires for added flexibility and longer life
  • Resistance Temperature Detector (RTD)

    Graco’s latest advanced controls on Reactor 2 and Integrated Reactor utilize RTD technology. RTDs offer the highest accuracy and the best day-to-day repeatability of material temperatures in your hose. RTD technology allows the machine to automatically shut down if the sensor is damaged, which saves wasted time and materials.




    • Model: Reactor 2
    • Series: Mesh Scuff
    • Compatible Sprayer: Reactor 2
    • For Use With: Plural Component Proportioners
    • Hose Heating Type: External Heated
    • Hose Inside Diameter (in): 3/8
    • Hose Inside Diameter (mm): 9.525
    • Hose Length (ft): 50
    • Hose Length (m): 15.2
    • Inside Diameter (in): 3/8
    • Maximum Working Pressure (bar): 138
    • Maximum Working Pressure (kPa): 13800
    • Maximum Working Pressure (MPa): 13.8
    • Maximum Working Pressure (psi): 2000
