Agitators

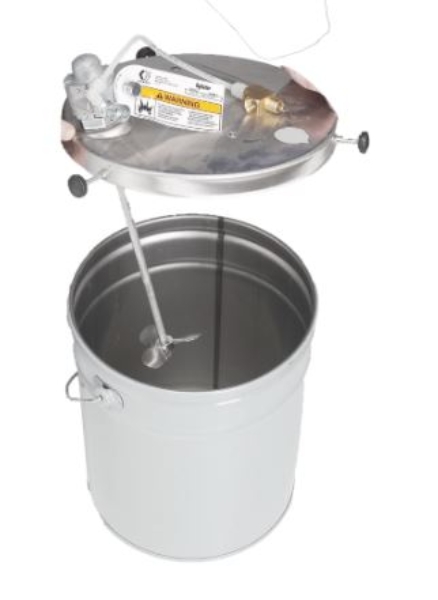

Kit, Accy, Agitator
GG 245081
GG 245081
KIT, ACCY, AGITATOR
Graco 245081 SST Pail Agitator Kit for Triton Packages
$990.00

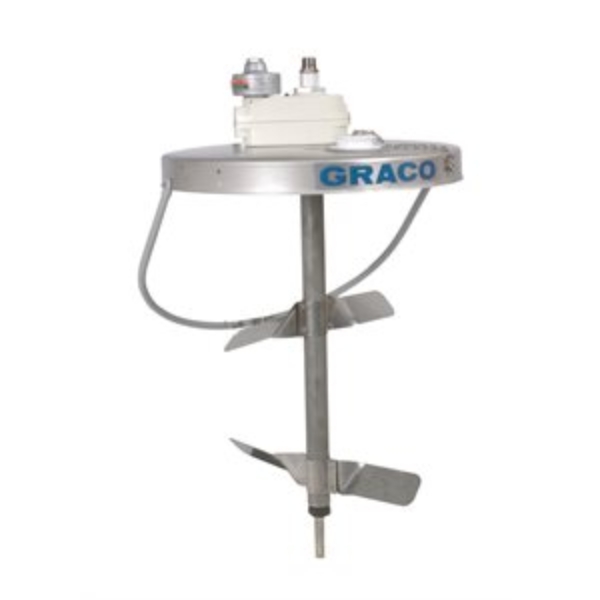

AGITATOR, HEAVY DUTY, SST
GG 238157
GG 238157
AGITATOR, HEAVY DUTY, SST
Graco 238157 Heavy Duty Back-Geared Drum Agitator, air driven, 1/2 HP, 32 inches (81.25 cm) tall. Drum Cover (238283) and Siphon Kit (238250) not included
Application: Heavy duty gearbox mixes high viscosity materials
Maximum viscosity 3,000 cps
- Drum cover and siphon kit are not included, but they can be ordered separately as these part numbers: 238283 (drum cover), 238250 (siphon kit)
- Leak-free and oil-less gearbox prevents material contamination
- Stainless steel agitator is corrosion resistant and waterborne compatible
- Access port for easy sampling and inspection of material during operation
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Speed (RPM): 1200
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 0.25
$3,050.00

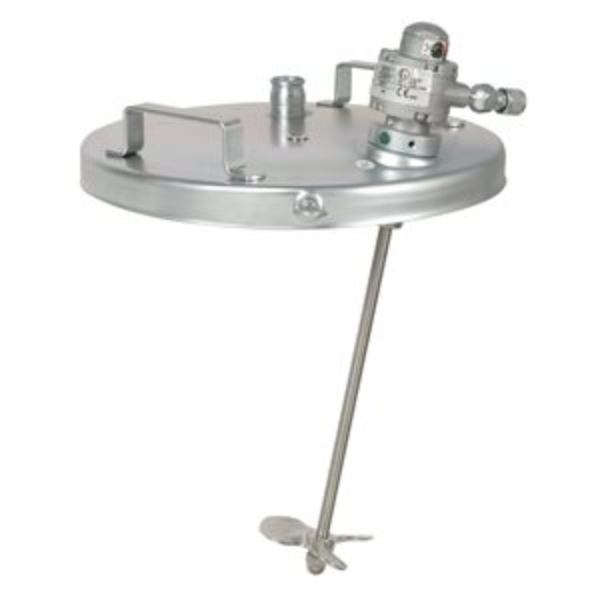

AGITATOR, PAIL ASSY (5 GAL)
GG 226086
GG 226086
AGITATOR, PAIL ASSY (5 GAL)
Graco 226086 Pail Cover Agitator for 5 gallon (18 L) pails, air driven, 1/4 HP, 13.25 inches (33.6 cm), carbon steel material
- Lift handles for easy moving and color changes
- Locking bolts to secure cover and reduce spills
- Ideal for wall mount pumps or spray packages
- Air Inlet Size (cm): 0.3175
- Air Inlet Size (in): 1/8
- Air Inlet Size (mm): 3.175
- Air Inlet Thread Type: NPT
- For Use With: 5 Gallon Pail
- Maximum Speed (RPM): 800
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 0.25
$1,005.00

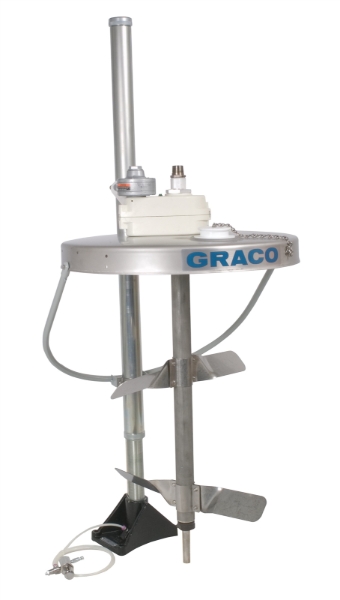

AGITATOR, HD, SST, SIPHON
GG 231414
GG 231414
AGITATOR, HD, SST, SIPHON
Graco 231414 Heavy Duty Back-Geared Drum Agitator with elevator, drum cover and siphon kit, air driven, 1/2 HP, 32 inches (81.25 cm) long
Heavy Duty Back-Geared Drum Agitator with elevator, drum cover and siphon kit.
- Heavy duty gearbox mixes high viscosity materials
- Leak-free and oil-less gearbox prevents material contamination
- Stainless steel agitator and cover for corrosion resistance and waterborne compatibility
- Siphon option allows material transfer through agitator shaft
- Access port for easy sampling and inspection of material during operation
- Maximum viscosity 3,000 cps
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Speed (RPM): 1200
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 0.25
$6,390.00

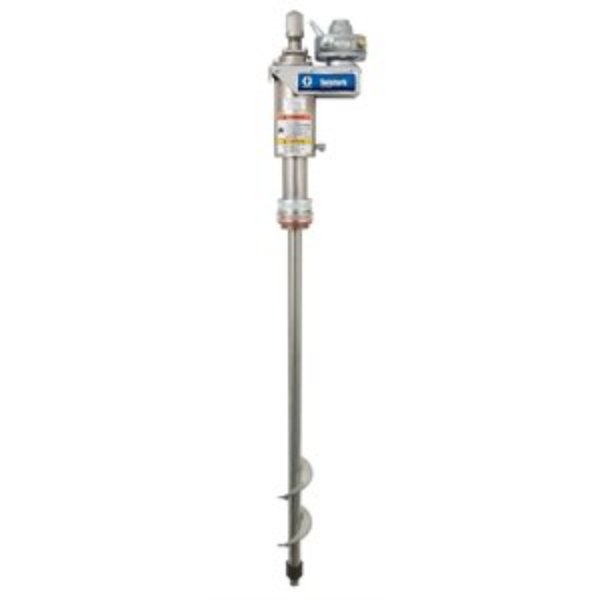

AGITATOR, SUCTION TWISTORK
GG 236629
GG 236629
AGITATOR, SUCTION TWISTORK
Graco 236629 Twistork Drum Agitator, Siphon, Air, 3/4 HP, 47.5 in long, 304 SST, Adjustable Depth for 31.5-35.5 in Drums
- Helix blade effectively mixes higher viscosity materials
- Mounts directly to 2 inch drum bung
- Stainless and carbon steel material options
- Sealed agitator drive prevents material contamination and evaporation
- ATEX approval for hazardous locations
- Max viscosity 10,000 cps
- Model: Twistork
- Air Inlet Size (cm): 0.3175
- Air Inlet Size (in): 1/8
- Air Inlet Size (mm): 3.175
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Maximum Speed (RPM): 800
- Maximum Viscosity (cP): 10000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 0.75
$3,220.00
AGITATOR, SST ITH SIPHONKIT
GG 240209
GG 240209
AGITATOR, SST ITH SIPHONKIT
Graco 240209 Heavy Duty Back-Geared Drum Agitator with Siphon Kit, air driven, 1/2 HP, 32 inches (81.25 cm) tall. Drum Cover (238283) not included.
Application: Heavy duty gearbox mixes high viscosity materials (maximum viscosity 3,000 cps)
- Drum cover is not included, but can be ordered separately as part number 238283
- Leak-free and oil-less gearbox prevents material contamination
- Stainless steel agitator is corrosion resistant and waterborne compatible
- Siphon option allows material transfer through agitator shaft
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Speed (RPM): 1200
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 0.25
$3,760.00

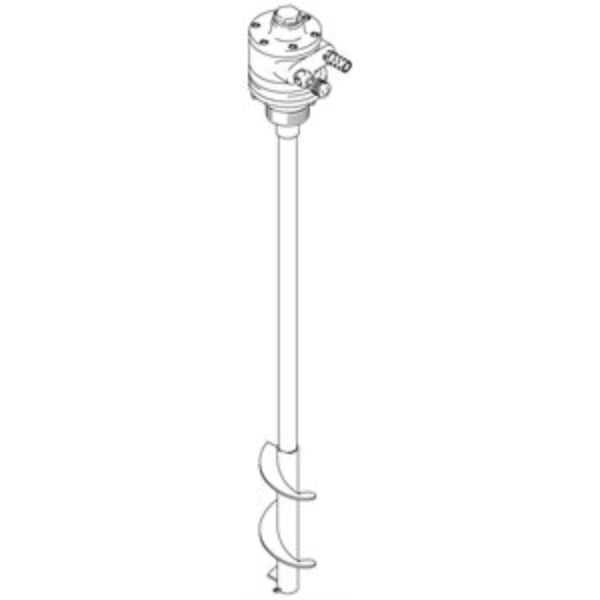

AGITATOR, HELIX
GG 235534
GG 235534
AGITATOR, HELIX
Twistork Drum Agitator, reversible, non-siphon, air driven, 1-1/2 HP, 37.25 in (95 cm) in length, 304 stainless steel material Helix blade effectively mixes higher viscosity materials Mounts directly to 2-inch drum bung Comes in stainless steel or carbon steel Siphon model allows material transfer though agitator shaft Sealed agitator drive prevents material contamination and evaporation Approved by ATEX for use in hazardous locations Maximum viscosity is 10,000 cps
$2,750.00
AGITATOR, HIGH VISCOSITY
GG 24C729
GG 24C729
AGITATOR, HIGH VISCOSITY
Graco 24C729 Air Driven Expanding Blade Bung-Mounted Agitator, High Viscosity
High viscosity (2,000 cps) air driven expanding blade bung-mounted agitator
- Corrosion resistant materials increase durability
- Threads into 1.5- or 2-inch drum bung
- Angled adapter reduces vortexing and allows for off-center mounting
- Collapsible blades fit through drum bung and expand when spinning for efficient mixing
- High Viscosity (2,000 cps)
- Air Inlet Size (cm): 0.3175
- Air Inlet Size (in): 1/8
- Air Inlet Size (mm): 3.175
- Air Inlet Thread Type: NPT
- For Use With: Drums with 2 inch Bung
- Includes: Angled Adapter
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 70
- Maximum Air Inlet Pressure (psi): 100
- Maximum Speed (RPM): 500
- Maximum Viscosity (cP): 2000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 1.75
$1,490.00

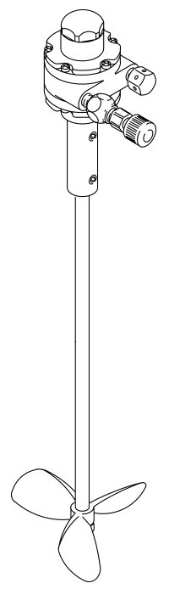

AGITATOR, 5 GAL. (SST)
GG 224571
GG 224571
AGITATOR, 5 GAL. (SST)
Air-Driven Agitator for 5 gallon (18 L) pails, compatible with agitator speed controller Lift handles for easy moving and color changes Locking bolts to secure cover and reduce spills Ideal for wall mount pumps or spray packages
$946.00
Agitator, Heavy Duty Plastic Tote
ASC ASC-APS
ASC ASC-APS
Agitator, Heavy Duty Plastic Tote
$4,500.00
AGITATOR, HEAVY DUTY, SST
GG 24C293
GG 24C293
AGITATOR, HEAVY DUTY, SST
Heavy-Duty In-Drum Back-Geared Agitator, Stainless Steel, 1 1/2 inch Bung Adapter, 7/16 inch Shaft Adapter Corrosion resistant materials for high quality and long life Leak-free gearbox eliminates material contamination common with oil filled units Installs easily onto in-drum agitators Mounts directly to drum bung, 1.5 inch Model Includes 7/16 in shaft adapter ATEX approval for hazardous locations
$2,610.00

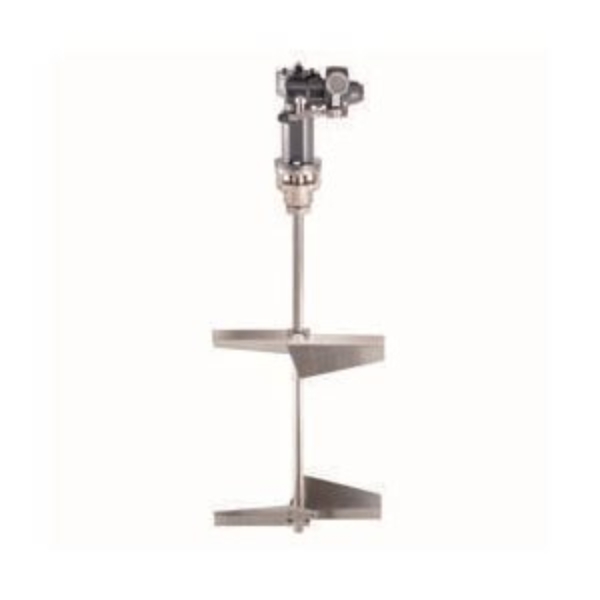

Gear Drive Agitator Assembly For 55 Gal Drum Lid
BB 31-400
BB 31-400
Gear Drive Agitator Assembly For 55 Gal Drum Lid
$2,974.00

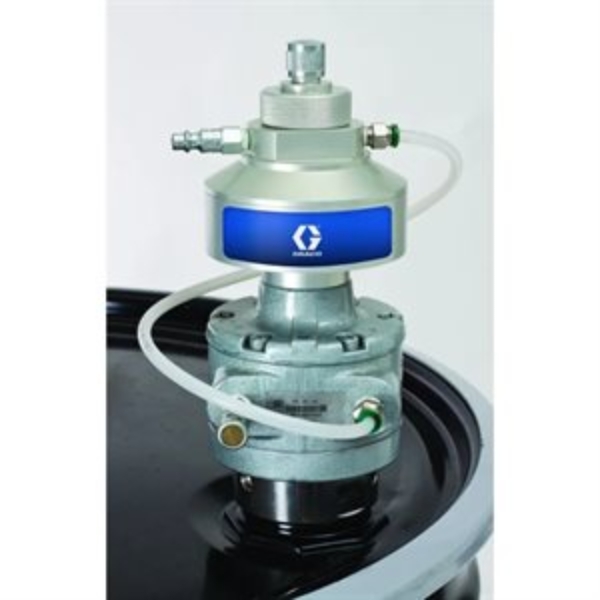

Agitator, Speed Control
GG 24G621
GG 24G621
AGITATOR, SPEED CONTROL
Graco 24G621 Agitator Speed Controller- Automatic Speed Controller for Air Drive Agitators
Maintain consistent agitator speed, even with an empty drum
- Quick install, requires less than 1 minute to setup
- Prevents over agitation for shear sensitive and waterborne materials
- Saves energy by limiting agitator over speeding Prevents motor over speeding, extending lifetime
- Maintains constant set speed even as viscosity or drum levels change
- Provides closed-loop speed control for agitators
- Air Inlet Size (cm): 0.3175
- Air Inlet Size (in): 1/8
- Air Inlet Size (mm): 3.175
- Air Inlet Thread Type: NPT
$819.00
AGITATOR, EXPANDING BLADE
GG 25C530
GG 25C530
AGITATOR, EXPANDING BLADE
Graco 25C530 Stainless Steel Direct Drive, 55 gallon (208 L), bung mount, expanding blade
Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.
Application: For wood (top coat, primer) and general finishing applications- Recommended agitator rotation: Counter clockwise
- Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
- Bung adapter sizes: 1 1/2–11.5 npsm and 2–11.5 npsm
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 5
- Maximum Air Inlet Pressure (kPa): 500
- Maximum Air Inlet Pressure (psi): 70
- Maximum Speed (RPM): 500
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 5
- Maximum Working Pressure (kPa): 500
- Maximum Working Pressure (psi): 70
- Motor Type: Pneumatic - Radial Piston
$1,835.00

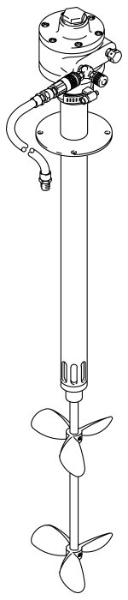

AGITATOR, DIRECT DRIVE
GG 206758
GG 206758
AGITATOR, DIRECT DRIVE
Graco 206758 Carbon Steel Agitator for 30-Gallon Mix tanks and 55-Gallon Drums, Air-Driven, 1/2 HP, 31.25 inches (79.3 cm) long, CS
Dual round prop that mounts on cover
- Agitators mount directly to mix tank or drum covers
- Dual propeller ensures efficient and thorough mixing
- Easy adjustment knob for fine tuning agitator speed to ideal mixing parameters
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon Drums and 30 Gallon Mix Tanks
- Maximum Speed (RPM): 3000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 0.75
$1,445.00

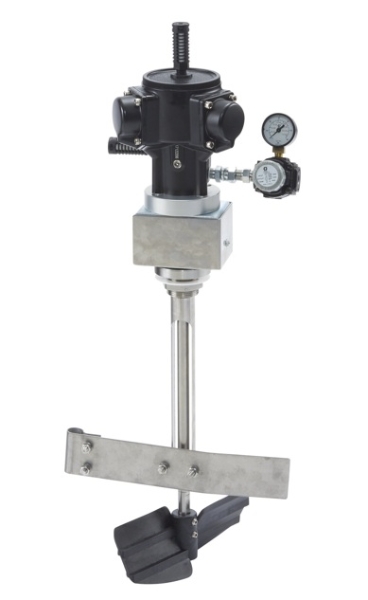

AGITATOR, HEAVY DUTY, 5 GAL
GG 236661
GG 236661
AGITATOR, HEAVY DUTY, 5 GAL
5 Gallon (18 L) Heavy Duty Pressure Tank Agitator, air driven, 1/2 HP, 15 inches (38 cm) in length, gear reduced Waterborne compatible 20:1 gear reduction to mix high viscosity materials, even at low speeds Sealed agitator shaft to prevent air leakage and contamination Built-in baffle and support for efficient mixing Compatible with Graco pressure tanks
$2,780.00

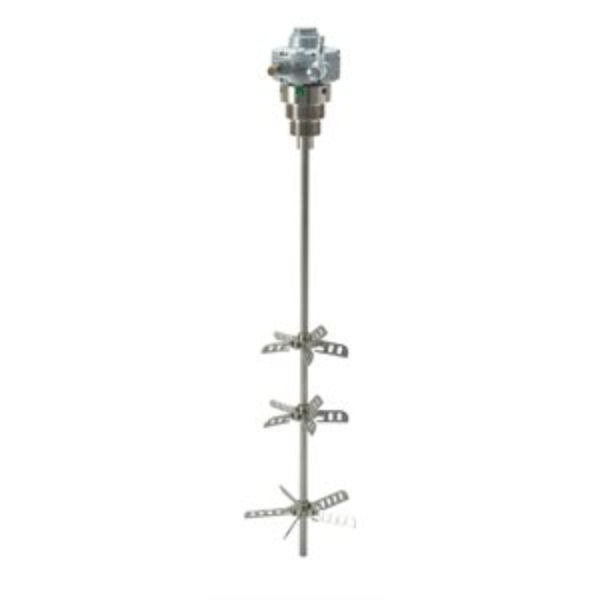

AGITATOR, LOW VISCOSITY
GG 24C728
GG 24C728
AGITATOR, LOW VISCOSITY
Air Driven Expanding Blade Bung-Mounted Agitator, Low Viscosity Low viscosity (1,000 cps) air driven expanding blade bung-mounted agitator Corrosion resistant materials increase durability Threads into 1.5- or 2-inch drum bung Angled adapter reduces vortexing and allows for off-center mounting Customize configuration by adjusting blade height or by adding blade assemblies Collapsible blades fit through drum bung and expand when spinning for efficient mixing Low Viscosity (1,000 cps)
$1,390.00

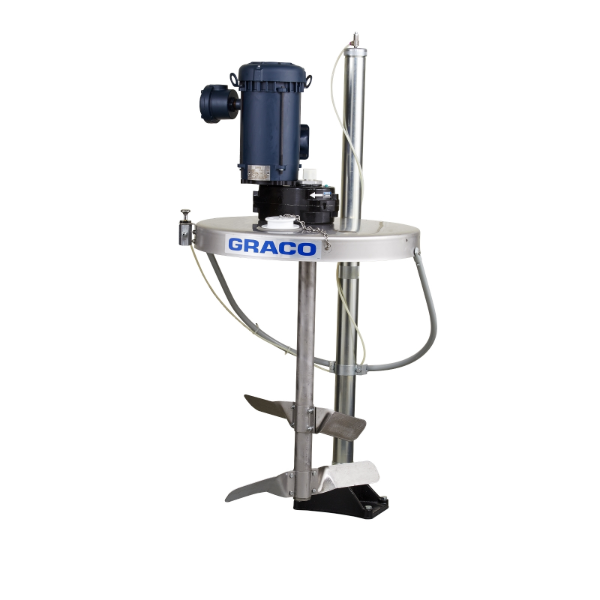

AGITATOR, BACK GEAR, SIPHON
GG 25C451
GG 25C451
AGITATOR, BACK GEAR, SIPHON
Graco 25C451 Electric Back Gear Drum Agitator with drum cover, elevator, siphon, shaft and blades, UL
Heavy-duty, electric, back-geared agitator (UL listed) mixes and maintains suspension of industrial coatings stored in 55 gallon (208 liter) drums.
Application: For advanced control and energy savings, switch to electric agitators.- Electric agitators are up to 5 times more efficient than pneumatic agitators.
- Speed remains constant, regardless of material level in tank.
- Quiet motor improves work environment with a sound pressure level of less than 75 dBA at 30 rpm.
- For Use With: 55 Gallon (208 Liter) Drum
- Includes: Drum Cover, Elevator, Siphon, Shaft, Blade
- Maximum Operating Temperature (°C): 40
- Maximum Operating Temperature (°F): 104
- Maximum Speed (RPM): 50
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Motor Type: Electric
- Power Rating (HP): 0.75
- Power Rating (kW): 0.37
$8,360.00

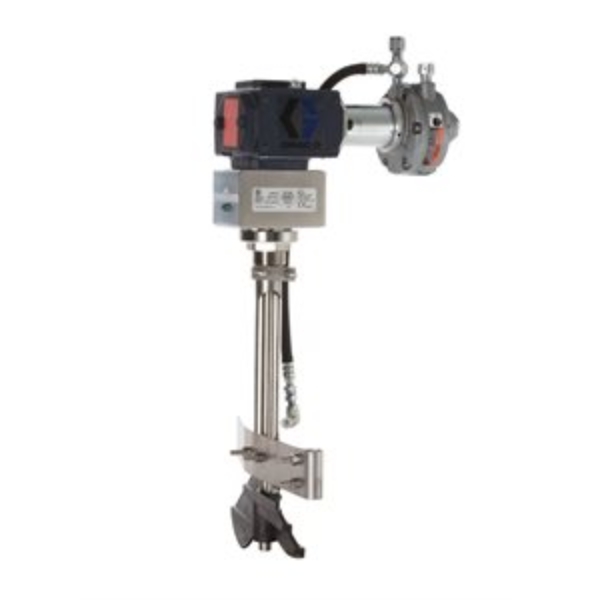

AGITATOR, HEAVY DUTY, 10 GAL
GG 236662
GG 236662
AGITATOR, HEAVY DUTY, 10 GAL
Graco 236662 10 Gallon (38 L) Heavy Duty Pressure Tank Agitator, air driven, 1/2 HP, 15 inches (38 cm) in length, gear reduced
Waterborne compatible
- 20:1 gear reduction to mix high viscosity materials, even at low speeds
- Sealed agitator shaft to prevent air leakage and contamination
- Built-in baffle and support for efficient mixing
- For Use With: 10 Gallon (38 Litre) Pressure Tank
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Speed (RPM): 3000
- Maximum Viscosity (cP): 800
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 0.50
$2,780.00

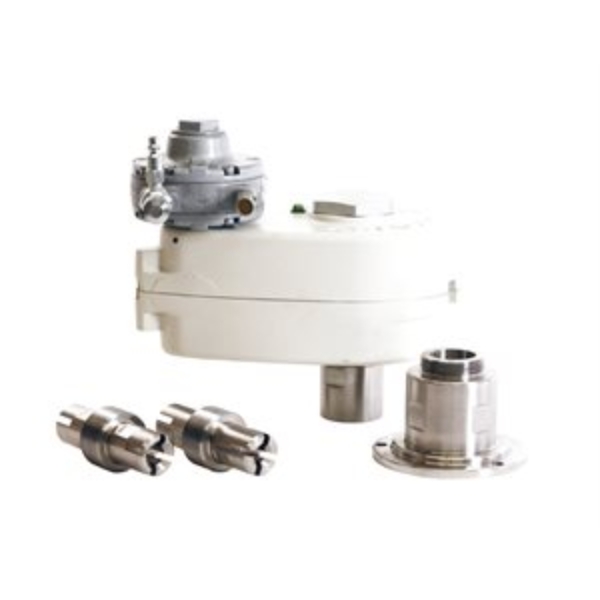

AGITATOR, HEAVY DUTY, SST
GG 24C522
GG 24C522
AGITATOR, HEAVY DUTY, SST
Graco 24C522 Heavy-Duty In-Drum Back-Geared Agitator, Stainless Steel, 2 inch Bung Adapter, 7/16 inch Shaft Adapter
- Corrosion resistant materials for high quality and long life
- Leak-free gearbox eliminates material contamination common with oil filled units
- Installs easily onto in-drum agitators
- Includes 7/16 in shaft adapter
- ATEX approval for hazardous locations
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Includes: Heavy Duty Agitator Drive, 2 Adapters
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Speed (RPM): 1200
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Rotary Vane
- Power Rating (HP): 0.25
$2,660.00
