Vacuums

CSU CS 1445

DY 31917

DY 31920

Available in max lengths of 50ft

Conductive construction for high static environments.

DY 31921

DY 31935

DY 31962

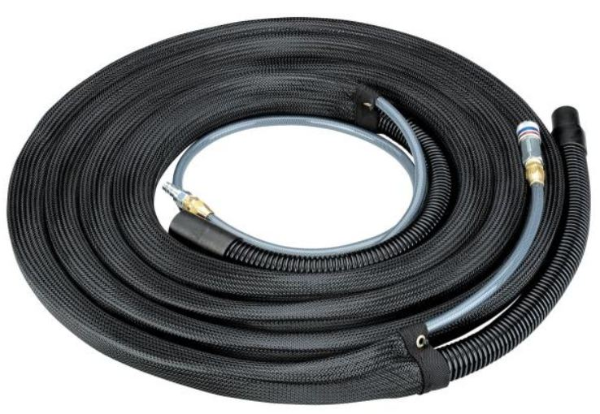

Vacuum Hose Assembly

DY 31972

20' Long Vac Hose Assembly, 1in Diameter Vac Fitting, 5/16in Airline

Dynabrade's new vacuum hose assembly with integrated airline is a lightweight design with a 1in diameter flexible vacuum hose. It is ideal for use in tight areas. It features a fully conductive assembly, eliminating static charge. This plug 'n play assembly is for use with all Dynabrade Vacuum Power Tools. Additionally, the standard 20' offering allows for quick connection to Dynabrade Vacuum Systems. Up to 60' lengths available. Consult Customer Service for details.

Includes air line integrated into vacuum hose.

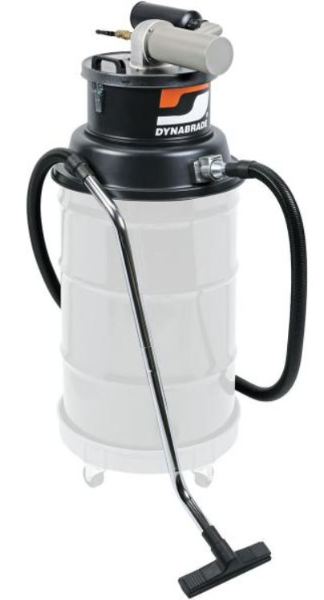

DY 61201

For 55 Gallon (208 L) Drum-Wheel Base Sold Separately, 120V, Dry Dust, Vac Hose-Integrated Air Line

Dynabrade's family of DrumVac Kits are a multi-industry clean air solution with fully integrated features designed to keep an operator working without being concerned with the arduous task of changing out a vacuum bag in high collection scenarios. Used in conjunction with a 55-gallon drum (sold separately), this system lends itself to one of the largest capacity portable dust collection systems in the industry.

55 Gallon drum equates to large collection capacity. No bag change-out requirements. Vacuum hose with integrated airline reduces operator fatigue. Prevents tripping hazards.

DY 61204

For 55 Gallon (208 L) Drum-Wheel Base Sold Separately, Dry Heavy Chip

Dynabrade's family of DrumVac Kits are a multi-industry clean air solution with fully integrated features designed to keep an operator working without being concerned with the arduous task of changing out a vacuum bag in high collection scenarios. Used in conjunction with a 55-gallon drum (sold separately), this system lends itself to one of the largest capacity portable dust and dry chip collection systems in the industry.

55 Gallon drum equates to large collection capacity. No bag change-out requirements. Anti-Static clean up kit eliminates static discharge to operator.

DY 61401

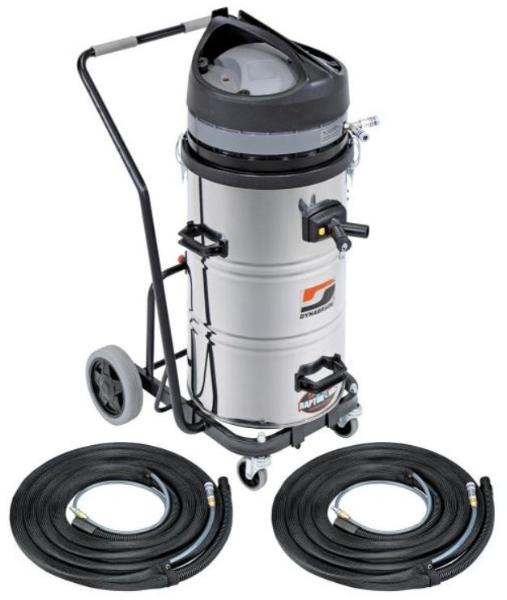

20 Gallon (78 L), 20 A, 120V/60 Hz, M-Class, Stainless Steel-Conductive, Dry Only, N. America

Designed for general source capture and dry cleanup. 7.8' (238 cm) water static lift. 125 CFM (3,3521 L/Min) vacuum flow. Allows operation of two tools simultaneously. Vacuum starts automatically with startup of tool. Bypass Motor System uses environmental air to cool the motor and extend vacuum life. Heavy-duty stainless steel recovery tank, with 20 gallon (78 liter) capacity for clean filter assurance. This size allows filter to remain at substantial distance from collected debris, reducing clogging and extending motor life.

Includes a HEPA H13 Filter with 99.95 % efficiency on 0.3 micron. Automatic cleaning of filter. By connecting vacuum unit to external air supply, a blast of air is released to filter every 40 seconds of operation, to cyclically clean filter. Handy electric outlet on motor head allows for additional versatility in workplace. Convenient orange warning light indicates that filter needs replacement. Red warning light indicates protection device has been activated to prevent heat overload to motor. Connects to optional 61483 Cart. This unit requires a NEMA 5-20 Plug/Outlet. (See picture)

DY 61421

20 Gallon (78 L), 15 A, 120V/60 Hz, M-Class, Stainless Steel-Conductive, Dry Only, N. America

Designed for general source capture and dry cleanup. 7.8' (238 cm) water static lift. 125 CFM (3,3521 L/Min) vacuum flow. Allows operation of two tools simultaneously. Vacuum starts automatically with startup of tool. Bypass Motor System uses environmental air to cool the motor and extend vacuum life. Heavy-duty stainless steel recovery tank, with 20 gallon (78 liter) capacity for clean filter assurance. This size allows filter to remain at substantial distance from collected debris, reducing clogging and extending motor life.

Includes a HEPA H13 Filter with 99.95 % efficiency on 0.3 micron. Automatic cleaning of filter. By connecting vacuum unit to external air supply, a blast of air is released to filter every 40 seconds of operation, to cyclically clean filter. Handy electric outlet on motor head allows for additional versatility in workplace. Convenient orange warning light indicates that filter needs replacement. Red warning light indicates protection device has been activated to prevent heat overload to motor. Connects to optional 61483 Cart. This unit requires a 15 Amp (15,000 mA) outlet and has no accessory outlet on unit.

DY 61430

10 Gal. (38 L), 20 A, 120 V/60 Hz, Division II, N. America

Electric Portable Vacuum for use on non-metallic surfaces such as wood and plastics. Designed for general source capture and cleanup. Powerful suction is ideal for dry-only industrial applications. Bypass Motor System uses clean air to cool the motor and extend vacuum life. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron. Two additional HEPA Filters included within power-head, making it eligible for IP6X.

Top-quality stainless steel body and 10 gallon (38 liter) recovery tank. Unit is static-dissipating (kit included) and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart. Also connects to optional 61483 Cart. Dust Ignition Protected

• HP: 1200.0

DY 61440

10 Gal. (38 L), Division II, North America/South America

Pneumatic Portable Vacuum for use on non-metallic surfaces such as wood, plastics. Powerful suction is ideal for dry-only, industrial applications, Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron.

Two additional HEPA Filters included within power-head,making it eligible for IP6X. Top-quality stainless steel body and 10 gallon (38 liter) recovery tank. Unit is static-dissipating (kit included) and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart. Also connects to optional 61483 Cart.

DY 61450

5 lbs. (2.27 kg) into 6.25 Gal. (24 L), 20 A, 120 V 50/60 Hz, Division 1, N. America

Electric Portable Vacuum for safe recovery of metallic dusts such as aluminum, magnesium, titanium, commercial alloys as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 5 lbs. (2.27 kg) of dust. Designed for dry-only source capture, where fine dust must be recovered. Legally certified as explosion-proof and dust ignition-proof. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron. Filter is located downstream of the motor. Manual Filter Shaker (MFS) system.

Top-quality stainless steel body and 6.25 gallon (24 liter) recovery tank. Maximum 5 pounds (2.27 kg) of metal dust recovery. Easy one-click detaching and connecting of recovery tank. Unit is static-dissipating and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart and tool basket. Guaranteed for safe recovery of combustible/conductive dusts. Ability to connect two tools simultaneously

• HP: 1000.0

DY 61465

5 lbs. (2.27 kg) into 6.25 Gal (24 L), Division 1, N. America

Pneumatic Portable Vacuum For use with collecting metallic dusts such as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 5 lbs. (2.27 kg) of dust. Designed for dry-only source capture, where fine dust must be recovered. Legally certified as explosion-proof and dust ignition-proof. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron. Filter is located downstream of the motor. Manual Filter Shaker (MFS) system.

Stainless steel recovery tank (SAE 304). Easy one-click detaching and connecting of tank. Unit is static-dissipating (kit included) and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart and tool basket. Dynabrade recommends the use of Mineral Oil with viscosity of 10.5 cSt. 96608 Conductive Cleaning Kit available separately

DY 61479

DY 61562

DY 62410

2.50in I.D. x 6.375in O.D. x 2.75in H

DY 64400

230 V (AC), 3 Phase, 60 Hz, Down Exhaust

Meets These NFPA Requirements: Interlock Pneumatic Valve with Blower and Time-Delay. Tools operate only when Downdraft Table is running. Class II, Group E Explosion-Proof Motor. Aluminum Top for Non-Spark Work Surface. Non-Spark Aluminum Blower on Collector?s Clean-Air Side. Automatic Water Level Control. Vented Sump (Main Tank). Low Voltage Control. Lockable Fused Power Disconnect

Ideal for capturing aluminum and titanium dust. Working area of 36in wide x 60in long accommodates large work pieces. Includes casters for easy maneuvering. casters also lock securely into place.

• HP: 3.0

DY 64401

460 V (AC), 3 Phase, 60 Hz, Down Exhaust

Meets These NFPA Requirements: Interlock Pneumatic Valve with Blower and Time-Delay. Tools operate only when Downdraft Table is running. Class II, Group E Explosion-Proof Motor. Aluminum Top for Non-Spark Work Surface. Non-Spark Aluminum Blower on Collector?s Clean-Air Side. Automatic Water Level Control. Vented Sump (Main Tank). Low Voltage Control. Lockable Fused Power Disconnect

Ideal for capturing aluminum and titanium dust. Working area of 36in wide x 60in long accommodates large work pieces. Includes casters for easy maneuvering. casters also lock securely into place.

• HP: 3.0

DY 64654

460 V, 60 Hz, Three Phase, 1.5 hp, 2 Motors

DY 64657

115 V, 1 Phase, 60 Hz

Eliminate airborne dust and contaminants while sanding. Working Area of 48in (122 cm) W x 96in (244 cm) L

Up to 70% more filter area than competitive brands. Dual filtration. pre-filter blanket and 1-micron paper filters. Includes twelve paper filters. Eight 64658 filters: 20in (508 mm) x 25in (635 mm). Four 64659 filters:16in (406 mm) x 25in (635 mm)

DY 66710

GR 2Z976

MIR 9190310111
