Other Pumps

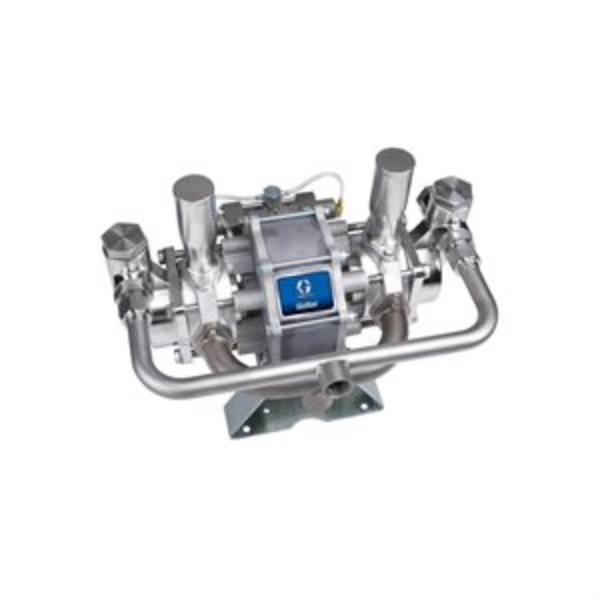

GLUTTON PUMP, (4:1 CS)
GG 220663
GG 220663
GLUTTON PUMP, (4:1 CS)
Glutton 4:1 Bellows Pump, CS, UHMWPE Seals The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1 Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials Designed to handle a broad range of applications, including abrasive materials Reversible outlet manifold simplifies plumbing installations Vertical ball checks design ensures uniform ball wear and long life
$8,360.00
GLUTTON PUMP, (4:1 SST)
GG 220666
GG 220666
GLUTTON PUMP, (4:1 SST)
Graco 220666 Glutton 4:1 Bellows Pump, SST, UHMWPE Seals
The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1
- Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
- Designed to handle a broad range of applications, including abrasive materials
- Reversible outlet manifold simplifies plumbing installations
- Model: Glutton
- Series: Bellows
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Circulation
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: Sealed
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 5.6
- Maximum Flow Rate (L/min): 21.2
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 28
- Maximum Working Pressure (kPa): 2800
- Maximum Working Pressure (MPa): 2.8
- Maximum Working Pressure (psi): 400
- Portable: Non-Portable
- Pump Ratio: 4:1
$12,280.00
Monark Pump, 23:1 (Chrome)
GG 223596
GG 223596
MONARK PUMP,23:1 (CHROME)
Graco 223596 Series B 23:1 Ratio Monark Pump
- Reliable, low maintenance air motor
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids Drum and stubby length models available for mounting and application flexibility
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
$6,070.00
MONARK PUMP, 5:1
GG 224343
GG 224343
MONARK PUMP, 5:1
Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, UHMWPE/PTFE Packings Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes. Drum and stubby length models available for mounting and application flexibility Positive displacement, 2-ball piston design provides uniform and easily controlled delivery Stainless steel or carbon steel models available to handle various fluids Fluid return stanchion for circulation back to the pump Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids
$4,550.00
PRESIDENT PUMP, 10:1
GG 224348
GG 224348
PRESIDENT PUMP, 10:1
Graco 224348 President 10:1 Pneumatic 2-Ball Piston Pump, SST, Drum, UHMWPE/PTFE Packings
2-ball pneumatic piston pumps for a wide range of applications.
- Reliable President air motor designed for low maintenance operation and long life
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials
- Model: President
- Series: 2-Ball
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Supply
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Drum Length
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 12.41
- Maximum Air Inlet Pressure (kPa): 1241
- Maximum Air Inlet Pressure (psi): 180
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 3
- Maximum Flow Rate (L/min): 11.36
- Maximum Operating Temperature (°C): 82
- Maximum Operating Temperature (°F): 180
- Maximum Working Pressure (bar): 25
- Maximum Working Pressure (kPa): 2500
- Maximum Working Pressure (MPa): 2.5
- Maximum Working Pressure (psi): 360
- Portable: Non-Portable
- Pump Ratio: 10:1
$6,430.00
MONARK PUMP, 5:1
GG 224350
GG 224350
MONARK PUMP, 5:1
Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, Drum Length, UHMWPE/PTFE Packings Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes. Drum and stubby length models available for mounting and application flexibility Positive displacement, 2-ball piston design provides uniform and easily controlled delivery Stainless steel or carbon steel models available to handle various fluids Fluid return stanchion for circulation back to the pump Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids
$5,070.00
MANUAL PUMP, HAND, ROTARY
GG 226290
GG 226290
MANUAL PUMP, HAND, ROTARY
Graco 226290 Rotary Pump for 16 Gallon (60 Liter) or 55 Gallon (200 Liter) Bulk Lubricants for Petroleum-Based Products - 1 Gallon per 18 Cycles
Rotary hand pump for dispensing bulk fluids.
- Application: Industrial
- Compatible Material: Oil
- Includes: Bung Adapter, Spout Outlet
$393.00
30:1 Pres Sev Duty Paint System
GG 231063
GG 231063
PRESIDENT SPRAYER,PAINT,30-1,55 GL
Graco 231063 Stationary Airless Paint Sprayer- 30:1 President Hydra-Spray
Application: Used for airless spray application of paints and other coatings from a 55 gallon (208 liter) drum
$14,340.00
FAST-FLO PUMP, (1:1)
GG 237131
GG 237131
FAST-FLO PUMP, (1:1)
Graco 237131 1:1 Ratio Fast-Flo Air Operated Stubby Piston Transfer Pump
Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.
Application: Maximum delivery up to 5 gpm (19 lpm) and maximum fluid working pressure up to 180 psi (12 bar). Ideal for lower viscosity fluids.- Air-powered for high reliability and low cost
- Delivery up to 5 gpm (19 lpm)
- Available in stainless steel or carbon steel
- Model: Fast-Flo
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Compatible Drum Height (in): 7.1
- Compatible Material: Antifreeze, Asphalt, Windshield Washer Fluid, Motor Oil, Used Oil, Hydraulic Fluid, Oil, Ink
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 12.41
- Maximum Air Inlet Pressure (kPa): 1241
- Maximum Air Inlet Pressure (psi): 180
- Maximum Continuous Cycle Rate (CPM): 100
- Maximum Flow Rate (GPM): 4
- Maximum Flow Rate (L/min): 15.1
- Maximum Intermittent Cycle Rate (CPM): 4
- Maximum Working Pressure (bar): 12.4
- Maximum Working Pressure (kPa): 1240
- Maximum Working Pressure (MPa): 1.2
- Maximum Working Pressure (psi): 180
- Minimum Flow Rate (GPM): 180
- Package Options: None
- Portable: Non-Portable
- Power Type: Pneumatic
- Pump Ratio: 1:1
Call for pricing
HUSKY SYSTEM, BULK ANTIFREEZE/WWS
GG 244680
GG 244680
HUSKY SYSTEM, BULK ANTIFREEZE/WWS
Husky 1050 – Single Inlet Bulk Antifreeze and Windshield Solvent Transfer PackagesThe Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
Longer Diaphragm Life - Up to 5x longer diaphragm life for less maintenance and downtime Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover One-Piece Center Section - Eliminates air leaks for more efficient operation Four Bolt Joint Design - Bolted design provides even sealing pressure for leak-free operation Multiple Ports - Increased number of ports for installation flexibility Optional Features - DataTrak™ (Runaway protection and tracks material usage), Pulse Output (Cycle count capability) Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation 30% more efficient than the market leader 20% increase in fluid flow compared to the Husky 1040
$4,020.00
HUSKY SYSTEM, ANTI-FREEZE, WWS
GG 244682
GG 244682
HUSKY SYSTEM, ANTI-FREEZE, WWS
Husky 716 – Single Inlet Bulk Antifreeze and Windshield Solvent Transfer PackagesThe Husky 716 air operated diaphragm pump delivers up to 16 gpm (60.6 lpm) of fluid and features center and end porting options.
Ideal for bulk antifreeze and windshield solvent transfer. Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks
$2,410.00
FIREBALL 225 PUMP, 3:1, 16 GL
GG 246904
GG 246904
FIREBALL 225 PUMP, 3:1, 16 GL
Mini Fire-Ball® 225 3:1 16 Gallon (60 Liter) Cover Mounted Oil Pump PackageYou can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 3:1 is perfect for medium pressure, low volume oil applications. Durable - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
$1,905.00
CHECK-MATE SYSTEM, 29:1, FLOOR STAND
GG 24E008
GG 24E008
CHECK-MATE SYSTEM, 29:1, FLOOR STAND
NXT™ Check-Mate® 29:1 Floor Standing Oil Pump without DataTrak and Thermal Relief Kit Tested to outperform and outlast all other pumps on the market – with its long-life design and intuitive, easy-to-use controls – the NXT Check-Mate pump is the best value for the money. Fewer parts, faster repairs and long-lasting durability. Optional DataTrak™ Control - Intuitive, easy-to-use DataTrak control gives you pump diagnostics, material usage tracking and pump runaway protection. NXT Air Motor - Modular design for easier maintenance with rugged body armor that won’t rust or dent. Modular Air Valves - Easy-to-repair valve eliminates stalling and contains de-icing controls. Integrated Air Controls - Easy-turn, lockable regulator is front-mounted for easy access. Compact and modular with built-in filtration. Piston Valve with Floating Piston Seal - For maximum pressure balance over a range of material viscosities.
$17,090.00
PROMIX 2KE PROPORTIONER, SYSTEM, PUMP
GG 24F092
GG 24F092
PROMIX 2KE PROPORTIONER, SYSTEM, PUMP
ProMix 2KE Proportioner, electric, 3:1 Air Spray Merkur & Merkur Bellows pumps, screen reporting, for non-hazardous location The ProMix 2KE is an entry level, compact, easy to use plural component system allowing you to mix on-demand for all spray technologies. Designed for multi-color, two component, in-booth applications Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1 Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter Off-ratio material will not reach your product – eliminating expensive re-work Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more
$32,230.00
PROMIX 2KE PROPORTIONER, SYSTEM, PUMP
GG 24F096
GG 24F096
PROMIX 2KE PROPORTIONER, SYSTEM, PUMP
Graco 24F096 ProMix 2KE Proportioner, electric, 23:1 Air Assist Merkur pumps, USB reporting, for non-hazardous location
The ProMix 2KE is an entry level, compact, easy to use plural component system allowing you to mix on-demand for all spray technologies.
- Designed for multi-color, two component, in-booth applications
- Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1
- Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter
- Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more
- Model: ProMix
- Series: 2KE
- Air Inlet Size (cm): 0.9525
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Amperage (A): 2
- Applicator Type: Manual Air-Assist
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Activation: Manual
- Includes: Air Motor, A-Lower, B-Lower, A-Tie Rod, B-Tie Rod, Lower Adapter, TSL Reservoir
- Material Type: Two Component
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Fluid Viscosity (cP): 5000
- Maximum Fluid Viscosity (cP): 5000
- Maximum Mix Ratio: 30:1
- Maximum Number of Colors: Up to 3
- Maximum Working Pressure (bar): 158
- Maximum Working Pressure (kPa): 15800
- Maximum Working Pressure (MPa): 15.8
- Maximum Working Pressure (psi): 2300
- Measuring Type: Pump
- Minimum Fluid Viscosity (cP): 20
- Minimum Mix Ratio: 0.1:1
- Mix Accuracy (%): 1
- Number of Catalysts: 1
- Number of Color Valves: N/A
- Number of Colors: 1
- Number of Resin Colors: 1
- Power Source: Electric
- Proportioning Type: Manual Electronic
- Pump Ratio: 23:1
- Pump Type: Air-Assisted
$37,710.00
PROMIX 2KE PROPORTIONER, SYSTEM, PUMP
GG 24F113
GG 24F113
PROMIX 2KE PROPORTIONER, SYSTEM, PUMP
ProMix 2KE Proportioner, air, 3:1 Air Spray Merkur & Merkur Bellows pumps, USB reporting, for hazardous location The ProMix 2KE is an entry level, compact, easy to use plural component system allowing you to mix on-demand for all spray technologies. Designed for multi-color, two component, in-booth applications Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1 Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter Off-ratio material will not reach your product – eliminating expensive re-work Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more
$34,520.00

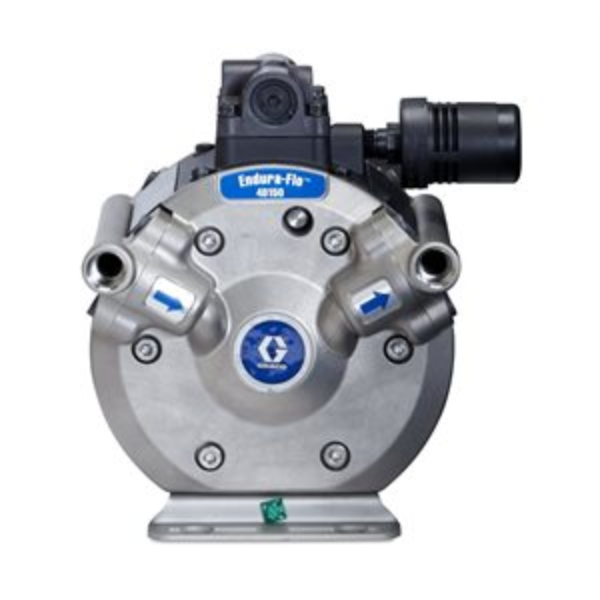

ENDURA-FLO PUMP, 4:1 AODD, 150, NPT, STD
GG 24W346
GG 24W346
ENDURA-FLO PUMP, 4:1 AODD, 150, NPT, STD
Endura-Flo 4D150, 4:1 Air Operated Diaphragm Pump, 150cc, NPT The Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money. Endure-Flo diaphragms last longer against extreme operating conditions Easy access to critical components for fast online maintenance Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money Minimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systems Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
$6,730.00
ENDURA-FLO PUMP, 4:1 AODD, 150, BSP, STD
GG 24W347
GG 24W347
ENDURA-FLO PUMP, 4:1 AODD, 150, BSP, STD
Endura-Flo 4D150, 4:1 Air Operated Diaphragm Pump, 150cc, BSPP The Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money. Endure-Flo diaphragms last longer against extreme operating conditions Easy access to critical components for fast online maintenance Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money Minimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systems Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
$6,730.00

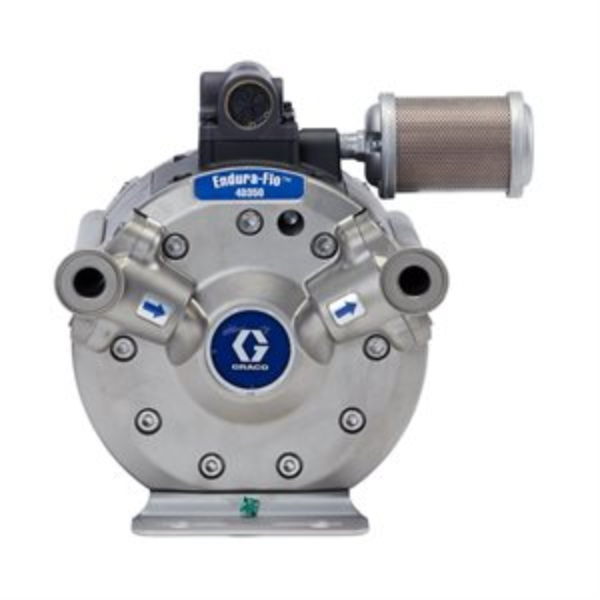

ENDURA-FLO PUMP, 4:1 AODD, 350, TRI, STD
GG 24W351
GG 24W351
ENDURA-FLO PUMP, 4:1 AODD, 350, TRI, STD
Endura-Flo 4D350, 4:1 Air Operated Diaphragm Pump, 350cc, Tri-Clamp The Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money. Endure-Flo diaphragms last longer against extreme operating conditions Easy access to critical components for fast online maintenance Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money Minimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systems Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
$11,390.00
CHEMSAFE PUMP, 1040PT-P01A-PT3-PT-PT-PO
GG 24X423
GG 24X423
CHEMSAFE PUMP, 1040PT-P01A-PT3-PT-PT-PO
ChemSafe 1040 Air Operated Double Diaphragm Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT PortGraco's ChemSafe pumps feature PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. There's no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chemical compatibility requirements. Plus they're dead-head capable and achieve high flow rates while minimizing air consumption and operational noise.
Max flow rate of 37.5 gpm (142 lpm) High quality machined design provides a precision fit and superior chemical containment compared to molded pumps Corrosion-resistant exterior with no exposed metal reduces maintenance, extends pump life and offers clean, safe operation Removable air motor offers easy and intuitive maintenance ensuring maximum pump performance and availability Ideal for corrosive and abrasive liquids such as acids, fuels, glues, paints, resins, inks, or wastewater
$9,580.00
CHEMSAFE PUMP, 307PT-P01A-PT3-PT-PT-PO
GG 24X427
GG 24X427
CHEMSAFE PUMP, 307PT-P01A-PT3-PT-PT-PO
ChemSafe 307 Air Operated Double Diaphragm Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT PortGraco's ChemSafe pumps feature PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. There's no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chemical compatibility requirements. Plus they're dead-head capable and achieve high flow rates while minimizing air consumption and operational noise.
Max flow rate of 7.9 gpm (30 lpm) High quality machined design provides a precision fit and superior chemical containment compared to molded pumps Corrosion-resistant exterior with no exposed metal reduces maintenance, extends pump life and offers clean, safe operation Removable air motor offers easy and intuitive maintenance ensuring maximum pump performance and availability Ideal for corrosive and abrasive liquids such as acids, fuels, glues, paints, resins, inks, or wastewater
$2,500.00
CHEMSAFE PUMP, 205PT-P01A-PT3-PT-PT-PO
GG 24X429
GG 24X429
CHEMSAFE PUMP, 205PT-P01A-PT3-PT-PT-PO
Graco 24X429 ChemSafe 205 Air Operated Double Diaphragm Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port
Graco&prime, s ChemSafe pumps feature PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. There&prime, s no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chemical compatibility requirements. Plus they&prime, re dead-head capable and achieve high flow rates while minimizing air consumption and operational noise.
- Max flow rate of 3.6 gpm (14 lpm)
- High quality machined design provides a precision fit and superior chemical containment compared to molded pumps
- Corrosion-resistant exterior with no exposed metal reduces maintenance, extends pump life and offers clean, safe operation
- Ideal for corrosive and abrasive liquids such as acids, fuels, glues, paints, resins, inks, or wastewater
- Model: ChemSafe
- Series: 205
- Air Inlet Size (in): 1/8
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Ball Material: PTFE
- Center Section Material: Polypropylene
- Compatible Material: Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Water - Wastewater Treatment, Water - Wastewater Transfer, Food and Personal Care, Ink
- Connection Type: Threaded
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE Overmold
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 0.635
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Size (mm): 6.35
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Material: PTFE
- Manifold Configuration: Center Port
- Manifold O-Ring Material: PTFE
- Material: PTFE
- Maximum Air Consumption (SCFM): 4.8
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 375
- Maximum Flow Rate (GPM): 2.5
- Maximum Flow Rate (L/min): 9.5
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Operating Temperature (°C): 100
- Maximum Operating Temperature (°F): 212
- Maximum Solid Size (cm): 0.15
- Maximum Solid Size (in): 0.06
- Maximum Solid Size (mm): 1.5
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F):
$2,370.00
PROMIX 2KE PROPORTIONER, METER, ACID
GG 24Z016
GG 24Z016
PROMIX 2KE PROPORTIONER, METER, ACID
Graco 24Z016 ProMix 2KE Acid Catalyst Meter, 3 color/1 catalyst, non intrinsically safe AC powered
The ProMix 2KE meter-based system manages tough acid catalyst materials, such as conversion varnish for cabinetry and bar counter tops. The compact, entry-level proportioner easily handles strong acid catalysts with its corrosion resistant fluid section and smart fluid plate.
- Made with durable, high grade, stainless steel components like gears with ceramic bearings, the G3000A meter gauges the exact mix ratio while withstanding corrosion.
- Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1
- Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter
- Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more
- Model: ProMix
- Series: 2KE
- Air Inlet Size (cm): 0.9525
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Amperage (A): 2
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Activation: Manual
- Includes: 2KE Meter-Based Proportioner, G3000 (A), G3000A (B), 3 Color, 1 Catalyst, Non Intrinsically Safe AC Powered
- Material Type: Two Component
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Fluid Viscosity (cP): 5000
- Maximum Fluid Viscosity (cP): 5000
- Maximum Number of Colors: Up to 3
- Maximum Working Pressure (bar): 206.8
- Maximum Working Pressure (kPa): 20680
- Maximum Working Pressure (MPa): 20.7
- Maximum Working Pressure (psi): 3000
- Measuring Type: Meter
- Minimum Fluid Viscosity (cP): 20
- Minimum Mix Ratio: 0.1:1
- Mix Accuracy (%): 1
- Number of Catalysts: 1
- Number of Color Valves: N/A
- Number of Colors: 3
- Number of Resin Colors: 3
- Power Source: Electric
- Proportioning Type: Manual Electronic
- Pump Ratio: Meter only
$32,580.00
LINELAZER SPRAYER, V, 250SPS, 2 GUN, 2PBS, LSR
GG 25D340
GG 25D340
LINELAZER SPRAYER, V, 250SPS, 2 GUN, 2PBS, LSR
LineLazer V 250SPS HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns, 2 Tanks, LazerGuide 3000 With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Reflective Series is a self-propelled system with reflective bead capability designed for large, heavy-duty line striping jobs including parking lots and road jobs. The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements. Pressurized EZ Bead System- Superior Bead Application Performance
- Ensures proper bead flow and paint penetration
- Dual bead tanks hold up to 120 lbs each
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
- Easier, laser-straight lines
- Longer distance accuracy
- Highly-visible laser guise
- Faster, simple operation
- Striping Information At-A-Glance
- Simple to use and easy to see in all conditions
- Less Refilling
- Extended striping time with large capacity hopper
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Fast starting
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- Straighter long lines
- Use up to six guns
- Self-Centering Front Wheel
- Easy Handlebar Adjustment
- Endurance Chromex Pump
- High-Efficiency Hydraulic Motor
- High-Capacity Cooling System
- Easy Out Pump Filter
$54,690.00
Payment options
