GG D52966.jpg

HUSKY PUMP, 515P-PP01AP3PPSPSPPT0

GG D52966

GG D52966

HUSKY PUMP, 515P-PP01AP3PPSPSPPT0

Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance.

$860.00
GG 233500.jpg

TRITON PUMP, DIAPHRAGM, 1:1 ALUMINUM

GG 233500

GG 233500

TRITON PUMP, DIAPHRAGM, 1:1 ALUMINUM

Graco 233500 Triton Air-Operated Diaphragm Pump, Bare, Aluminum, NPT

Effective alternative to traditional pressure pots and standard diaphragm pumps

  • Double diaphragm pump designed specifically for finishing applications
  • Low pulsation output provides smooth pump changeover
  • Low shear design for minimal degradation of shear sensitive materials


  • Model: Triton
  • Series: 308
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Type: NPT
  • Application: Circulation
  • Connection Type: Threaded
  • Fluid Inlet Size (cm): 1.905
  • Fluid Inlet Size (in): 3/4
  • Fluid Inlet Size (mm): 19.05
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 0.9525
  • Fluid Outlet Size (in): 3/8
  • Fluid Outlet Size (mm): 9.525
  • Fluid Outlet Thread Type: NPT
  • Manifold Configuration: Center Port
  • Material: Aluminum
  • Maximum Air Pressure (bar): 8
  • Maximum Air Pressure (kPa): 80
  • Maximum Air Pressure (MPa): 0.8
  • Maximum Air Pressure (psi): 115
  • Maximum Flow Rate (GPM): 8.5
  • Maximum Flow Rate (L/min): 32
  • Maximum Fluid Pressure (bar): 8
  • Maximum Fluid Pressure (kPa): 80
  • Maximum Fluid Pressure (MPa): 0.8
  • Maximum Fluid Pressure (psi): 115
  • Maximum Fluid Pressure (bar): 8
  • Maximum Fluid Pressure (kPa): 80
  • Maximum Fluid Pressure (MPa): 0.8
  • Maximum Fluid Pressure (psi): 115
  • Maximum Operating Temperature (°C): 80
  • Maximum Operating Temperature (°F): 176
  • Minimum Operating Temperature (°C): 10
  • Minimum Operating Temperature (°F): 50
  • Power Source: Air
  • Pump Ratio: 1:1
$1,440.00
GG D52911.jpg

HUSKY PUMP, 515P-PP01AP3PPPTPTPT0

GG D52911

GG D52911

HUSKY PUMP, 515P-PP01AP3PPPTPTPT0

Graco D52911 Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

  • Center and end porting options.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Split manifold option to pump multiple fluids without mixing
  • Delivery up to 15 gpm (56.7 lpm)
  • Easy-to-service air valve and ball checks
  • Reliable air valve for years of dependable performance


  • Model: Husky
  • Series: 515
  • Air Exhaust Port Size (in): 3/8
  • Air Exhaust Port Thread Gender: Female
  • Air Exhaust Port Thread Type: NPT
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Industrial
  • Ball Material: PTFE
  • Center Section Material: Polypropylene
  • Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
  • Connection Type: Threaded
  • Diaphragm Compatible Material: PTFE
  • Diaphragm Material: PTFE/EPDM 2-Piece
  • Fluid Inlet Size (cm): 1.27
  • Fluid Inlet Size (in): 1/2
  • Fluid Inlet Size (mm): 12.7
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 1.27
  • Fluid Outlet Size (in): 1/2
  • Fluid Outlet Size (mm): 12.7
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Fluid Section Material: Polypropylene
  • Manifold Configuration: Center Port
  • Manifold O-Ring Material: PTFE
  • Material: Polypropylene
  • Maximum Air Consumption (SCFM): 28
  • Maximum Air Pressure (bar): 7
  • Maximum Air Pressure (kPa): 700
  • Maximum Air Pressure (MPa): 0.7
  • Maximum Air Pressure (psi): 100
  • Maximum Cycle Rate (CPM): 400
  • Maximum Flow Rate (GPM): 15
  • Maximum Flow Rate (L/min): 56.8
  • Maximum Fluid Pressure (bar): 7
  • Maximum Fluid Pressure (kPa): 700
  • Maximum Fluid Pressure (MPa): 0.7
  • Maximum Fluid Pressure (psi): 100
  • Maximum Fluid Pressure (bar): 7
  • Maximum Fluid Pressure (kPa): 700
  • Maximum Fluid Pressure (MPa): 0.7
  • Maximum Fluid Pressure (psi): 100
  • Maximum Operating Temperature (°C): 66
  • Maximum Operating Temperature (°F): 150
  • Maximum Solid Size (cm): 0.2383
  • Maximum Solid Size (in): 0.09375
  • Maximum Solid Size (mm): 2.4
  • Minimum Operating Temperature (°C): 4
  • Minimum Operating Temperature (°F): 40
  • Overal
$1,185.00
GG D51211.jpg

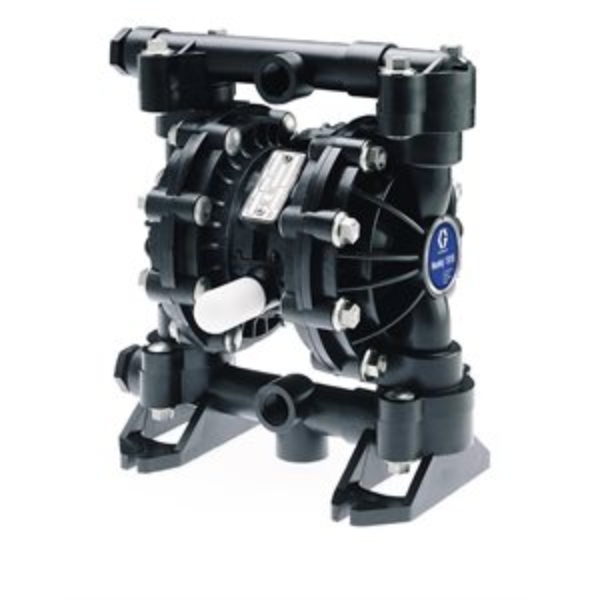

HUSKY PUMP, 515AC-PP01AAC3ACPTPTPT0

GG D51211

GG D51211

HUSKY PUMP, 515AC-PP01AAC3ACPTPTPT0

Graco D51211 Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, AC Seats, PTFE Balls & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

  • Center and end porting options.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Split manifold option to pump multiple fluids without mixing
  • Delivery up to 15 gpm (56.7 lpm)
  • Easy-to-service air valve and ball checks
  • Reliable air valve for years of dependable performance


  • Model: Husky
  • Series: 515
  • Air Exhaust Port Size (in): 3/8
  • Air Exhaust Port Thread Gender: Female
  • Air Exhaust Port Thread Type: NPT
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Industrial
  • Ball Material: PTFE
  • Center Section Material: Polypropylene
  • Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
  • Connection Type: Threaded
  • Diaphragm Compatible Material: PTFE
  • Diaphragm Material: PTFE/EPDM 2-Piece
  • Fluid Inlet Size (cm): 1.27
  • Fluid Inlet Size (in): 1/2
  • Fluid Inlet Size (mm): 12.7
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 1.27
  • Fluid Outlet Size (in): 1/2
  • Fluid Outlet Size (mm): 12.7
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Fluid Section Material: Acetal
  • Manifold Configuration: Center Port
  • Manifold O-Ring Material: PTFE
  • Material: Acetal
  • Maximum Air Consumption (SCFM): 28
  • Maximum Air Pressure (bar): 7
  • Maximum Air Pressure (kPa): 700
  • Maximum Air Pressure (MPa): 0.7
  • Maximum Air Pressure (psi): 100
  • Maximum Cycle Rate (CPM): 400
  • Maximum Flow Rate (GPM): 15
  • Maximum Flow Rate (L/min): 56.8
  • Maximum Fluid Pressure (bar): 7
  • Maximum Fluid Pressure (kPa): 700
  • Maximum Fluid Pressure (MPa): 0.7
  • Maximum Fluid Pressure (psi): 100
  • Maximum Fluid Pressure (bar): 7
  • Maximum Fluid Pressure (kPa): 700
  • Maximum Fluid Pressure (MPa): 0.7
  • Maximum Fluid Pressure (psi): 100
  • Maximum Operating Temperature (°C): 82
  • Maximum Operating Temperature (°F): 180
  • Maximum Solid Size (cm): 0.2383
  • Maximum Solid Size (in): 0.09375
  • Maximum Solid Size (mm): 2.4
  • Minimum Operating Temperature (°C): 4
  • Minimum Operating Temperature (°F): 40
  • Overall Height (in
$1,410.00
GG 647028.jpg

HUSKY PUMP, 1050A-PA01AA1SSPTPTPT

GG 647028

GG 647028

HUSKY PUMP, 1050A-PA01AA1SSPTPTPT

Graco 647028 Husky 1050 AL 1 in. (25.4 mm) NPT Pump, Standard AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

  • Longer Diaphragm Life

      Up to 5x longer diaphragm life for less maintenance and downtime

    • Modular Air Valve

        Stall-free, low pulsation operation provides smooth and rapid changeover

      • One-Piece Center Section

          Eliminates air leaks for more efficient operation

        • Multiple Ports

            Increased number of ports for installation flexibility

          • Optional Features

              DataTrak™ - Runaway protection and tracks material usage

              Pulse Output - Cycle count capability

            • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
            • 30% more efficient than the market leader
            • 20% increase in fluid flow compared to the Husky 1040


            • Model: Husky
            • Series: 1050
            • Air Exhaust Port Size (in): 3/4
            • Air Exhaust Port Thread Gender: Female
            • Air Exhaust Port Thread Type: NPT
            • Air Inlet Size (in): 1/2
            • Air Inlet Thread Gender: Female
            • Air Inlet Thread Type: NPT
            • Application: Industrial
            • Ball Material: PTFE
            • Center Section Material: Aluminum
            • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
            • Connection Type: Threaded
            • Diaphragm Compatible Material: PTFE
            • Diaphragm Material: PTFE/EPDM 2-Piece
            • Fluid Inlet Size (cm): 2.54
            • Fluid Inlet Size (in): 1
            • Fluid Inlet Size (mm): 25.4
            • Fluid Inlet Thread Gender: Female
            • Fluid Inlet Thread Type: NPT
            • Fluid Outlet Size (cm): 2.54
            • Fluid Outlet Size (in): 1
            • Fluid Outlet Size (mm): 25.4
            • Fluid Outlet Thread Gender: Female
            • Fluid Outlet Thread Type: NPT
            • Fluid Section Material: Aluminum
            • Manifold Configuration: Center Port, End Port
            • Manifold O-Ring Material: PTFE
            • Material: Aluminum
            • Maximum Air Consumption (SCFM): 67
            • Maximum Air Pressure (bar): 8.6
            • Maximum Air Pressure (kPa): 860
            • Maximum Air Pressure (MPa): 0.86
            • Maximum Air Pressure (psi): 125
            • Maximum Cycle Rate (CPM): 280
            • Maximum Flow Rate (GPM): 50
            • Maximum Flow Rate (L/min): 189
            • Maximum Fluid Pressure (bar): 8.6
            • Maximum Fluid Pressure (kPa): 860
            • Maximum Fluid Pressure (MPa): 0.86
            • Maximum Fluid Pressure (psi): 125
            • Maximum Fluid Pressure (bar): 8.6
            • Maximu
$2,230.00
GG D51311.jpg

Husky Pump, 515AC-PP01AAC3SSPTPTPT0

GG D51311

GG D51311

Husky Pump, 515AC-PP01AAC3SSPTPTPT0

Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, SS Seats, PTFE Balls & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance
$1,805.00
GG 233501.jpg

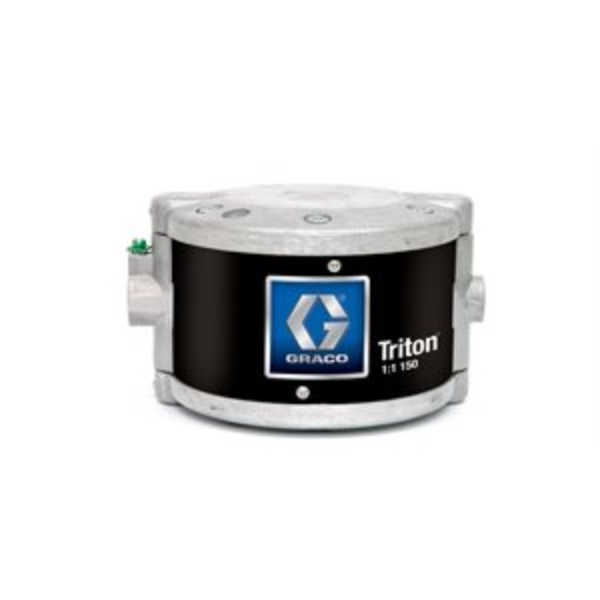

TRITON PUMP, DIAPHRAGM, 1:1 SST

GG 233501

GG 233501

TRITON PUMP, DIAPHRAGM, 1:1 SST

Triton Air-Operated Diaphragm Pump, Bare, SST, NPT

Effective alternative to traditional pressure pots and standard diaphragm pumps

Double diaphragm pump designed specifically for finishing applications Low pulsation output provides smooth pump changeover Low shear design for minimal degradation of shear sensitive materials Rugged aluminum and stainless steel construction handles a wide variety of fluids
$2,650.00

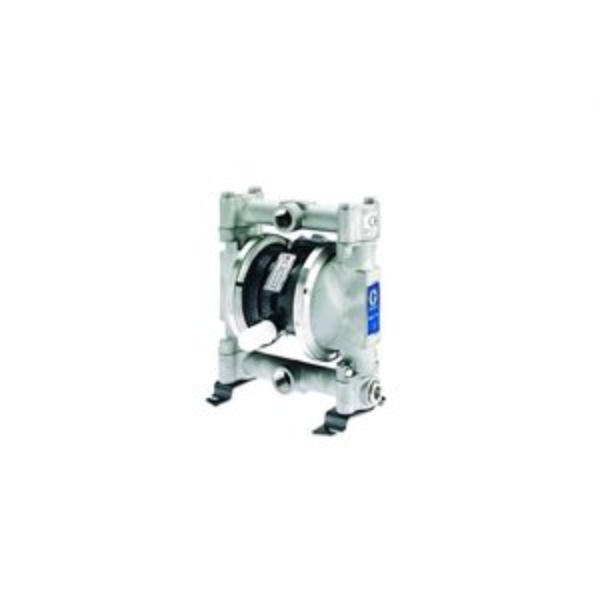

GG D54311.jpg

HUSKY PUMP, 716S-PP01AS1SSPTPTPT0

GG D54311

GG D54311

HUSKY PUMP, 716S-PP01AS1SSPTPTPT0

Husky 716 SS Air Operated Double Diaphragm Metal Pump

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks
$2,760.00

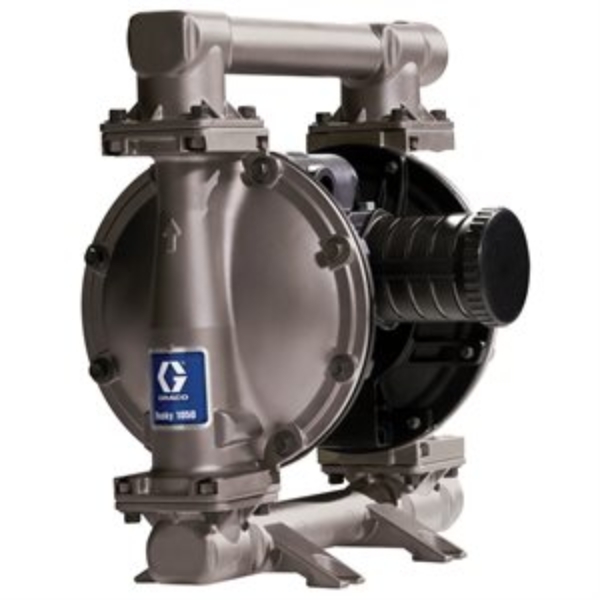

GG 651009.jpg

HUSKY PUMP, 1050S-A01AS1SSPTPTPT

GG 651009

GG 651009

HUSKY PUMP, 1050S-A01AS1SSPTPTPT

Graco 651009 Husky 1050 SS 1 in. (25.4 mm) NPT Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

  • Longer Diaphragm Life

      Up to 5x longer diaphragm life for less maintenance and downtime

    • Modular Air Valve

        Stall-free, low pulsation operation provides smooth and rapid changeover

      • One-Piece Center Section

          Eliminates air leaks for more efficient operation

        • Multiple Ports

            Increased number of ports for installation flexibility

          • Optional Features

              DataTrak™ - Runaway protection and tracks material usage

              Pulse Output - Cycle count capability

            • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
            • 30% more efficient than the market leader
            • 20% increase in fluid flow compared to the Husky 1040


            • Model: Husky
            • Series: 1050
            • Air Exhaust Port Size (in): 3/4
            • Air Exhaust Port Thread Gender: Female
            • Air Exhaust Port Thread Type: NPT
            • Air Inlet Size (in): 1/2
            • Air Inlet Thread Gender: Female
            • Air Inlet Thread Type: NPT
            • Application: Industrial
            • Ball Material: PTFE
            • Center Section Material: Aluminum
            • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
            • Connection Type: Threaded
            • Diaphragm Compatible Material: PTFE
            • Diaphragm Material: PTFE/EPDM 2-Piece
            • Fluid Inlet Size (cm): 2.54
            • Fluid Inlet Size (in): 1
            • Fluid Inlet Size (mm): 25.4
            • Fluid Inlet Thread Gender: Female
            • Fluid Inlet Thread Type: NPT
            • Fluid Outlet Size (cm): 2.54
            • Fluid Outlet Size (in): 1
            • Fluid Outlet Size (mm): 25.4
            • Fluid Outlet Thread Gender: Female
            • Fluid Outlet Thread Type: NPT
            • Fluid Section Material: Stainless Steel
            • Manifold Configuration: Center Port, End Port
            • Manifold O-Ring Material: PTFE
            • Material: Stainless Steel
            • Maximum Air Consumption (SCFM): 67
            • Maximum Air Pressure (bar): 8.6
            • Maximum Air Pressure (kPa): 860
            • Maximum Air Pressure (MPa): 0.86
            • Maximum Air Pressure (psi): 125
            • Maximum Cycle Rate (CPM): 280
            • Maximum Flow Rate (GPM): 50
            • Maximum Flow Rate (L/min): 189
            • Maximum Fluid Pressure (bar): 8.6
            • Maximum Fluid Pressure (kPa): 860
            • Maximum Fluid Pressure (MPa): 0.86
            • Maximum Fluid Pressure (psi): 125
            • Maximum Fluid Pressure (bar): 8.6
            • Ma
$3,840.00

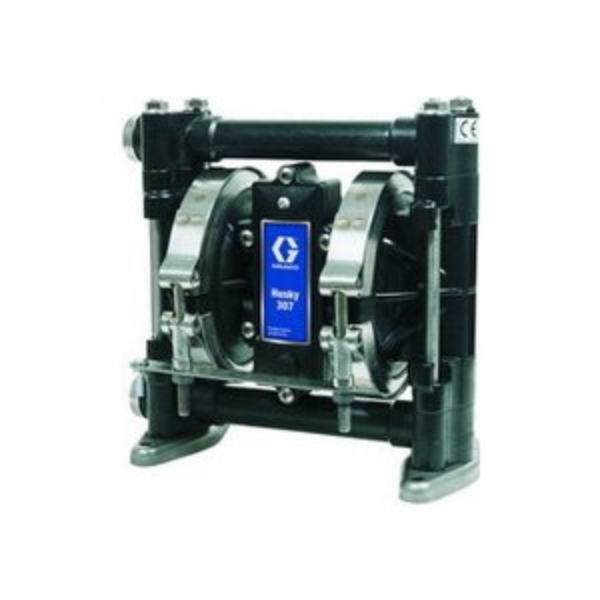

GG D31211.jpg

HUSKY PUMP, 307AC-PP01AAC3ACPTPTPT

GG D31211

GG D31211

HUSKY PUMP, 307AC-PP01AAC3ACPTPTPT

Husky 307 AC 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, AC Seats, PTFE Balls & PTFE Diaphragm

The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.

Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil. Quick and easy assembly and disassembly design Easy to service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Every pump is tested prior to shipping 3/8 in (9.52 mm) end porting Delivery up to 7 gpm (26.5 lpm) Easy-to-service air valve and ball checks
$964.00

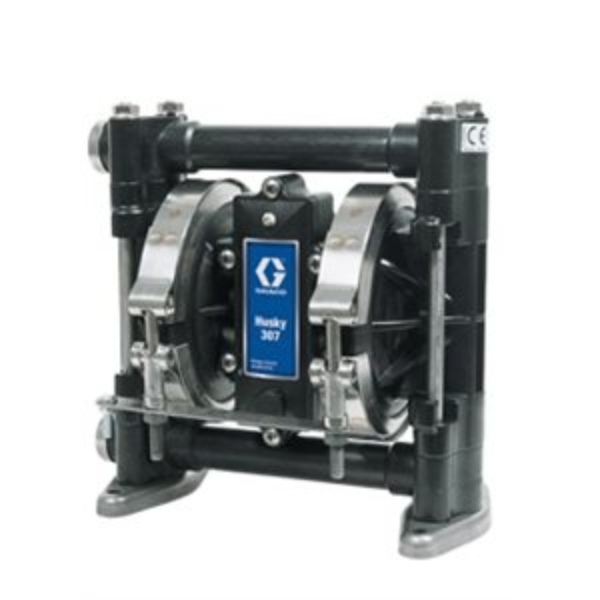

GG D31331.jpg

Husky Pump, 307AC-PP01AAC3SSSSPTPT

GG D31331

GG D31331

Husky Pump, 307AC-PP01AAC3SSSSPTPT

Husky 307 AC 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, SS Seats, SS Balls & PTFE Diaphragm

The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.

Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil. Quick and easy assembly and disassembly design Easy to service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Every pump is tested prior to shipping 3/8 in (9.52 mm) end porting Delivery up to 7 gpm (26.5 lpm) Easy-to-service air valve and ball checks
$1,055.00
GG D51331.jpg

HUSKY PUMP, 515AC-PP01AAC3SSSSPTPT0

GG D51331

GG D51331

HUSKY PUMP, 515AC-PP01AAC3SSSSPTPT0

Graco D51331 Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, SS Seats, SS Balls & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

  • Center and end porting options.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Split manifold option to pump multiple fluids without mixing
  • Delivery up to 15 gpm (56.7 lpm)
  • Easy-to-service air valve and ball checks
  • Reliable air valve for years of dependable performance


  • Model: Husky
  • Series: 515
  • Air Exhaust Port Size (in): 3/8
  • Air Exhaust Port Thread Gender: Female
  • Air Exhaust Port Thread Type: NPT
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Industrial
  • Ball Material: 316 Stainless Steel
  • Center Section Material: Polypropylene
  • Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
  • Connection Type: Threaded
  • Diaphragm Compatible Material: PTFE
  • Diaphragm Material: PTFE/EPDM 2-Piece
  • Fluid Inlet Size (cm): 1.27
  • Fluid Inlet Size (in): 1/2
  • Fluid Inlet Size (mm): 12.7
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 1.27
  • Fluid Outlet Size (in): 1/2
  • Fluid Outlet Size (mm): 12.7
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Fluid Section Material: Acetal
  • Manifold Configuration: Center Port
  • Manifold O-Ring Material: PTFE
  • Material: Acetal
  • Maximum Air Consumption (SCFM): 28
  • Maximum Air Pressure (bar): 7
  • Maximum Air Pressure (kPa): 700
  • Maximum Air Pressure (MPa): 0.7
  • Maximum Air Pressure (psi): 100
  • Maximum Cycle Rate (CPM): 400
  • Maximum Flow Rate (GPM): 15
  • Maximum Flow Rate (L/min): 56.8
  • Maximum Fluid Pressure (bar): 7
  • Maximum Fluid Pressure (kPa): 700
  • Maximum Fluid Pressure (MPa): 0.7
  • Maximum Fluid Pressure (psi): 100
  • Maximum Fluid Pressure (bar): 7
  • Maximum Fluid Pressure (kPa): 700
  • Maximum Fluid Pressure (MPa): 0.7
  • Maximum Fluid Pressure (psi): 100
  • Maximum Operating Temperature (°C): 104
  • Maximum Operating Temperature (°F): 220
  • Maximum Solid Size (cm): 0.2383
  • Maximum Solid Size (in): 0.09375
  • Maximum Solid Size (mm): 2.4
  • Minimum Operating Temperature (°C): 4
  • Minimum Operating Temperature (°F): 40
  • Over
$1,850.00

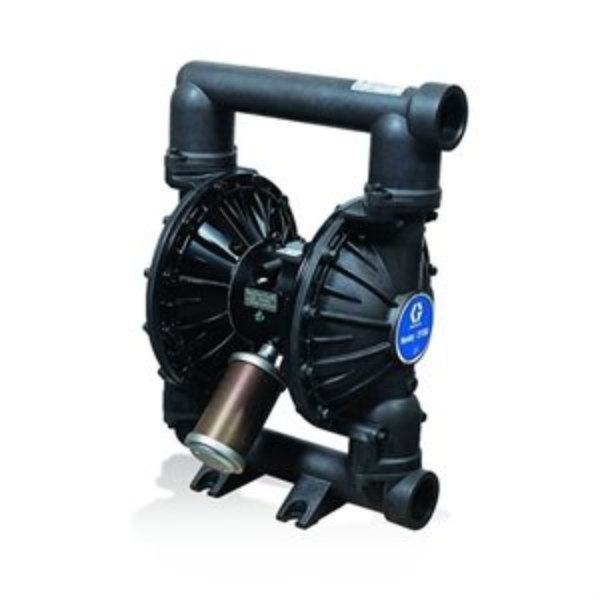

GG DF3525.jpg

HUSKY PUMP, 2150A-PA01AA1TPACTP

GG DF3525

GG DF3525

HUSKY PUMP, 2150A-PA01AA1TPACTP

Graco DF3525 Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE/AC

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

  • Overall improved efficiency (up to 40% more efficient)
  • Highest fluid flow rate in its class
  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
  • Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
  • 2 in. (51 mm) ANSI end-porting
  • Fluid flow up to 150 gpm (568 lpm)
  • Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
  • Lube-free operation
  • Epoxy-coated air section for tough environmental conditions
  • Available in aluminum, 316 stainless steel, ductile iron and polypropylene


  • Model: Husky
  • Series: 2150
  • Air Inlet Size (in): 1/2
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Industrial
  • Ball Material: Acetal
  • Center Section Material: Aluminum
  • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
  • Connection Type: Threaded
  • Diaphragm Compatible Material: TPE
  • Diaphragm Material: TPE (Hytrel)
  • Fluid Inlet Size (cm): 5.08
  • Fluid Inlet Size (in): 2
  • Fluid Inlet Size (mm): 50.8
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 5.08
  • Fluid Outlet Size (in): 2
  • Fluid Outlet Size (mm): 50.8
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Fluid Section Material: Aluminum
  • Manifold Configuration: End Port
  • Material: Aluminum
  • Maximum Air Consumption (SCFM): 175
  • Maximum Air Pressure (bar): 8.27
  • Maximum Air Pressure (kPa): 827
  • Maximum Air Pressure (MPa): 0.827
  • Maximum Air Pressure (psi): 120
  • Maximum Cycle Rate (CPM): 145
  • Maximum Flow Rate (GPM): 150
  • Maximum Flow Rate (L/min): 568
  • Maximum Fluid Pressure (bar): 8.27
  • Maximum Fluid Pressure (kPa): 827
  • Maximum Fluid Pressure (MPa): 0.827
  • Maximum Fluid Pressure (psi): 120
  • Maximum Fluid Pressure (bar): 8.27
  • Maximum Fluid Pressure (kPa): 827
  • Maximum Fluid Pressure (MPa): 0.827
  • Maximum Fluid Pressure (psi): 120
  • Maximum Operating Temperature (°C): 66
  • Maximum Operating Temperature (°F): 150
  • Maximum Solid Size (cm): 0.635
  • Maximum Solid Size (in): 0.25
  • Maximum Solid Size (mm): 6.35
  • Power Source: Air
$2,530.00

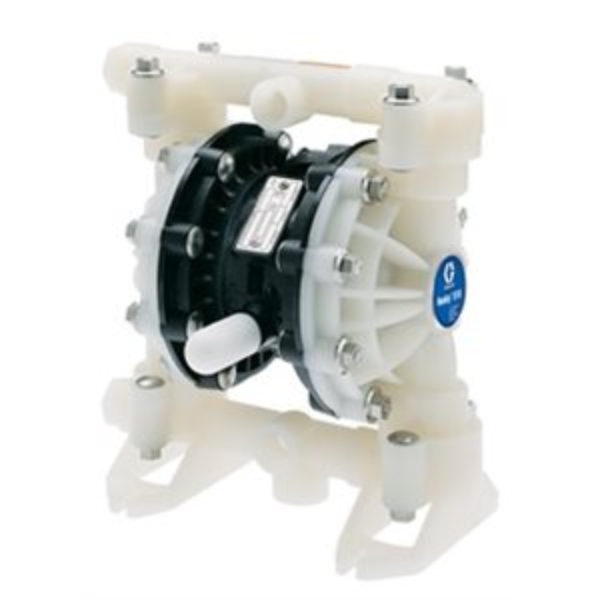

GG D55A11.jpg

HUSKY PUMP, 515F-PP01AF3PVPTPTPT0

GG D55A11

GG D55A11

HUSKY PUMP, 515F-PP01AF3PVPTPTPT0

Graco D55A11 Husky 515 PVDF 1/2 in NPT Standard Pump, PP Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

  • Center and end porting options.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Split manifold option to pump multiple fluids without mixing
  • Delivery up to 15 gpm (56.7 lpm)
  • Easy-to-service air valve and ball checks
  • Reliable air valve for years of dependable performance


  • Model: Husky
  • Series: 515
  • Air Exhaust Port Size (in): 3/8
  • Air Exhaust Port Thread Gender: Female
  • Air Exhaust Port Thread Type: NPT
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Industrial
  • Ball Material: PTFE
  • Center Section Material: Polypropylene
  • Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
  • Connection Type: Threaded
  • Diaphragm Compatible Material: PTFE
  • Diaphragm Material: PTFE/EPDM 2-Piece
  • Fluid Inlet Size (cm): 1.27
  • Fluid Inlet Size (in): 1/2
  • Fluid Inlet Size (mm): 12.7
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 1.27
  • Fluid Outlet Size (in): 1/2
  • Fluid Outlet Size (mm): 12.7
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Fluid Section Material: PVDF (Kynar)
  • Manifold Configuration: Center Port
  • Manifold O-Ring Material: PTFE
  • Material: PVDF
  • Maximum Air Consumption (SCFM): 28
  • Maximum Air Pressure (bar): 7
  • Maximum Air Pressure (kPa): 700
  • Maximum Air Pressure (MPa): 0.7
  • Maximum Air Pressure (psi): 100
  • Maximum Cycle Rate (CPM): 400
  • Maximum Flow Rate (GPM): 15
  • Maximum Flow Rate (L/min): 56.8
  • Maximum Fluid Pressure (bar): 7
  • Maximum Fluid Pressure (kPa): 700
  • Maximum Fluid Pressure (MPa): 0.7
  • Maximum Fluid Pressure (psi): 100
  • Maximum Fluid Pressure (bar): 7
  • Maximum Fluid Pressure (kPa): 700
  • Maximum Fluid Pressure (MPa): 0.7
  • Maximum Fluid Pressure (psi): 100
  • Maximum Operating Temperature (°C): 107
  • Maximum Operating Temperature (°F): 225
  • Maximum Solid Size (cm): 0.2383
  • Maximum Solid Size (in): 0.09375
  • Maximum Solid Size (mm): 2.4
  • Minimum Operating Temperature (°C): 4
  • Minimum Operating Temperature (°F): 40
  • Overall Hei
$2,020.00
GG 647018.jpg

HUSKY PUMP, 1050A-PA01AA1SSSSPTPT

GG 647018

GG 647018

HUSKY PUMP, 1050A-PA01AA1SSSSPTPT

Graco 647018 Husky 1050 AL 1 in. (25.4 mm) NPT Pump, AL Center Section, SS Seats, SS Balls & PTFE Diaphragm

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

  • Longer Diaphragm Life

      Up to 5x longer diaphragm life for less maintenance and downtime

    • Modular Air Valve

        Stall-free, low pulsation operation provides smooth and rapid changeover

      • One-Piece Center Section

          Eliminates air leaks for more efficient operation

        • Multiple Ports

            Increased number of ports for installation flexibility

          • Optional Features

              DataTrak™ - Runaway protection and tracks material usage

              Pulse Output - Cycle count capability

            • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
            • 30% more efficient than the market leader
            • 20% increase in fluid flow compared to the Husky 1040


            • Model: Husky
            • Series: 1050
            • Air Exhaust Port Size (in): 3/4
            • Air Exhaust Port Thread Gender: Female
            • Air Exhaust Port Thread Type: NPT
            • Air Inlet Size (in): 1/2
            • Air Inlet Thread Gender: Female
            • Air Inlet Thread Type: NPT
            • Application: Industrial
            • Ball Material: 316 Stainless Steel
            • Center Section Material: Aluminum
            • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
            • Connection Type: Threaded
            • Diaphragm Compatible Material: PTFE
            • Diaphragm Material: PTFE/EPDM 2-Piece
            • Fluid Inlet Size (cm): 2.54
            • Fluid Inlet Size (in): 1
            • Fluid Inlet Size (mm): 25.4
            • Fluid Inlet Thread Gender: Female
            • Fluid Inlet Thread Type: NPT
            • Fluid Outlet Size (cm): 2.54
            • Fluid Outlet Size (in): 1
            • Fluid Outlet Size (mm): 25.4
            • Fluid Outlet Thread Gender: Female
            • Fluid Outlet Thread Type: NPT
            • Fluid Section Material: Aluminum
            • Manifold Configuration: Center Port, End Port
            • Manifold O-Ring Material: PTFE
            • Material: Aluminum
            • Maximum Air Consumption (SCFM): 67
            • Maximum Air Pressure (bar): 8.6
            • Maximum Air Pressure (kPa): 860
            • Maximum Air Pressure (MPa): 0.86
            • Maximum Air Pressure (psi): 125
            • Maximum Cycle Rate (CPM): 280
            • Maximum Flow Rate (GPM): 50
            • Maximum Flow Rate (L/min): 189
            • Maximum Fluid Pressure (bar): 8.6
            • Maximum Fluid Pressure (kPa): 860
            • Maximum Fluid Pressure (MPa): 0.86
            • Maximum Fluid Pressure (psi): 125
            • Maximum Fluid Pressure (bar): 8.6
            • Ma
$2,230.00

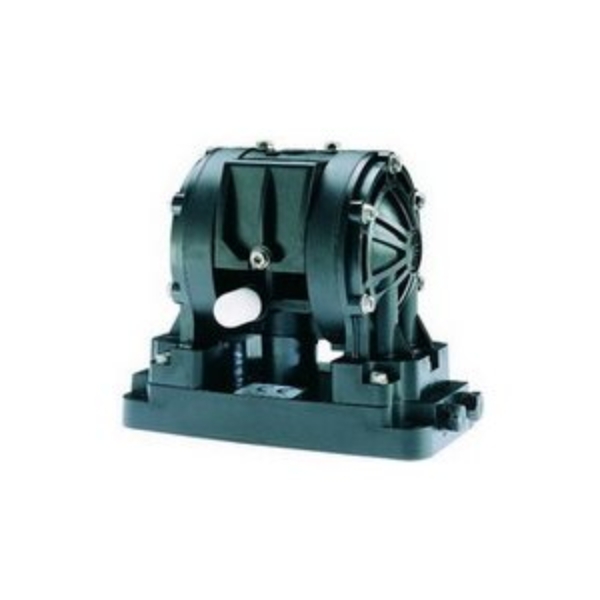

GG D12091.jpg

HUSKY PUMP, 205P-PP01AP5--PPPTPT-FK

GG D12091

GG D12091

HUSKY PUMP, 205P-PP01AP5--PPPTPT-FK

Husky 205 PP AODD Plastic Pump, PP/PT/PT-FKM

Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money.

The Husky 205 air-operated diaphragm pump features spring check valves for superior priming in any mounting configuration. True-formed PTFE and Santoprene diaphragms for enhanced performance Spring loaded checks allow the diaphragm pump to work in any orientation Inlet and Outlet are interchangeable Remote control option using an external controller 1/4-in (6.35 mm) end-porting double diaphragm pump
$673.00

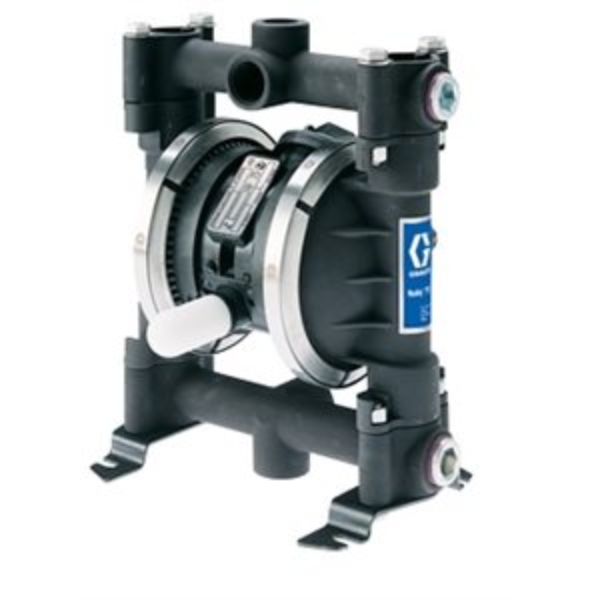

GG D53331.jpg

Husky Pump, 716A-PP01AA1SSSSPTPT0

GG D53331

GG D53331

Husky Pump, 716A-PP01AA1SSSSPTPT0

Graco D53331 Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, SS Seat, SS Ball, & PTFE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

  • Center- and end-porting
  • No mechanical seals which causes fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • 3/4 in (19.05 mm) center- and end-porting
  • No seals to leak or fail
  • Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks


  • Model: Husky
  • Series: 716
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Industrial
  • Ball Material: 316 Stainless Steel
  • Center Section Material: Polypropylene
  • Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
  • Connection Type: Threaded
  • Diaphragm Compatible Material: PTFE
  • Diaphragm Material: PTFE/EPDM 2-Piece
  • Fluid Inlet Size (cm): 1.905
  • Fluid Inlet Size (in): 3/4
  • Fluid Inlet Size (mm): 19.05
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 1.905
  • Fluid Outlet Size (in): 3/4
  • Fluid Outlet Size (mm): 19.05
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Fluid Section Material: Aluminum
  • Manifold Configuration: Center Port
  • Manifold O-Ring Material: PTFE
  • Material: Aluminum
  • Maximum Air Consumption (SCFM): 28
  • Maximum Air Pressure (bar): 6.9
  • Maximum Air Pressure (kPa): 690
  • Maximum Air Pressure (MPa): 0.69
  • Maximum Air Pressure (psi): 100
  • Maximum Cycle Rate (CPM): 400
  • Maximum Flow Rate (GPM): 16
  • Maximum Flow Rate (L/min): 60.6
  • Maximum Fluid Pressure (bar): 6.9
  • Maximum Fluid Pressure (kPa): 690
  • Maximum Fluid Pressure (MPa): 0.69
  • Maximum Fluid Pressure (psi): 100
  • Maximum Fluid Pressure (bar): 6.9
  • Maximum Fluid Pressure (kPa): 690
  • Maximum Fluid Pressure (MPa): 0.69
  • Maximum Fluid Pressure (psi): 100
  • Maximum Operating Temperature (°C): 107
  • Maximum Operating Temperature (°F): 225
  • Maximum Solid Size (cm): 0.2383
  • Maximum Solid Size (in): 0.09375
  • Maximum Solid Size (mm): 2.4
  • Minimum Operating Temperature (°C): 4
  • Minimum Operating Temperature (°F): 40
  • Power Source: Air
$1,470.00

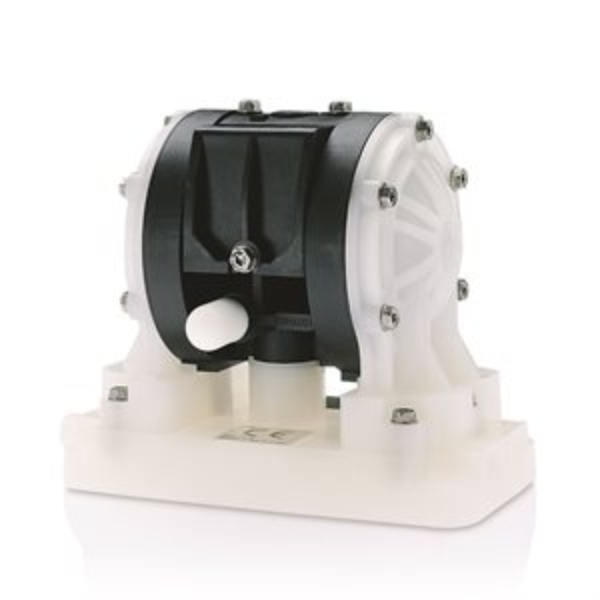

GG D12096.jpg

HUSKY PUMP, 205P-PP01AP5--PPSPPT-FK

GG D12096

GG D12096

HUSKY PUMP, 205P-PP01AP5--PPSPPT-FK

Graco D12096 Husky 205 PP Pump, PP Center Section, PP Balls & SP Diaphragm

Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money.

Application: The Husky 205 air-operated diaphragm pump features spring check valves for superior priming in any mounting configuration.
  • True-formed PTFE and Santoprene diaphragms for enhanced performance
  • Spring loaded checks allow the diaphragm pump to work in any orientation
  • Inlet and Outlet are interchangeable
  • 1/4-in (6.35 mm) end-porting double diaphragm pump


  • Model: Husky
  • Series: 205
  • Air Exhaust Port Size (in): 1/4
  • Air Exhaust Port Thread Gender: Female
  • Air Exhaust Port Thread Type: NPT, BSP
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT, BSP
  • Application: Industrial
  • Ball Material: Polypropylene
  • Center Section Material: Polypropylene
  • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Treatment, Water, Ink
  • Connection Type: Threaded
  • Diaphragm Compatible Material: Santoprene
  • Diaphragm Material: Santoprene
  • Fluid Inlet Size (cm): 0.635
  • Fluid Inlet Size (in): 1/4
  • Fluid Inlet Size (mm): 6.35
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT, BSPT
  • Fluid Outlet Size (cm): 0.635
  • Fluid Outlet Size (in): 1/4
  • Fluid Outlet Size (mm): 6.35
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT, BSPT
  • Fluid Section Material: Polypropylene
  • Manifold Configuration: End Port
  • Manifold O-Ring Material: PTFE
  • Material: Polypropylene
  • Maximum Air Consumption (SCFM): 9
  • Maximum Air Pressure (bar): 6.9
  • Maximum Air Pressure (kPa): 690
  • Maximum Air Pressure (MPa): 0.69
  • Maximum Air Pressure (psi): 100
  • Maximum Cycle Rate (CPM): 320
  • Maximum Flow Rate (GPM): 5
  • Maximum Flow Rate (L/min): 18.9
  • Maximum Fluid Pressure (bar): 6.9
  • Maximum Fluid Pressure (kPa): 690
  • Maximum Fluid Pressure (MPa): 0.69
  • Maximum Fluid Pressure (psi): 100
  • Maximum Fluid Pressure (bar): 6.9
  • Maximum Fluid Pressure (kPa): 690
  • Maximum Fluid Pressure (MPa): 0.69
  • Maximum Fluid Pressure (psi): 100
  • Maximum Operating Temperature (°C): 66
  • Maximum Operating Temperature (°F): 150
  • Maximum Solid Size (cm): 0.15
  • Maximum Solid Size (in): 0.06
  • Maximum Solid Size (mm): 1.5
  • Overall Height (in): 6
  • Power Source: Air
$490.00

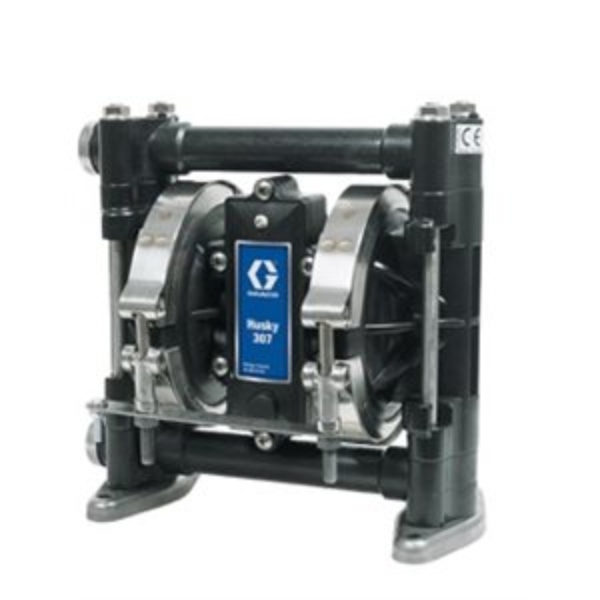

GG D31255.jpg

HUSKY PUMP, 307AC-PP01AAC3ACTPTPPT

GG D31255

GG D31255

HUSKY PUMP, 307AC-PP01AAC3ACTPTPPT

Graco D31255 Husky 307 AC 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, AC Seats, TPE Balls & TPE Diaphragm

The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.

Application: Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil.
  • Quick and easy assembly and disassembly design
  • Easy to service air valve and ball checks
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Every pump is tested prior to shipping
  • 3/8 in (9.52 mm) end porting
  • Delivery up to 7 gpm (26.5 lpm)
  • Easy-to-service air valve and ball checks


  • Model: Husky
  • Series: 307
  • Air Exhaust Port Size (in): 3/8
  • Air Exhaust Port Thread Gender: Female
  • Air Exhaust Port Thread Type: NPT
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Industrial
  • Ball Material: TPE (Hytrel)
  • Center Section Material: Polypropylene
  • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
  • Connection Type: Threaded
  • Diaphragm Compatible Material: TPE
  • Diaphragm Material: TPE (Hytrel)
  • Fluid Inlet Size (cm): 0.9525
  • Fluid Inlet Size (in): 3/8
  • Fluid Inlet Size (mm): 9.525
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 0.9525
  • Fluid Outlet Size (in): 3/8
  • Fluid Outlet Size (mm): 9.525
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Fluid Section Material: Acetal
  • Manifold Configuration: End Port
  • Manifold O-Ring Material: PTFE
  • Material: Acetal
  • Maximum Air Consumption (SCFM): 5.5
  • Maximum Air Pressure (bar): 7
  • Maximum Air Pressure (kPa): 700
  • Maximum Air Pressure (MPa): 0.7
  • Maximum Air Pressure (psi): 100
  • Maximum Cycle Rate (CPM): 330
  • Maximum Flow Rate (GPM): 6.5
  • Maximum Flow Rate (L/min): 24.6
  • Maximum Fluid Pressure (bar): 7
  • Maximum Fluid Pressure (kPa): 700
  • Maximum Fluid Pressure (MPa): 0.7
  • Maximum Fluid Pressure (psi): 100
  • Maximum Fluid Pressure (bar): 7
  • Maximum Fluid Pressure (kPa): 700
  • Maximum Fluid Pressure (MPa): 0.7
  • Maximum Fluid Pressure (psi): 100
  • Maximum Operating Temperature (°C): 66
  • Maximum Operating Temperature (°F): 150
  • Maximum Solid Size (cm): 0.1588
  • Maximum Solid Size (in): 0.0625
  • Maximum Solid Size (mm): 1.5875
  • Minimum Operating Temperature (°C): 4
  • Minimum Operating Temperature (°F): 40
  • Ove
$761.00
GG D53211.jpg

HUSKY PUMP, 716A-PP01AA1ACPTPTPT0

GG D53211

GG D53211

HUSKY PUMP, 716A-PP01AA1ACPTPTPT0

Graco D53211 Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, AC Seat, PTFE Ball, & PTFE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

  • Center- and end-porting
  • No mechanical seals which causes fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • 3/4 in (19.05 mm) center- and end-porting
  • No seals to leak or fail
  • Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks


  • Model: Husky
  • Series: 716
  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Industrial
  • Ball Material: PTFE
  • Center Section Material: Polypropylene
  • Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
  • Connection Type: Threaded
  • Diaphragm Compatible Material: PTFE
  • Diaphragm Material: PTFE/EPDM 2-Piece
  • Fluid Inlet Size (cm): 1.905
  • Fluid Inlet Size (in): 3/4
  • Fluid Inlet Size (mm): 19.05
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 1.905
  • Fluid Outlet Size (in): 3/4
  • Fluid Outlet Size (mm): 19.05
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Fluid Section Material: Aluminum
  • Manifold Configuration: Center Port
  • Manifold O-Ring Material: PTFE
  • Material: Aluminum
  • Maximum Air Consumption (SCFM): 28
  • Maximum Air Pressure (bar): 6.9
  • Maximum Air Pressure (kPa): 690
  • Maximum Air Pressure (MPa): 0.69
  • Maximum Air Pressure (psi): 100
  • Maximum Cycle Rate (CPM): 400
  • Maximum Flow Rate (GPM): 16
  • Maximum Flow Rate (L/min): 60.6
  • Maximum Fluid Pressure (bar): 6.9
  • Maximum Fluid Pressure (kPa): 690
  • Maximum Fluid Pressure (MPa): 0.69
  • Maximum Fluid Pressure (psi): 100
  • Maximum Fluid Pressure (bar): 6.9
  • Maximum Fluid Pressure (kPa): 690
  • Maximum Fluid Pressure (MPa): 0.69
  • Maximum Fluid Pressure (psi): 100
  • Maximum Operating Temperature (°C): 107
  • Maximum Operating Temperature (°F): 225
  • Maximum Solid Size (cm): 0.2383
  • Maximum Solid Size (in): 0.09375
  • Maximum Solid Size (mm): 2.4
  • Minimum Operating Temperature (°C): 4
  • Minimum Operating Temperature (°F): 40
  • Power Source: Air
$1,345.00

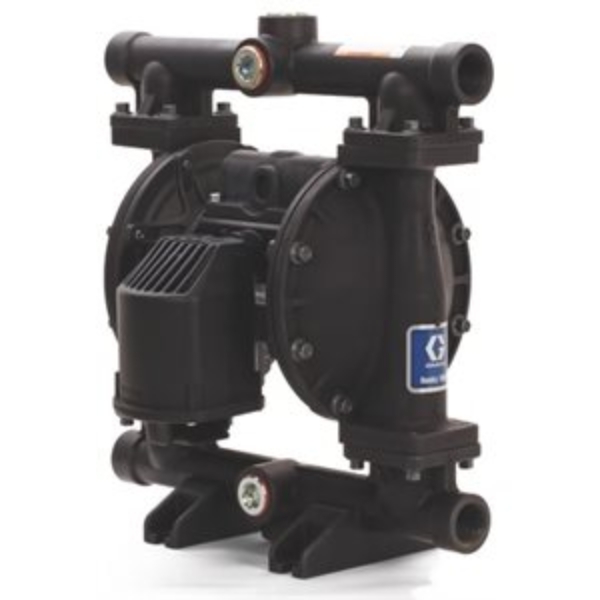

GG 647016.jpg

Husky Pump, 1050A-PAU1AA1TPACTP

GG 647016

GG 647016

Husky Pump, 1050A-PAU1AA1TPACTP

Husky 1050 Air-Operated Double Diaphragm Transfer Pump – 1 in. AL/TPE for Water, Antifreeze, and Fuel Transfer

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Longer Diaphragm Life - Up to 5x longer diaphragm life for less maintenance and downtime Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover One-Piece Center Section - Eliminates air leaks for more efficient operation Four Bolt Joint Design - Bolted design provides even sealing pressure for leak-free operation Multiple Ports - Increased number of ports for installation flexibility Optional Features - DataTrak™ (Runaway protection and tracks material usage), Pulse Output (Cycle count capability) Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation 30% more efficient than the market leader 20% increase in fluid flow compared to the Husky 1040
$1,445.00
GG 647666.jpg

HUSKY PUMP, 1050A-PA01AA1TPACTP

GG 647666

GG 647666

HUSKY PUMP, 1050A-PA01AA1TPACTP

Husky 1050 AL 1 in. (25.4 mm) NPT Pump, Standard AL Center Section, TPE Seats, AC Balls & TPE Diaphragm

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Longer Diaphragm Life

  • Up to 5x longer diaphragm life for less maintenance and downtime

Modular Air Valve

  • Stall-free, low pulsation operation provides smooth and rapid changeover

One-Piece Center Section

  • Eliminates air leaks for more efficient operation

Four Bolt Joint Design

  • Bolted design provides even sealing pressure for leak-free operation

Multiple Ports

  • Increased number of ports for installation flexibility

Optional Features

  • DataTrak™ - Runaway protection and tracks material usage
  • Pulse Output - Cycle count capability
Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation 30% more efficient than the market leader 20% increase in fluid flow compared to the Husky 1040
$1,655.00
GG 647040.jpg

HUSKY PUMP, 1050A-PA01AA1GEGEGEPT

GG 647040

GG 647040

HUSKY PUMP, 1050A-PA01AA1GEGEGEPT

Graco 647040 Husky 1050 AL 1 in. (25.4 mm) NPT Pump, AL Center Section with BN Seals, GE Seats, GE Balls & GE Diaphragm

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

  • Longer Diaphragm Life

      Up to 5x longer diaphragm life for less maintenance and downtime

    • Modular Air Valve

        Stall-free, low pulsation operation provides smooth and rapid changeover

      • One-Piece Center Section

          Eliminates air leaks for more efficient operation

        • Multiple Ports

            Increased number of ports for installation flexibility

          • Optional Features

              DataTrak™ - Runaway protection and tracks material usage

              Pulse Output - Cycle count capability

            • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
            • 30% more efficient than the market leader
            • 20% increase in fluid flow compared to the Husky 1040


            • Model: Husky
            • Series: 1050
            • Air Exhaust Port Size (in): 3/4
            • Air Exhaust Port Thread Gender: Female
            • Air Exhaust Port Thread Type: NPT
            • Air Inlet Size (in): 1/2
            • Air Inlet Thread Gender: Female
            • Air Inlet Thread Type: NPT
            • Application: Industrial
            • Ball Material: Geolast
            • Center Section Material: Aluminum
            • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
            • Connection Type: Threaded
            • Diaphragm Compatible Material: Geolast
            • Diaphragm Material: Geolast
            • Fluid Inlet Size (cm): 2.54
            • Fluid Inlet Size (in): 1
            • Fluid Inlet Size (mm): 25.4
            • Fluid Inlet Thread Gender: Female
            • Fluid Inlet Thread Type: NPT
            • Fluid Outlet Size (cm): 2.54
            • Fluid Outlet Size (in): 1
            • Fluid Outlet Size (mm): 25.4
            • Fluid Outlet Thread Gender: Female
            • Fluid Outlet Thread Type: NPT
            • Fluid Section Material: Aluminum
            • Manifold Configuration: Center Port, End Port
            • Manifold O-Ring Material: PTFE
            • Material: Aluminum
            • Maximum Air Consumption (SCFM): 67
            • Maximum Air Pressure (bar): 8.6
            • Maximum Air Pressure (kPa): 860
            • Maximum Air Pressure (MPa): 0.86
            • Maximum Air Pressure (psi): 125
            • Maximum Cycle Rate (CPM): 280
            • Maximum Flow Rate (GPM): 50
            • Maximum Flow Rate (L/min): 189
            • Maximum Fluid Pressure (bar): 8.6
            • Maximum Fluid Pressure (kPa): 860
            • Maximum Fluid Pressure (MPa): 0.86
            • Maximum Fluid Pressure (psi): 125
            • Maximum Fluid Pressure (bar): 8.6
            • Maximum F
$1,535.00

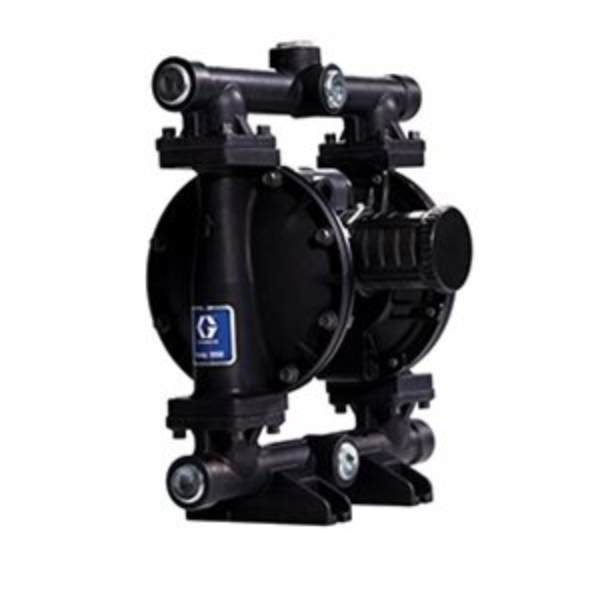

GG 647673.jpg

HUSKY PUMP, 1050A-PA01AA3SSSSPTPT

GG 647673

GG 647673

HUSKY PUMP, 1050A-PA01AA3SSSSPTPT

Graco 647673 Husky 1050 Diaphragm Pump: Drum Riser Tube with Stainless Steel Seats and Check Balls

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

  • Longer Diaphragm Life

      Up to 5x longer diaphragm life for less maintenance and downtime

    • Modular Air Valve

        Stall-free, low pulsation operation provides smooth and rapid changeover

      • One-Piece Center Section

          Eliminates air leaks for more efficient operation

        • Multiple Ports

            Increased number of ports for installation flexibility

          • Optional Features

              DataTrak - Runaway protection and tracks material usage

              Pulse Output - Cycle count capability

            • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
            • 30% more efficient than the market leader
            • 20% increase in fluid flow compared to the Husky 1040


            • Model: Husky
            • Series: 1050
            • Compatible Material: Antifreeze, Detergent, Motor Oil, Gear Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water - Freshwater Treatment, Ink and Colorant
            • Fluid Section Material: Aluminum
            • For Use With: HFR Metering System
            • Includes: Riser Tube
            • Material: Carbon Steel
            • Maximum Air Pressure (bar): 8.6
            • Maximum Air Pressure (kPa): 860
            • Maximum Air Pressure (MPa): 0.86
            • Maximum Air Pressure (psi): 125
            • Maximum Cycle Rate (CPM): 280
            • Maximum Fluid Pressure (bar): 8.6
            • Maximum Fluid Pressure (kPa): 860
            • Maximum Fluid Pressure (MPa): 0.86
            • Maximum Fluid Pressure (psi): 125
            • Maximum Fluid Pressure (bar): 8.6
            • Maximum Fluid Pressure (kPa): 860
            • Maximum Fluid Pressure (MPa): 0.86
            • Maximum Fluid Pressure (psi): 125
            • Maximum Working Pressure (bar): 8.6
            • Maximum Working Pressure (kPa): 86
            • Maximum Working Pressure (MPa): 0.9
            • Maximum Working Pressure (psi): 125
            • Power Source: Air
$1,965.00

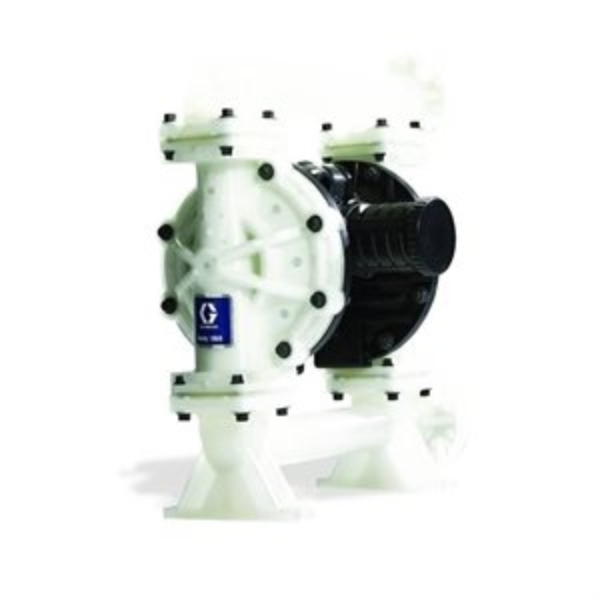

GG 649034.jpg

HUSKY PUMP, 1050P-PP01AP2PPPTPTPT

GG 649034

GG 649034

HUSKY PUMP, 1050P-PP01AP2PPPTPTPT

Husky 1050 PP (NPT) Pump, End Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Longer Diaphragm Life

  • Up to 5x longer diaphragm life for less maintenance and downtime

Modular Air Valve

  • Stall-free, low pulsation operation provides smooth and rapid changeover

One-Piece Center Section

  • Eliminates air leaks for more efficient operation

Four Bolt Joint Design

  • Bolted design provides even sealing pressure for leak-free operation

Multiple Ports

  • Increased number of ports for installation flexibility

Optional Features

  • DataTrak™ - Runaway protection and tracks material usage
  • Pulse Output - Cycle count capability
Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation 30% more efficient than the market leader 20% increase in fluid flow compared to the Husky 1040
$2,180.00
Refine
×
Manufacturer
