Reels

GG XDL56B

XDX SERIES 20 REEL, HOSE

XDX™ 20, Air/Water/Antifreeze/WWS, 1/2 in (13 mm) Inlet, 3/8 in X 65 ft (10 mm X 20 m) Hose, NPT, Truck/Bench Mount, Metallic Blue Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications. Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

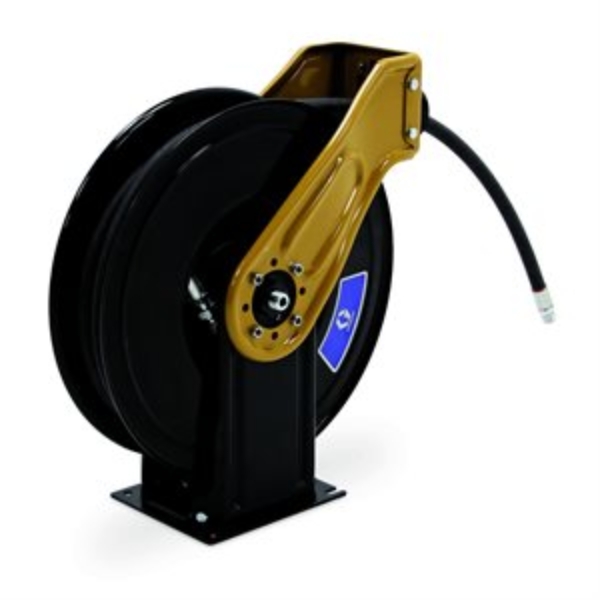

GG XDM65F

XDX SERIES 20 REEL, HOSE

XDX™ 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Truck/Bench Mount, Yellow Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications. Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

RC 7650 OHP

Hose Reel, 4000psi, 3/8 x 50ft, Grease

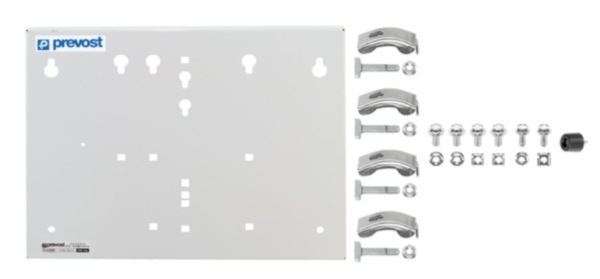

PV PLA 2000

Hosereel Mounting Deck

WM XA-142140802021

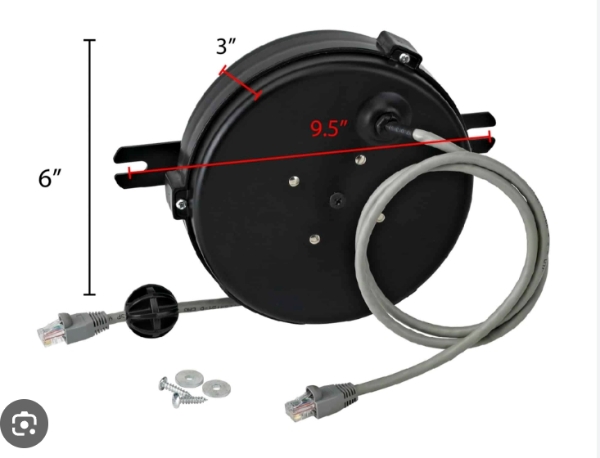

REEL PR PAJ1408-20 S CABLE

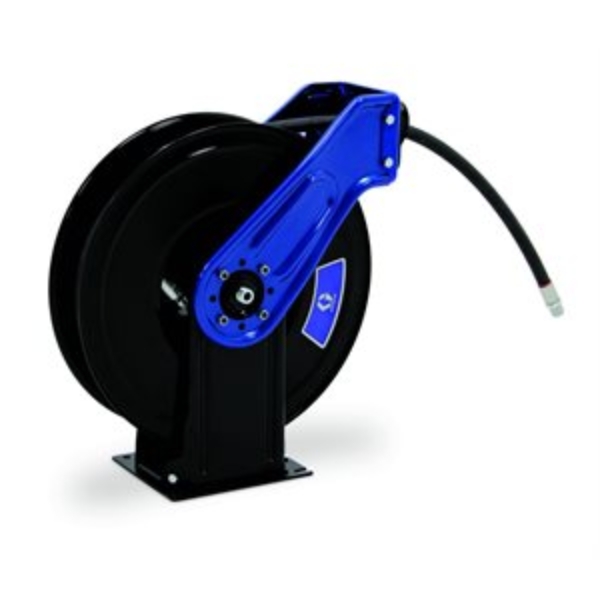

GG XDM33B

XDX SERIES 10 REEL, HOSE

Graco XDM33B XDX™ 10, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 35 ft (13 mm X 11 m) Hose, NPT, Truck/Bench Mount, Metallic Blue

Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame, steel spool, sealed components and innovative swivel design for high-quality performance in the most demanding applications.

Application: Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

• Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

• Series: 10

• Application: Oil

• Color: Metallic Blue

• Frame Type: Dual Pedestal

• Hose Inside Diameter (in): 1/2
• Hose Inside Diameter (mm): 12.7
• Hose Length (ft): 35
• Hose Length (m): 11

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Gender: Male
• Inlet Thread Type: NPSM

• Maximum Temperature (°C): 87
• Maximum Temperature (°F): 190

• Maximum Working Pressure (psi): 2000

• Minimum Temperature (°C): -28
• Minimum Temperature (°F): -20

• Mount Location: Truck Mount, Bench Mount

• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7
• Outlet Thread Gender: Male

• Overall Height (in): 25.2
• Overall Height (mm): 640
• Overall Length (in): 18.5
• Overall Length (mm): 473
• Overall Width (in): 7.5
• Overall Width (mm): 191

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Oil
