Torque Control

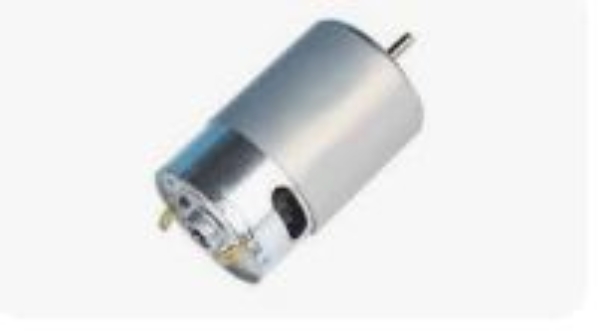

IR TA-VP1-054

Motor Assembly

IR TA-VA2T-499-1

Motor Controller Board, 40 V

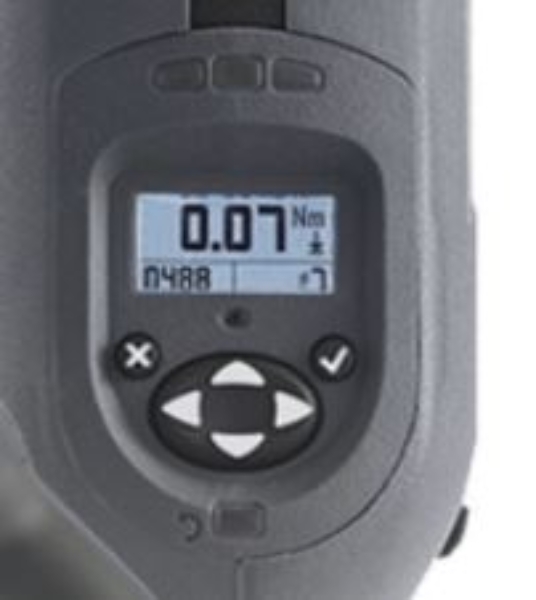

IR QXXD2AT000P000

Backcap Assembly, 20V Angle, 802.15.4 and Bluetooth, Display, Standard

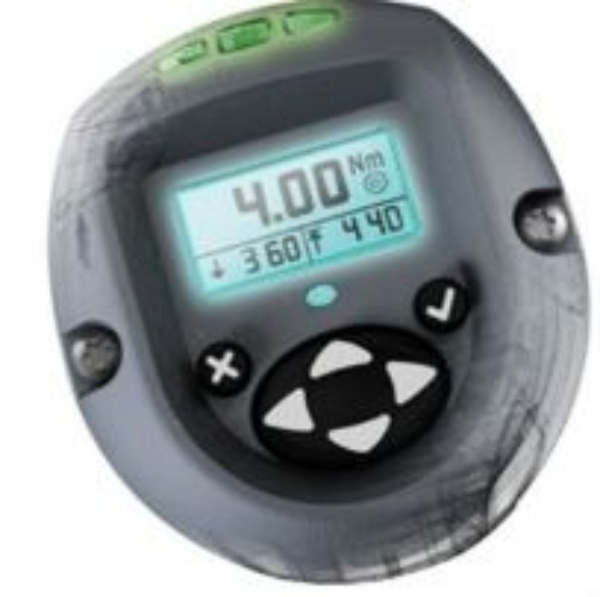

IR QXXD2PT000P000

BACKCAP ASSEMBLY, 20V PISTOL, 802.15.4 AND BLUETOOTH, DISPLAY, STANDARD

IR QXXD5AT000P000

Backcap Assembly, 40V Angle, 802.15.4 and Bluetooth, Display, Standard

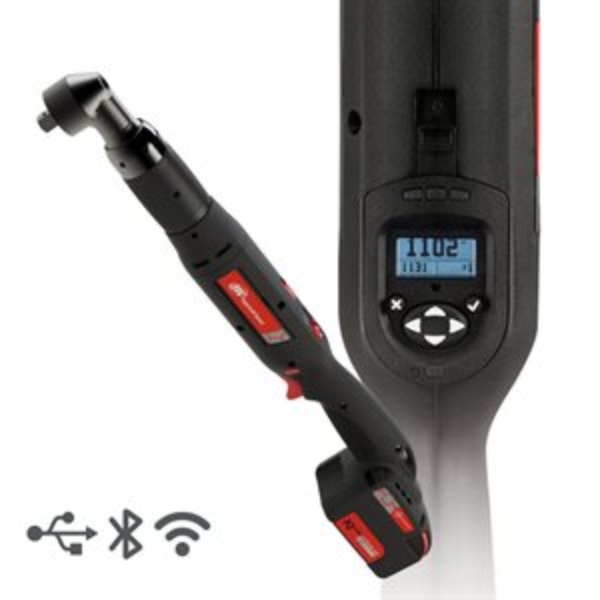

IR QXXD5AT000E000

Backcap Assembly, 40V Pistol, 802.15.4 and Bluetooth, Display, ETS

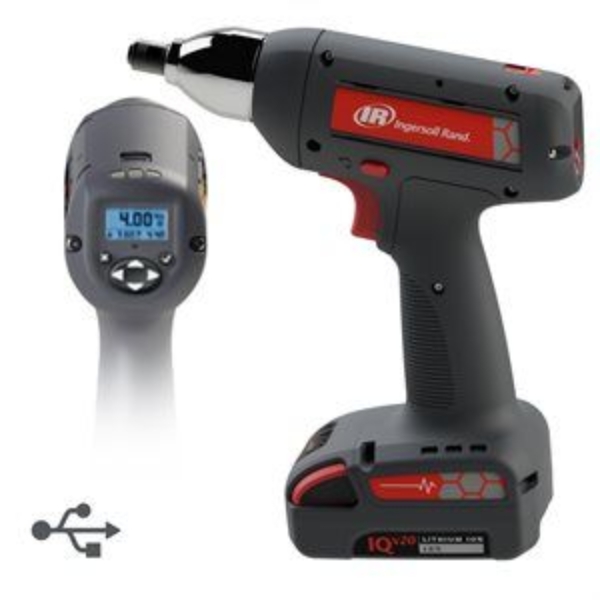

IR QXFD2PT000P000

Backcap Assembly, 20V Pistol, No Radio, Display, Standard

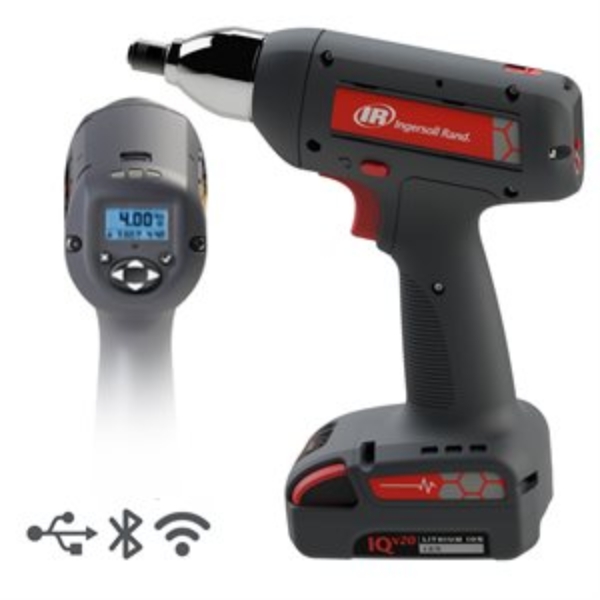

IR QXXD2PT000E000

Backcap Assembly, 20V Pistol, 802.15.4 and Bluetooth, Display, ETS

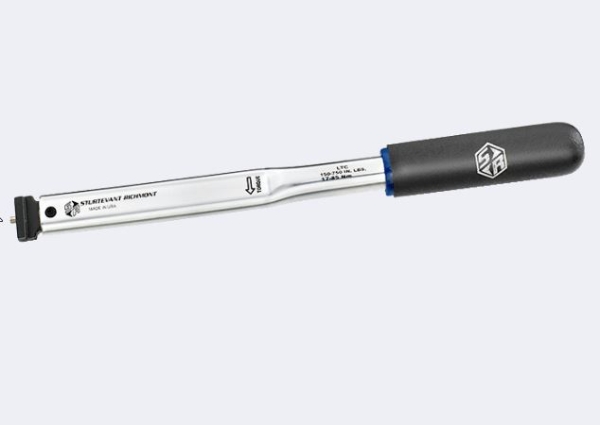

STR 810014

Click-Type Preset Torque Wrenches: LTC Preset Interchangeable Head Click-Type Torque Wrenches, in-lb

Product Group	:		LTC Preset Interchangeable Head Click-Type Torque Wrenches, in-lb
Model	:		LTC 1800 I
Torque Range (Nm)	:		40.8-204 Nm

Product Description

• +/- 4% repeatability from 20% to 100% of capacity
• Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
• Tools preset at the factory include a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Low profile of the square drive creates access where other tools cannot go
• Flattened case is sideloading resistant
• Error Proofing By Design flattened case provides superior mechanism support that makes the wrench easier to calibrate and it holds calibration much longer than other wrenches
• Excellent tactile and audible pulse when the preset torque is achieved
• Cushion grip plus lightweight for excellent ergonomics
• Fixed square drive provides exceptional strength and durability
• CART tool
• Torque is preset and locked in with a special tool
• Torque can be set using any unit of measurement
• Combination Adjusting and Release Tool (CART) P/N 819117 allows the operator to easily adjust torque on all SLTC -FM, SLTC, LTC, LTCR, and LTCS wrenches
• Can be ordered preset from the factory or you can set the torque with your own torque tester

IR RTS140PS8

RTS 1/2" 20V Mechanical Cordless Pulse Tool, 103ft-lb Torque, 3600PPM, 2700RPM, Pin Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS140PS8-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M10-M14
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.65
Product Weight (lb): 2.42
Product Weight (lb) (with Battery): 3.32
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 22-103
Recommended Forward Torque Range (in-lb): 266-1239
Recommended Forward Torque Range (nm): 30-140
Retainer Type: Pin Detent
Reversible: Reversible
Sound Pressure/Power Db(A): 95 / 103
Vibration Level (m/s2): 11
Vibration Uncertainy K* (m/s2): 1.6
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

STR 10659

Wireless Digital Torque Wrenches: 1250 Series Exacta 2 Digital Torque Wrench, ft-lb

Product Group	:		1250 Series Exacta 2 Digital Torque Wrench, ft-lb
Model	:		Exacta II 1250 Series 250 DT
Torque Range (ft.lb)	:		50-250 ft.lbf
Overall Length	:		25.2 in
Head Type	:		Pin/Spring

Product Description

• Patented "Shear Beam" transducer eliminates lever sensitivity to produce more consistently accurate torque application
• Torque and Angle functionality include these operational modes: Torque To Angle, Torque and Angle Monitoring, Residual Torque, and Prevailing Torque.
• Torque and angle can identify changing joint conditions and prevent errors
• Backlit display is easy to read in any light condition
• Customizable color display change to inform the operator
• Display lights upon torque application
• Turns yellow at 90% of target torque, green upon reaching target torque and red upon reaching maximum torque
• Tool emits an acceptance tone and the handle vibrates upon reaching target torque and angle values
• Tool emits reject tone upon reaching maximum torque
• Compatible with the Global 400 and Global 400m
• P-Sets are set and saved via the controller, no changes can be made at the wrench level
• Provides you with another level of error proofing by preventing inadvertent changes
• Can be used with the Patented Holding Tool Series
• Wrenches are available in traditional pin and spring dovetail, quick change, and fixed ratchet models

IR QXFN5AT000P000

BACKCAP ASSEMBLY, 40V ANGLE, NO RADIO, NO DISPLAY, STANDARD

IR QXXD2AT000E000

BACKCAP ASSEMBLY, 20V ANGLE,  802.15.4 AND BLUETOOTH, DISPLAY, ETS

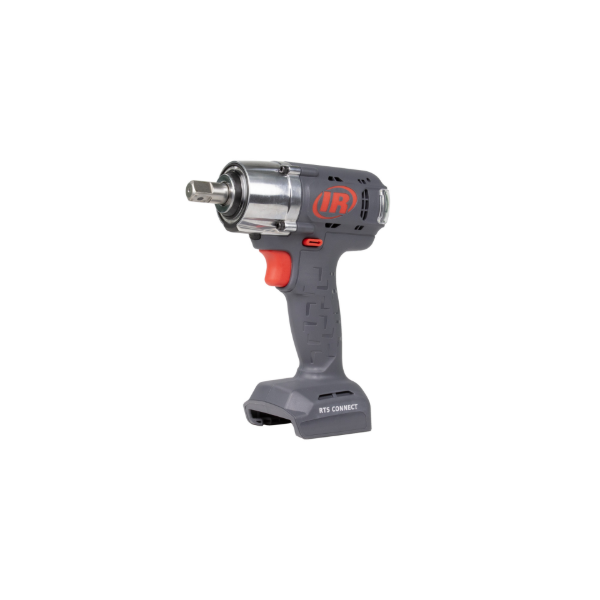

IR RTS225PS8

RTS 1/2" 20V Mechanical Cordless Pulse Tool, 165ft-lb Torque, 3600PPM, 2700RPM, Pin Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS225PS8-K2 Kit which includes (2) 5.0 Ah Batteries and a charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M12-M18
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.65
Product Weight (lb): 2.46
Product Weight (lb) (with Battery): 3.37
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 44-166
Recommended Forward Torque Range (in-lb): 531-1991
Recommended Forward Torque Range (nm): 60-225
Retainer Type: Pin Detent
Reversible: Reversible
Sound Pressure/Power Db(A): 95 / 103
Vibration Level (m/s2): 14.8
Vibration Uncertainy K* (m/s2): 2.7
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR VP1-M37-26P6

OBSOLETE

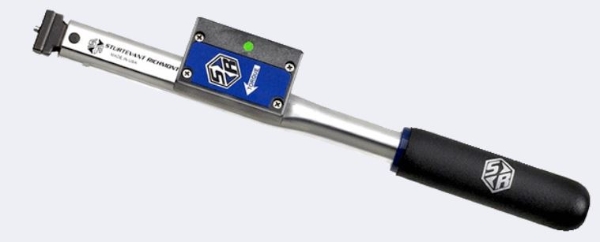

STR 810414

Wireless Click-Type Torque Wrenches: SLTC FM 2.4 GHZ Click Wrenches, in-lb

Product Group	:		SLTC FM 2.4 GHZ Click Wrenches, in-lb
Model	:		SLTC FM2.4 750 I A3
Torque Range (Nm)	:		85 Nm
Torque Range (in.lb)	:		150-750 in.lb
Head Type	:		Dovetail

Product Description

• Preset click torque wrench measures and applies torque in the clockwise direction
• Using this wrench in the counter-clockwise direction will apply torque, but it will not measure torque because it does not click in the counter-clockwise direction
• Flattened case for superior accuracy, reliability, and durability
• Accuracy of +/- 4% or better of preset value from 20% to 100% of capacity meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
• Excellent audible/tactile impulse when preset torque is achieved
• Error Proofing By Guidance: Monitors time in the clicked position to proved OK/BAD quality attribute data with every use of the tool
• Error Proofing By Behavior Modification in action. The new A3 has a new battery that lasts longer and is easier to change
• Raised LED Fresnel to improve visibility when working in less than optimal positions
• AAA batteries are more readily available than are the 6-volt batteries

IR QXFD5AT000E000

BACKCAP ASSEMBLY, 40V ANGLE, NO RADIO, DISPLAY, ETS

STR 10653

Wireless Digital Torque Wrenches: 1250 Series Exacta 2 Digital Torque Wrench, ft-lb

Product Group	:		1250 Series Exacta 2 Digital Torque Wrench, ft-lb
Model	:		Exacta II 1250 Series 75 QC
Torque Range (ft.lb)	:		15-75 ft.lbf
Overall Length	:		19.4 in
Head Type	:		Pin/Spring

Product Description

• Patented "Shear Beam" transducer eliminates lever sensitivity to produce more consistently accurate torque application
• Torque and Angle functionality include these operational modes: Torque To Angle, Torque and Angle Monitoring, Residual Torque, and Prevailing Torque.
• Torque and angle can identify changing joint conditions and prevent errors
• Backlit display is easy to read in any light condition
• Customizable color display change to inform the operator
• Display lights upon torque application
• Turns yellow at 90% of target torque, green upon reaching target torque and red upon reaching maximum torque
• Tool emits an acceptance tone and the handle vibrates upon reaching target torque and angle values
• Tool emits reject tone upon reaching maximum torque
• Compatible with the Global 400 and Global 400m
• P-Sets are set and saved via the controller, no changes can be made at the wrench level
• Provides you with another level of error proofing by preventing inadvertent changes
• Can be used with the Patented Holding Tool Series
• Wrenches are available in traditional pin and spring dovetail, quick change, and fixed ratchet models

ETA PA506

Tool Arm, 550 In Lbs Vertical Torque

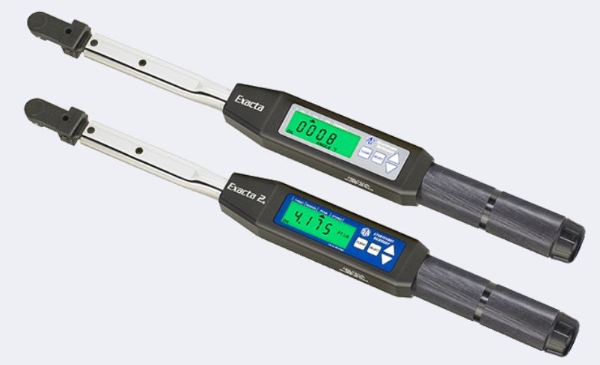

STR 10667

Wireless Digital Torque Wrenches: 1250 Series Exacta 2 Digital Torque Wrench, ft-lb

Product Group	:		1250 Series Exacta 2 Digital Torque Wrench, ft-lb
Model	:		Exacta II 1250 Series 75 QC
Torque Range (ft.lb)	:		15-75 ft.lbf
Overall Length	:		19.4 in
Head Type	:		Quick Change

Product Description

• Patented "Shear Beam" transducer eliminates lever sensitivity to produce more consistently accurate torque application
• Torque and Angle functionality include these operational modes: Torque To Angle, Torque and Angle Monitoring, Residual Torque, and Prevailing Torque.
• Torque and angle can identify changing joint conditions and prevent errors
• Backlit display is easy to read in any light condition
• Customizable color display change to inform the operator
• Display lights upon torque application
• Turns yellow at 90% of target torque, green upon reaching target torque and red upon reaching maximum torque
• Tool emits an acceptance tone and the handle vibrates upon reaching target torque and angle values
• Tool emits reject tone upon reaching maximum torque
• Compatible with the Global 400 and Global 400m
• P-Sets are set and saved via the controller, no changes can be made at the wrench level
• Provides you with another level of error proofing by preventing inadvertent changes
• Can be used with the Patented Holding Tool Series
• Wrenches are available in traditional pin and spring dovetail, quick change, and fixed ratchet models

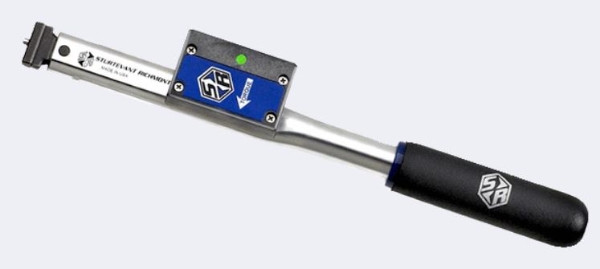

STR 810415

Wireless Click-Type Torque Wrenches: SLTC FM 2.4 GHZ Click Wrenches, in-lb

Product Group	:		SLTC FM 2.4 GHZ Click Wrenches, in-lb
Model	:		SLTC FM2.4 1800 I A3
Torque Range (Nm)	:		204 Nm
Torque Range (in.lb)	:		360-1800 in.lb
Head Type	:		Dovetail

Product Description

• Preset click torque wrench measures and applies torque in the clockwise direction
• Using this wrench in the counter-clockwise direction will apply torque, but it will not measure torque because it does not click in the counter-clockwise direction
• Flattened case for superior accuracy, reliability, and durability
• Accuracy of +/- 4% or better of preset value from 20% to 100% of capacity meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
• Excellent audible/tactile impulse when preset torque is achieved
• Error Proofing By Guidance: Monitors time in the clicked position to proved OK/BAD quality attribute data with every use of the tool
• Error Proofing By Behavior Modification in action. The new A3 has a new battery that lasts longer and is easier to change
• Raised LED Fresnel to improve visibility when working in less than optimal positions
• AAA batteries are more readily available than are the 6-volt batteries

ETA ZAM

Analog Current

ETA ZAV

Analog Voltage

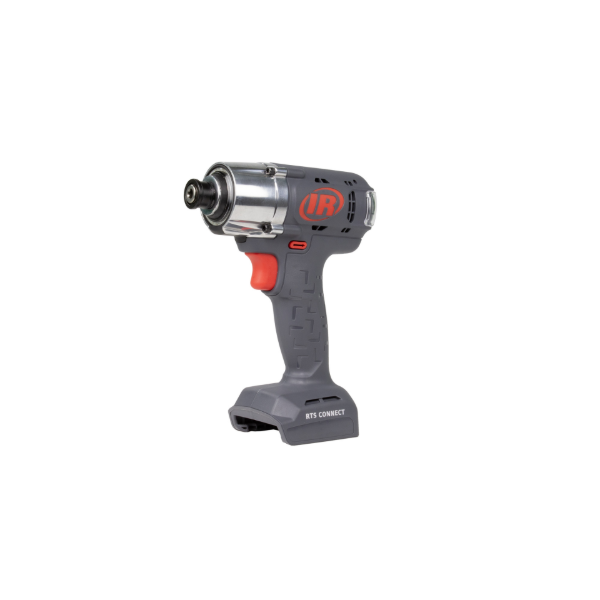

IR RTS025PQ4

RTS 1/4" Hex 20V Mechanical Cordless Pulse Tool, 18ft-lb Torque, 3800PPM, 2700RPM, Quick Change Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS025PQ4-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Duty Rating: Production Environment
Fastener Size: M6-M8
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.1
Product Weight (lb): 2.31
Product Weight (lb) (with Battery): 3.21
Pulses per Minute: 3600-3800
Recommended Forward Torque Range (ft-lb): 5.9-18
Recommended Forward Torque Range (in-lb): 71-221
Recommended Forward Torque Range (nm): 8-25
Retainer Type: Quick Change
Reversible: Reversible
Sound Pressure/Power Db(A): 92 / 100
Vibration Level (m/s2): 10.7
Vibration Uncertainy K* (m/s2): 3.4
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR QXFN2PT000P000

BACKCAP ASSEMBLY, 20V PISTOL, NO RADIO, NO DISPLAY, STANDARD
