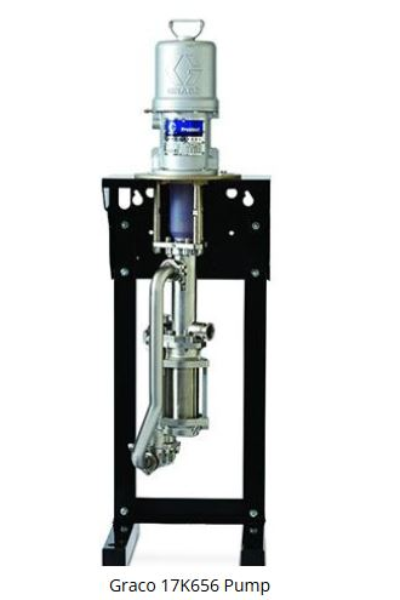

Kit, Pump, 4B, Bellows, 750 Cc

GG 17K656

KIT,PUMP,4B,BELLOWS,750 CC

Graco 17K656 Sealed 4-Ball Lower, 750 cc, Stainless Steel, Ultralife Rod & Cylinder, Tri-Clamp Fittings

$10,000.00

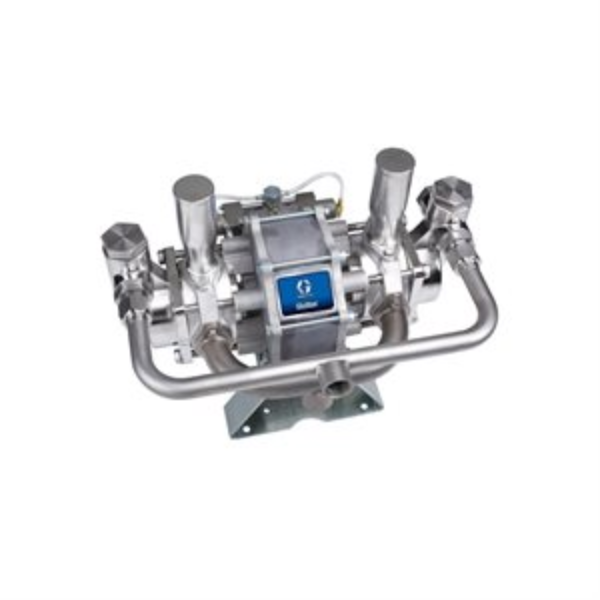

GLUTTON PUMP, (12:1 SST)

GG 220667

GLUTTON PUMP, (12:1 SST)

Glutton 12:1 Bellows Pump, SST, UHMWPE Seals The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1 Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials Designed to handle a broad range of applications, including abrasive materials Reversible outlet manifold simplifies plumbing installations Vertical ball checks design ensures uniform ball wear and long life

$14,260.00

Kit, Pump, 4B, Bellows, 1000 Cc

GG 17K657

KIT,PUMP,4B,BELLOWS,1000 CC

Graco 17K657 Sealed 4-Ball Lower, 1000 cc, Stainless Steel, Ultralife Rod & Cylinder, Tri-Clamp Fittings

$10,070.00

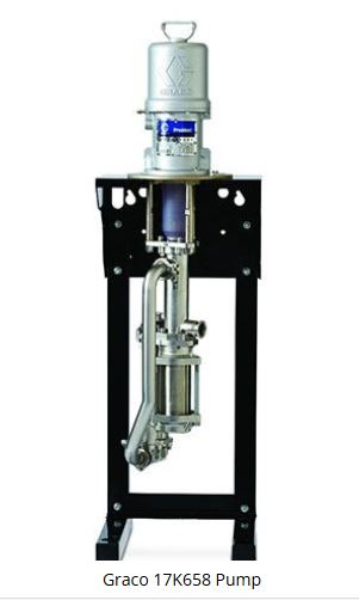

Kit, Pump, 4B, Bellows, 1500 CC

GG 17K658

Kit, Pump, 4B, Bellows, 1500 CC

Graco 17K658 Sealed 4-Ball Lower, 1500 cc, Stainless Steel, Ultralife Rod & Cylinder, Tri-Clamp Fittings

$10,150.00

GLUTTON PUMP, (12:1 CS)

GG 237009

GLUTTON PUMP, (12:1 CS)

Graco 237009 Glutton 12:1 Bellows Pump, CS, Series A

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
Designed to handle a broad range of applications, including abrasive materials
Reversible outlet manifold simplifies plumbing installations

Model: Glutton
Series: Bellows

Air Inlet Size (in): 0.5
Air Inlet Size (mm): 12.7
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Circulation
Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC
Fluid Outlet Size (in): 1
Fluid Outlet Size (mm): 25.4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Type: Sealed
Material: Carbon Steel
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Continuous Cycle Rate (CPM): 60
Maximum Flow Rate (GPM): 2
Maximum Flow Rate (L/min): 7.57
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Working Pressure (bar): 83
Maximum Working Pressure (kPa): 8300
Maximum Working Pressure (MPa): 8.3
Maximum Working Pressure (psi): 1200
Portable: Non-Portable
Pump Ratio: 12:1

Call for pricing

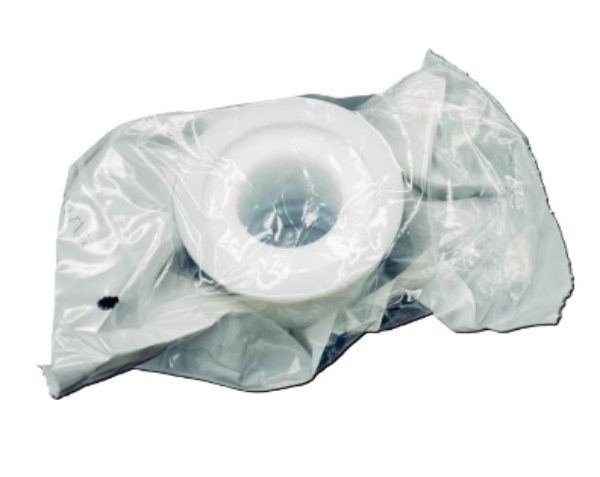

Knifed Bellows

BB 192881

Knifed Bellows

$500.00

GLUTTON PUMP, (4:1 CS)

GG 237008

GLUTTON PUMP, (4:1 CS)

Graco 237008 Glutton 4:1 Bellows Pump, CS, Series A

Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
Designed to handle a broad range of applications, including abrasive materials
Reversible outlet manifold simplifies plumbing installations

Model: Glutton
Series: Bellows

Air Inlet Size (in): 0.5
Air Inlet Size (mm): 12.7
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Circulation
Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC
Fluid Outlet Size (in): 1
Fluid Outlet Size (mm): 25.4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Type: Sealed
Material: Carbon Steel
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Continuous Cycle Rate (CPM): 60
Maximum Flow Rate (GPM): 5.6
Maximum Flow Rate (L/min): 21.2
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Working Pressure (bar): 28
Maximum Working Pressure (kPa): 2800
Maximum Working Pressure (MPa): 2.8
Maximum Working Pressure (psi): 400
Portable: Non-Portable
Pump Ratio: 4:1

$8,940.00

KIT, PUMP, 4B, BELLOWS, 2000 CC

GG 17K659

KIT, PUMP, 4B, BELLOWS, 2000 CC

Graco 17K659 Sealed 4-Ball Lower, 2000 cc, Stainless Steel, Ultralife Rod & Cylinder, Tri-Clamp Fittings

Graco’s Sealed 4-Ball Lower needs no routine maintenance and prevents unexpected downtime. The sealed fluid section eliminates the need for TSL (throat seal liquid). Designed to keep pumping in the event of a bellows failure, the lower allows you to schedule maintenance.

Ultralife coating on lower rods and cylinders means a smoother finish, better wear and longer seal life for most applications.
Connection kits contain tie rods and adapters – everything required to upgrade most legacy Graco circulation pumps to the latest technology. Refer to manual 311876 for complete information.

Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1.5
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: Tri-Clamp

Fluid Outlet Size (in): 1.5
Fluid Outlet Thread Gender: Male
Fluid Outlet Thread Type: Tri-Clamp
Maximum Flow Rate (GPM): 10.6
Maximum Operating Temperature (°F): 150
Maximum Output (cm³): 40000
Maximum Pump Speed (CPM): 20
Maximum Working Pressure (psi): 460

$13,490.00

GLUTTON PUMP, (4:1 SST)

GG 237011

GLUTTON PUMP, (4:1 SST)

Glutton 4:1 Bellows Pump, SST, Series A The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1 Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials Designed to handle a broad range of applications, including abrasive materials Reversible outlet manifold simplifies plumbing installations Vertical ball checks design ensures uniform ball wear and long life

$13,120.00

GLUTTON PUMP, (25:1 SST)

GG 237013

GLUTTON PUMP, (25:1 SST)

Glutton 25:1 Bellows Pump, SST, Series A The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1 Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials Designed to handle a broad range of applications, including abrasive materials Reversible outlet manifold simplifies plumbing installations Vertical ball checks design ensures uniform ball wear and long life

$13,550.00

GLUTTON PUMP, (25:1 SST)

GG 220668

GLUTTON PUMP, (25:1 SST)

Glutton 25:1 Bellows Pump, SST, UHMWPE Seals The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1 Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials Designed to handle a broad range of applications, including abrasive materials Reversible outlet manifold simplifies plumbing installations Vertical ball checks design ensures uniform ball wear and long life

$13,310.00
