Grinders

IR 302B

Angle Air Die Grinder, 20,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Lightweight and durable for ultimate performance, the 302B die grinder is the perfect choice. These powerful grinders feature .33 HP and 20,000 RPM, a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polishing and grinding. 302BK Kit also available that includes 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case.

Features And Benefits

• Power: Powerful motor with precision gearing offers .33 HP at 20,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Lightweight: Lightweight at only 1lb., the ergonomic composite housing protects tool from cold air and offers greater operator comfort.
• Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
• Reliability: Integral safety-lock throttle lever prevents accidental start up.
• Built-In Lubrication: Built-in lubricating wick increases angle gear life.
• Rear exhaust directs air away from the operator.
• Also available in the 302BK Kit that includes 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case.

Includes: Tool, (2) Wrenches, 1/4" Collet and Manuals
Product Application and Uses: Deburring, Grinding, Polishing, Porting, Weld Breaking
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 23
Air Consumption @ Load (l/min): 651
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.93
Product Width (in): 3.74
Product Height (in): 2.36
Product Weight (lb): 1.28
Rated Power (hp): 0.33
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.53
Side to Center Distance (mm): 13
Sound Pressure/Power Db(A): 90.0 / 101.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 5.5
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR

• 301B
• 5102MAX

IR 301B

Angle Air Die Grinder, 21,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust

As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere!

Features And Benefits

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" collet and a integral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.

Includes: Tool, 1/4" collet, (2) Wrenches and Manuals
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year

Similar IR

• 302B
• 5102MAX
• 307B
• 308B

IR 3445MAX

Air Angle Grinder/Cut-off Tool, 4.5" Wheel, 12,000 RPM, 0.88 HP, 5/8"-11 Thread, Rear Exhaust

The MAX Series family of angle grinders has a tool to meet your needs, whether you’re looking for a 4.5 or 5-inch option. The built-in lubricating wick optimizes the life of your angle gear set, while the safety guard protects you from debris, sparks and abrasives while you work.

Features And Benefits

• Max Power: The 4-1/2" wheel 3445MAX grinder delivers maximum power, productivity, comfort, and reliability to tackle the toughest material removal jobs in metalworking, construction, and more.
• Work Faster, Safer: The .88 HP air motor with 12,000 RPM delivers the power you need and the internal governor maximizes speed under the load, increasing the rate of material removal.
• Built-in lubrication: Its built-in lubricating wick optimizes the life of the angle gear set by improving lubrication to the bevel and pinion gear set.
• Lightweight Comfort: The enhanced grip design increases operator comfort for extended use, and its lightweight construction, weighing less than 3.5 lbs., delivers the best power-to-weight ratio in its class.
• Material Compatibility: Cut, grind, or polish a variety of materials, including metal and concrete, with confidence thanks to the superior comfort and power.

Includes: Wheel Guard, Flange, Nut and Wheel Nut Wrenches
Product Application and Uses: Rust And Material Removal
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 41
Air Consumption @ Load (l/min): 1161
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 292
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Height Over Spindle (in): 2.8
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.31
Product Width (in): 3.41
Product Height (in): 6.81
Product Weight (lb): 3.44
Rated Power (hp): 0.88
Right Angle Length (in): 1.9
Right Angle Length (mm): 48
Side to Center Distance (in): 1.3
Side to Center Distance (mm): 33
Sound Pressure/Power Db(A): 79.6 / 90.6
Standards/Certifications: Ansi/Cagi B 186.1-1984, Ansi B186.1-2006, Bs En 792-7-2001
Vibration Level (m/s2): 6.3
Vibration Uncertainy K* (m/s2): 2.2
Warranty: 1-year
Wheel Diameter (in): 4.5
Wheel Thickness (in): 1/4
Wheel Type: Type 27 (Grinding) Type 1, 27, 41, 42 (Cutting)

Similar IR

• 345MAX
• M2A120RP1045
• G3A120RP1045
• G5351

IR 308B

Air Die Grinder, 25,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Lightweight and durable for ultimate performance, the 308B die grinder is the perfect choice. These powerful grinders feature a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polishing and grinding. Also available in the 308BK kit which includes 4 burrs.

Features And Benefits

• Performance: Powerful vane motor delivers 0.33 HP and 25,000 RPM free speed.
• Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
• Lightweight: At only 1lb., the ergonomic composite housing protects this tool from cold air and offers greater operator comfort.
• Safety: Integral safety-lock throttle lever prevents accidental start up.
• Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
• Rear exhaust directs air away from the operator.
• Also available in the 308BK kit which includes 4 burrs and a blow-molded carrying case.

Includes: 308B Pneumatic Straight Die Grinder, 1/4" Collet, (2) Wrenches.
Product Application and Uses: Designed for various applications including porting, weld breaking, de-burring, polishing and grinding.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 7
Average Air Consumption (l/min): 198
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.85
Product Width (in): 4
Product Height (in): 2.5
Product Weight (lb): 1.02
Rated Power (hp): 0.33
Side to Center Distance (in): 0.71
Side to Center Distance (mm): 18
Sound Pressure/Power Db(A): 92.0 / 103.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.7
Warranty: 1-year

Similar IR

• 307B
• 409
• 5108MAX

IR 5102MAX

Angle Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

• MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 20,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
• MAX Productivity: Spindle lock feature allows for quick abrasive changeovers reducing operator downtime.
• MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
• MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (2) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3.4
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 1.89
Product Width (in): 7.09
Product Height (in): 3.43
Product Weight (lb): 1.4
Rated Power (hp): 0.4
Rated Power (kW): 0.29828000000000005
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 84.1 / 95.1
Special Features: Lube-free Motor, Spindle Lock
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.3
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 5104MAX
• 302B
• G1A200RG4
• 301B

Supersedes

• 320AC4A

DY 50340

4-1/2in -5in (114 mm-127 mm) Diameter Pistol Grip Depressed Center Wheel Grinder

.7 hp, 11,000 RPM, Rear Exhaust, 5/8in -11 Spindle Thread

Depressed Center Wheel Grinder, for fast weld and stock removal, rust and scale removal, heavy deburring.

4-1/2in - 5in Diameter, Pistol Grip, .7 hp, Rear Exhaust, 11,000 RPM.

• HP: 0.7
• Max. RPM: 11000.0
• Motor RPM: 11,000

IR 307B

Air Die Grinder, 28,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust

Ingersoll Rand's 307B general purpose Air Die Grinder is durable, reliable, and cost-effective. Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing. Their compact design offers exceptional maneuverability, versatility, and accessibility for difficult-to-reach spots. Also available in the 307BK kit which includes 10 mounted grinding tips and a blow-molded case.

Features And Benefits

• Performance: Powerful vane motor delivers .25 HP and 28,000 RPM.
• Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
• Reliable: Strong aluminum housing withstands tough operating conditions and powerful vane motor will make the 307B a trusted tool in your arsenal for years to come.
• Safety: Integral safety-lock throttle lever prevents accidental start up.
• Comfort: Weighing under 1 lb., this small and lightweight design provides easy operation, and greater access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Also available in the 307BK kit which includes 10 abrasive stones, and a blow-molded carrying case.

Includes: 1/4" collet, (2) Wrenches and Manuals
Product Application and Uses: Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 28000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.19
Product Height (in): 2.1
Product Weight (lb): 0.73
Rated Power (hp): 0.25
Side to Center Distance (in): 0.65
Side to Center Distance (mm): 17
Sound Pressure/Power Db(A): 83.0 / 94.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 4.5
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year

Similar IR

• 308B
• 5108MAX
• 409

IR 88V60P107

Vertical Air Grinder, 7" Type 27/28 Wheel, 6000 RPM, 2.1 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Safety: The 88 Pro Series’ lock-out lever, guard and side-handle safety is designed to increase comfort and block sparks and debris.
• Durability: You can count on the 88 Pro Series to withstand chemical spills, repeated drops, and other harsh environments.
• Reliability: The patented motor controller removes material faster, prevents over speeding and reduces operator fatigue.

Includes: Guard
Product Application and Uses: Heavy Stock Removal And Rough Grinding In Metal Fabrication Operations
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1728
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Heavy Duty
Exhaust Location: Side
Grinder Type: Vertical Type 27/28
Height Over Spindle (in): 6.1
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 15.9
Product Width (in): 11.3
Product Height (in): 8.2
Product Weight (lb): 8.75
Rated Power (hp): 2.1
Side to Center Distance (in): 2.1
Side to Center Distance (mm): 53
Sound Pressure/Power Db(A): 86.2 / 97.2
Standards/Certifications: En Iso 28927-1, En Iso 15744, En Iso 11148-7
Vibration Level (m/s2): 3.1
Vibration Uncertainy K* (m/s2): 0.9
Warranty: 1-year
Wheel Diameter (in): 7
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

Similar IR

• 99V60P107
• 88V60P109
• 99V60P109

IR G3A120RP1045

Air Angle Grinder, 4.5" Type 27 Wheel, 12,000 RPM 1.35 HP, 5/8"-11 Thread, Rear Exhaust

The MAX Series family of angle grinders has a tool to meet your needs, whether you’re looking for a 4.5 or 5-inch option. The built-in lubricating wick optimizes the life of your angle gear set, while the safety guard protects you from debris, sparks and abrasives while you work.

Features And Benefits

• Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
• Power: With an ideal power-to-weight ratio, the Max Series Angle Grinders are great for high-performance material removal.
• Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication.

Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Color: Black
Configuration/Handle Type: Right Angle
Exhaust Location: Rear
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Rated Power (hp): 1.35
Rated Power (kW): 1
Sound Pressure/Power Db(A): 87.9
Warranty: 1-year
Wheel Diameter (in): 4.5
Wheel Thickness (in): 1/4
Wheel Type: Type 27

IR 99V60P109

Vertical Air Grinder, 9" Type 27/28 Wheel, 6,000 RPM, 3 HP, 5/8 in-11 Thread, Side Exhaust

The 99 Series Vertical Grinders are tough and reliable, with a number of features that help you get the job done faster, easier and safer.

Features And Benefits

• Power: The 99 Series Vertical Grinder sports a powerful vane motor and an ideal power-to-weight ratio at 11.3 lbs, 3HP and 6,000 RPM.
• Safety: The included guard on the 99 Series block sparks and debris from flying back at you, while the locking throttle lever prevents accidental throttle operation.
• Reliable: Designed for heavy-duty production applications, the 99 Series Vertical Grinder is a trusted tool that will last you years to come.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 84
Air Consumption @ Load (l/min): 2379
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Industrial Duty
Exhaust Location: Side
Grinder Type: Vertical Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 6.9
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 6.88
Product Weight (lb): 11.25
Rated Power (hp): 3
Right Angle Length (in): 7.95
Right Angle Length (mm): 202
Sound Pressure/Power Db(A): 82.5 / 93.5
Vibration Level (m/s2): 3.4
Warranty: 1-year
Wheel Diameter (in): 9
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

Similar IR

• 99V60P107

SX 1985A

Die Grinder

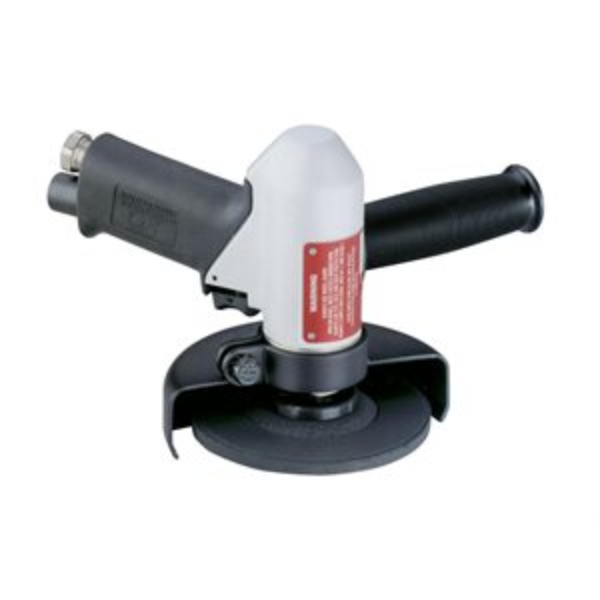

DY 52632

4-1/2in (114 mm) Diameter Right Angle Depressed Center Wheel Grinder

1.3 hp, 12,000 RPM, Side Exhaust, 5/8in -11 Spindle Thread

1.3 hp Depressed Center Wheel Grinder is ideal for fast weld and stock removal, heavy deburring, plus rust and scale removal.

12,000 RPM, 5/8in -11 Spindle Thread.

• HP: 1.3
• Max. RPM: 12000.0
• Motor RPM: 12,000

IR 5108MAX

Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

• MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 25,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
• MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
• MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (3) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.56
Product Width (in): 7.09
Product Height (in): 1.6
Product Weight (lb): 1
Rated Power (hp): 0.4
Rated Power (kW): 0.298
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 83.3 / 94.3
Special Features: Lube-Free Motor
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 1.8
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 5107MAX
• G1H250RG4
• G1H250FG4
• 308B
• 307B

Supersedes

• 325SC4A

IR G3X150RG4

Air Angle Die Grinder, 15,000 RPM, 1.35 HP, 1/4" Collet, Rear Exhaust

The G3 Series die Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.

Features And Benefits

• Power: Powerful 1.35 15,000 RPM vane motor that won’t let you down on job that call for maximum power.
• Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
• Vibration dampening for ease-of-use.

Product Application and Uses: Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Grinder Type: Die Grinder
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Sound Pressure/Power Db(A): 84.1 / 95.1
Vibration Level (m/s2): <2.5
Warranty: 1-year

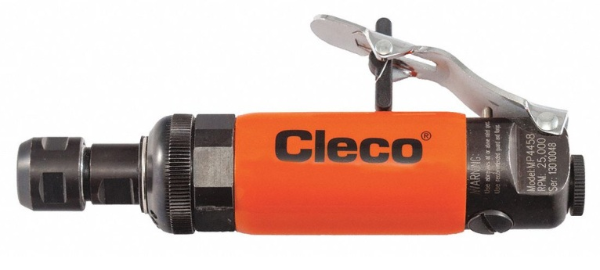

MP MP4458

Grinder, Inline, 1/4 Collet Q

IR AG3-422-A18

ASSY. CONTROLLER, 18K

IR M2A120RP1045

Air Angle Grinder, 4.5" Type 27 Wheel, 12,000 RPM, 1 HP, 5/8"-11 Thread, Rear Exhaust

Get fast material removal from a powerful tool that does more, is easier to use, and needs less maintenance. The M2 Series angle grinders feature more-powerful, lube-free motors and are available in various speeds and configurations to match virtually any job.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 9,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These are grinders are designed for material removal or cutting off using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 20
Air Consumption @ Free Speed (l/min): 566
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 3.39
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 9000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.29
Product Weight (lb): 3.76
Rated Power (hp): 1
Right Angle Length (in): 8.06
Right Angle Length (mm): 205
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 87 / 98
Speed Setting: Variable Speed
Vibration Level (m/s2): 5.1
Warranty: 1-year
Wheel Diameter (in): 4.5
Wheel Thickness (in): 1/4
Wheel Type: Type 27

Similar IR

• M2A120RP105

IR 99V60S106

Vertical Air Grinder, 5" or 6" Type 6 /11 Wheel, 6,000 RPM, 3 HP, 5/8 in-11 Thread, Side Exhaust

The 99 Series Vertical Grinders are tough and reliable, with a number of features that help you get the job done faster, easier and safer.

Features And Benefits

• Power: The 99 Series Vertical Grinder sports a powerful vane motor and an ideal power-to-weight ratio.
• Safety: The included guard on the 99 Series block sparks and debris from flying back at you, while the locking throttle lever prevents accidental throttle operation.
• Reliable: Made with you in mind, the 99 Series Vertical Grinder is a trusted tool that will last you years to come. Comes with a 1-year warranty.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 84
Air Consumption @ Load (l/min): 2379
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Industrial Duty
Exhaust Location: Side
Grinder Type: Vertical Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 6.9
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 6.88
Product Weight (lb): 10.8
Rated Power (hp): 3
Right Angle Length (in): 7.95
Right Angle Length (mm): 202
Sound Pressure/Power Db(A): 82.4 / 93.4
Vibration Level (m/s2): <2.5
Warranty: 1-year
Wheel Diameter (in): 5 or 6
Wheel Thickness (in): 1/4
Wheel Type: Type 6, 11

Similar IR

• 88V60S106

DC 12L1028-36

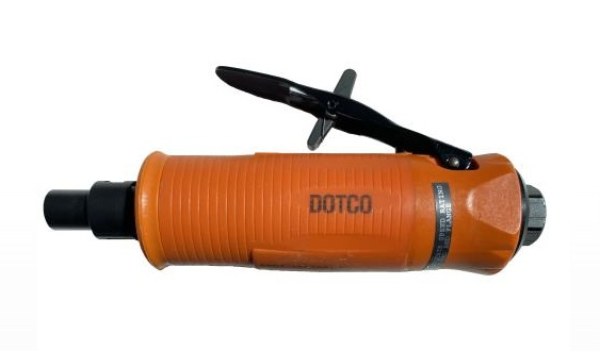

GRINDR ERGO,RE,20K,1/4 COLLET

SX 5978A

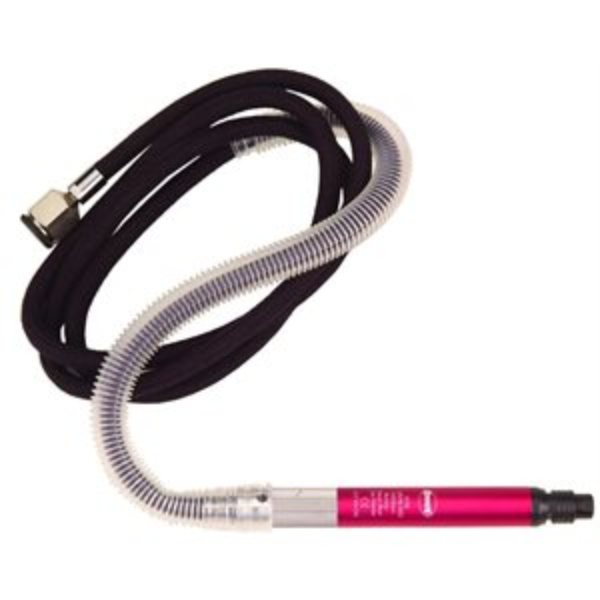

Pencil Grinder, .1Hp, 54000 Rpm

IR HG1-338

Raised Hub Wheel Flange

IR M2A180RG4

Angle Air Die Grinder, 18,000 RPM, 1 HP, 1/4" and 6mm Collets, Rear Exhaust

You can count on the M2 Series Die Grinders to meet all your industrial, heavy machinery, construction and metal fabrication needs. These die grinders contain an internal contamination-free air controller that maintains the tool’s speed to maximize material removal- so you can trust it to work through your most important jobs.

Features And Benefits

• Power: With a powerful, lube-free 1 HP 18,000 rpm motor, you can remove materials quickly and with ease. Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
• Productivity: Speed-governed motor on this angle grinder help maximize the life of abrasives, increasing grinder efficiency and improving productivity.
• Durable: Built to last, these grinders have a steel angle head, aluminum-core housing with composite sleeve, and can withstand harsh environments and repeated drops.
• Ergonomic: Low profile throttle lever and ergonomic handle design reduces hand fatigue, increases comfort, and improves productivity.
• Efficient: Multi-position guard easily adjusts to four different positions without tools. Spindle lock allows faster, easier accessory changes. Easy disassembly for motor access. Back cap and muffler with easy rear access for cleaning.
• Reliable: You can count on this tool to perform reliably, especially thanks to a motor controller that helps maintain tool speed and prevents over speeding.

Includes: Tools, Large Wrench, Small Wrench, Piped away exhaust
Product Application and Uses: These are grinders are designed for material removal or cutting off using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 30
Air Consumption @ Free Speed (l/min): 849
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Grinder Type: Angle Grinder
Handle Material: Composite
Height Over Spindle (in): 3.28
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.94
Product Weight (lb): 3.56
Rated Power (hp): 1
Right Angle Length (in): 8.06
Right Angle Length (mm): 205
Side to Center Distance (in): 5.86
Side to Center Distance (mm): 149
Sound Pressure/Power Db(A): 88.8 / 99.8
Speed Setting: Variable Speed
Vibration Level (m/s2): 3.1
Warranty: 1-year
Wheel Type: Burr

DY 48317

.4 hp Right Angle Die Grinder

20,000 RPM, Spiral-Geared, Rear Exhaust, 1/4in Collet

All models have air passage to continually cool the gear box. gears last longer! Pinion piloted on rotor to reduce run-out. Needle bearing assures proper shaft alignment.

Dual wick lubrication system saturated with gear oil for extended gear life over 700 hours. This helps administer the right amount and keep the gear oil on the metal gears. Highest horsepower and torque levels of any similar competitive product.

• HP: 0.4
• Max. RPM: 20000.0
• Motor RPM: 20,000

IR 88S60W107

Vertical Air Sander, 7" Pad, 6,000 RPM, 2 HP, 5/8"-11 Thread, Side Exhaust

These Pro Series sanders are made to tackle large areas and heavy duty materials.

Features And Benefits

• The 88S sander was made with a solid steel motor, arbor housing, and double-row ball bearings to assure long life and smooth operation.
• Featuring a built-in mist lubricator, this tool stays well-oiled every time the throttle is activated.
• Made to tackle large areas and heavy duty materials.

Product Application and Uses: These Air Sanders are designed for both light and heavy sanding jobs such as roughing body filler, removing rust, and smoothing welds.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Double Row Ball
Configuration/Handle Type: Vertical
Exhaust Location: Side
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Pad Diameter or Size (in): 7
Power Source: Air Powered
Product Weight (lb): 7.13
Rated Power (hp): 2
Sound Pressure/Power Db(A): 77.2
Vibration Level (m/s2): <2.5
Warranty: 1-year

MP MP4424

Die Grinder, R/A, 1/4Incollet Q
