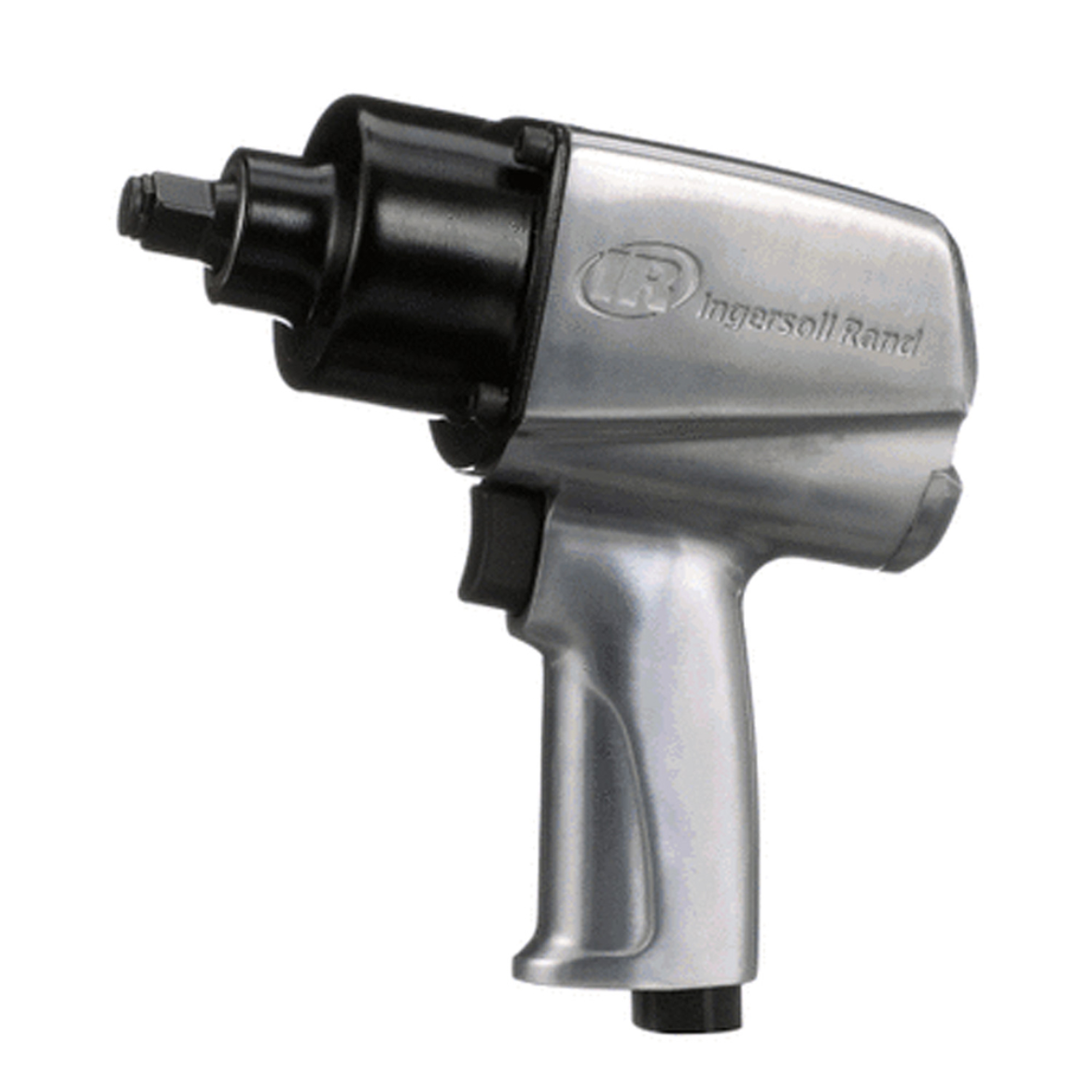

IR 236
1/2" Air Impact Wrench, 450 ft-lb Torque, Friction Ring Retainer, Pistol
If you work in vehicle repair, this impact wrench will see you through every job that walks in the door. The 236 ½” is strong and reliable, with a power regulator that allows for increased control from start to finish.
Features And Benefits
- RELIABILITY: The 236 ½” Impact Wrench will put in overtime on your toughest projects. Each part is tested for quality, so you can be sure it’ll deliver a high-performance output every time.
- POWER: This impact wrench comes with a finely tuned vane motor that pairs smoothly with the jumbo hammer impact mechanism on the 236 ½” impact wrench for maximum power.
- WARRANTY: A one-year warranty comes standard on all 236 ½” impact wrenches
Includes: Bare Tool
Product Application and Uses: Vehicle Repair Or Maintenance Repair
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 4.3
Average Air Consumption (l/min): 122
Blows per Min: 1200
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 90.3 / 101.3
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Max Bolt Diameter (in): 1/2
Max Free Speed (rpm): 7400
Max Pressure (bar): 6.2
Max Torque (ft-lb): 450
Max Torque (in-lb): 5400
Max Torque (nm): 610
Min Hose Size (in): 3/8
Motor: Non-Biased
Number of Power Settings: 2
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 84.9
Product Length (in): 7
Product Width (in): 2.6
Product Height (in): 7.2
Product Weight (lb): 5.3
Retainer Type: Friction Ring
Side to Center Distance (in): 1.3
Side to Center Distance (mm): 33
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 12
Warranty: 1-year
