IR W7153
DXS2 1/2" 20V Cordless Impact Wrench, 1600 ft-lb, Friction Ring Retainer, Pistol, Bare Tool

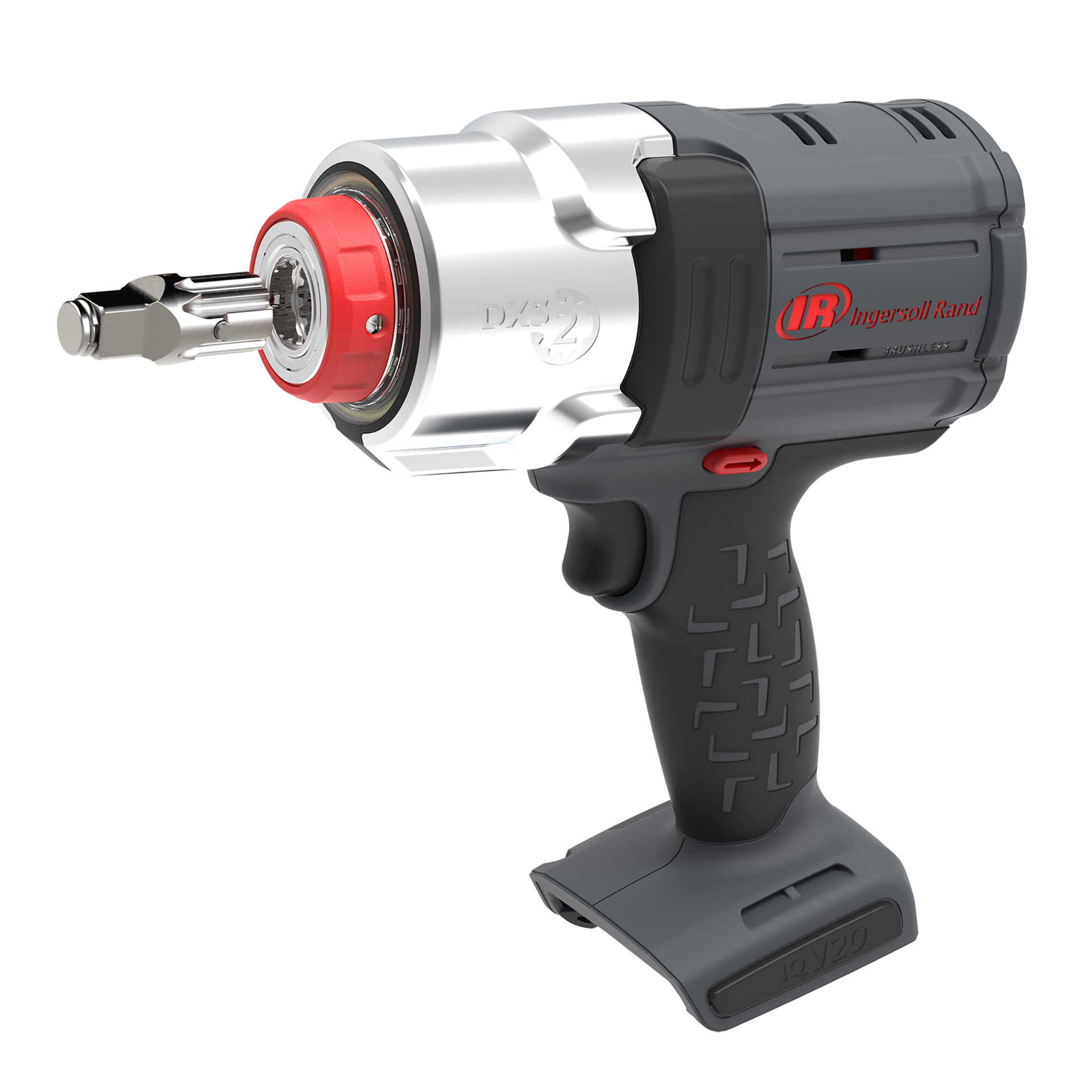

The Ingersoll Rand® W7153 DXS® Cordless Impact Wrench combines robust versatility with exceptional value to deliver the power of pneumatic in a cordless tool that works smarter, not harder. Features the patented DXS® Drive Xchange System™ that uses a proprietary spline-type interface and fast-swap, interchangeable drives, so you can perform multiple jobs with one tool – without compromise. With up to 1,600 ft-lbs*. of breakaway torque and a lightweight, compact design, the W7153 offers best-in-class performance that eliminates the need for adapters and extensions. A 5 yr. Limited Warranty stands behind our legendary quality, while IQV20™ batteries keep you and your tool running all day long. Ditch your adapters and experience the versatility of the industry’s most compact high torque cordless impact wrench.
Features And Benefits
- Performance: The patented DXS® system features torque that works smarter, not harder. Tight-fitting DXS® attachments deliver up to 15% more motor torque to fasteners*, making the tools more effective – so you never lose power.
- Productivity: Fast-swapping DXS® accessories let you perform multiple jobs with one tool, decreasing downtime and saving space in your toolkit.
- Versatility: Maneuver more easily with a compact design that provides greater access to tight spaces. IQV20™ battery compatibility eliminates the need to purchase multiple battery types.
- Durability: Withstand the rigors of the job site with an impact-resistant body and IPX6-certified environmental rating for protection against water ingress.
- Ergonomics: Lightweight 6.1lb build and ergonomic pistol grip for comfortable all-day use and less operator fatigue.
- Convenience: Get all the power of pneumatic in a go-anywhere 20V cordless design that eliminates air hoses – and the risk of trip hazards.
- Quality: Our best warranty ever – 5 yr. Limited Warranty stands behind our legendary quality and durability.
- Value: Increase your time in service and save replacement costs by simply switching out worn or broken drives to get the tool working like new.
- Power: Powerful brushless motor and ball and cam impact mechanism are finely tuned for best in class power-to-weight ratio. 1600 ft-lbs of nut-busting torque (when used with ¾” DXS® drive accessories).
- Visibility: 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access.
- Includes 1/2” standard anvil length (A41H); 3/8” and 3/4” drive size options as well as extended lengths sold separately.
Includes: DXS2 1/2" Square Drive Anvil (A41H). Compatible with all DXS2 anvils and sockets. 3/8” and 3/4” drive size options as well as extended lengths sold separately. Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: DXS Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 2450
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 3.7-10
Forward Torque setting 1 (in-lb): 44-124
Forward Torque setting 1 (nm): 5-14
Forward Torque setting 2 (ft-lb): 37-111
Forward Torque setting 2 (in-lb): 443-1328
Forward Torque setting 2 (nm): 50-150
Forward Torque setting 3 (ft-lb): 531
Forward Torque setting 3 (in-lb): 6373
Forward Torque setting 3 (nm): 720
Forward Torque setting 4 (ft-lb): 1003
Forward Torque setting 4 (in-lb): 12037
Forward Torque setting 4 (nm): 1360
Hammer Case: Steel-lined Aluminum
Handle Material: Overmolde
