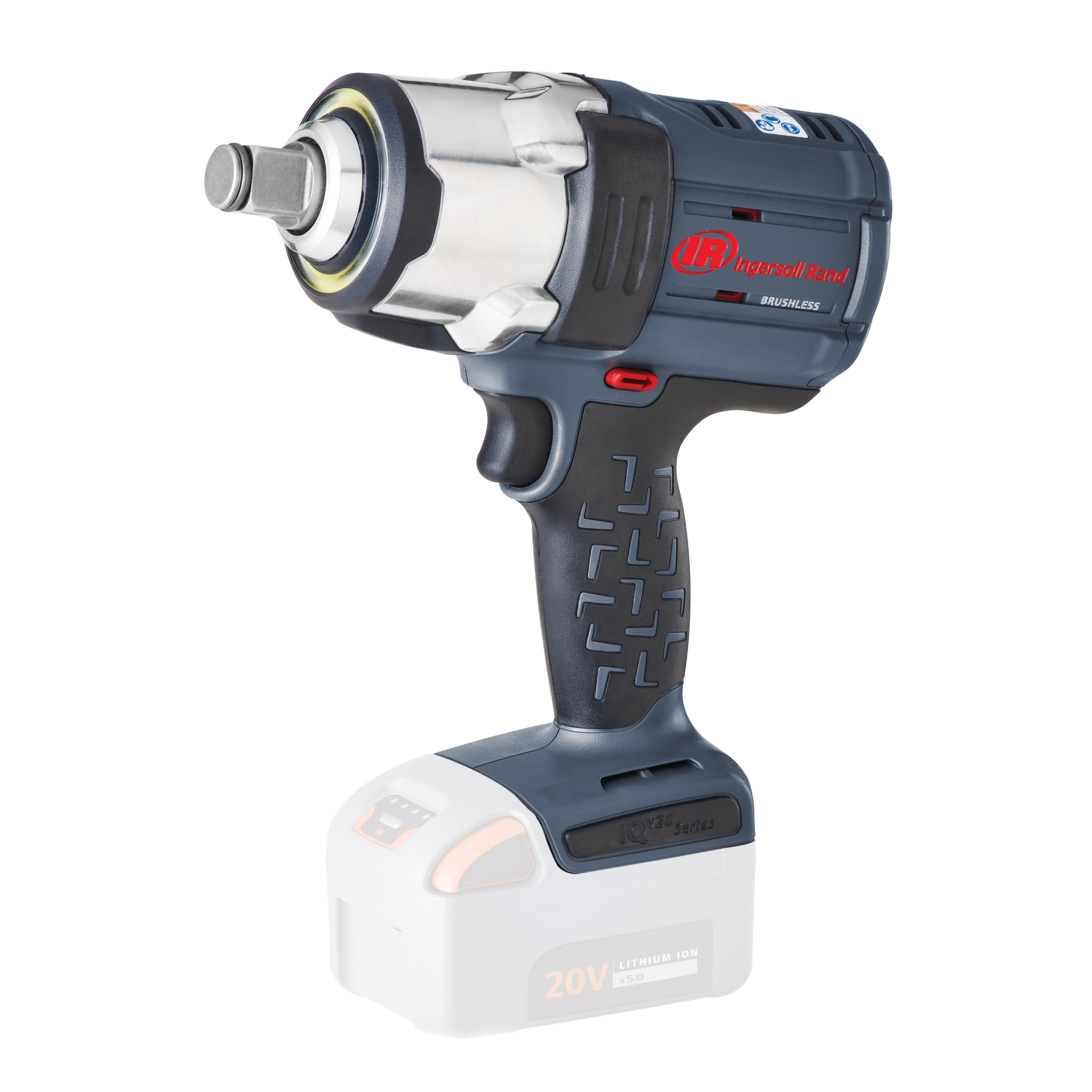

IR W7172
3/4" 20V Cordless Impact Wrench, 1500 ft-lb Torque, Friction Ring and Thru-hole Retainer, Pistol, Bare Tool
The IQV® 20 Series W7172 3/4” 20V High Torque Impact Wrench delivers 1500 ft-lb of nut busting torque and utilizes the IQV Power Control System, going from MAX torque to “hand tight” in no time with the best in class length from tip to tail.
Features And Benefits
- Power: Powerful brushless motor and impact mechanism are finely tuned for best in class power-to-weight ratio. 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque.
- Control: Includes the IQV® Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there’s no need to switch tools.
- Access: 8.5” short tip-to-tail design and 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access.
- Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency.
- Variable-speed switch (half and full power only) with electronic brake provides maximum control of the tool and increases safety—release trigger, drive stops spinning.
- Patented steel-reinforced nylon casing protects against aggressive fluids, chemicals and repeated drops.
- Ideally used for removing or fastening cradle bolts, tire changing, fleet truck maintenance and in industrial and MRO settings.
- Weighs only 7.8 lbs (with BL2022 battery).
- 3-year warranty.
- Compatible with IQV® 20 Series Battery System
Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 2450 (BL2022)
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 3.7-10
Forward Torque setting 1 (in-lb): 44-124
Forward Torque setting 1 (nm): 5-14
Forward Torque setting 2 (ft-lb): 37-111
Forward Torque setting 2 (in-lb): 443-1328
Forward Torque setting 2 (nm): 50-150
Forward Torque setting 3 (ft-lb): 531
Forward Torque setting 3 (in-lb): 6373
Forward Torque setting 3 (nm): 720
Forward Torque setting 4 (ft-lb): 1003
Forward Torque setting 4 (in-lb): 12037
Forward Torque setting 4 (nm): 1360
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.7
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 1003
Max Torque (in-lb): 12037
Max Torque (nm): 1360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1505
Nut-busting/Breakaway Torque (in-lb): 18056
Nut-busting/Breakaway Torque (nm): 2040
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 194.81
Product Length (in): 8.5
Product Width (in): 3.3
Product Height (in): 9.1
Product Height (in) (with Battery): 11.1
Product Weight (lb): 6.1
Product Weight (lb) (with Battery): 7.7
Recommended Forward Torque Range (ft-lb): 1003
Recommended Forward Torque Range (in-lb): 12037
Recommended Forward Torque Range (nm): 1360
Retainer Type: Friction Ring and Thru-hole
RPM Setting 1: 600
RPM Setting 2: 1000
RPM Setting 3: 1450
Side to Center Distance (in): 1.35
Side to Center Distance (mm): 34
Sound Pressure/Power Db(A): 92 / 103
Standards/Certifications: Ul Listed, Csa Certified
Tool Type:
