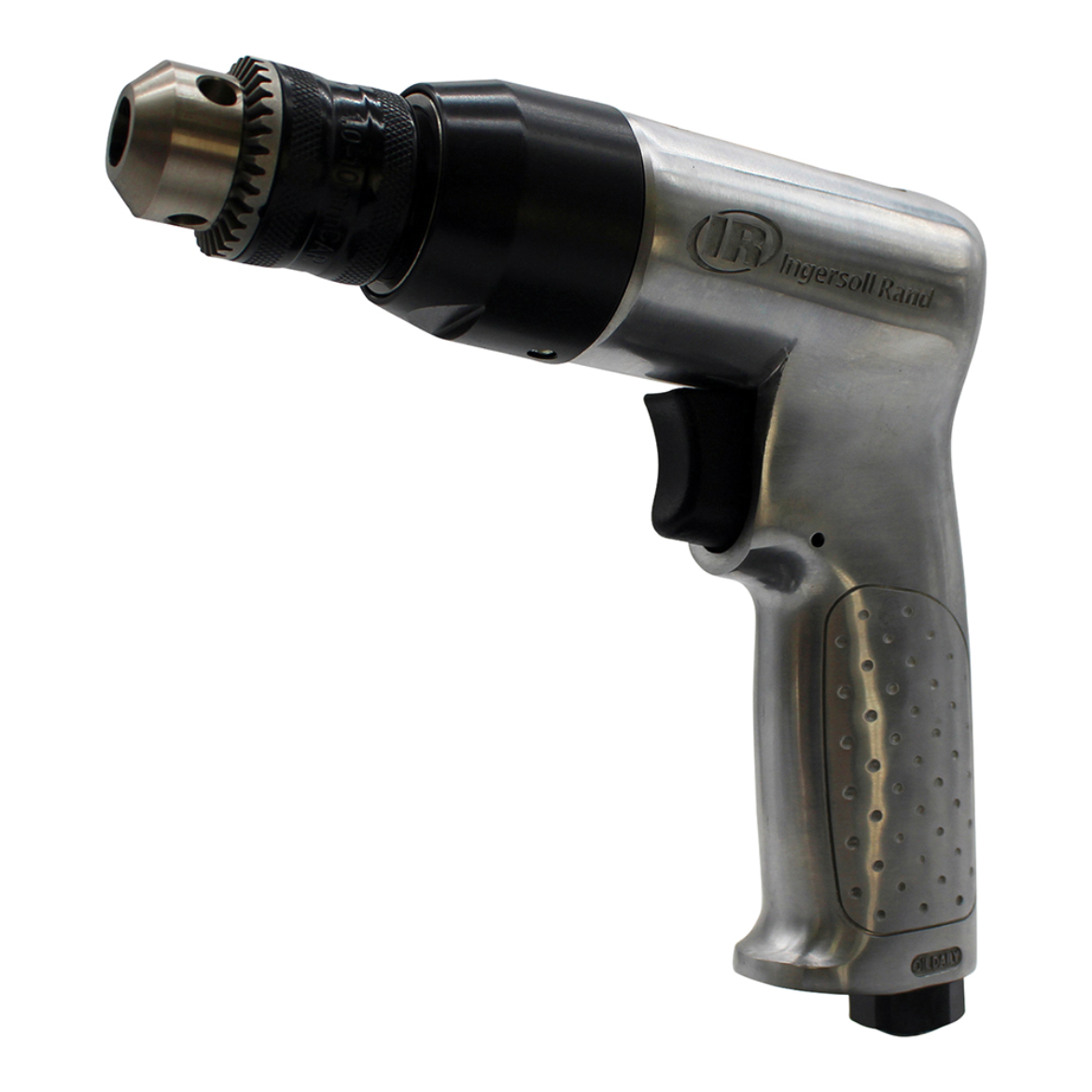

IR 7802A
3/8" Keyed Chuck Air Drill, 2000 RPM, 0.5 HP, 44in-lb Torque, Pistol
A classic pistol-shaped air drill, the ⅜” comes in multiple configurations and is great for honing, reaming or drilling holes.
Features And Benefits
- Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you’ll be able to control your tool and trust that it’ll perform the way you want it to.
- Performance: Powerful .5 HP 2,000 RPM motor
- Lightweight: Lightweight at 2.4 lbs. and 6.4 inches long.
Includes: 3/8 Chuck
Product Application and Uses: Great For Honing, Reaming Or Drilling Holes.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 27
Air Consumption @ Load (l/min): 764
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Ball & Roller
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyed Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: General Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 5.2
Housing Material: Aluminum
Max Free Speed (rpm): 2000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 3.7
Max Torque (in-lb): 44
Max Torque (nm): 4.97
Min Hose Size (in): 3/8
Nominal Drilling Capabilities (Alum 2024t4): 15/64
Nominal Drilling Capabilities (Steel 1213): 1/4
Nominal Drilling Capabilities (Stnls Steel Type 34): 1/8
Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
Power Source: Air Powered
Product Length (in): 6.5
Product Width (in): 7.09
Product Height (in): 6
Product Weight (lb): 2.6
Rated Power (hp): 0.5
Reversible: Non-reversible
Side to Center Distance (in): 0.91
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 83.0 / 94.0
Speed Setting: Variable Speed
Spindle Attachment: Drill Chuck
Vibration Level (m/s2): 2.8
Warranty: 1-year
