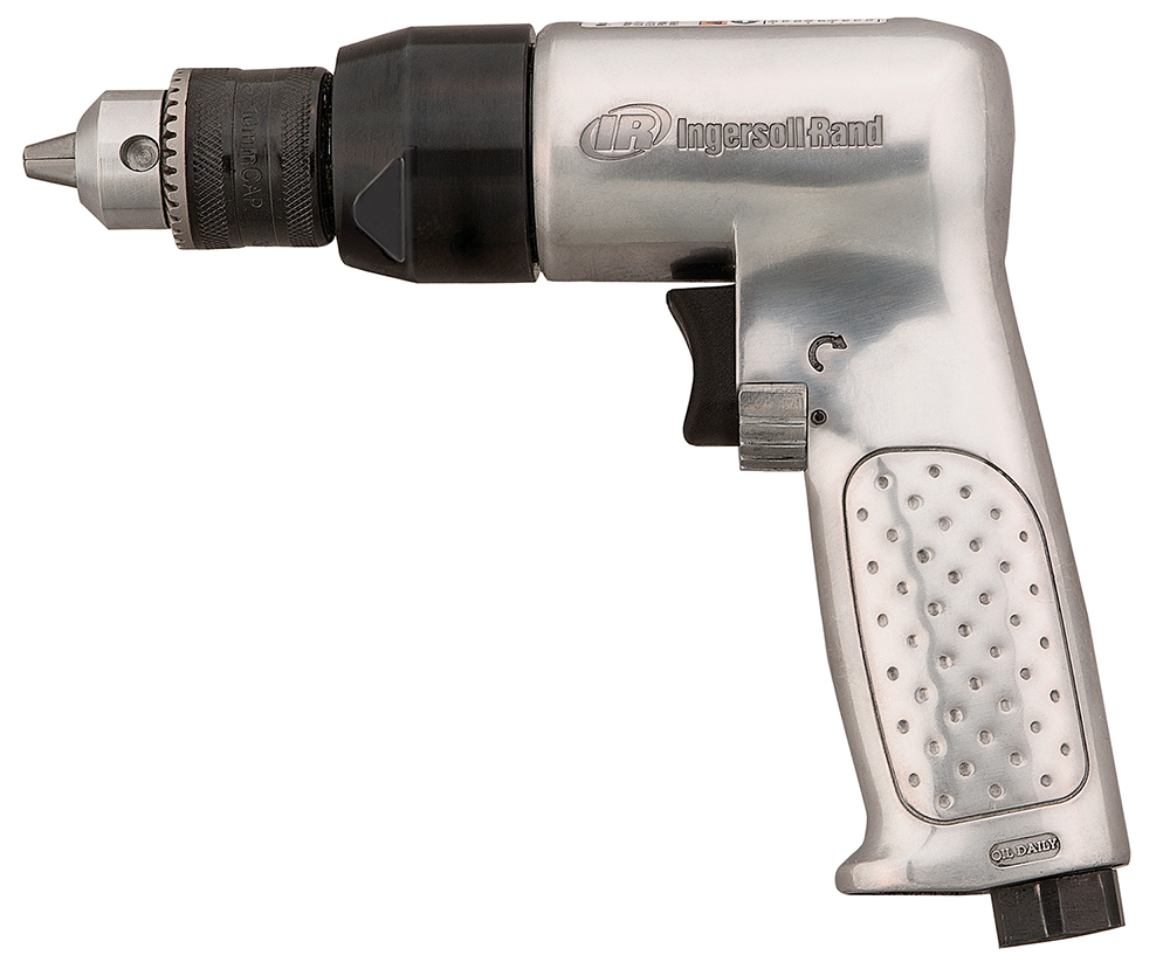

IR 7802RA
3/8" Keyed Chuck Air Drill, 2000 RPM, 0.5 HP, 2.65 in-lb Torque, Pistol
A classic reversible pistol-shaped 3/8" air drill with a keyed chuck and is great for honing, reaming or drilling holes.
Features And Benefits
- Performance: 2.65 in-lb Torque, 0.5 HP and 2000 RPM.
- Reversible: Allows you to choose between forward and reverse
- Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you’ll be able to control your tool and trust that it’ll perform the way you want it to. Comes with a 1-year warranty.
Includes: 3/8" Chuck
Product Application and Uses: General purpose drilling, honing, reaming, and hole-sawing.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 26
Air Consumption @ Load (l/min): 736
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Double Row Ball
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyed Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 7.4
Housing Material: Aluminum
Max Free Speed (rpm): 2000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.2
Max Torque (in-lb): 2.7
Max Torque (nm): 0.3
Min Hose Size (in): 3/8
Nominal Drilling Capabilities (Alum 2024t4): 15/64
Nominal Drilling Capabilities (Steel 1213): 1/4
Nominal Drilling Capabilities (Stnls Steel Type 34): 1/8
Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
Power Source: Air Powered
Product Length (in): 7.8
Product Width (in): 7.24
Product Height (in): 6
Product Weight (lb): 2.9
Rated Power (hp): 0.5
Reversible: Reversible
Side to Center Distance (in): 0.9
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 82
Speed Setting: Variable Speed
Spindle Attachment: Drill Chuck
Vibration Level (m/s2): 2.8
Warranty: 1-year
