AGITATOR, HIGH VISCOSITY

Manufacturer: GRACO INC. S10595

GG 24C729

AGITATOR, HIGH VISCOSITY

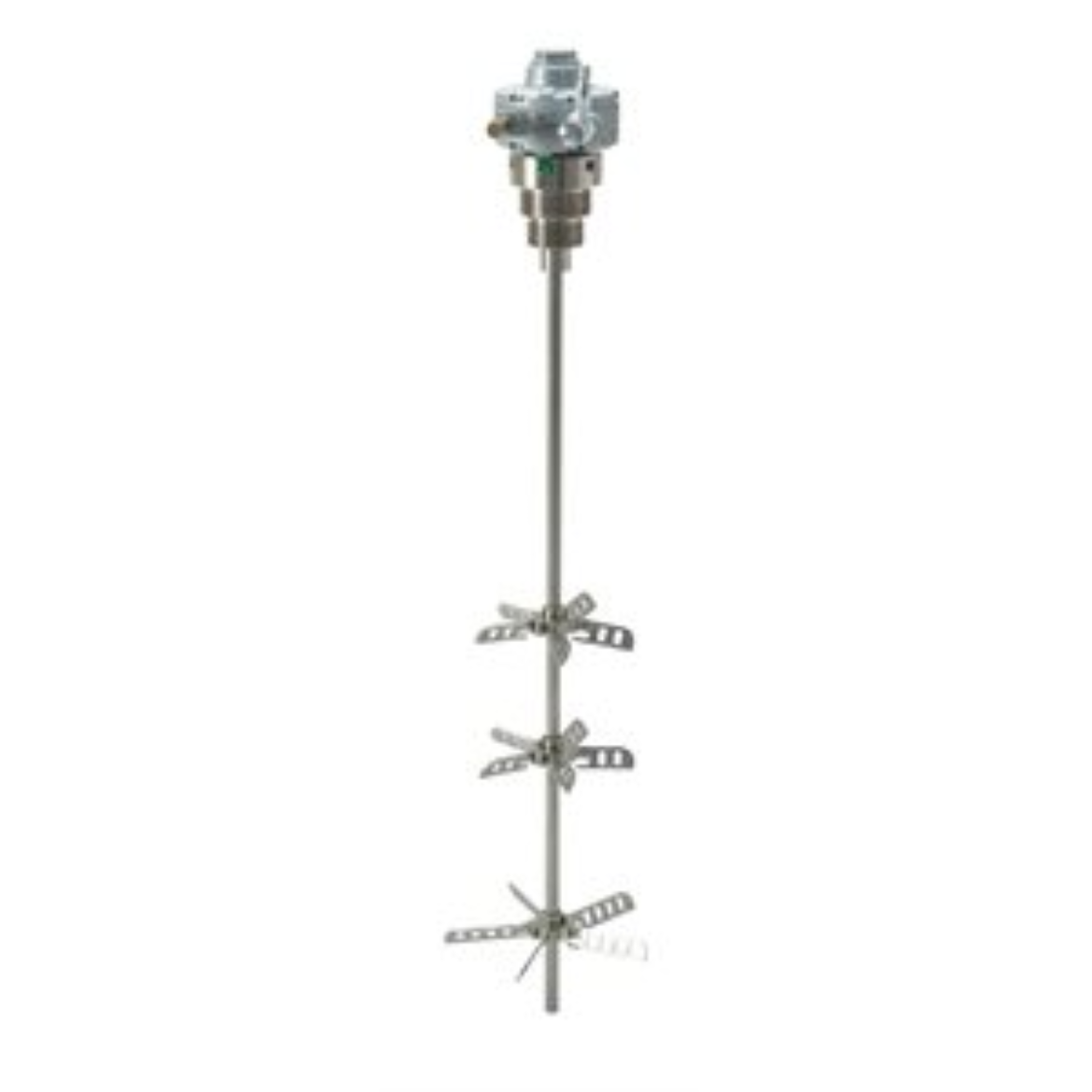

Graco 24C729 Air Driven Expanding Blade Bung-Mounted Agitator, High Viscosity

High viscosity (2,000 cps) air driven expanding blade bung-mounted agitator

  • Corrosion resistant materials increase durability
  • Threads into 1.5- or 2-inch drum bung
  • Angled adapter reduces vortexing and allows for off-center mounting
  • Collapsible blades fit through drum bung and expand when spinning for efficient mixing
  • High Viscosity (2,000 cps)


  • Air Inlet Size (cm): 0.3175
  • Air Inlet Size (in): 1/8
  • Air Inlet Size (mm): 3.175
  • Air Inlet Thread Type: NPT
  • For Use With: Drums with 2 inch Bung
  • Includes: Angled Adapter
  • Maximum Air Inlet Pressure (bar): 7
  • Maximum Air Inlet Pressure (kPa): 70
  • Maximum Air Inlet Pressure (psi): 100
  • Maximum Speed (RPM): 500
  • Maximum Viscosity (cP): 2000
  • Maximum Working Pressure (bar): 7
  • Maximum Working Pressure (kPa): 700
  • Maximum Working Pressure (psi): 100
  • Motor Type: Pneumatic - Rotary Vane
  • Power Rating (HP): 1.75
SKU: GG 24C729
Availability:
Price: $1,490.00
