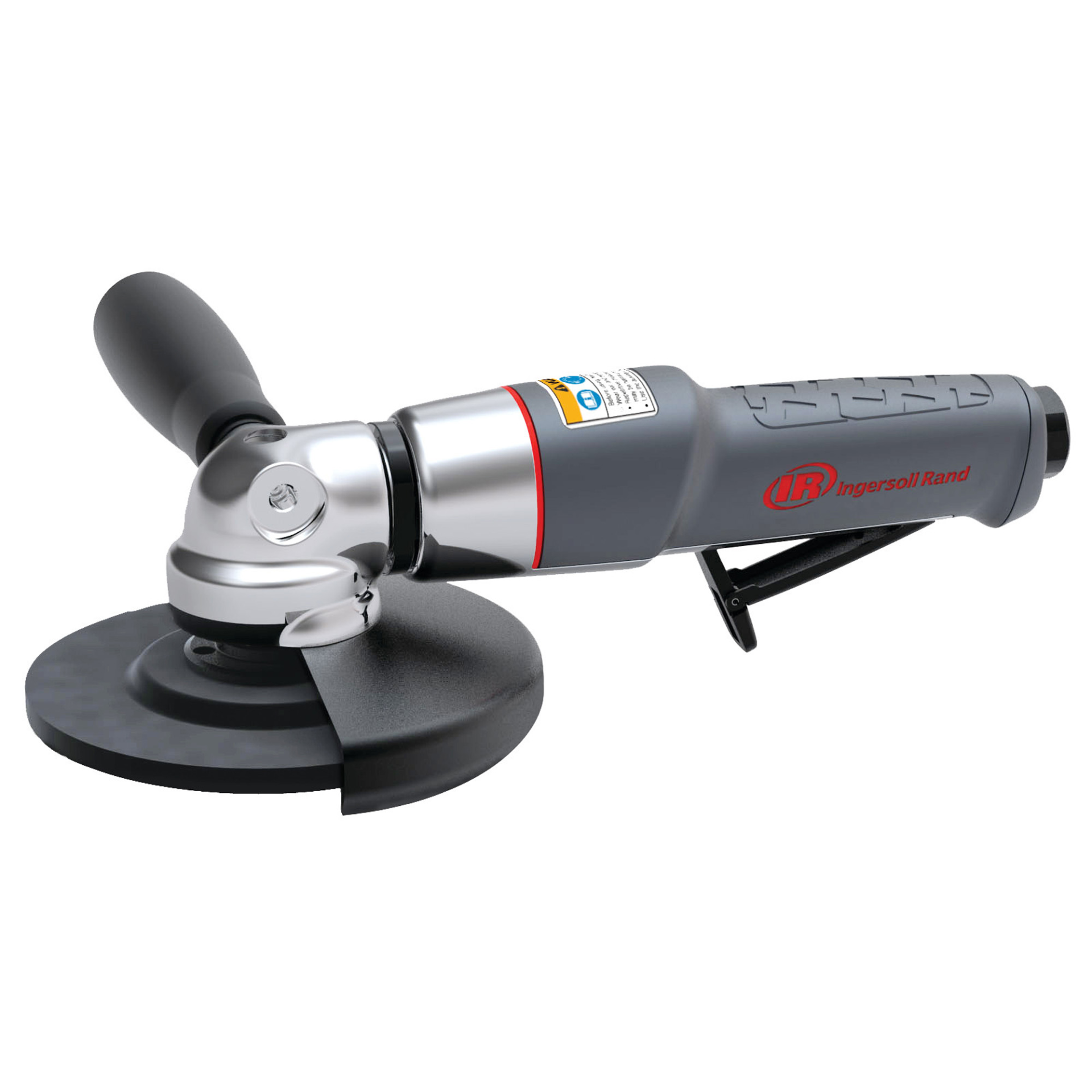

IR 3445MAX
Air Angle Grinder/Cut-off Tool, 4.5" Wheel, 12,000 RPM, 0.88 HP, 5/8"-11 Thread, Rear Exhaust
The MAX Series family of angle grinders has a tool to meet your needs, whether you’re looking for a 4.5 or 5-inch option. The built-in lubricating wick optimizes the life of your angle gear set, while the safety guard protects you from debris, sparks and abrasives while you work.
Features And Benefits
- Max Power: The 4-1/2" wheel 3445MAX grinder delivers maximum power, productivity, comfort, and reliability to tackle the toughest material removal jobs in metalworking, construction, and more.
- Work Faster, Safer: The .88 HP air motor with 12,000 RPM delivers the power you need and the internal governor maximizes speed under the load, increasing the rate of material removal.
- Built-in lubrication: Its built-in lubricating wick optimizes the life of the angle gear set by improving lubrication to the bevel and pinion gear set.
- Lightweight Comfort: The enhanced grip design increases operator comfort for extended use, and its lightweight construction, weighing less than 3.5 lbs., delivers the best power-to-weight ratio in its class.
- Material Compatibility: Cut, grind, or polish a variety of materials, including metal and concrete, with confidence thanks to the superior comfort and power.
Includes: Wheel Guard, Flange, Nut and Wheel Nut Wrenches
Product Application and Uses: Rust And Material Removal
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 41
Air Consumption @ Load (l/min): 1161
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 292
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Height Over Spindle (in): 2.8
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.31
Product Width (in): 3.41
Product Height (in): 6.81
Product Weight (lb): 3.44
Rated Power (hp): 0.88
Right Angle Length (in): 1.9
Right Angle Length (mm): 48
Side to Center Distance (in): 1.3
Side to Center Distance (mm): 33
Sound Pressure/Power Db(A): 79.6 / 90.6
Standards/Certifications: Ansi/Cagi B 186.1-1984, Ansi B186.1-2006, Bs En 792-7-2001
Vibration Level (m/s2): 6.3
Vibration Uncertainy K* (m/s2): 2.2
Warranty: 1-year
Wheel Diameter (in): 4.5
Wheel Thickness (in): 1/4
Wheel Type: Type 27 (Grinding) Type 1, 27, 41, 42 (Cutting)
