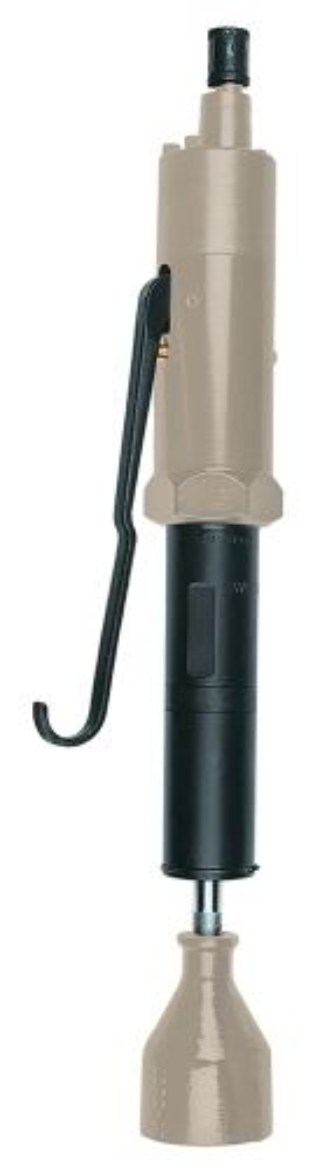

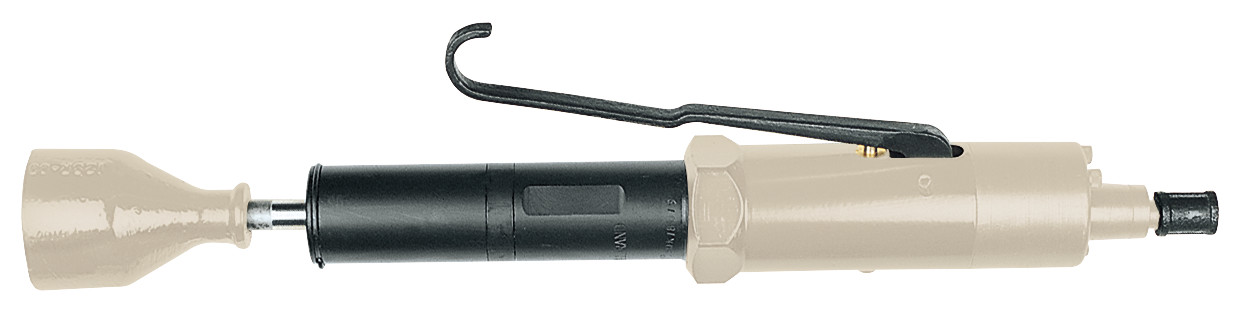

IR 130A1M
Pneumatic Bench Sand Rammer, 2-1/2" Round Malleable Butt, 2.5" Stroke, 1" Bore
With dual-action sand wipers, a built-in muffler and a side exhaust, this tool is built for heavy use. Ideal for compacting small sand molds in a foundry or casting facility. Its shorter height and light weight allow this unit to be used on smaller molds that are set up waist high.
Features And Benefits
- Reliability: Thanks to a built-in lubricator, these tools will run smoothly and last.
- Durability: With a plated piston and front-end seal to protect your tool, this Backfill Tamper can be used in the toughest environments. The sand-wiper seal prevents dirt and grit from getting inside the tool.
- Access: This tool is as lightweight as it is powerful, making compact spaces easy to reach.
Product Application and Uses: Ideal for compacting small sand molds in a foundry or casting facility
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 14
Air Consumption @ Load (l/min): 396
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 870
Bore Diameter (in): 1
Butt Diameter (in): 2.5
Butt Material: Malleable/ Steel
Butt Shape: Round
Color: Beige
Configuration/Handle Type: Straight
Duty Rating: Super Duty
Exhaust Location: Side
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Muffler: Built In
Power Source: Air Powered
Product Length (in): 21.5
Product Weight (lb): 11.56
Retainer Type: Latch
Shank Opening: 1/2" Tapered Rod
Special Features: Time Tested Valve Design, Round Piston Rod, Built In Muffler, Optional Front End Butts Available.
Steels: Yes
Stroke Length (in): 2.5
Warranty: 1-year
