    CHEMSAFE PUMP, 205PT-P01A-PT3-PT-PT-PO

    Manufacturer: GRACO INC. S10595

    GG 24X429

    CHEMSAFE PUMP, 205PT-P01A-PT3-PT-PT-PO

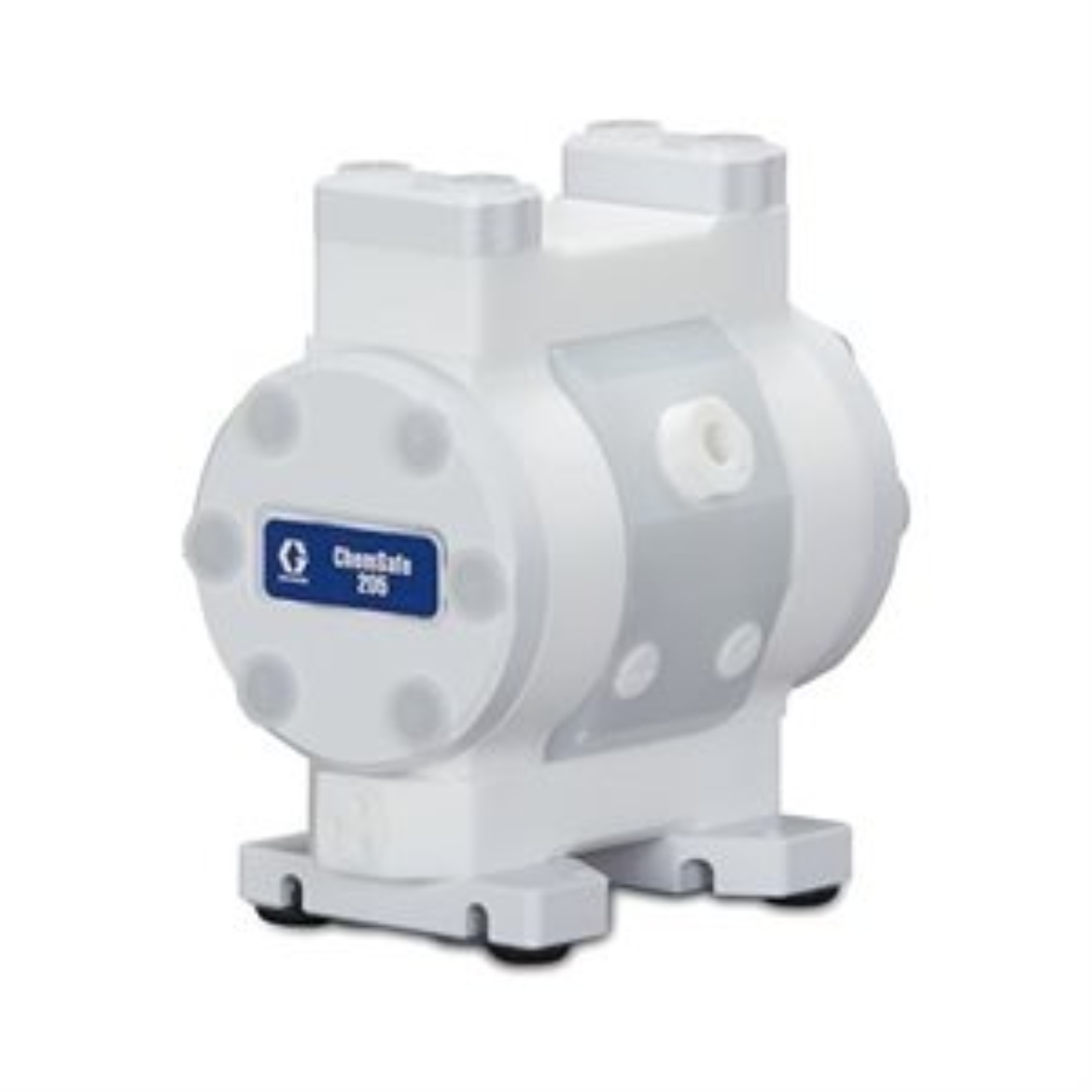

    Graco 24X429 ChemSafe 205 Air Operated Double Diaphragm Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port

    Graco&prime, s ChemSafe pumps feature PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. There&prime, s no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chemical compatibility requirements. Plus they&prime, re dead-head capable and achieve high flow rates while minimizing air consumption and operational noise.

    • Max flow rate of 3.6 gpm (14 lpm)
    • High quality machined design provides a precision fit and superior chemical containment compared to molded pumps
    • Corrosion-resistant exterior with no exposed metal reduces maintenance, extends pump life and offers clean, safe operation
    • Ideal for corrosive and abrasive liquids such as acids, fuels, glues, paints, resins, inks, or wastewater


    • Model: ChemSafe
    • Series: 205
    • Air Inlet Size (in): 1/8
    • Air Inlet Thread Gender: Female
    • Air Inlet Thread Type: NPT
    • Application: Industrial
    • Ball Material: PTFE
    • Center Section Material: Polypropylene
    • Compatible Material: Antifreeze, Detergent, Gel-Coat, Asphalt, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Water - Wastewater Treatment, Water - Wastewater Transfer, Food and Personal Care, Ink
    • Connection Type: Threaded
    • Diaphragm Compatible Material: PTFE
    • Diaphragm Material: PTFE Overmold
    • Fluid Inlet Size (cm): 0.635
    • Fluid Inlet Size (in): 1/4
    • Fluid Inlet Size (mm): 6.35
    • Fluid Inlet Thread Gender: Female
    • Fluid Inlet Thread Type: NPT
    • Fluid Outlet Size (cm): 0.635
    • Fluid Outlet Size (in): 1/4
    • Fluid Outlet Size (mm): 6.35
    • Fluid Outlet Thread Gender: Female
    • Fluid Outlet Thread Type: NPT
    • Fluid Section Material: PTFE
    • Manifold Configuration: Center Port
    • Manifold O-Ring Material: PTFE
    • Material: PTFE
    • Maximum Air Consumption (SCFM): 4.8
    • Maximum Air Pressure (bar): 7
    • Maximum Air Pressure (kPa): 700
    • Maximum Air Pressure (MPa): 0.7
    • Maximum Air Pressure (psi): 100
    • Maximum Cycle Rate (CPM): 375
    • Maximum Flow Rate (GPM): 2.5
    • Maximum Flow Rate (L/min): 9.5
    • Maximum Fluid Pressure (bar): 7
    • Maximum Fluid Pressure (kPa): 700
    • Maximum Fluid Pressure (MPa): 0.7
    • Maximum Fluid Pressure (psi): 100
    • Maximum Fluid Pressure (bar): 7
    • Maximum Fluid Pressure (kPa): 700
    • Maximum Fluid Pressure (MPa): 0.7
    • Maximum Fluid Pressure (psi): 100
    • Maximum Operating Temperature (°C): 100
    • Maximum Operating Temperature (°F): 212
    • Maximum Solid Size (cm): 0.15
    • Maximum Solid Size (in): 0.06
    • Maximum Solid Size (mm): 1.5
    • Minimum Operating Temperature (°C): 0
    • Minimum Operating Temperature (°F):
    SKU: GG 24X429
    Availability:
    Price: $2,370.00
