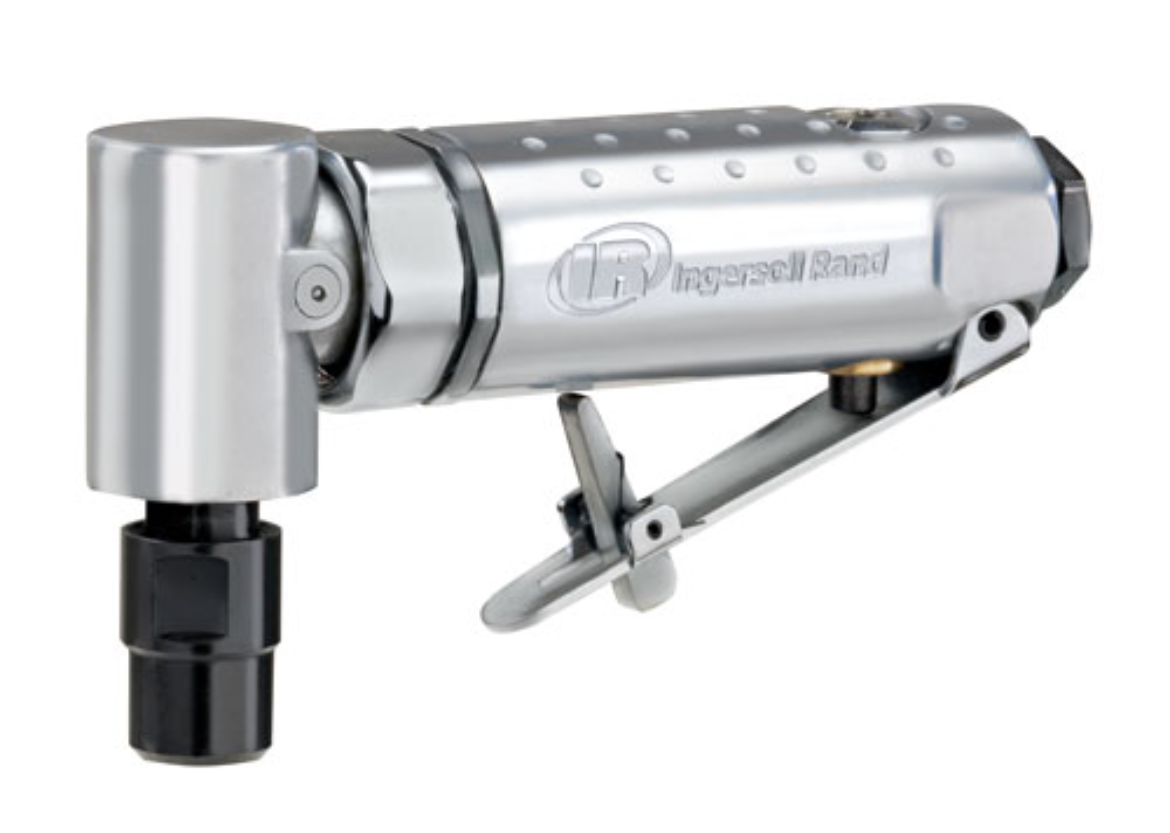

Die Grinder, 0.25 Hp, 21K, Angle, 1/4in

IR 301B

Angle Air Die Grinder, 21,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust

Description: As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere!

Features And Benefits:

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" collet and a integral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.

Product Application and Uses:

Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.

• Includes: Tool, 1/4" collet, (2) Wrenches and Manuals
• Actuation/Throttle Type/Switch Location: Bottom
• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption @ Load (cfm): 24
• Air Consumption @ Load (l/min): 680
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/4"
• Average Air Consumption (cfm): 6
• Average Air Consumption (l/min): 170

• Bearing Type: Ball Bearing

• Configuration/Handle Type: Right Angle
• Duty Rating: Medium Duty

• Exhaust Location: Front

• Grinder Type: Die Grinder
• Handle Material: Aluminum
• Height Over Spindle (in): 3
• Housing Material: Aluminum
• Lock Mechanism: Lever lock in off position

• Max Free Speed (rpm): 21000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 5.27

• Product Width (in): 3.5
• Product Height (in): 2
• Product Weight (lb): 1.02
• Rated Power (hp): 0.25
• Right Angle Length (in): 2
• Right Angle Length (mm): 51

• Side to Center Distance (in): 0.54
• Side to Center Distance (mm): 14

• Sound Pressure/Power Db(A): 91.8 / 104.8
• Speed Setting: Variable Speed
• Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744

• Vibration Level (m/s2): 5.9
• Warranty: 1-year

• Complete Tool Kits: 301BK
• Complete Tool Kits: 301B2MK
• Complete Tool Kits: 301B3MK
• Complete Tool Kits: 301B32MK

• Lubrication: 10G
• Lubrication: 10P
• Parts: 02A-VAR-KIT
• Parts: 301-42-4

• Parts: 301-K591A
