Dura-Flo Tandem Supply Unit,47:1,Pxover,6.5,200L

GG TDEL8R

DURA-FLO TANDEM SUPPLY UNIT, 47:1, PXOVER, 6.5, 200L

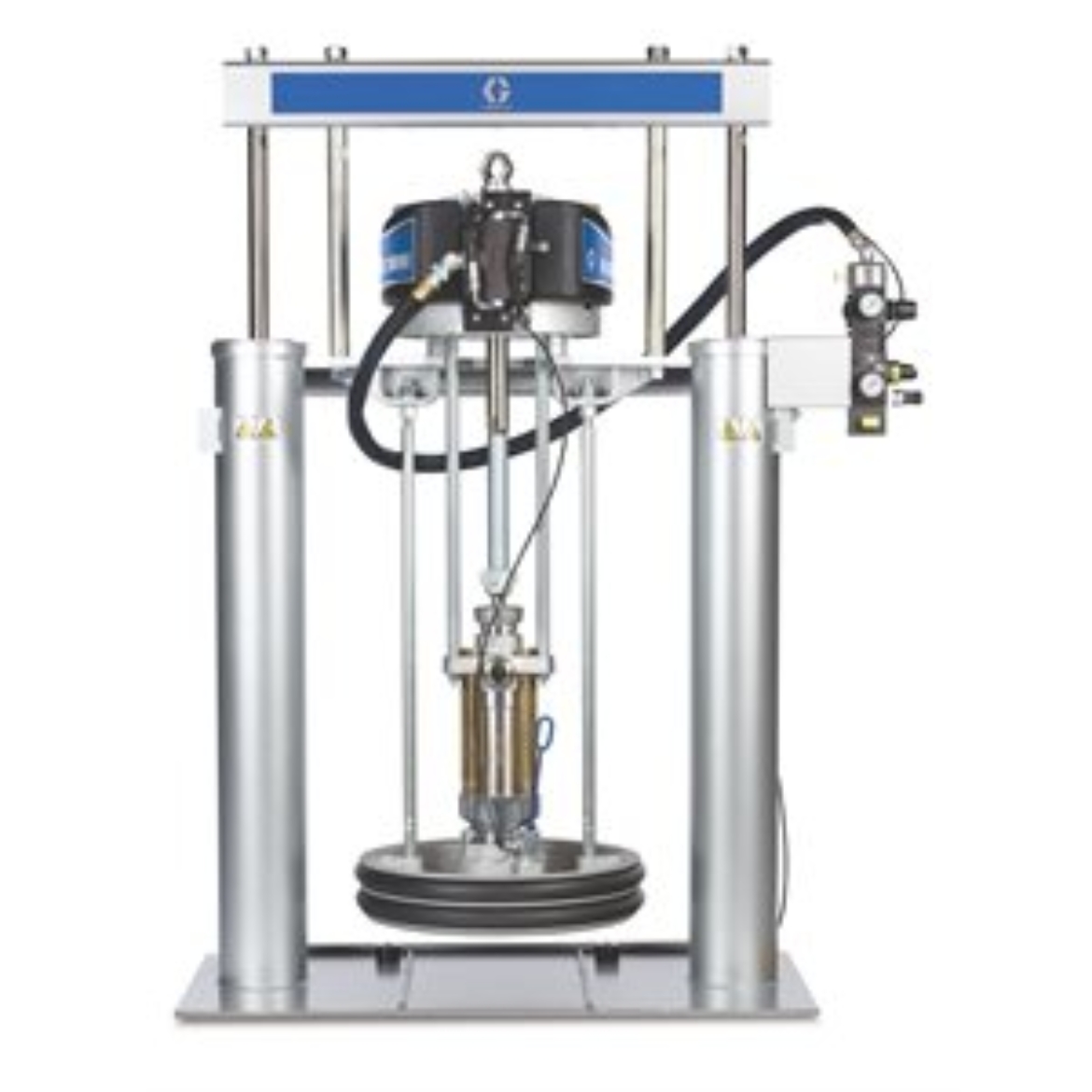

Graco TDEL8R 47:1 Ratio 200 L 6.5 RAM Tandem Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200s - For heavy-duty, high-volume applications of high-viscosity materials. Provides more down-force for difficult-to-move materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Dura-Flo

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm²): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 6.9
• Maximum Flow Rate (L/min): 26.1

• Maximum Fluid Pressure (bar): 324.1
• Maximum Fluid Pressure (kPa): 32410
• Maximum Fluid Pressure (psi): 4700

• Maximum Fluid Pressure (bar): 324.1
• Maximum Fluid Pressure (kPa): 32410
• Maximum Fluid Pressure (psi): 4700

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Power Type: Pneumatic

• Pump Ratio: 47:1
• Pump Type: Double Ball

• Ram Material: Carbon Steel
