GG 25M761
ENDURA-FLO PUMP, 3:1 AODD, 350, NPT, ADV

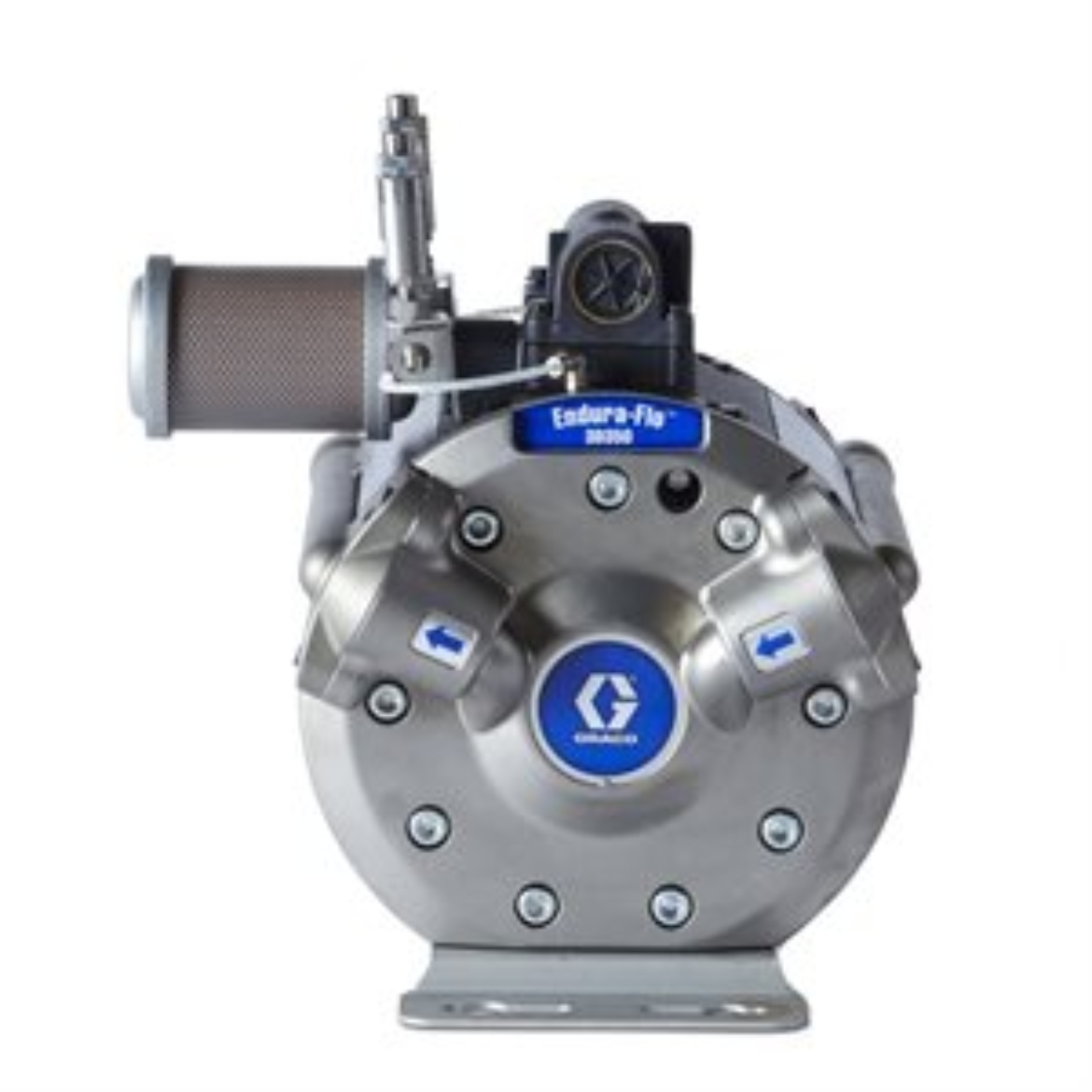

Graco 25M761 Endura-Flo 3D350, 3:1 Air Operated Diaphragm Pump, 350cc, NPT, DataTrak
The Endura-Flo 3D offers extended durability. The isolated air section of the 3:1 Endura-Flo pump prevents fluids from entering the air section and muffler. Ideal for fluid transfer and supply, small paint circulation and piggable paint systems requiring a lower pressure range and seeking extended diaphragm life.
- Endure-Flo diaphragms last longer against extreme operating conditions
- Easy access to critical components for fast online maintenance
- Pumps offer low pulsation output and smooth changeover for quick color changes, saving you time and money
- Custom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges
- DataTrek option prevents runaway and tracks material usage
- Model: Endura-Flo
- Series: 3D350
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: High Solids, Xirallic, CARC, Metallics, Stains, Varnish, Fast-Set
- Connection Type: Threaded
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.905
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Type: NPT
- Includes: NPT Fittings, DataTrak
- Material: Stainless Steel
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 20
- Maximum Flow Rate (GPM): 5.5
- Maximum Flow Rate (L/min): 20.8
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (kPa): 2100
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (kPa): 2100
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
- Maximum Operating Temperature ( degree C): 50
- Maximum Operating Temperature ( degree F): 122
