GG 205626
FIREBALL 425 PUMP, 10:1, UNIVERSAL

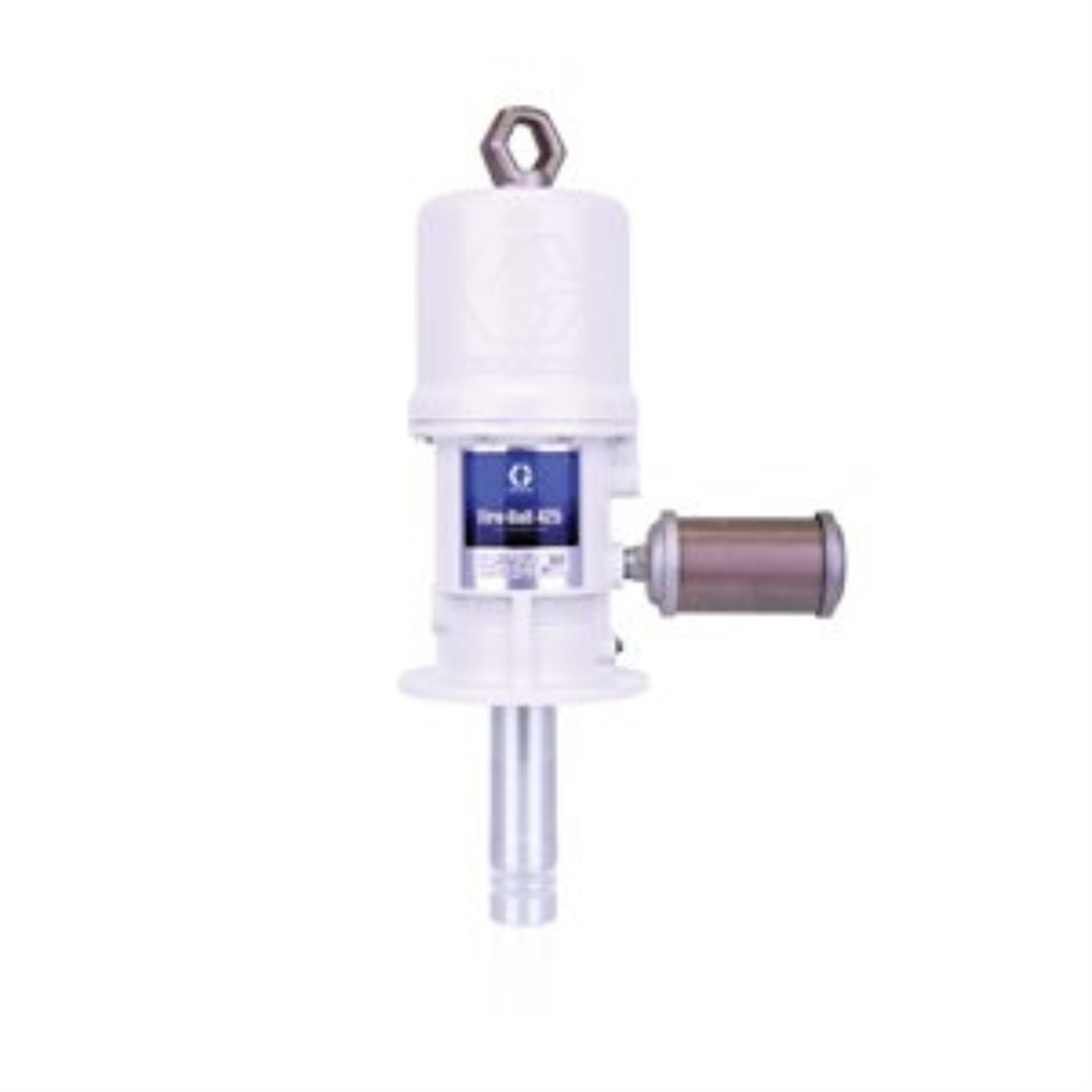

Graco 205626 Fire-Ball 425 Series 10:1 Universal Size Oil Pump
With a large 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!
Application: The Fire-Ball 425 is the pump of choice for your most demanding high volume applications - an ideal choice for applications such as truck fleet service facilities and in-plant applications where multiple dispenses happen at the same time.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
- Model: Fire-Ball
- Series: 425
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Air Motor Effective Diameter (in): 4.25
- Fluid Inlet Size (in): 1-1/2
- Fluid Inlet Size (mm): 38.1
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)
- Maximum Air Inlet Pressure (bar): 12.41
- Maximum Air Inlet Pressure (kPa): 1241
- Maximum Air Inlet Pressure (psi): 180
- Maximum Continuous Cycle Rate (CPM): 66
- Maximum Intermittent Cycle Rate (CPM): 66
- Maximum Working Pressure (bar): 124
- Maximum Working Pressure (kPa): 12400
- Maximum Working Pressure (MPa): 12.4
- Maximum Working Pressure (psi): 1800
