Fusion PC Gun, Rnd, 00

GG 25P587

FUSION PC GUN, RND, 00

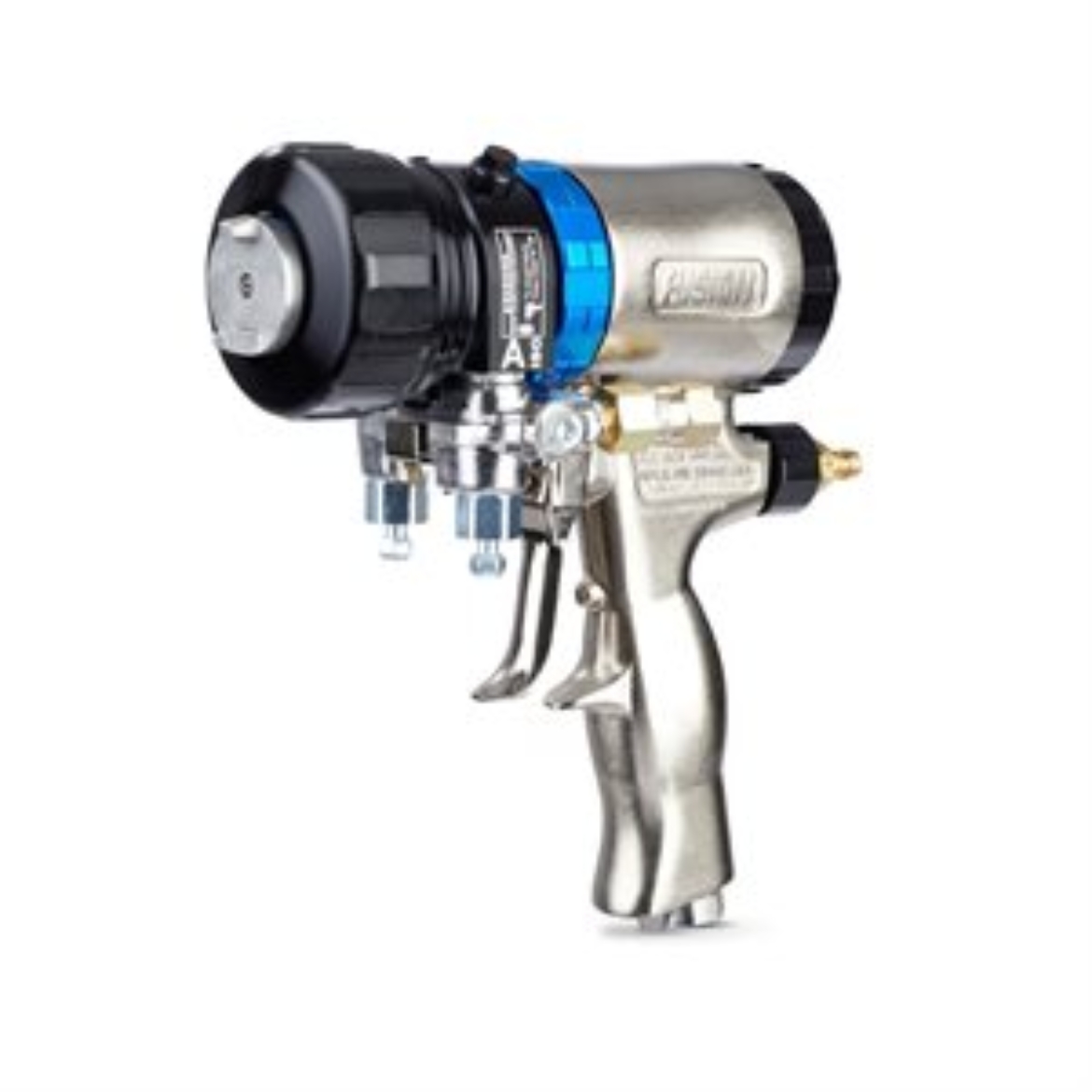

Graco 25P587 Fusion ProConnect Gun with Round 00 Mix Chamber and 0.029 in (0.74 mm) Orifice Size

A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime.

• A single cartridge replaces the entire fluid section in seconds
• Built on top of the time-tested Fusion Air Purge platform, the PC gun sprays exactly like a Fusion AP
• Integrated check valves for cross-over containment
• Eliminates the need to purchase fluid section o-rings
• Spare ProConnect cartridges can replace your back-up guns
• Retrofit Kit available to convert existing Fusion AP guns

• Model: Fusion PC
• Series: Round

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Applicator Type: Manual

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.107
• Fluid Orifice Size (in): .029
• Fluid Orifice Size (mm): 1.07

• For Use With: Non-Flammable Foam and Polyurea

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Air Purge Gun
• Gun Weight (g): 1338
• Gun Weight (kg): 1.3
• Gun Weight (lb): 2.95
• Gun Weight (oz): 47

• Impingement Port Size (in): 0.029
• Impingement Port Size (mm): 0.74
• Includes: PC29RD Mix Chamber Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Working Pressure (bar): 245
• Maximum Fluid Working Pressure (MPa): 24.5
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air
