GG 246679
REACTOR HEATED HOSE, 3500PSI, 3/8 W/SCFGRD

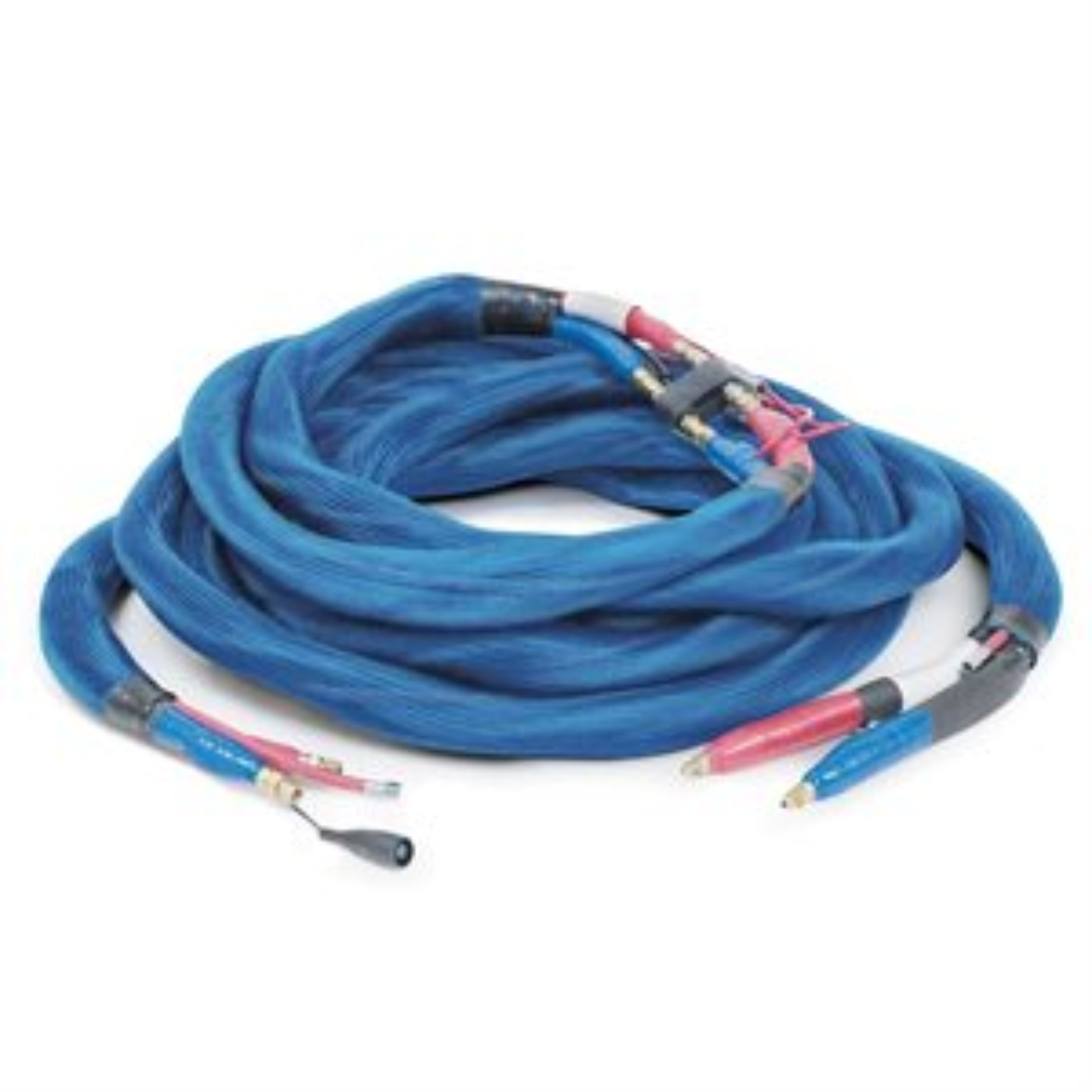

Graco 246679 50 ft x 3/8 in Heated Hose, 3500 psi, Thermocouple, Mesh Scuff, Reactor 1
Graco's heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
Application: For Reactor proportioners.
- New multi-strand copper heating element has greatly increased hose quality:
Provides 10-times* the flex life compared to previous flat copper heating element
Long-term, even heating without hot spots
Backwards compatible with existing Reactor heated hoses
- Copper-heated hoses are designed specifically for use with Graco proportioners
- Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
- Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
- Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
- Helix-design whip hose uses braided copper wires for added flexibility and longer life
- Model: Reactor 1
- Series: Mesh Scuff
- Compatible Sprayer: Reactor 1
- For Use With: Plural Component Proportioners
- Hose Heating Type: External Heated
- Hose Inside Diameter (in): 3/8
- Hose Inside Diameter (mm): 9.525
- Hose Length (ft): 50
- Hose Length (m): 15.2
- Inside Diameter (in): 3/8
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
