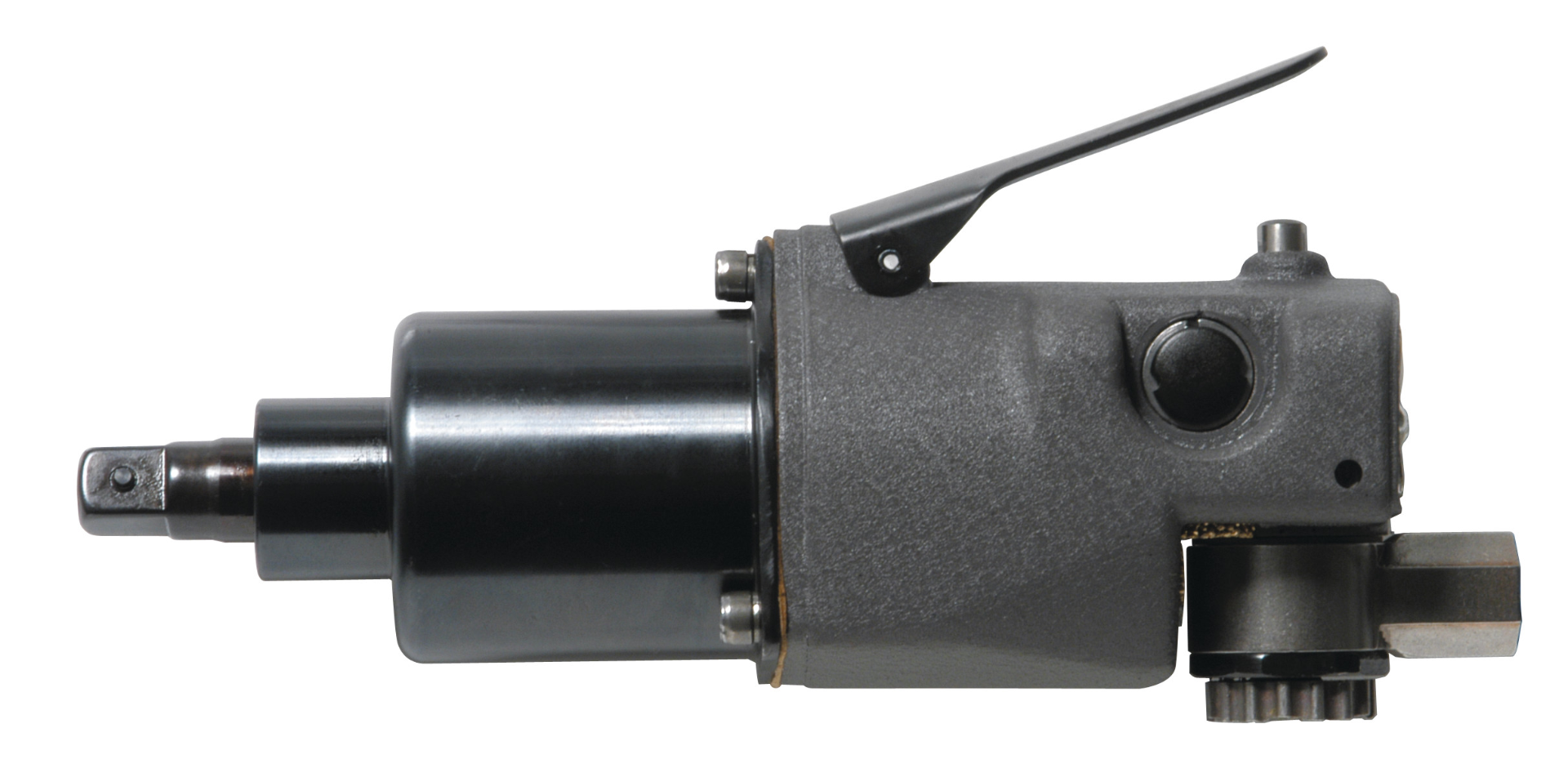

IR 1702SB1
3/8" Air Impact Wrench, 105 ft-lb Torque, Pin Retainer, Inline
The 1702 Series Impact Wrench’s steel hammer case and metal housing ensure a tough, durable tool that’ll help you breeze through any job without having to worry about your tools giving up.
Features And Benefits
- Power: With a jumbo hammer impact mechanism and power regulation, the 1702 Series is powerful and easy to control.
- Reliable: No matter how often you use it, the 1702 Series Impact Wrench will deliver the same high-quality output every time. Comes with a 1-year warranty.
Product Application and Uses: These air impact wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 13
Air Consumption @ Load (l/min): 368
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 1500
Color: Black
Configuration/Handle Type: Straight
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: General Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 83.6 / 94.6
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 86.8 / 97.8
Max Bolt Diameter (in): 0.375
Max Free Speed (rpm): 10000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 105
Max Torque (in-lb): 1257
Max Torque (nm): 142
Min Hose Size (in): 5/16
Motor: Non-Biased
Number of Power Settings: 5
Power Source: Air Powered
Product Length (in): 6.6
Product Width (in): 2
Product Height (in): 3.6
Product Weight (lb): 2.5
Recommended Forward Torque Range (ft-lb): 13-85
Recommended Forward Torque Range (in-lb): 159-1018
Recommended Forward Torque Range (nm): 18-115
Retainer Type: Pin Detent
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 4.2
Warranty: 1-year
