HUSKY PUMP, 1050A-PA01AA3SSSSPTPT

GG 647673

HUSKY PUMP, 1050A-PA01AA3SSSSPTPT

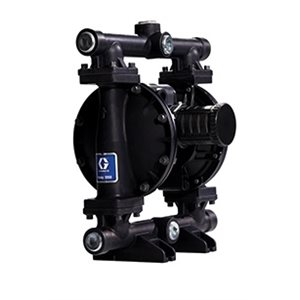

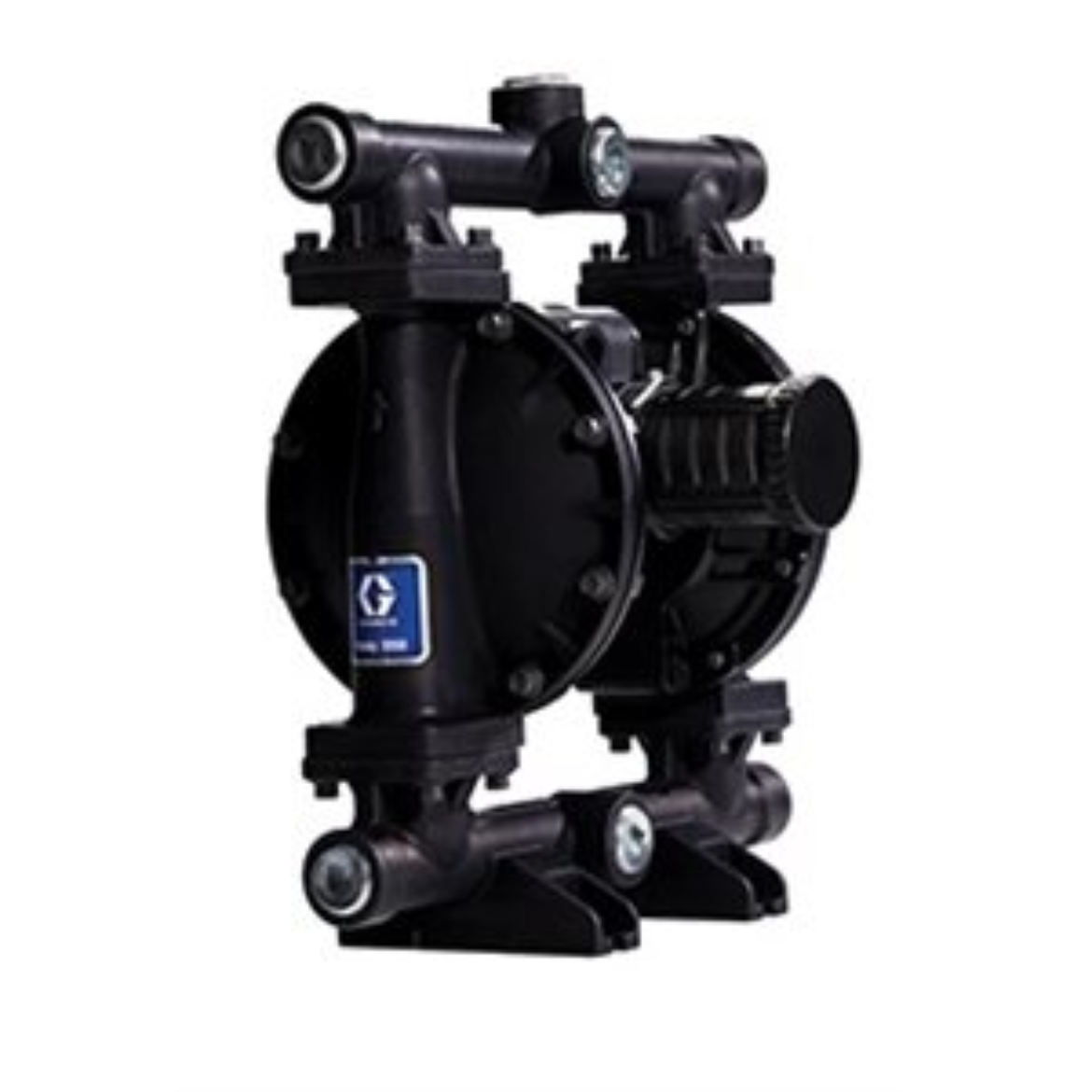

Graco 647673 Husky 1050 Diaphragm Pump: Drum Riser Tube with Stainless Steel Seats and Check Balls

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Longer Diaphragm Life

  Up to 5x longer diaphragm life for less maintenance and downtime

  • Modular Air Valve

    Stall-free, low pulsation operation provides smooth and rapid changeover

    • One-Piece Center Section

      Eliminates air leaks for more efficient operation

      • Multiple Ports

        Increased number of ports for installation flexibility

        • Optional Features

          DataTrak - Runaway protection and tracks material usage

          Pulse Output - Cycle count capability

          • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
          • 30% more efficient than the market leader
          • 20% increase in fluid flow compared to the Husky 1040




          • Model: Husky
          • Series: 1050
          • Compatible Material: Antifreeze, Detergent, Motor Oil, Gear Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water - Freshwater Treatment, Ink and Colorant
          • Fluid Section Material: Aluminum
          • For Use With: HFR Metering System
          • Includes: Riser Tube
          • Material: Carbon Steel
          • Maximum Air Pressure (bar): 8.6
          • Maximum Air Pressure (kPa): 860
          • Maximum Air Pressure (MPa): 0.86
          • Maximum Air Pressure (psi): 125
          • Maximum Cycle Rate (CPM): 280
          • Maximum Fluid Pressure (bar): 8.6
          • Maximum Fluid Pressure (kPa): 860
          • Maximum Fluid Pressure (MPa): 0.86
          • Maximum Fluid Pressure (psi): 125
          • Maximum Fluid Pressure (bar): 8.6
          • Maximum Fluid Pressure (kPa): 860
          • Maximum Fluid Pressure (MPa): 0.86
          • Maximum Fluid Pressure (psi): 125
          • Maximum Working Pressure (bar): 8.6
          • Maximum Working Pressure (kPa): 86
          • Maximum Working Pressure (MPa): 0.9
          • Maximum Working Pressure (psi): 125
          • Power Source: Air
