HUSKY PUMP, 1050A-PA01AA1SSPTPTPT

Manufacturer: GRACO INC. S10595

GG 647028

HUSKY PUMP, 1050A-PA01AA1SSPTPTPT

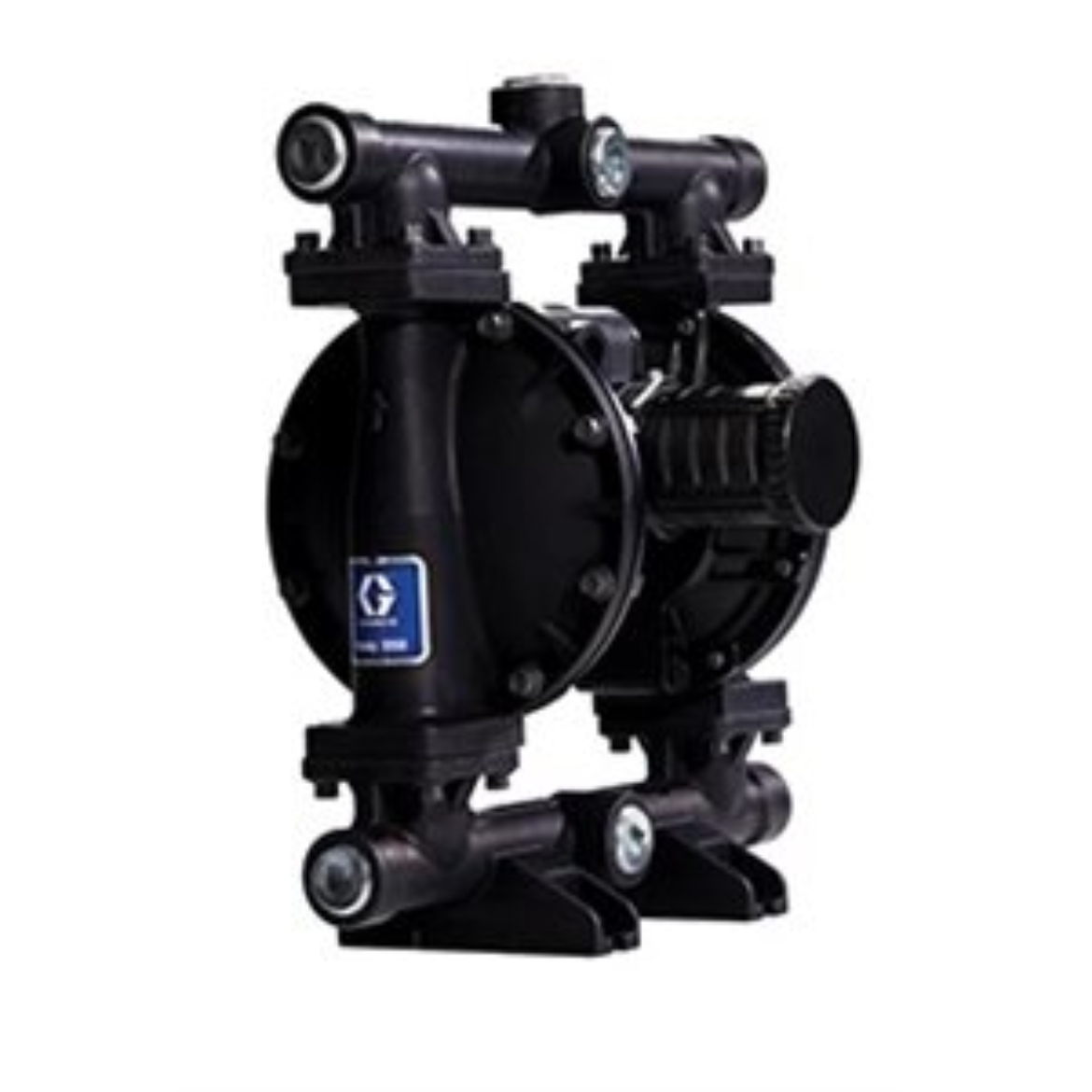

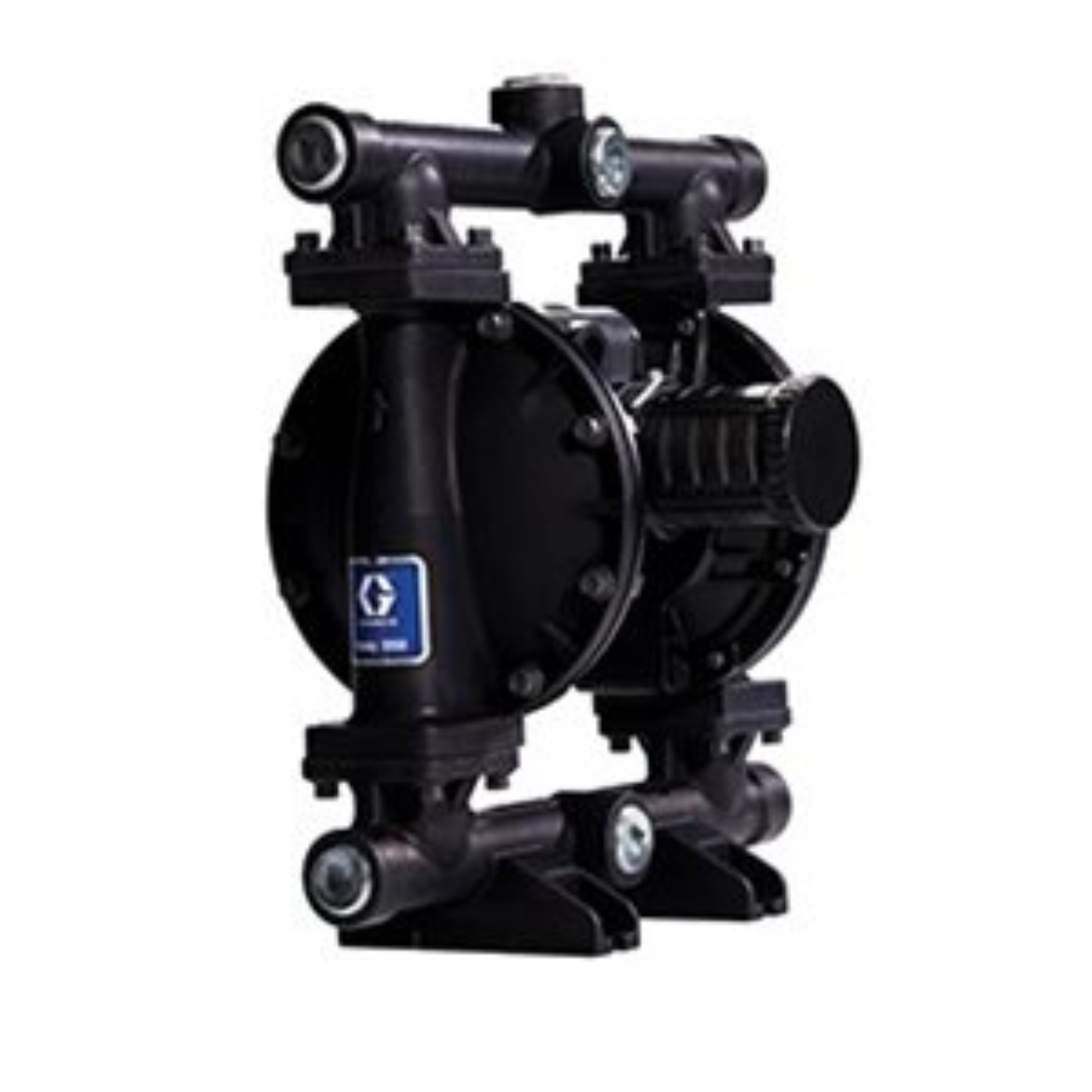

Graco 647028 Husky 1050 AL 1 in. (25.4 mm) NPT Pump, Standard AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm

The Husky 1050 air-operated diaphragm pump features a stall-free, low-pulsation air valve that provides smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance when compared to other diaphragm pumps.

  • Longer Diaphragm Life

    Up to 5x longer diaphragm life for less maintenance and downtime.

  • Modular Air Valve

    Stall-free, low-pulsation operation provides smooth and rapid changeover.

  • One-Piece Center Section

    Eliminates air leaks for more efficient operation.

  • Multiple Ports

    Increased number of ports for installation flexibility.

  • Optional Features
    • DataTrak™ – Runaway protection and tracks material usage.
    • Pulse Output – Cycle count capability.
    • Spring-loaded, externally serviceable pilot valves for faster changeover and reduced pulsation.
    • 30% more efficient than the market leader.
    • 20% increase in fluid flow compared to the Husky 1040.

Specifications

  • Model: Husky
  • Series: 1050
  • Air Exhaust Port Size (in): 3/4
  • Air Exhaust Port Thread Gender: Female
  • Air Exhaust Port Thread Type: NPT
  • Air Inlet Size (in): 1/2
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Industrial
  • Ball Material: PTFE
  • Center Section Material: Aluminum
  • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
  • Connection Type: Threaded
  • Diaphragm Compatible Material: PTFE
  • Diaphragm Material: PTFE/EPDM 2-Piece
  • Fluid Inlet Size (cm): 2.54
  • Fluid Inlet Size (in): 1
  • Fluid Inlet Size (mm): 25.4
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (cm): 2.54
  • Fluid Outlet Size (in): 1
  • Fluid Outlet Size (mm): 25.4
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • Fluid Section Material: Aluminum
  • Manifold Configuration: Center Port, End Port
  • Manifold O-Ring Material: PTFE
  • Material: Aluminum
  • Maximum Air Consumption (SCFM): 67
  • Maximum Air Pressure (bar): 8.6
  • Maximum Air Pressure (kPa): 860
  • Maximum Air Pressure (MPa): 0.86
  • Maximum Air Pressure (psi): 125
  • Maximum Cycle Rate (CPM): 280
  • Maximum Flow Rate (GPM): 50
  • Maximum Flow Rate (L/min): 189
  • Maximum Fluid Pressure (bar): 8.6
  • Maximum Fluid Pressure (kPa): 860
  • Maximum Fluid Pressure (MPa): 0.86
  • Maximum Fluid Pressure (psi): 125
SKU: GG 647028
Availability:
Price: $2,230.00
