GG 651009

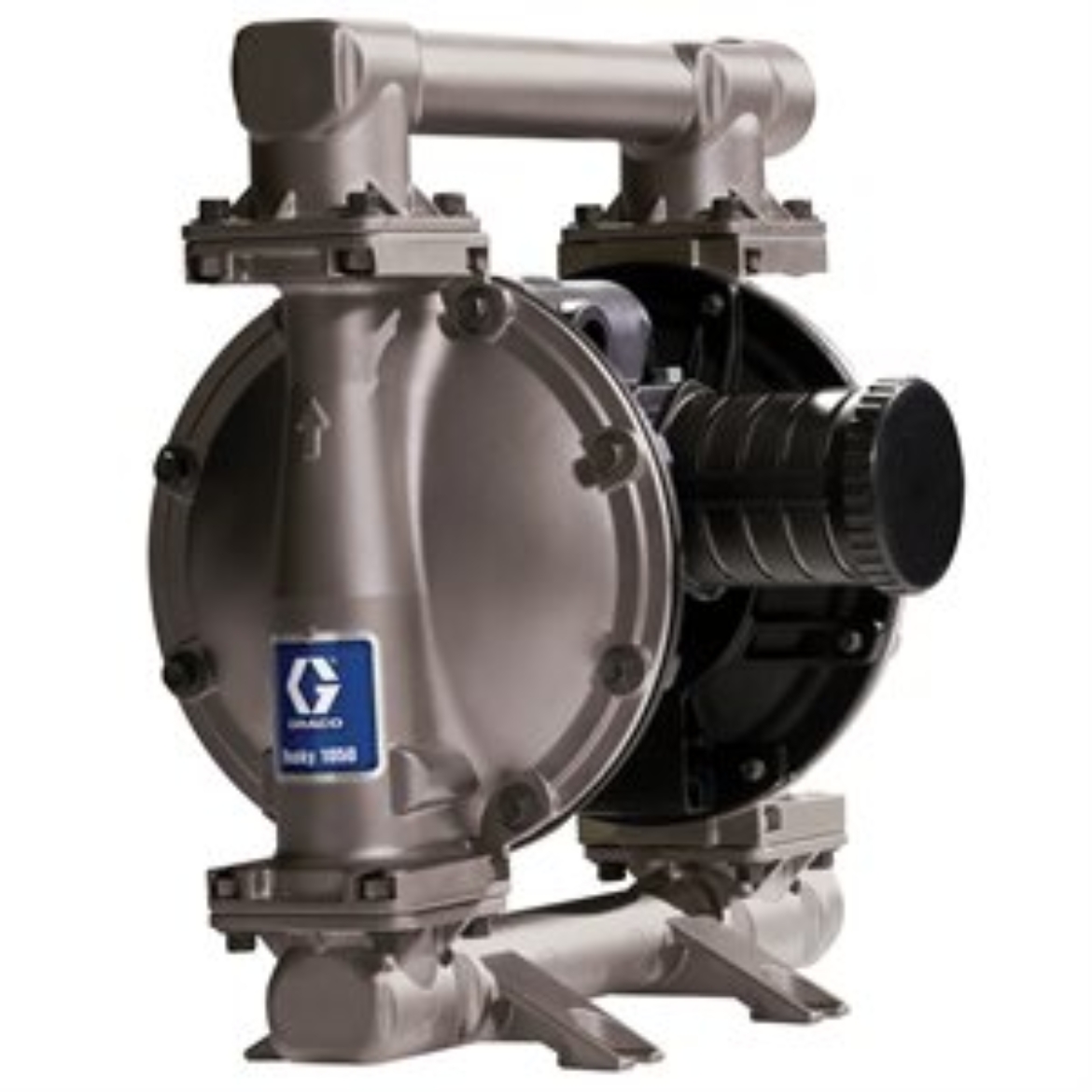

HUSKY PUMP, 1050S-A01AS1SSPTPTPT
Graco 651009 Husky 1050 SS 1 in. (25.4 mm) NPT Pump,
AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm
The Husky 1050 air-operated diaphragm pump features a stall-free,
low-pulsation air valve that provides smooth and rapid changeover.
The one-piece center section eliminates leaks and reduces maintenance
on Husky pumps when compared to other diaphragm pumps.
-
Longer Diaphragm Life
Up to 5x longer diaphragm life for less maintenance and downtime.
-
Modular Air Valve
Stall-free, low-pulsation operation provides smooth and rapid changeover.
-
One-Piece Center Section
Eliminates air leaks for more efficient operation.
-
Multiple Ports
Increased number of ports for installation flexibility.
-
Optional Features
- DataTrak™ – Runaway protection and tracks material usage.
- Pulse Output – Cycle count capability.
- Spring-loaded, externally serviceable pilot valves for faster changeover and reduced pulsation.
- 30% more efficient than the market leader.
- 20% increase in fluid flow compared to the Husky 1040.
Specifications
- Model: Husky
- Series: 1050
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Ball Material: PTFE
- Center Section Material: Aluminum
- Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
- Connection Type: Threaded
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE/EPDM 2-Piece
- Fluid Inlet Size (cm): 2.54
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 25.4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 2.54
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Material: Stainless Steel
- Manifold Configuration: Center Port, End Port
- Manifold O-Ring Material: PTFE
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 67
- Maximum Air Pressure (bar): 8.6
- Maximum Air Pressure (kPa): 860
- Maximum Air Pressure (MPa): 0.86
- Maximum Air Pressure (psi): 125
- Maximum Cycle Rate (CPM): 280
- Maximum Flow Rate (GPM): 50
- Maximum Flow Rate (L/min): 189
- Maximum Fluid Pressure (bar): 8.6
- Maximum Fluid Pressure (kPa): 860
- Maximum Fluid Pressure (MPa): 0.86
- Maximum Fluid Pressure (psi): 125
