Husky Pump, 2150A-Pa01Aa1Tpactp

GG DF3525

HUSKY PUMP, 2150A-PA01AA1TPACTP

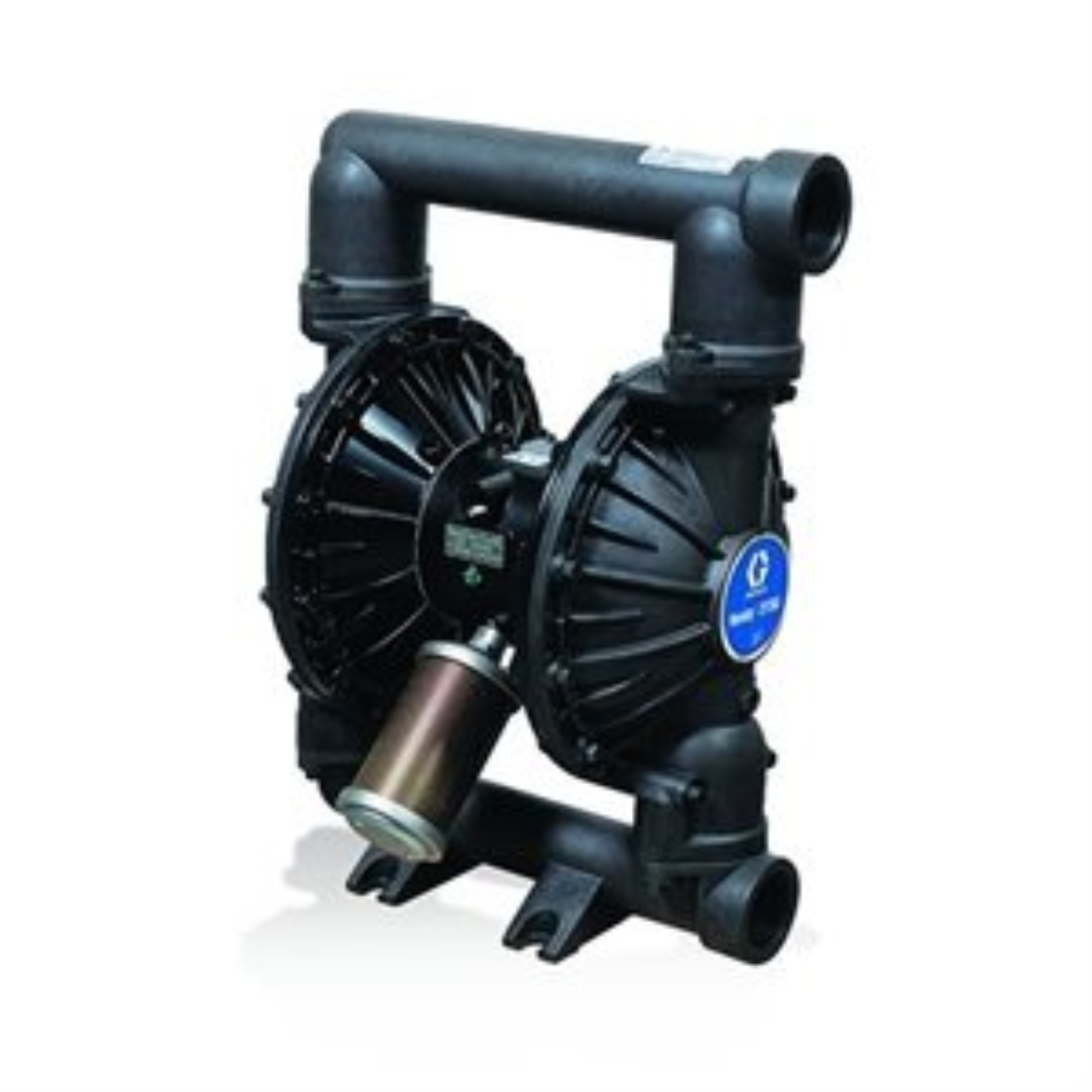

Graco DF3525 Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE/AC

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

• Overall improved efficiency (up to 40% more efficient)
• Highest fluid flow rate in its class
• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
• Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
• 2 in. (51 mm) ANSI end-porting
• Fluid flow up to 150 gpm (568 lpm)
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Lube-free operation
• Epoxy-coated air section for tough environmental conditions
• Available in aluminum, 316 stainless steel, ductile iron and polypropylene

• Model: Husky
• Series: 2150

• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Acetal

• Center Section Material: Aluminum

• Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer

• Connection Type: Threaded

• Diaphragm Compatible Material: TPE
• Diaphragm Material: TPE (Hytrel)

• Fluid Inlet Size (cm): 5.08
• Fluid Inlet Size (in): 2
• Fluid Inlet Size (mm): 50.8
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 5.08
• Fluid Outlet Size (in): 2
• Fluid Outlet Size (mm): 50.8
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Aluminum

• Manifold Configuration: End Port
• Material: Aluminum

• Maximum Air Consumption (SCFM): 175
• Maximum Air Pressure (bar): 8.27

• Maximum Air Pressure (kPa): 827
• Maximum Air Pressure (MPa): 0.827
• Maximum Air Pressure (psi): 120

• Maximum Cycle Rate (CPM): 145

• Maximum Flow Rate (GPM): 150
• Maximum Flow Rate (L/min): 568

• Maximum Fluid Pressure (bar): 8.27
• Maximum Fluid Pressure (kPa): 827
• Maximum Fluid Pressure (MPa): 0.827
• Maximum Fluid Pressure (psi): 120

• Maximum Fluid Pressure (bar): 8.27
• Maximum Fluid Pressure (kPa): 827
• Maximum Fluid Pressure (MPa): 0.827
• Maximum Fluid Pressure (psi): 120

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Solid Size (cm): 0.635
• Maximum Solid Size (in): 0.25
• Maximum Solid Size (mm): 6.35

• Power Source: Air
