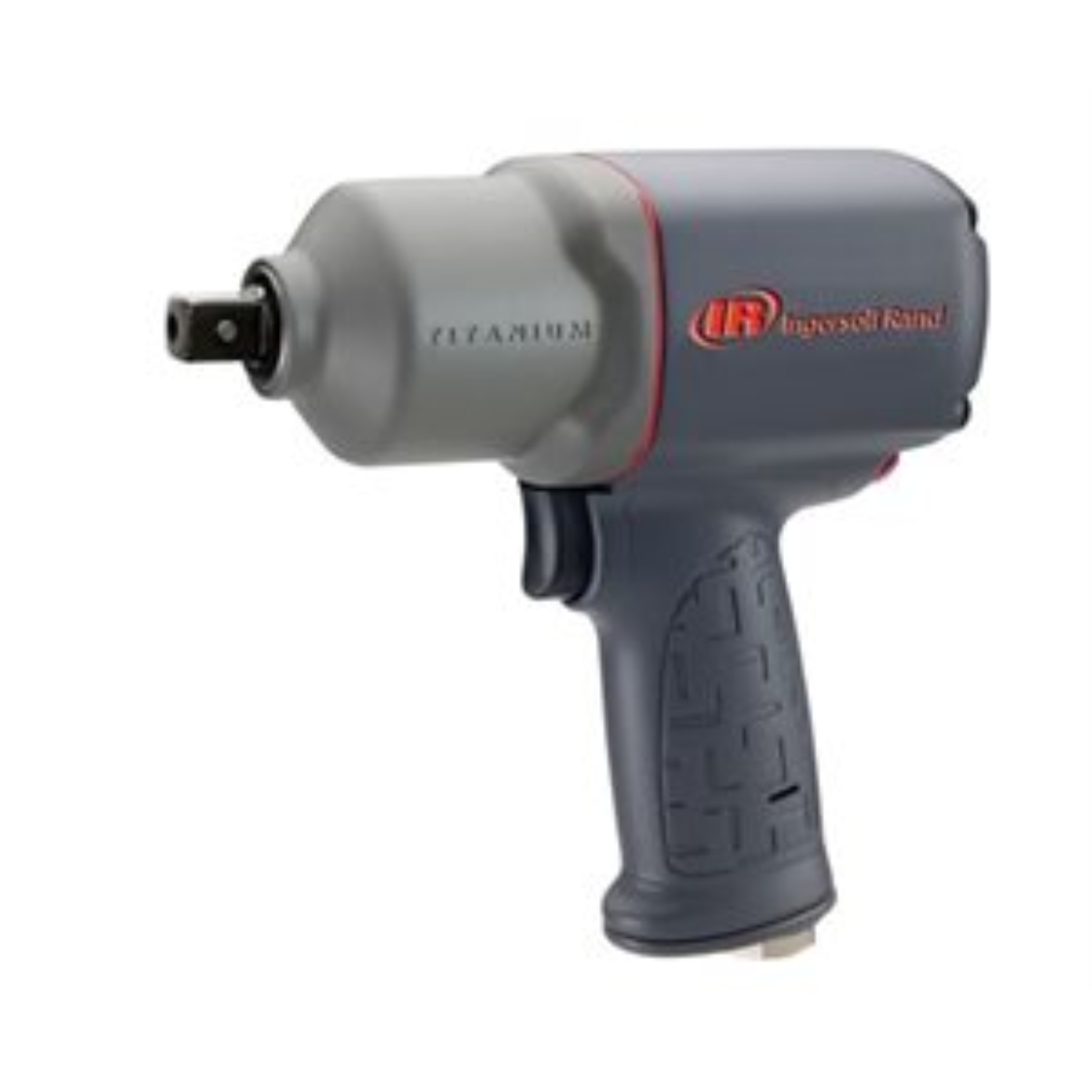

Impact, 1/2in, Pin Type,550 ft Lbs

IR 2135PTIMAX

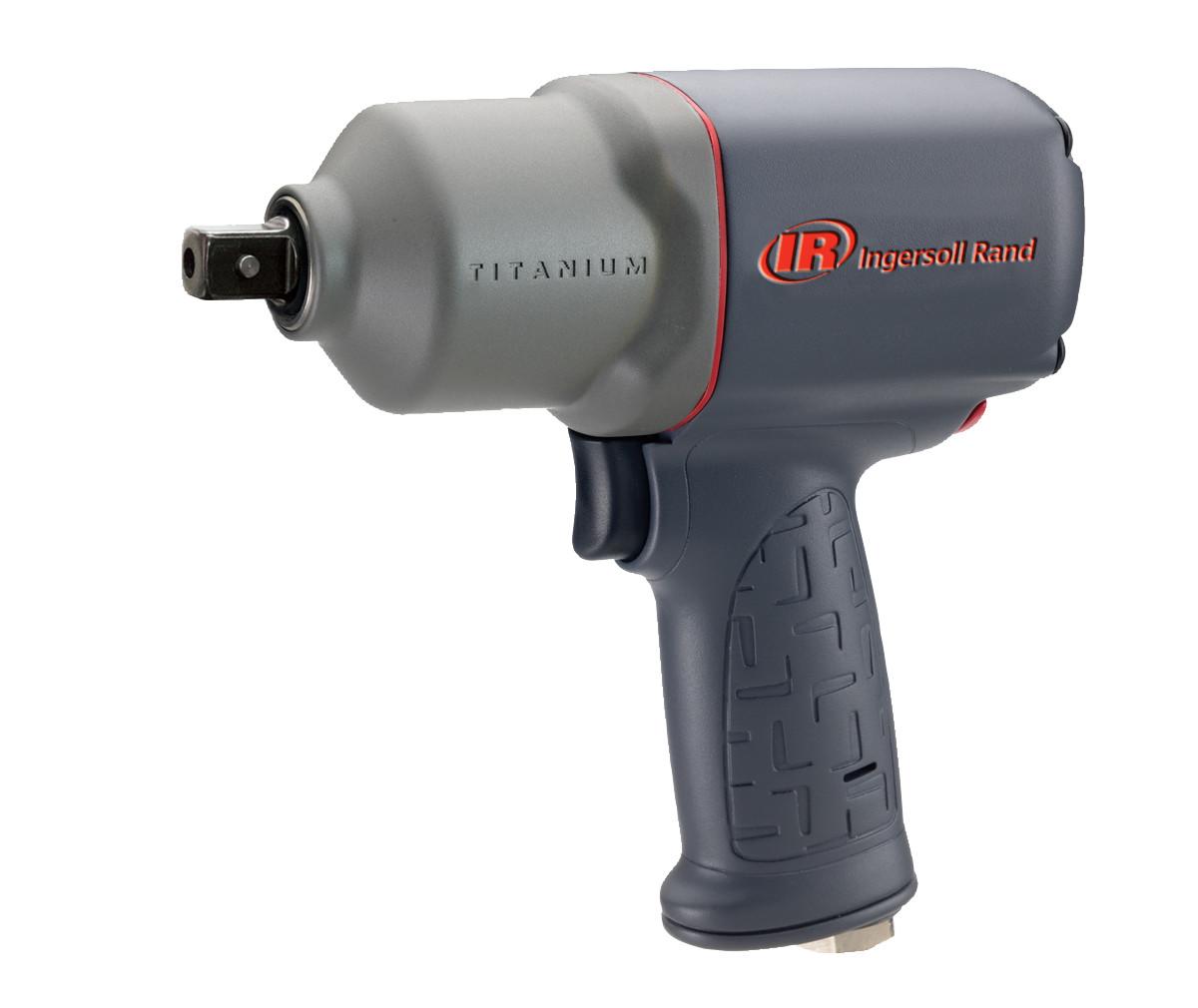

1/2" Air Impact Wrench, 1100 ft-lb Torque, Titanium Hammercase, Pin Retainer, Pistol

Description: Powerful, durable and reliable, the 2135PTiMAX Series Impact Wrench will excel in any market.

Features And Benefits:

• Power: This wrench's high torque output and power regulator allow easy control over your tool.
• Durability: With a composite housing and a hammer case made of titanium, this wrench can endure repeated drops and harsh environments.
• Reliability: With twin hammer mechanism and powerful motor, the 2135PTiMAX is built not only for performance, but to last. Comes with a 1-year warranty.

Product Application and Uses:

Designed to remove and install threaded fasteners for vehicle repair, general industrial, facility maintenance applications.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 5
• Average Air Consumption (l/min): 142

• Blows per Min: 1250

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 109.2 / 120.2

• Hammer Case: Titanium
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 99.8 / 110.8

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 9800
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 780
• Max Torque (in-lb): 9364
• Max Torque (nm): 1058
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 4
• Nut-busting/Breakaway Torque (ft-lb): 1100
• Nut-busting/Breakaway Torque (in-lb): 13196
• Nut-busting/Breakaway Torque (nm): 1491
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 278.48
• Product Length (in): 7.35

• Product Width (in): 2.7
• Product Height (in): 7.2
• Product Weight (lb): 3.95
• Recommended Forward Torque Range (ft-lb): 600
• Recommended Forward Torque Range (in-lb): 7196
• Recommended Forward Torque Range (nm): 813
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.37
• Side to Center Distance (mm): 35

• Special Features: Titanium Hammer case
• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 13.3
• Warranty: 1-year

• Accessories: 2135M-BOOT
• Accessories: 2350-BOOT

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2135-638
• Parts: 2135-THK1

• Parts: 2135-TK2
• Parts: 2135PTI-THK1
• Parts: 231B-A726
