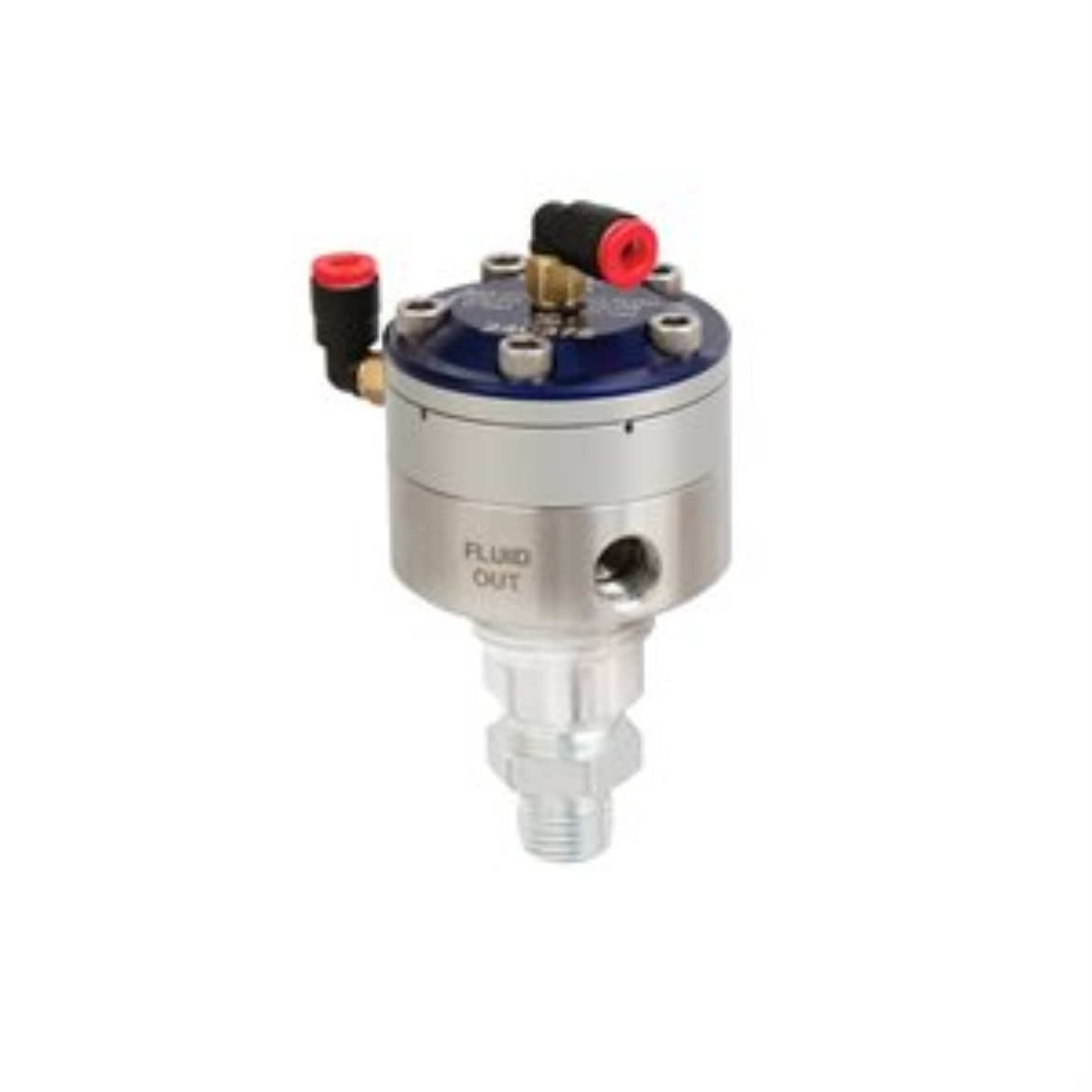

Low Flow Fluid Regulator, 1:1 Ratio

GG 24C375

REGULATOR, FLUID, 1:1 RATIO

Graco 24C375 1:1 Precision Flow Fluid Pressure Regulator, 90 psi (6.2 bar) max pressure, silver ratio spacer

Fluid regulators keep your system functioning more productively.

• Available with mechanical control or pneumatic control
• Suitable for fluids with low and high viscosities
• Models available with wetted parts made of stainless steel

• Actuation Type: Air

• Includes: Regulator Only
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Regulated Pressure (bar): 7
• Maximum Regulated Pressure (kPa): 700
• Maximum Regulated Pressure (MPa): 0.7
• Maximum Regulated Pressure (psi): 100

• Maximum Working Pressure (bar): 6.3
• Maximum Working Pressure (kPa): 630
• Maximum Working Pressure (MPa): 0.6
• Maximum Working Pressure (psi): 90

• Minimum Working Pressure (bar): 0.069
• Minimum Working Pressure (kg/cm 2): 0.07
• Minimum Working Pressure (kPa): 6.9

• Minimum Working Pressure (psi): 1

• Outlet Size (cm): 0.3175
• Outlet Size (in): 1/8
• Outlet Size (mm): 3.175
