GG 17C751
LUBEPRO A2600 PUMP, LL, GREASE

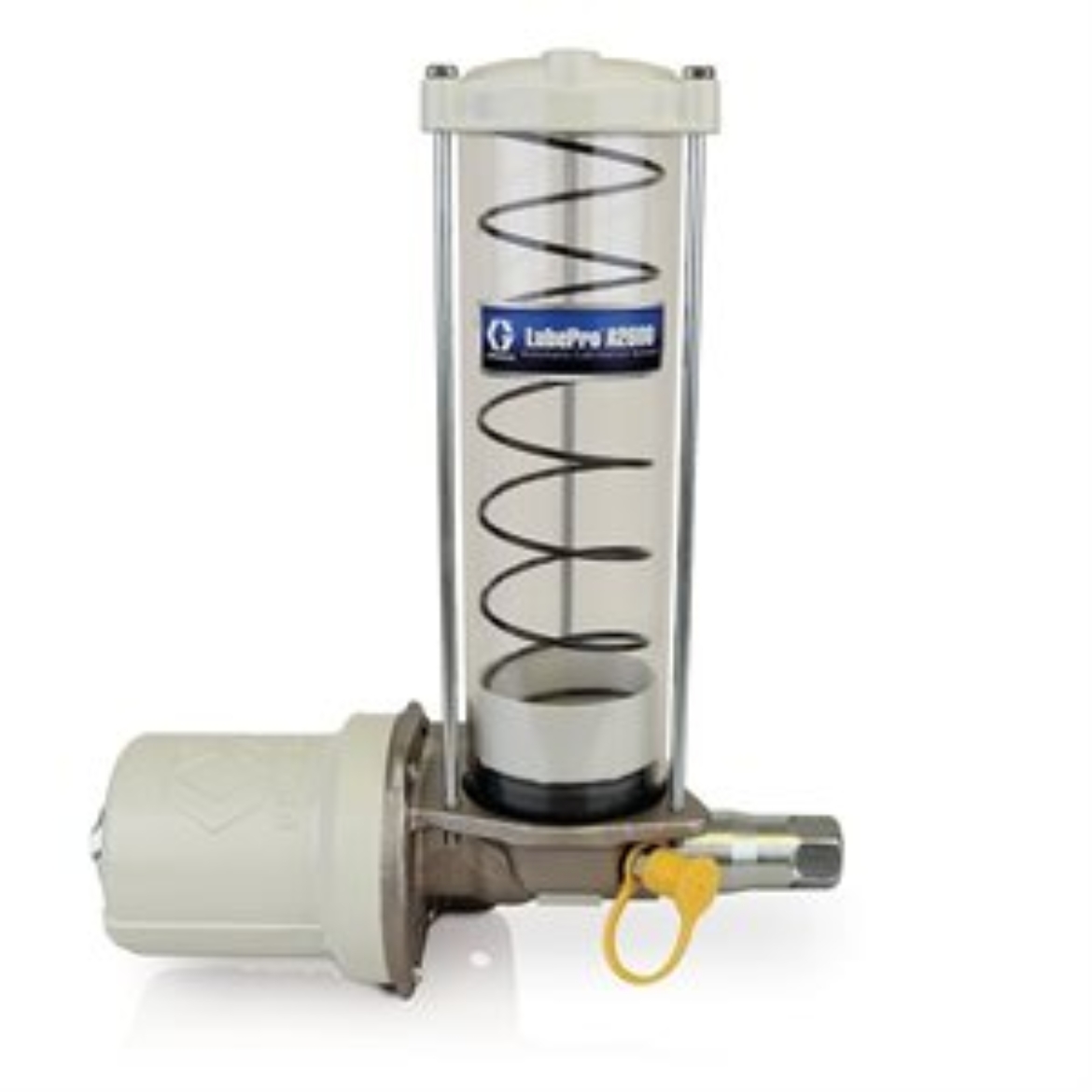

Graco 17C751 LubePro™ A2600 Horizontal Grease Pump, 2 L Reservoir, Normally Open, Low Level - NPT
Without proper lubrication your factory&prime, s machines can suffer from downtime and reduced life, which impacts your company&prime, s bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco&prime, s Fire-Ball pump - the leader in durability and quality for over 50 years.
Application: Single Stroke Grease Pump for Automatic Lubrication
- LubePro A2600 is compatible with GL-1, GL-32 and GL-33 injectors
- Pressure Ratio of 26:1
- A2600 delivers a greater output than competitive models at 2.2 in³ (36.05 cm³) per stroke
- Optional Low Level Detection available, factory installed
- Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
- Built with high-quality seals tested to outperform the competition
- High-strength, shatter resistant, 2 liter reservoir
- Optimally lubricates while your machines are running
- Provides accurate, reliable lubrication for every lube point
- Provides higher lube output and faster lubrication cycle
- Model: LubePro
- Series: A2600
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Application: In-Plant Machinery
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive, Single Line Parallel
- Fluid Outlet Size (in): 0.75
- Fluid Outlet Size (mm): 19.0500
- Fluid Outlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 9.31
- Maximum Air Inlet Pressure (kPa): 931
- Maximum Air Inlet Pressure (psi): 135
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (MPa): 24.1
- Maximum Working Pressure (psi): 3500
- Overall Height (cm): 47.3
- Overall Height (in): 18.62
- Overall Height (mm): 473
