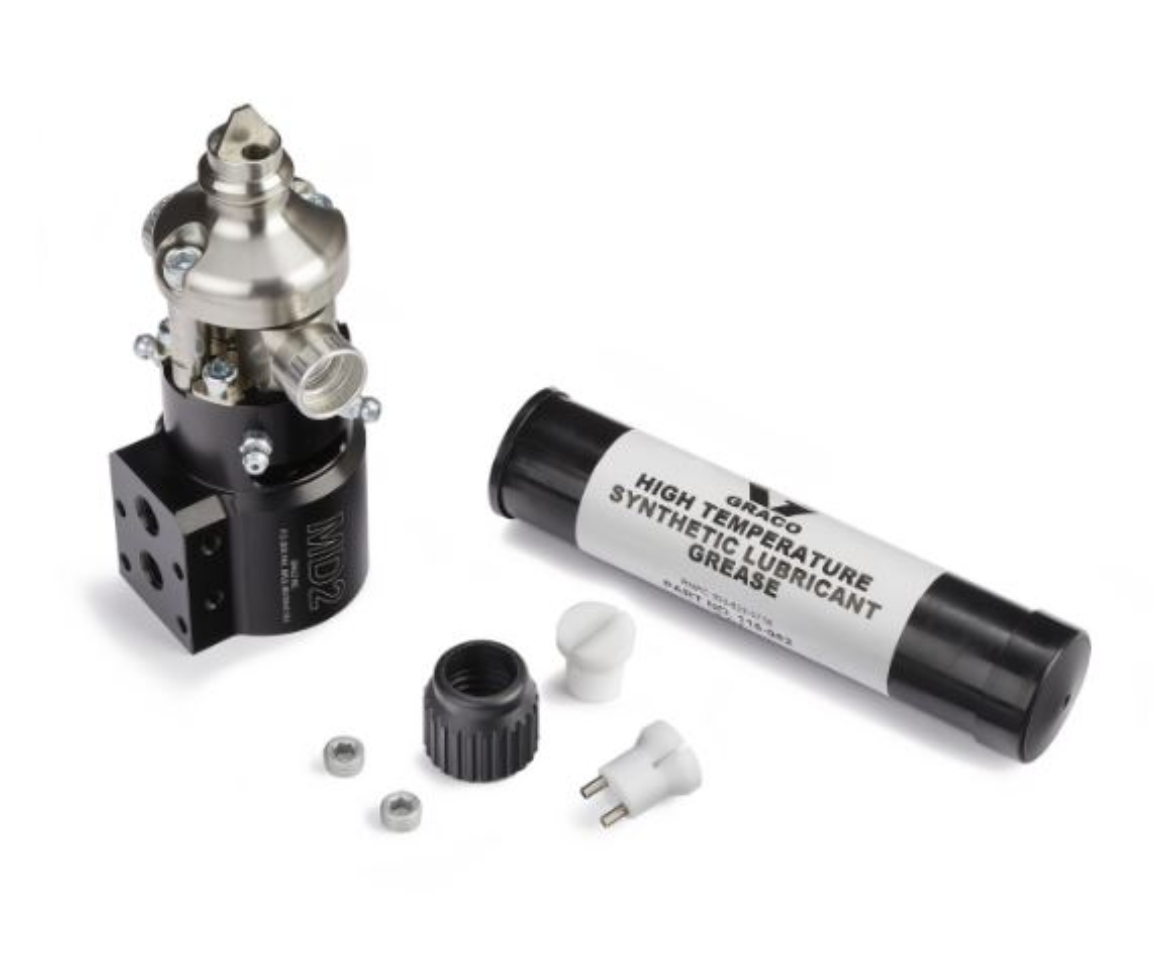

MD2 VALVE, DISPENSE, 1:1, ELITE, SNUFF

GG 255901

MD2 VALVE, DISPENSE, 1:1, ELITE, SNUFF

MD2 Valve, 1:1 Ratio, Elite Hard Seat, Non-adjustable Snuff-back Mixing dispense (MD) valve for 2 component materials minimizes maintenance while maximizing production. Static valve with Elite construction reliably dispenses highly abrasive thermal interface materials (TIMs), silicones, urethanes, and epoxies. 1:1 ratio nose handles a wide range of material. Hard seats with Elite construction withstand highly abrasive material at least 10 times longer than standard construction. (Data verified in Graco test environment.) Snuff-back control prevents dripping as it brings material back into the valve until next dispense. Non-adjustable snuff-back control keeps shut-off performance consistent for a clean bead dispense. Maximum flow rate is 25 to 30 cc/s, depending on material viscosity. No unique tools are required for maintenance or repair. Grease isolation chamber protects moisture sensitive materials and has accessible grease fittings for easy maintenance No unique tools required
