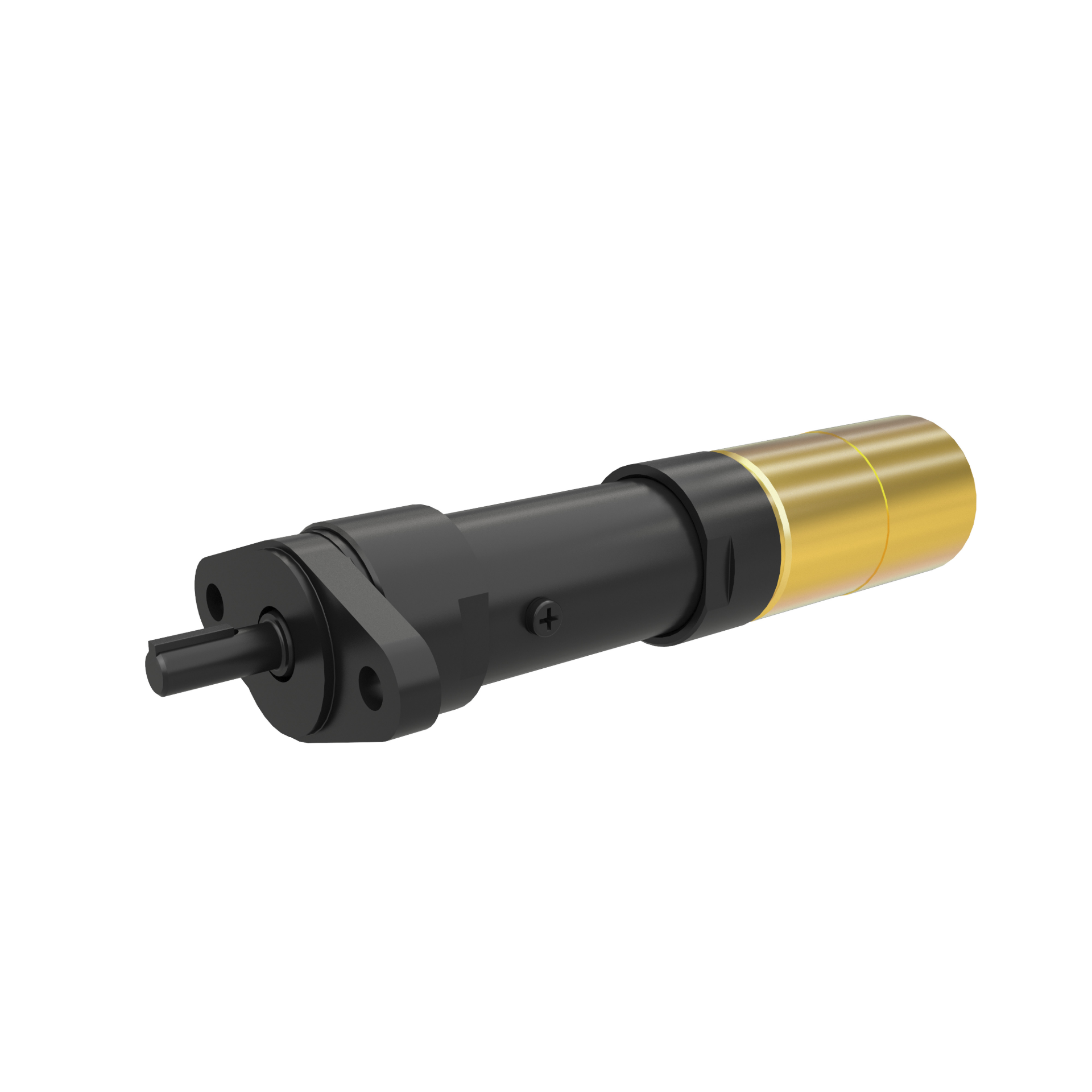

IR M004RVR004AR3
Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 3955 RPM, 0.37 HP, 2.05 NM, Reversible
Features And Benefits
- Safety: Meets ATEX Standards
Air Consumption at Max HP (scfm): 18.5
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 4:1
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 3955
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1.5
Max Torque (in-lb): 18
Max Torque (nm): 2.05
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 2.19
Rated Power (hp): 0.37
Rated Power (kW): 0.28
Reversible: Reversible
Speed at Max Power (rpm): 1975
Standards/Certifications: ATEX
Starting Torque (ft-lb): 1.1
Starting Torque (nm): 1.53
Warranty: 1-year
