Pump, Transfer, 3:1, T3

GG 26A304

T3 PUMP, TRANSFER, 3:1

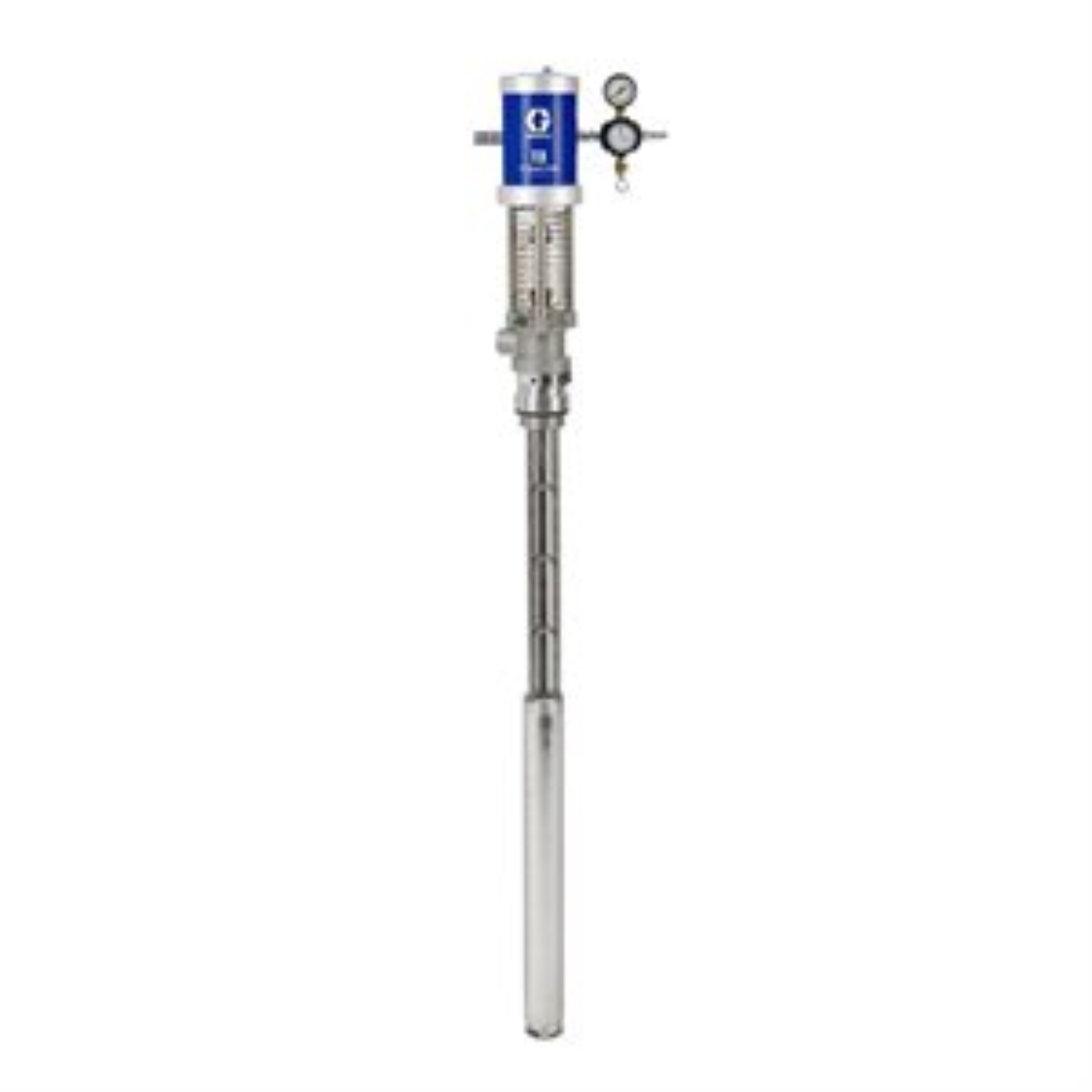

Graco 26A304 T3 Supply Pump (Stainless Steel): 3:1 Fluid to Air Ratio

Transfer Pumps are required to move A and B materials to the Reactor Spray Systems. The T3 Transfer Pump combines Graco's proven Merkur air-motor and popular T2 stainless steel lower. The T3 is a 3:1 ratio pump - using less air pressure to provide the same fluid pressure required.

• Easier to maneuver - The overall height of the T3 is 3.7 inches (9.4 cm) shorter above the drum than the T2, making it easier to remove from the drum inside of a spray rig.
• More quiet - Studies show the T3 Transfer Pump is about 3x more quiet than the T2 Transfer Pump.
• Less maintenance - the Merkur air-motor is based on air pilot valve technology. The air-motor switching is purely pneumatic. This differs from T1 and T2 Transfer Pumps, which use a mechanical reversing mechanism in the air-motor.

• Model: T3
• Series: Stainless Steel

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Polyurethane Foam, Polyurea

• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fluid Supply Kit, Air Hose Kit

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (MPa): 0.69
• Maximum Air Inlet Pressure (psi): 100

• Maximum Working Pressure (bar): 21.7
• Maximum Working Pressure (kPa): 2170
• Maximum Working Pressure (MPa): 2.2
• Maximum Working Pressure (psi): 315

• Package Options: Bare

• Pump Ratio: 3:1
