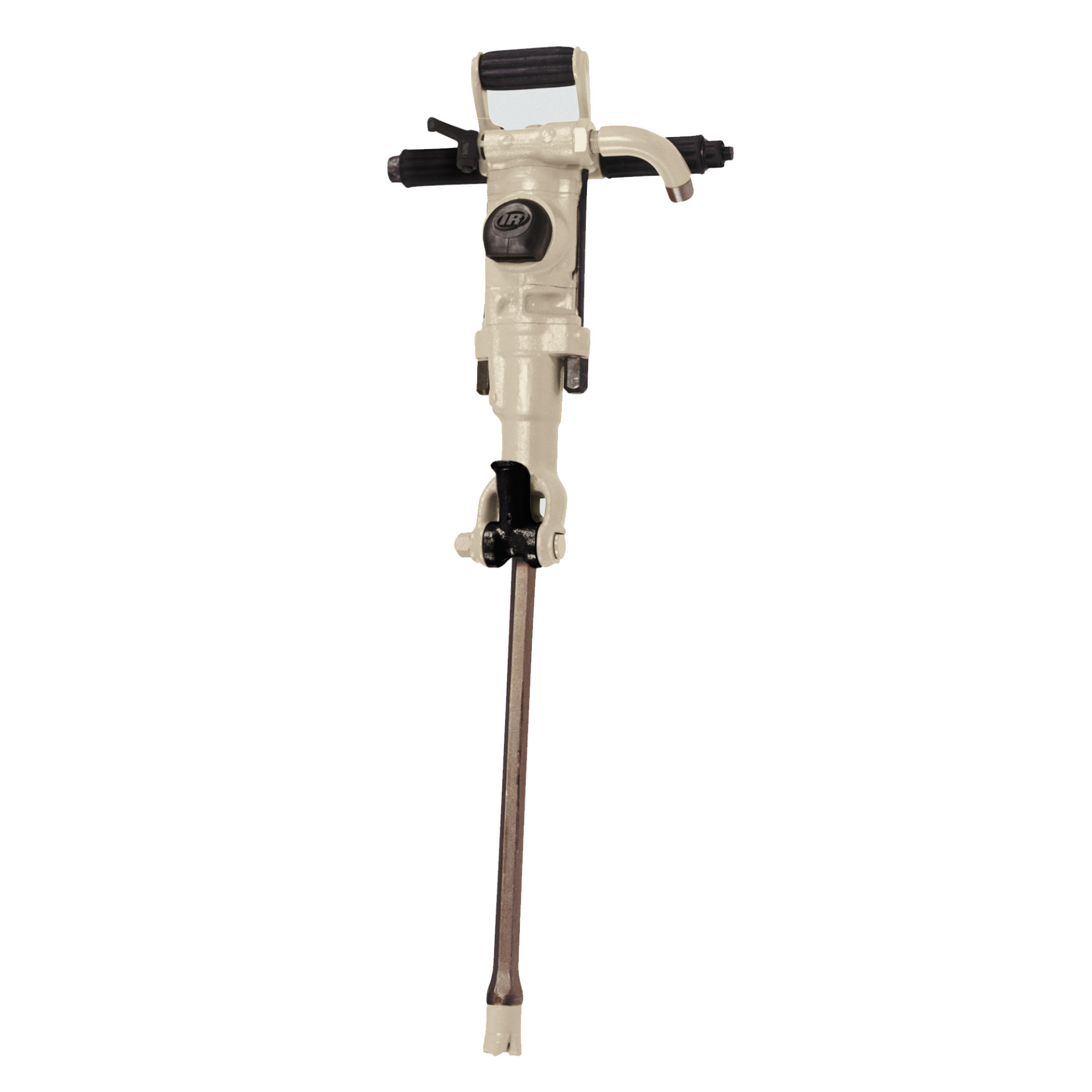

IR JRD30-A
Rock Drill, 7/8 x 3-1/4" Hex Shank, 1.44" Stroke
The JRD30 Series rock drill is one of our most versatile units. Perfect for both wet and dry drill jobs, the JRD30 can be used to drill up to 10 feet deep and 1.5 inches wide in concrete or soft to medium rock.
Features And Benefits
- Easy Access: The JRD30 Series is easy enough to maneuver in tight spaces, and light enough to use when the occasion calls for horizontal drilling.
- Wet Drilling Capabilities: Take this drill anywhere it needs to go - but wet drilling environments in particular can extend the life of your tool.
- Lightweight: This rock drill is lightweight but powerful, and durable enough to stand up to the toughest conditions.
Product Application and Uses: Perfect for both wet and dry drill jobs, the JRD30 can be used to drill up to 10 feet deep and 1.5 inches wide in concrete or soft to medium rock.
Air Consumption @ Load (cfm): 73
Air Consumption @ Load (l/min): 2067
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 2700
Bore Diameter (in): 2.38
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Exhaust Location: Front
Max Hole Depth (ft): 10
Max Hole Diameter (in): 1.5
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 19.5
Product Weight (lb): 29
Shank SIze (in): 7/8 x 3-1/4
Shank Type: Hex
Stroke Length (in): 1.44
Warranty: 1-year
