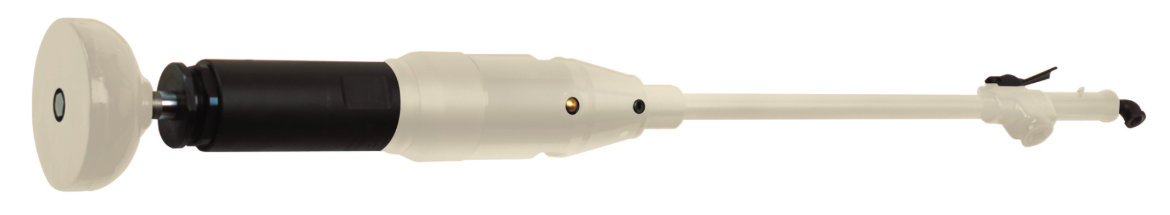

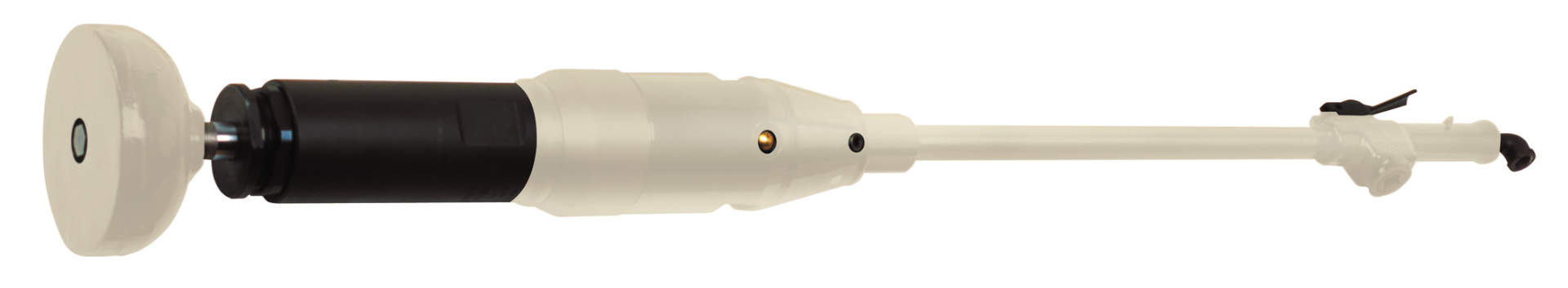

IR 441A2
Pneumatic Backfill Tamper, 5.75" Round Malleable Butt, 4" Stroke, 2" Bore
With dual-action sand wipers, a built-in muffler and a side exhaust, this tool is built for heavy use. These tools are commonly used by municipal and utility crews for compacting around both utility line repairs and new installations such as street lights, fire hydrants, and telephone poles prior to pouring concrete. In addition, this proven tool is ideal for backfilling around foundations or other tight areas.
Features And Benefits
- Durability: With a plated piston and front-end seal to protect your tool, this Backfill Tamper can be used in the toughest environments. The sand-wiper seal prevents dirt and grit from getting inside the tool.
- Reliability: Thanks to a built-in lubricator, these tools are built to run smoothly and last, while extending overall operating life. Comes with a 1-year warranty.
- Power: Thanks to its high-power output, you’ll be able to breeze through any job.
Product Application and Uses: These tools are commonly used by municipal and utility crews for compacting around both utility line repairs and new installations such as street lights, fire hydrants, and telephone poles prior to pouring concrete. In addition, this proven tool is ideal for backfilling around foundations or other tight areas.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 36
Air Consumption @ Load (l/min): 1020
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1750
Bore Diameter (in): 2
Butt Diameter (in): 5.75
Butt Material: Malleable/ Steel
Butt Shape: Round
Color: Beige
Configuration/Handle Type: Straight
Duty Rating: Super Duty
Exhaust Location: Side
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: Built In
Power Source: Air Powered
Product Length (in): 50.88
Product Weight (lb): 21.4
Retainer Type: Latch
Shank Opening: 1" Tapered Rod
Special Features: Time Tested Valve Design, Round Piston Rod, Built In Muffler, Optional Front End Butts Available.
Steels: Yes
Stroke Length (in): 4
Warranty: 1-year
